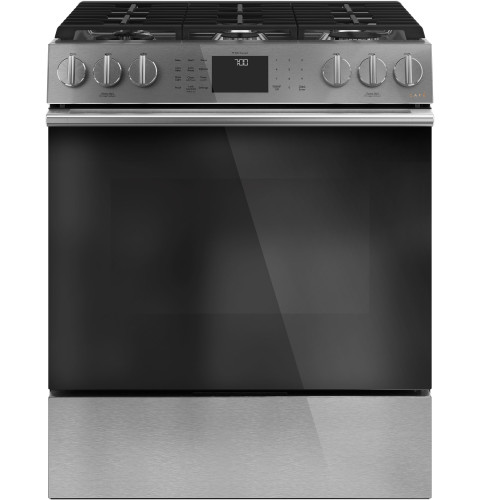

CGS700M2NS5

1 of 102

About this Product

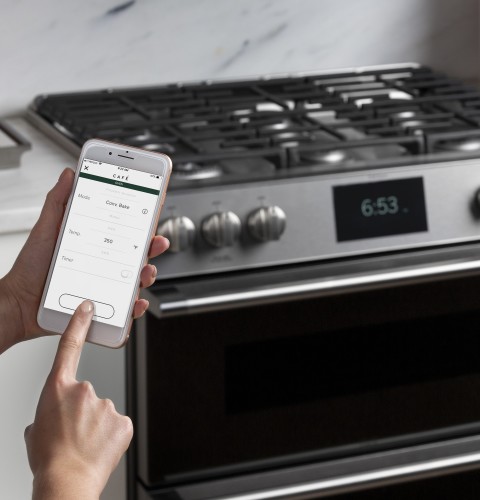

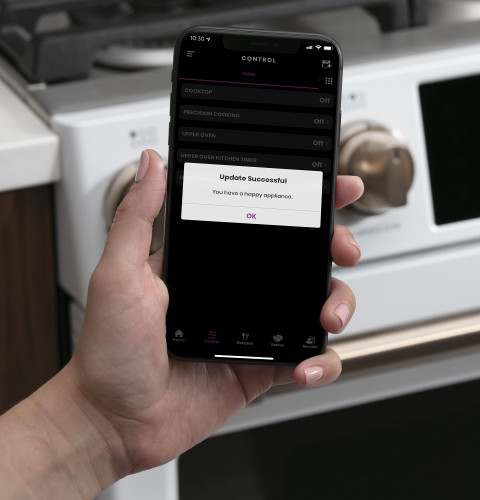

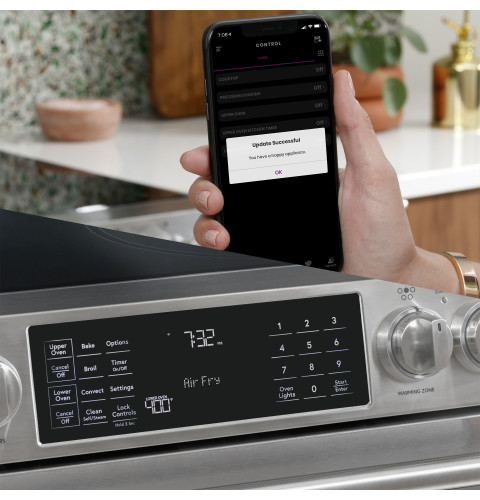

Built-In WiFi, Powered by SmartHQ App

Manage all aspects of your kitchen with the help of the SmartHQ™ App or your voice assistant (Select features require WiFi Connection) See details
Personalized Features + Upgrades

Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire

Play Video
No-Preheat Air Fry

Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray (WiFi Enabled)

Play Video

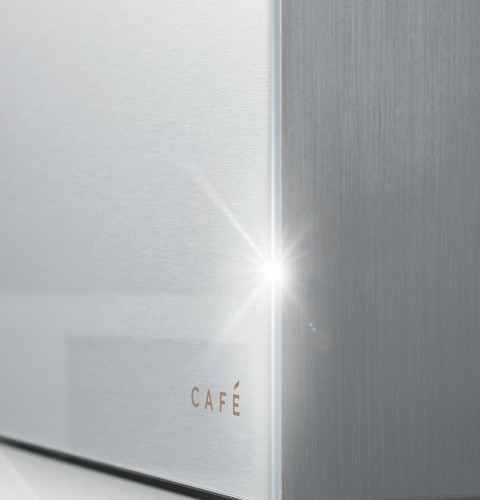

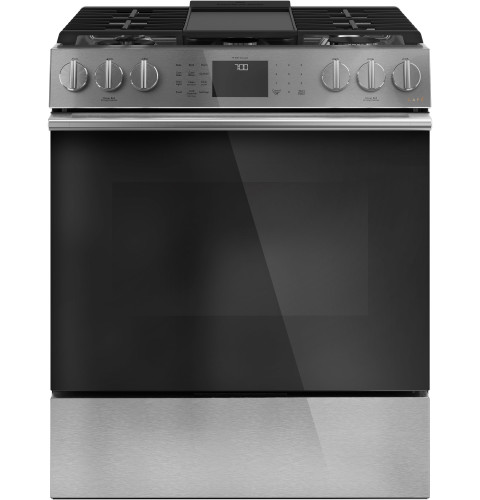

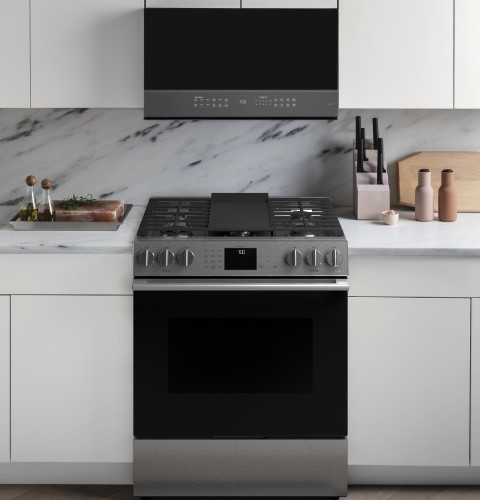

Platinum glass finish

Angular, modern lines and the striking glass finish creates an easy-to-clean, contemporary look for your kitchen

Play Video

Features

Choose the range you want with total confidence
When you’re updating your kitchen, attention to detail is a priority. That’s why Café 30” slide-in ranges are guaranteed for an exact fit or Café Appliances will pay up to $300 toward modifications.

FEATURES	Print Specs

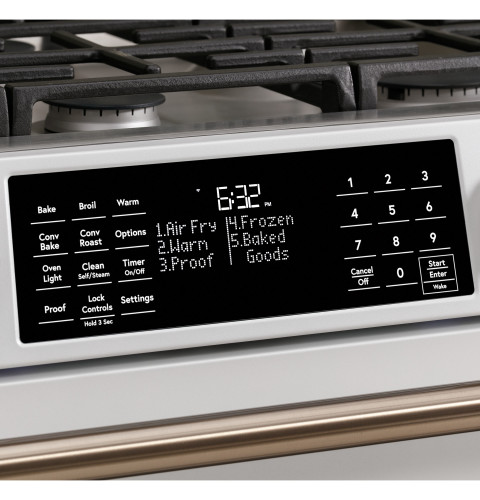

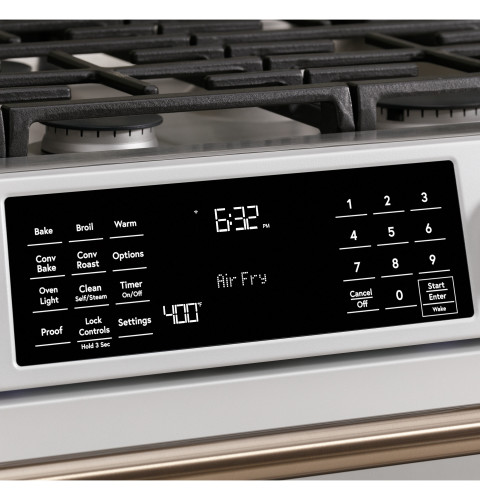

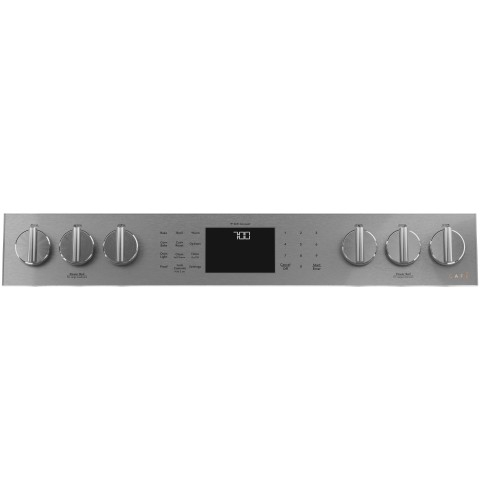

Control Type	Digital Temperature Display with Electronic Touchpad
Leveling System	4 Leveling Legs

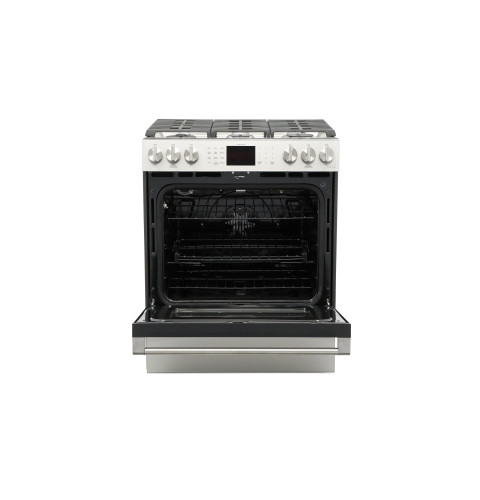

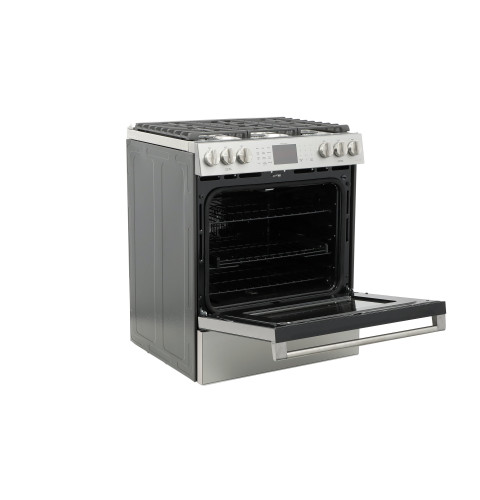

Product Type	Slide-In Single Oven
Sabbath Mode	Yes
WiFi Connect	Built-In

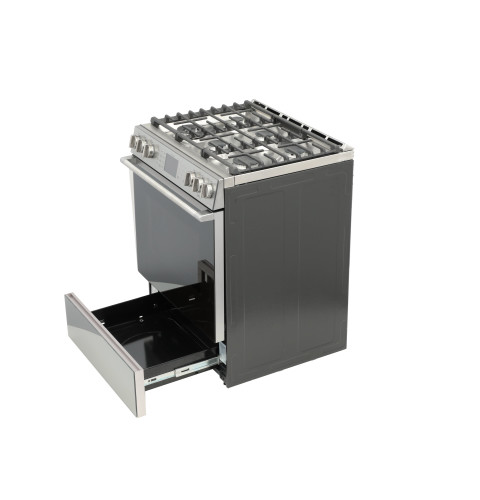

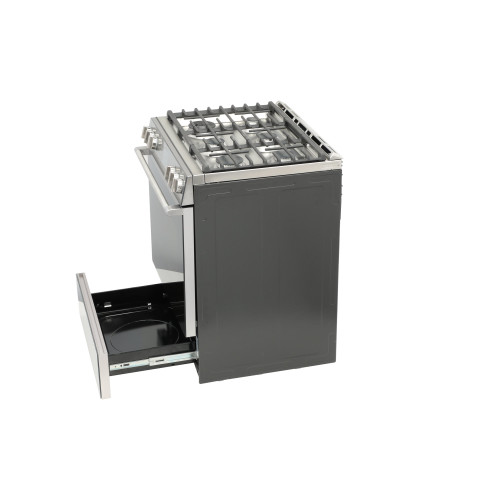

Configuration	Range with Storage Drawer

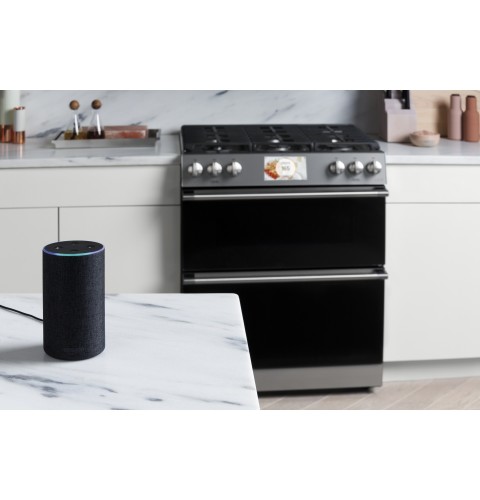

Connected Capabilities	Amazon Alexa
Control Location	Front controls
Style	Commercial
Ignition System	Electronic
Fuel Type	Natural Gas
Griddle	Included

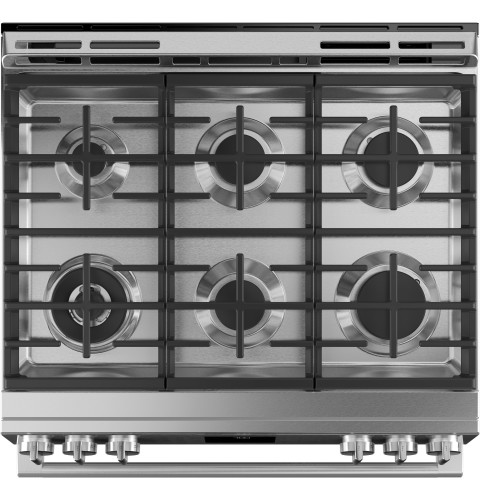

Cooktop Burner Grate Features	Heavy-Cast Edge-to-Edge Grates
Cooktop Burner Grate Material	Cast-Iron
Cooktop Burner Type	Sealed
Cooking System	True Convection
Cooking Technology	Convection
Oven Cooking Modes	Baked Goods
Oven Interior	1 Oven Interior Light
Burner - Center	9,500 BTU Front / 9,500 BTU Rear
Burner - Left Front	21,000 BTU Tri-ring Burner
Burner - Left Rear	5,000 BTU Precise Simmer
Burner - Right Front	15,000 BTU
Burner - Right Rear	12,000 BTU
Cleaning Time	Variable with Delay Clean Option
Cooktop Surface	Deep Recessed
Grill	Integrated Cast Iron
Oven Control Features	Audible Preheat Signal
Self-Clean Oven Door Lock	Automatic
Oven Cleaning Type	Self-Clean with Steam Clean Option

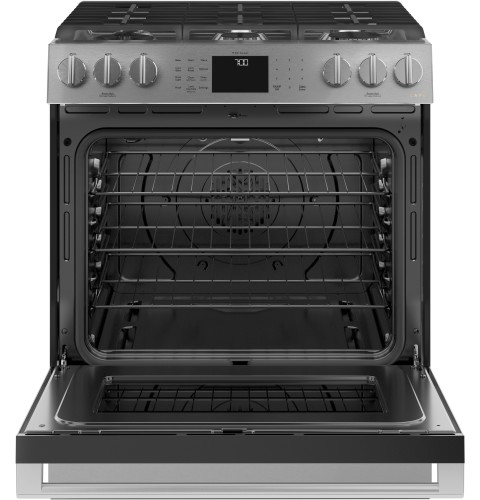

Oven Rack Features	3 Self-Clean Flat Oven Racks

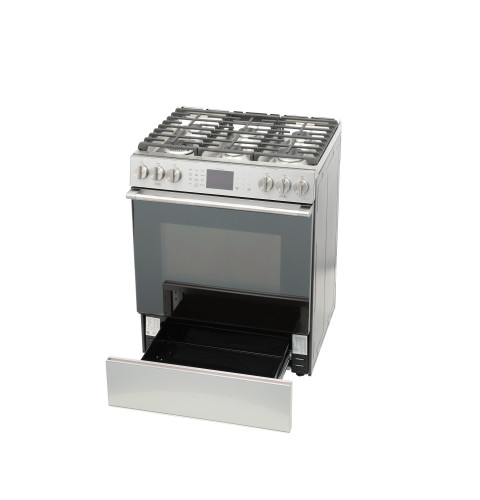

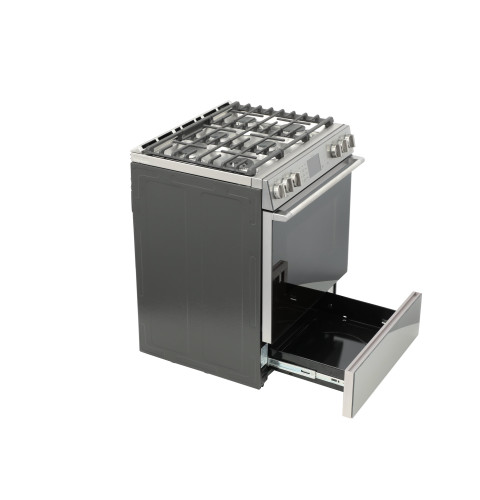

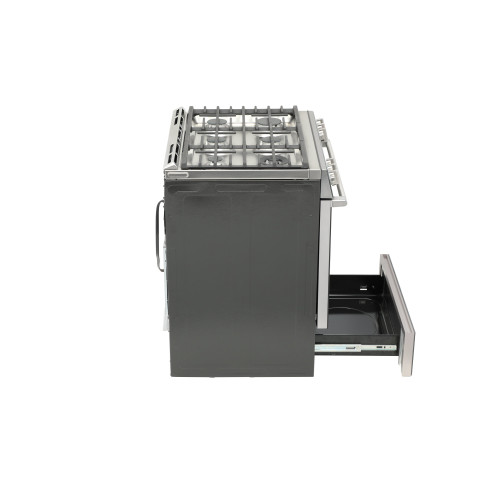

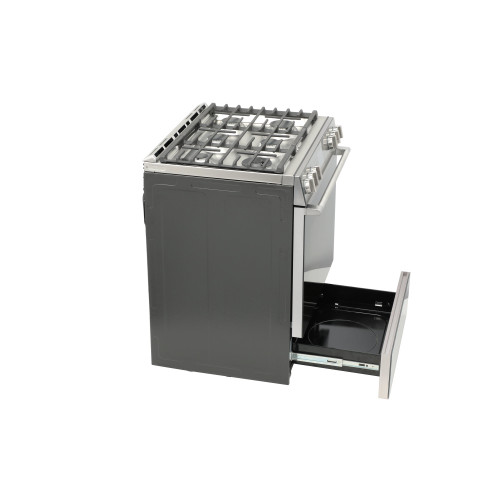

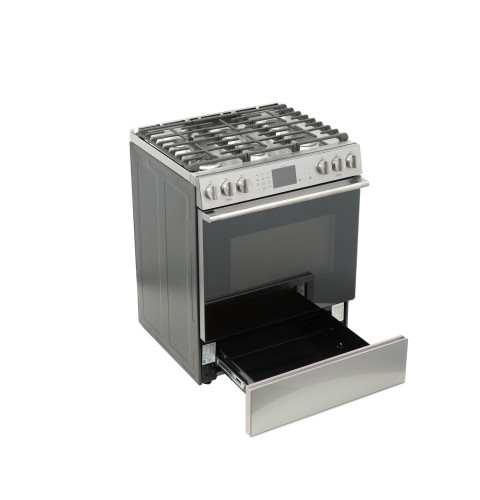

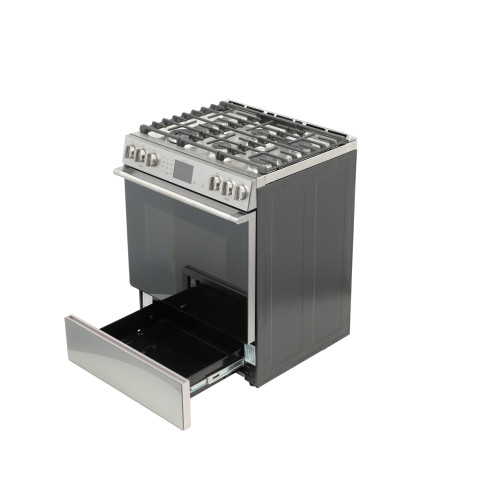

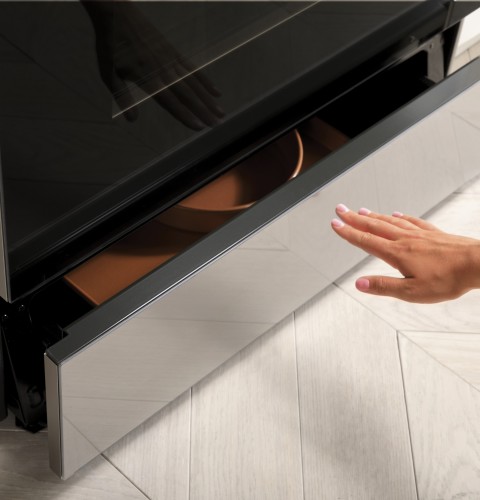

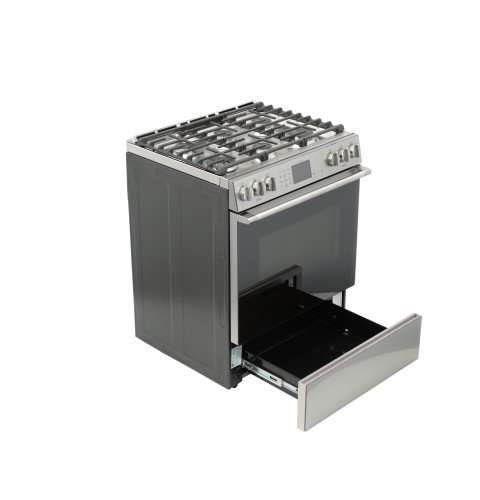

Drawer Type	Storage
Cooktop Type	Standard Grates
Valves (Degree of Turn)	270
Dishwasher Safe Knobs	Yes
OU Certified	No
Oven Rack Positions (Single or Upper/Lower)	6

CAPACITY
Total Capacity (cubic feet)	5.6 cu ft

WEIGHTS & DIMENSIONS
Overall Depth	29.375 in
Overall Height	37.375 in
Overall Width	29.875 in
Approximate Shipping Weight	244 lb
Net Weight	224 lb
Depth Without Handle	26.875 in
Cabinet Width	30 in
Height to Top of Rear Vent Trim	37.375 in
Depth with Door Open	47.5 in
Height to Cooking Surface (in.)	36 1/4 +/- 1/4
Oven Interior Dimensions (W x H x D) (in.)	24 x 19-1/2 x 20-5/8

WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

POWER / RATINGS
Volts/Hertz/Amps	120v; 60Hz; 15A
Electrical Requirements	120V
Bake/Broiler BTU Rating - LP (000's BTU's)	16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	16.0 Bake / 16.5 Broiler
Top Burner BTU Rating - LP (000's BTU's)	(1) 18.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0;
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 21.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0
Convection Wattage	1200W
Hertz	60
