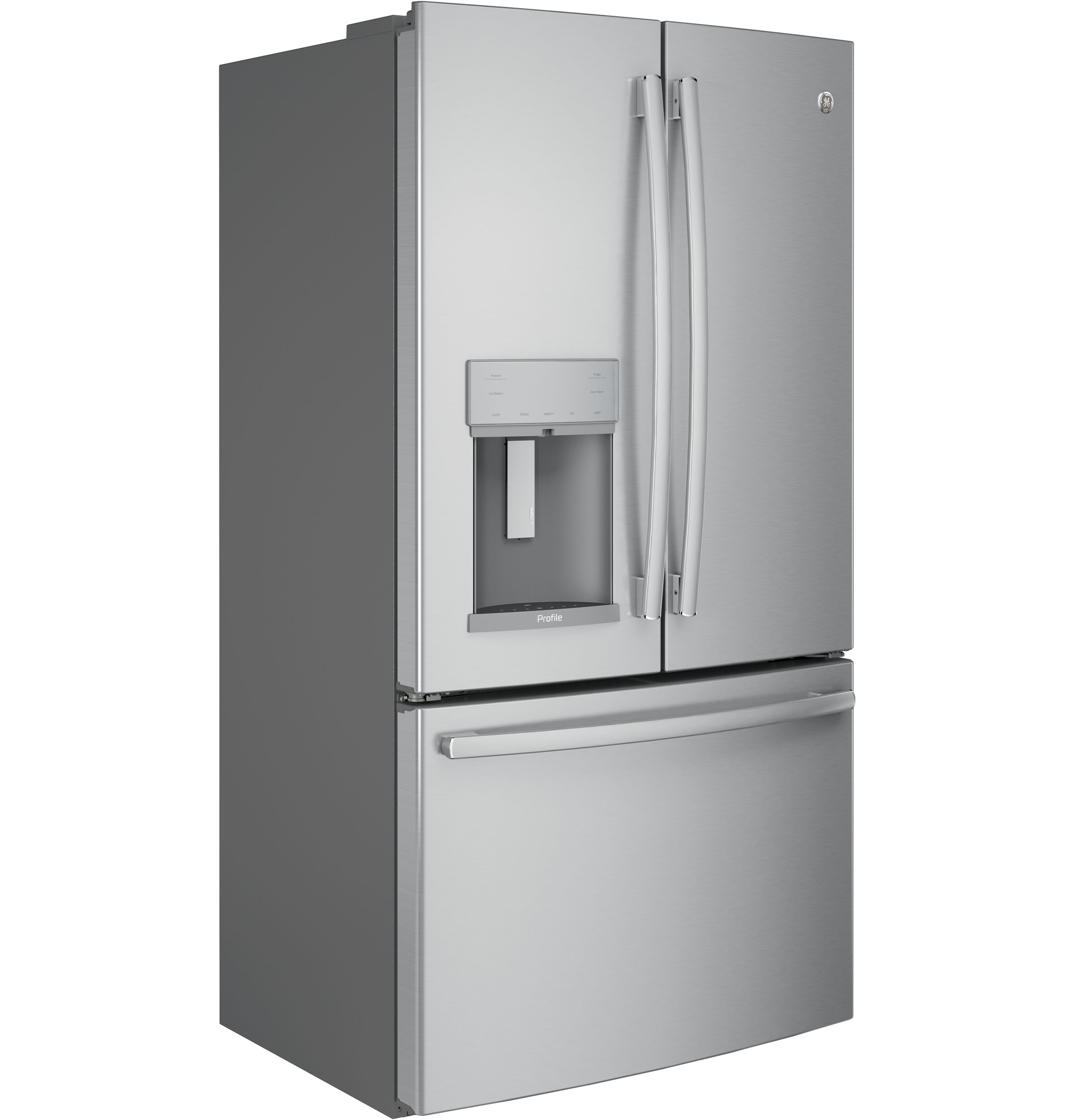

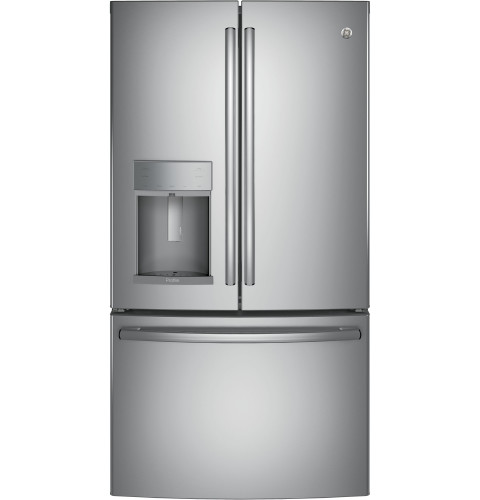

About this Product
-

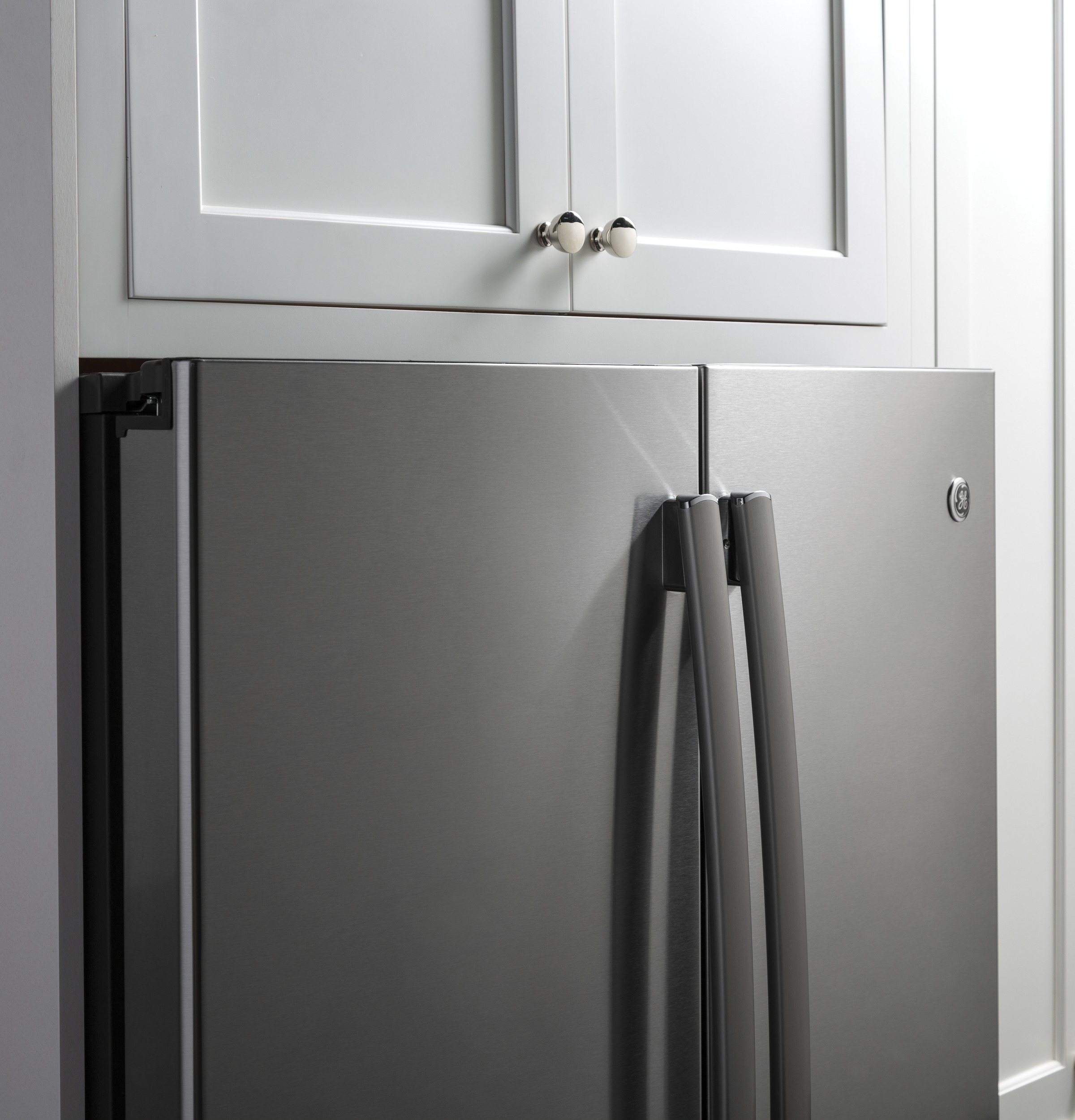

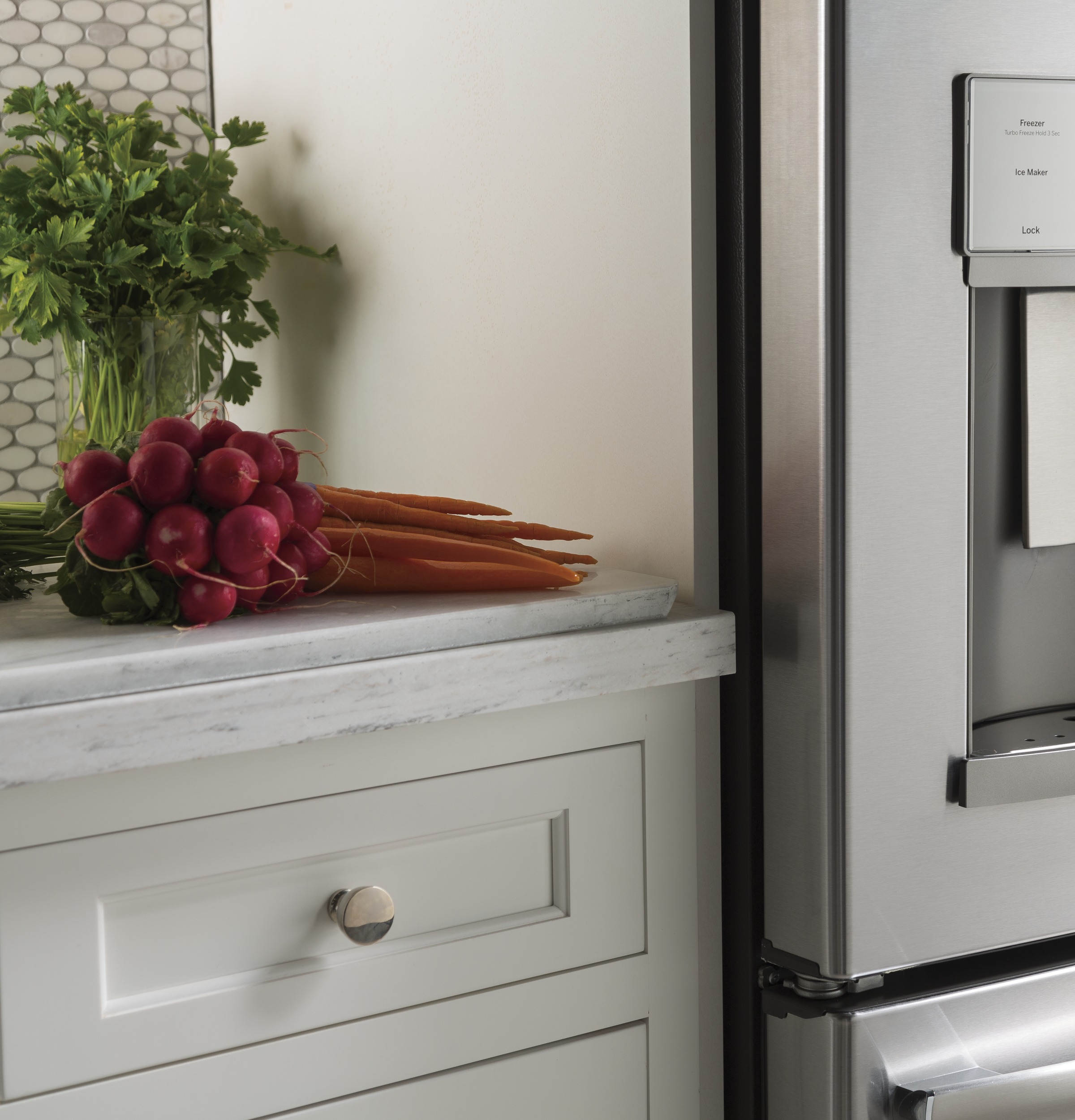

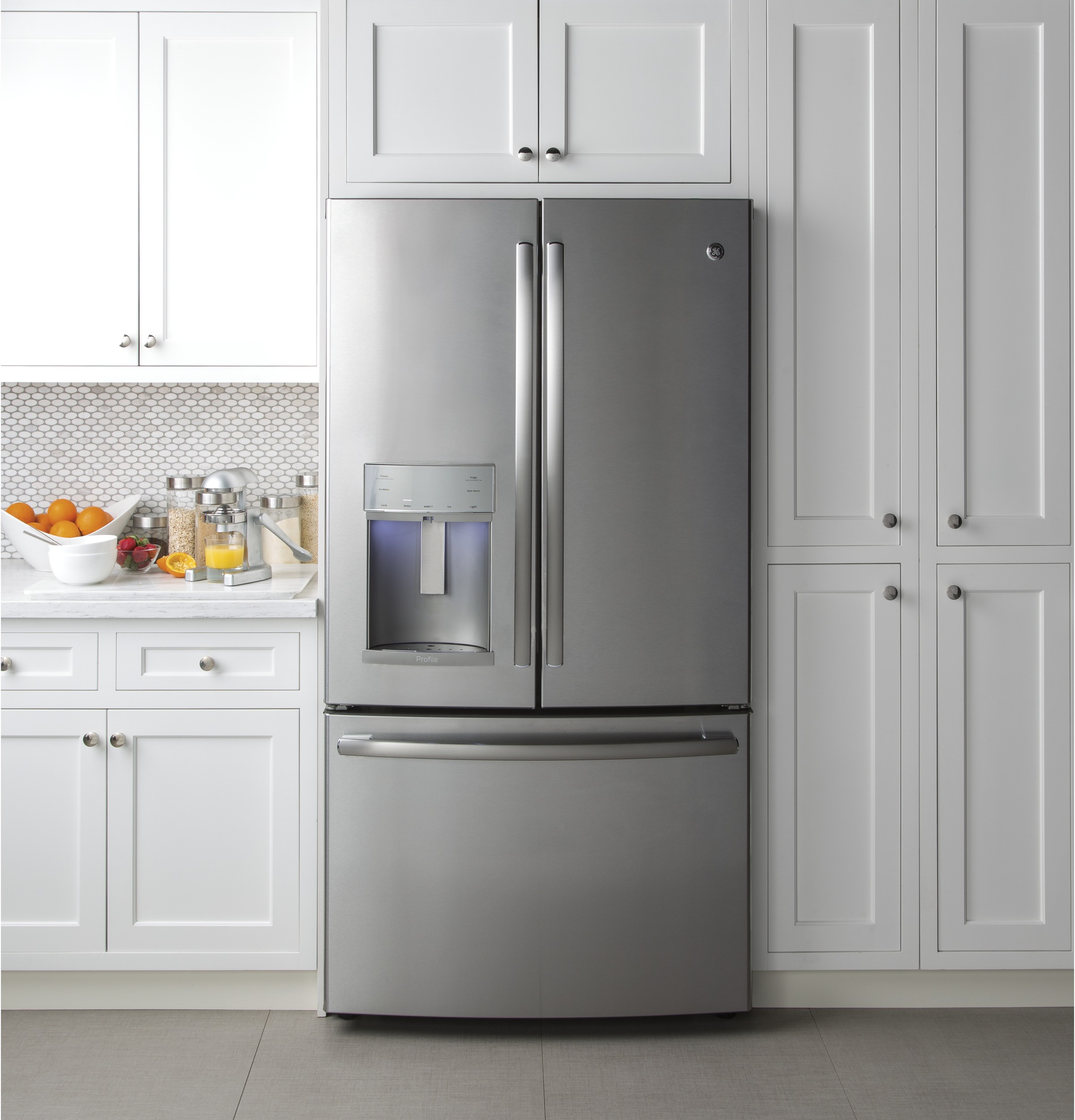

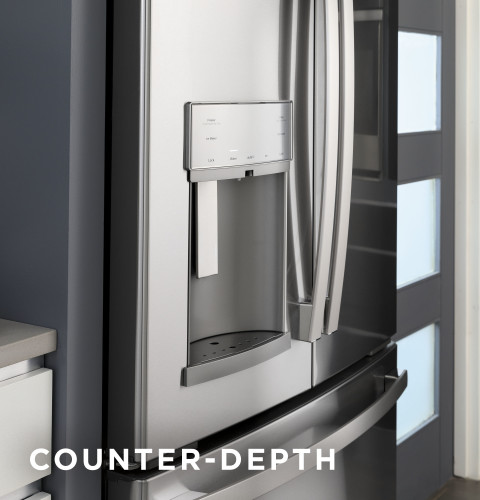

Counter-depth design
Offers a built-in look by fitting nearly flush with surrounding cabinetry
-

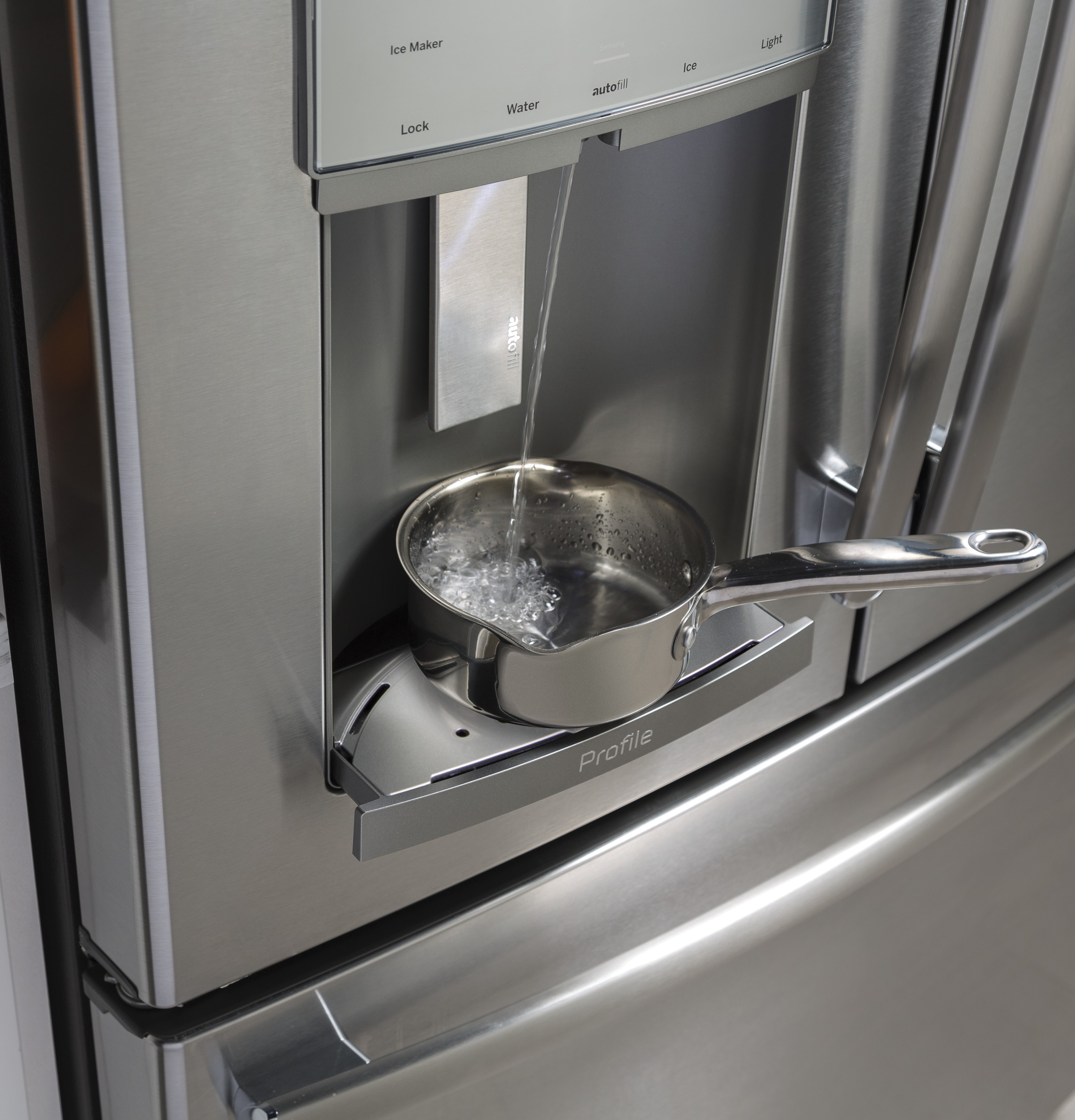

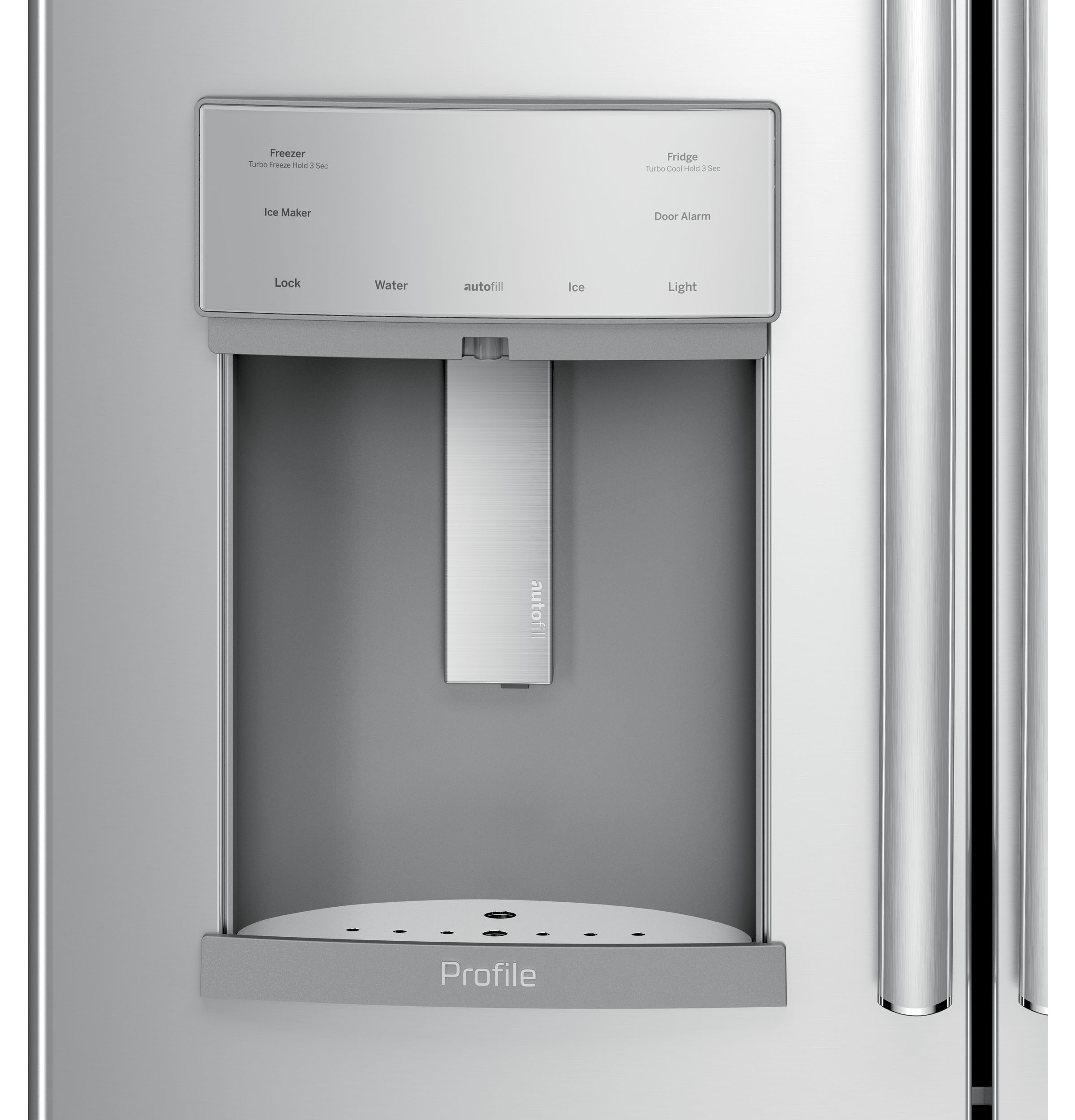

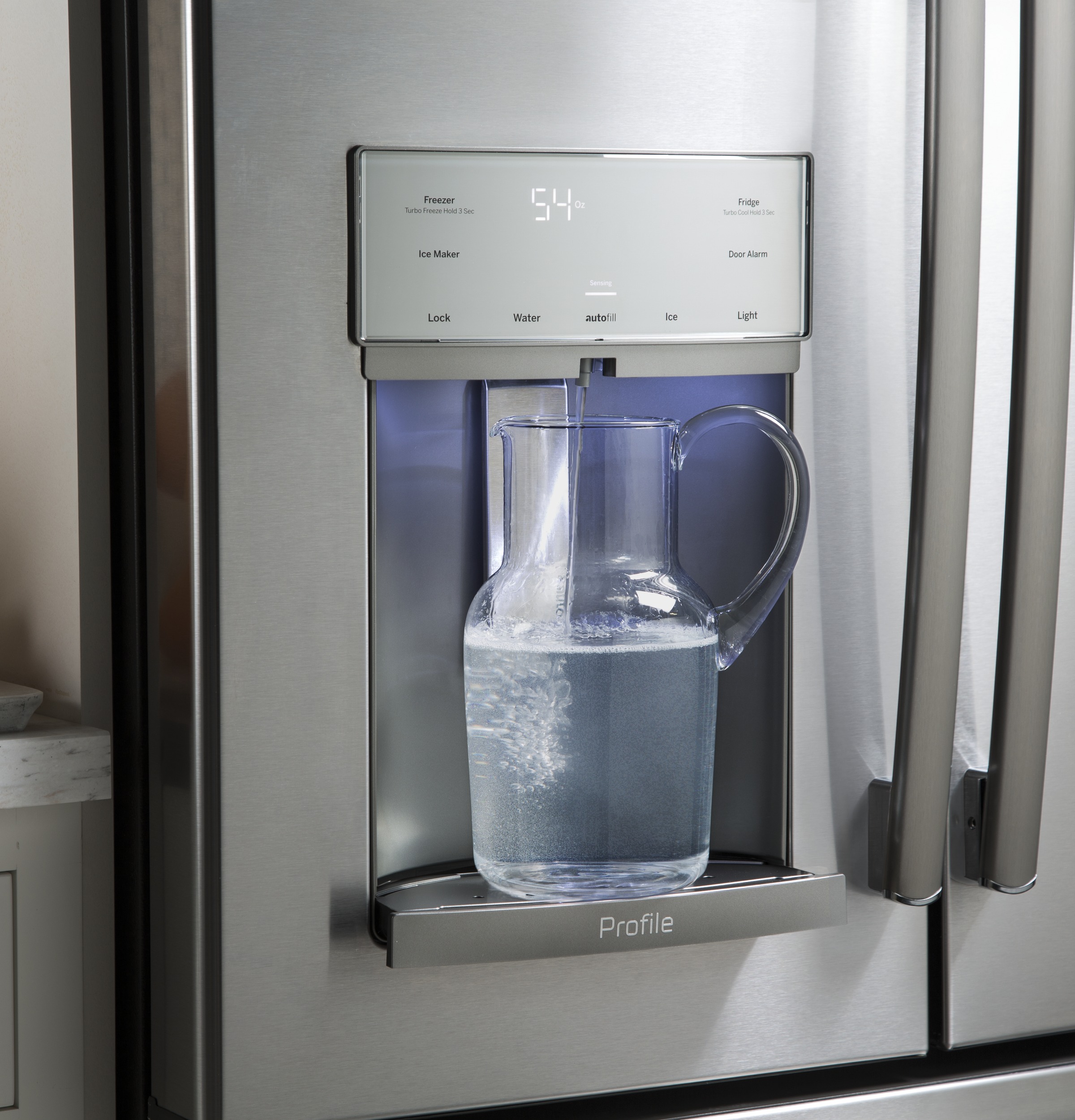

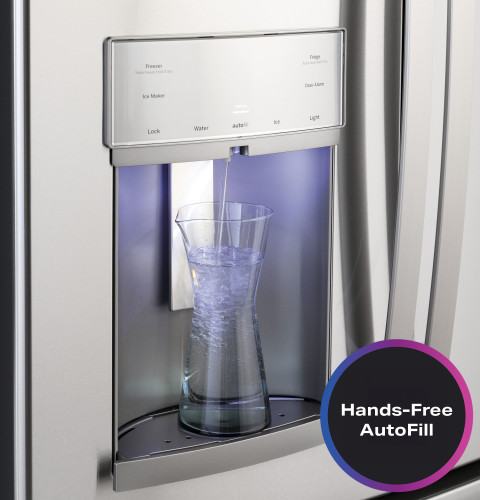

Hands-free Autofill
Lets you walk away while the dispenser automatically fills any container with filtered water
-

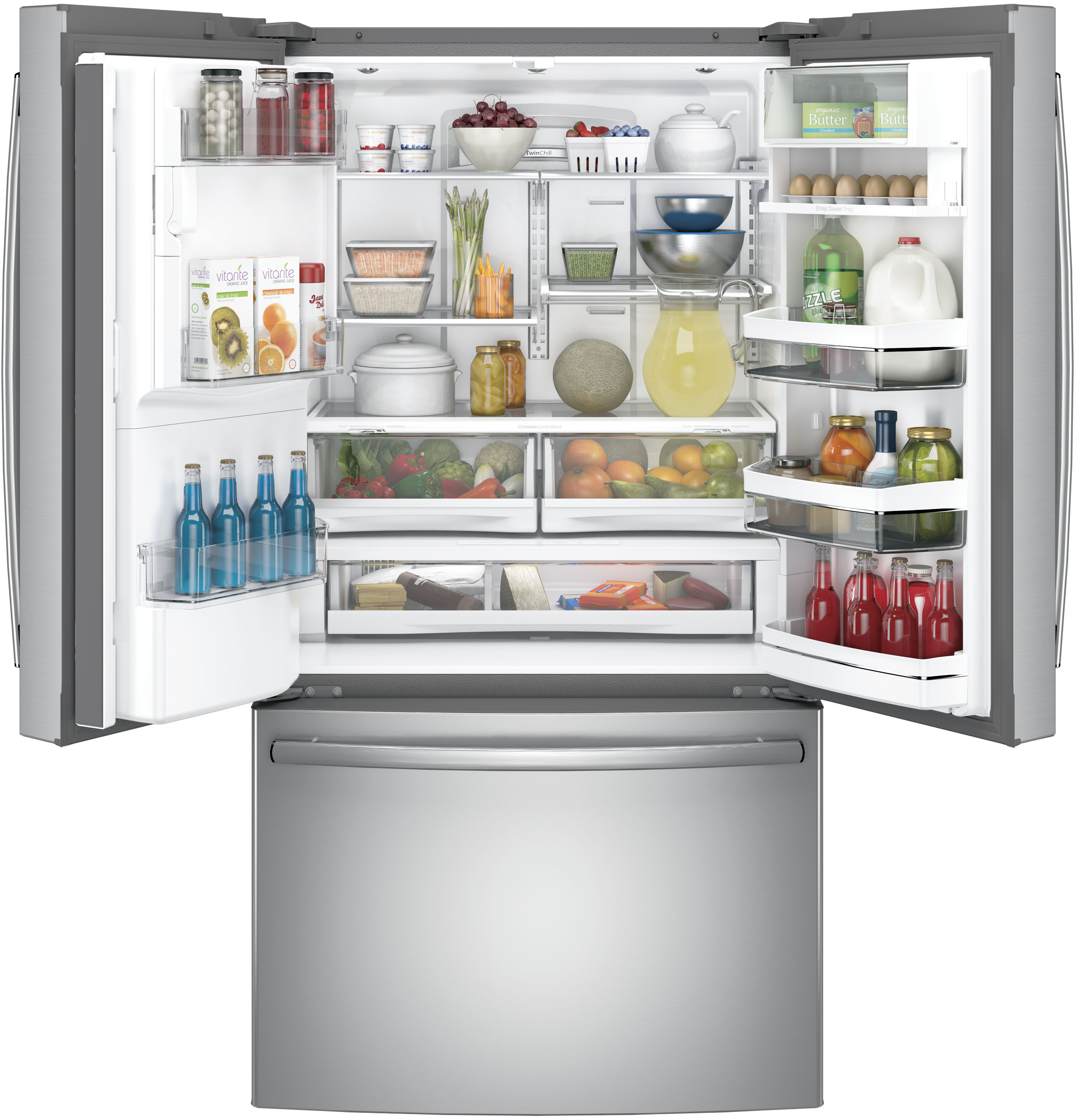

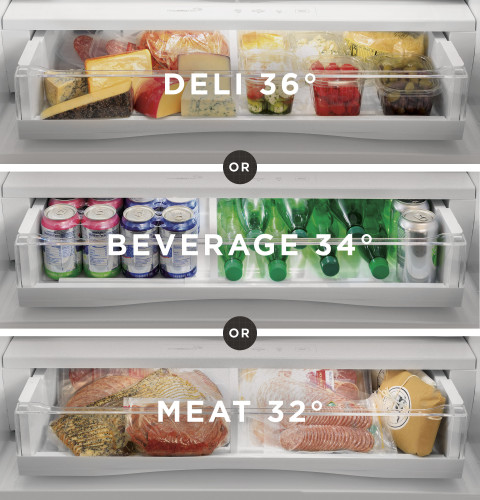

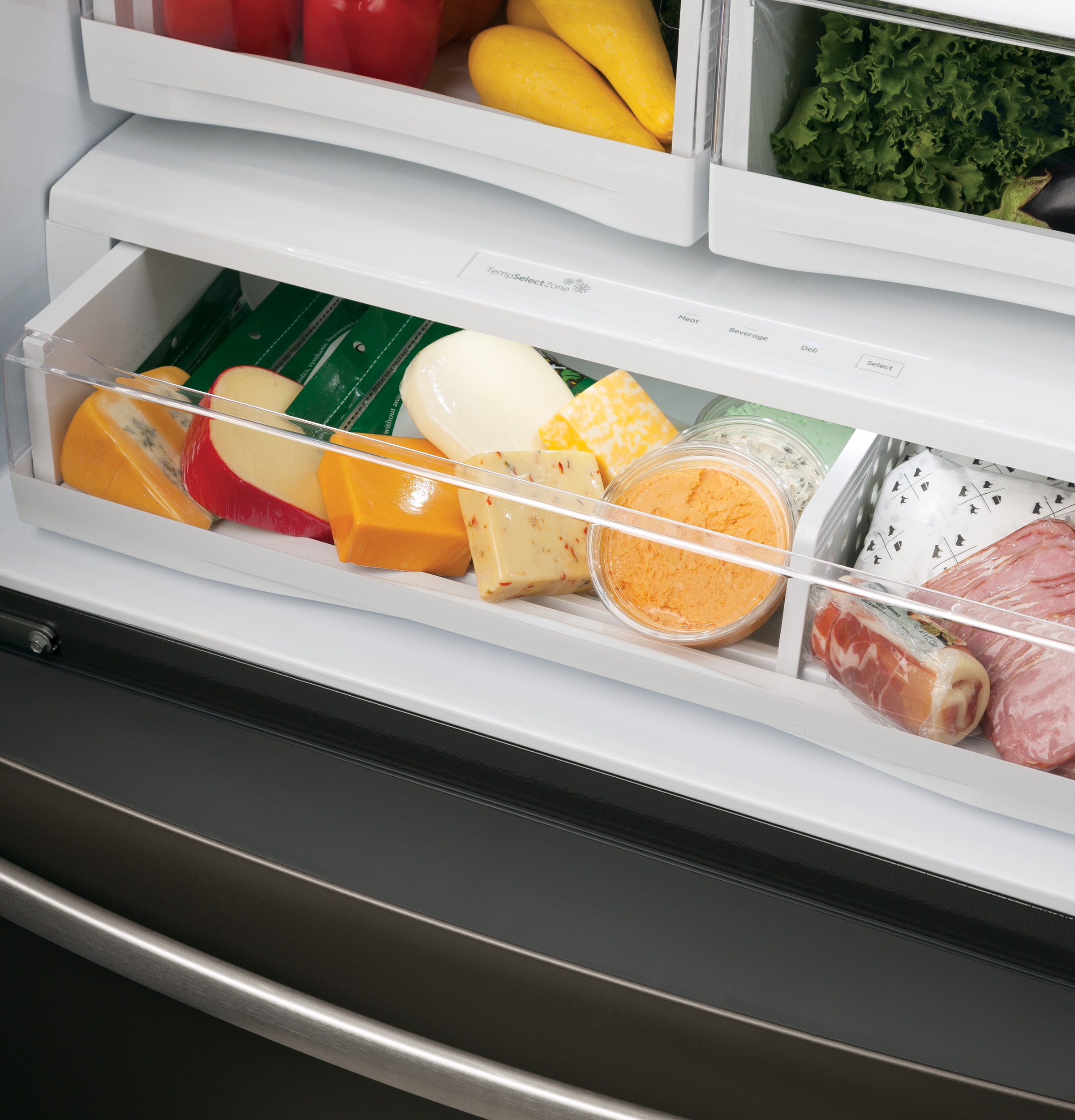

Full-width electronic temperature-controlled drawer with LED lights
3 accurate settings deliver the optimal temperature for your favorite foods
-
Second icemaker option
Always have extra ice on hand with an optional second icemaker in the freezer (IM5D kit sold separately)
Features
-
Turbo Cool setting
Drops interior temperature to maintain freshness after frequent openings
-
Enhanced Shabbos Mode
The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)
Claims & Certifications
For California Residents:
View Proposition 65 Warning
Manuals & Downloads
-
Energy Guide
 
- Installation Instructions  
- Quick Specs  
- Owner’s Manual  
- PYE22KSKSS
FEATURES |
Print Specs |
|---|---|
| Control Type | External Electronic Digital Temperature Display |
| Leveling System | 2 Front Leveling Legs |
| Product Type | Bottom Freezer Refrigerator |
| Sabbath Mode | Optional |
| WiFi Connect | Optional (Requires part no. PBX23W00Y1) |
| Configuration | French Door |
| Defrost Type | Frost Guard |
| Dispenser | Cubes, Crushed Ice and Water |
| Dispenser Features | Child Lock |
| Exterior Style | Counter-Depth |
| Filter Location | Left wall |
| Freezer Door Bins | 1 Total |
| Freezer Features | Interior Lighting - LED (2) |

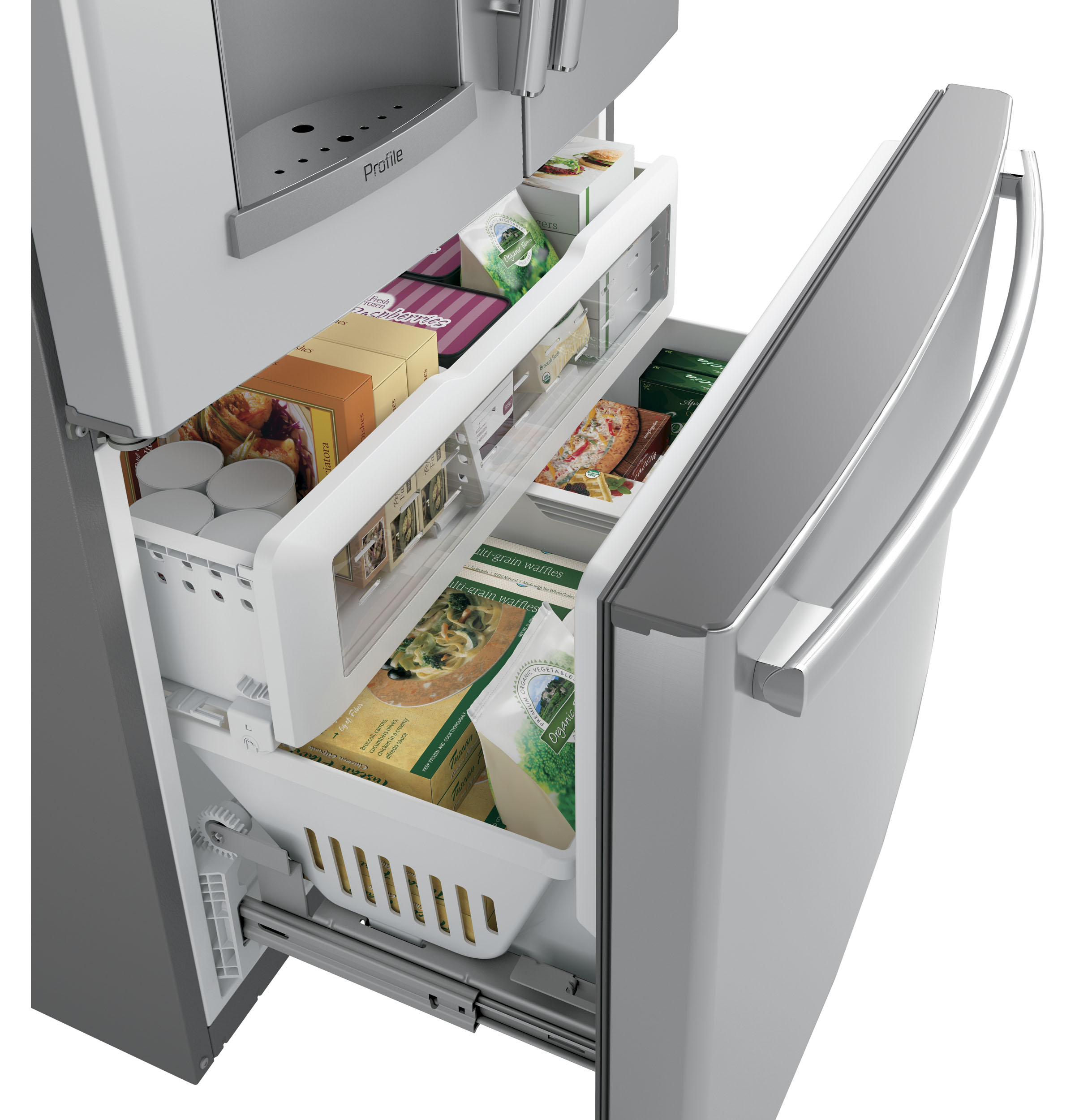

| Freezer Storage Baskets | 2 Full-Width |
| Fresh Food Cabinet Drawers | 1 Full-Width, Adjustable Temperature Drawer |

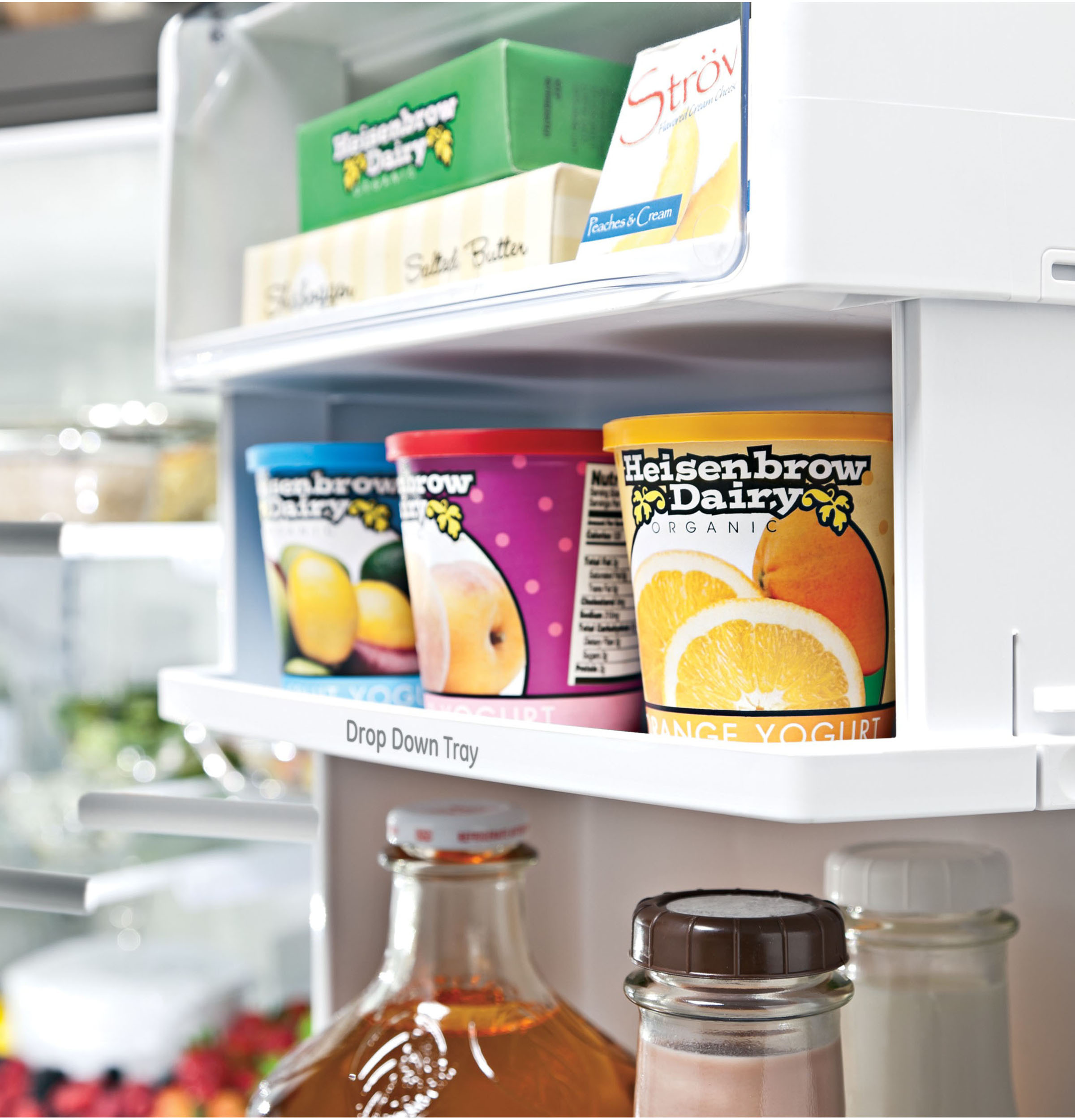

| Fresh Food Cabinet Shelves | 1 Quick Space Shelf |

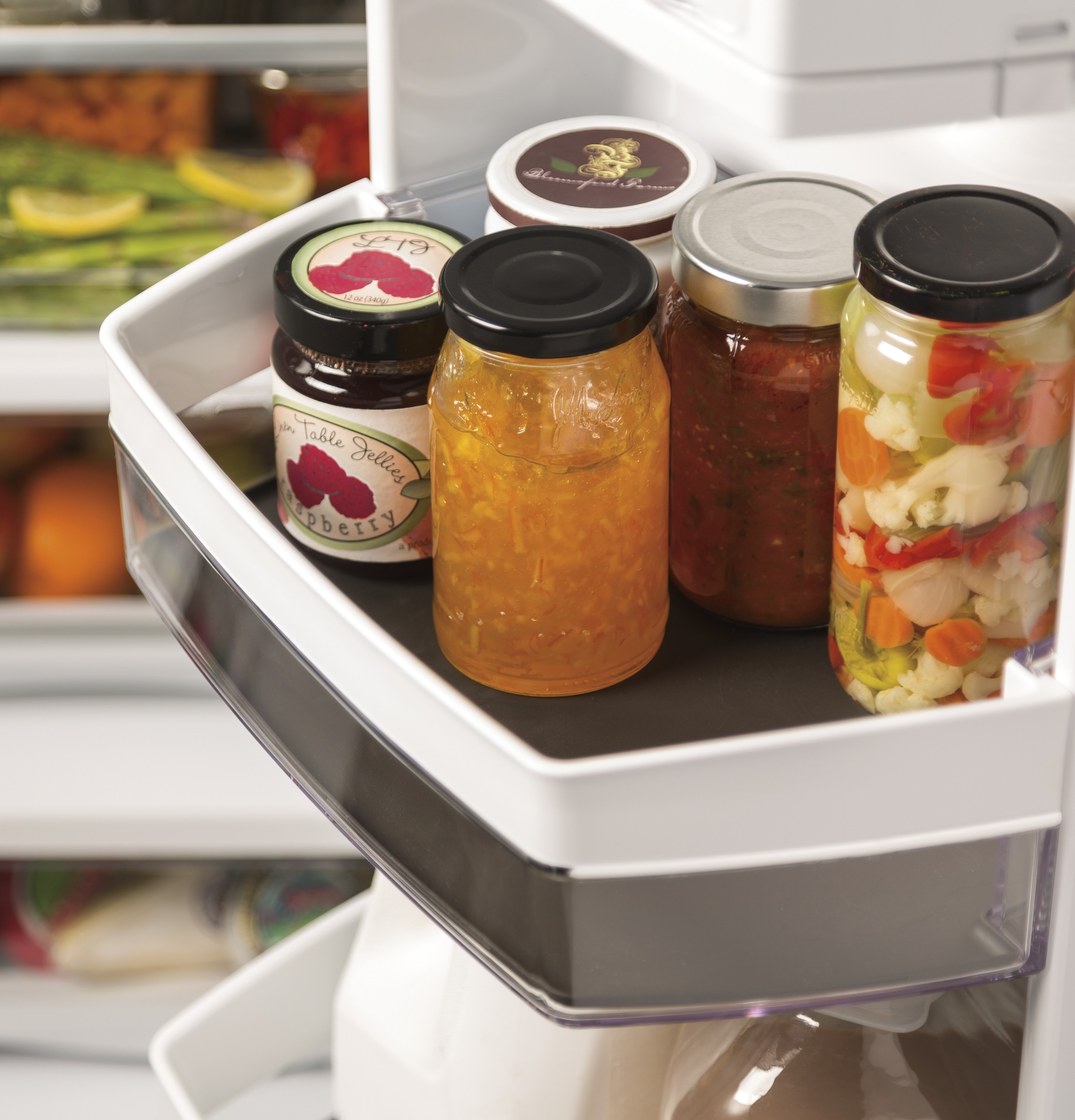

| Fresh Food Door Bins | 2 Adjustable |

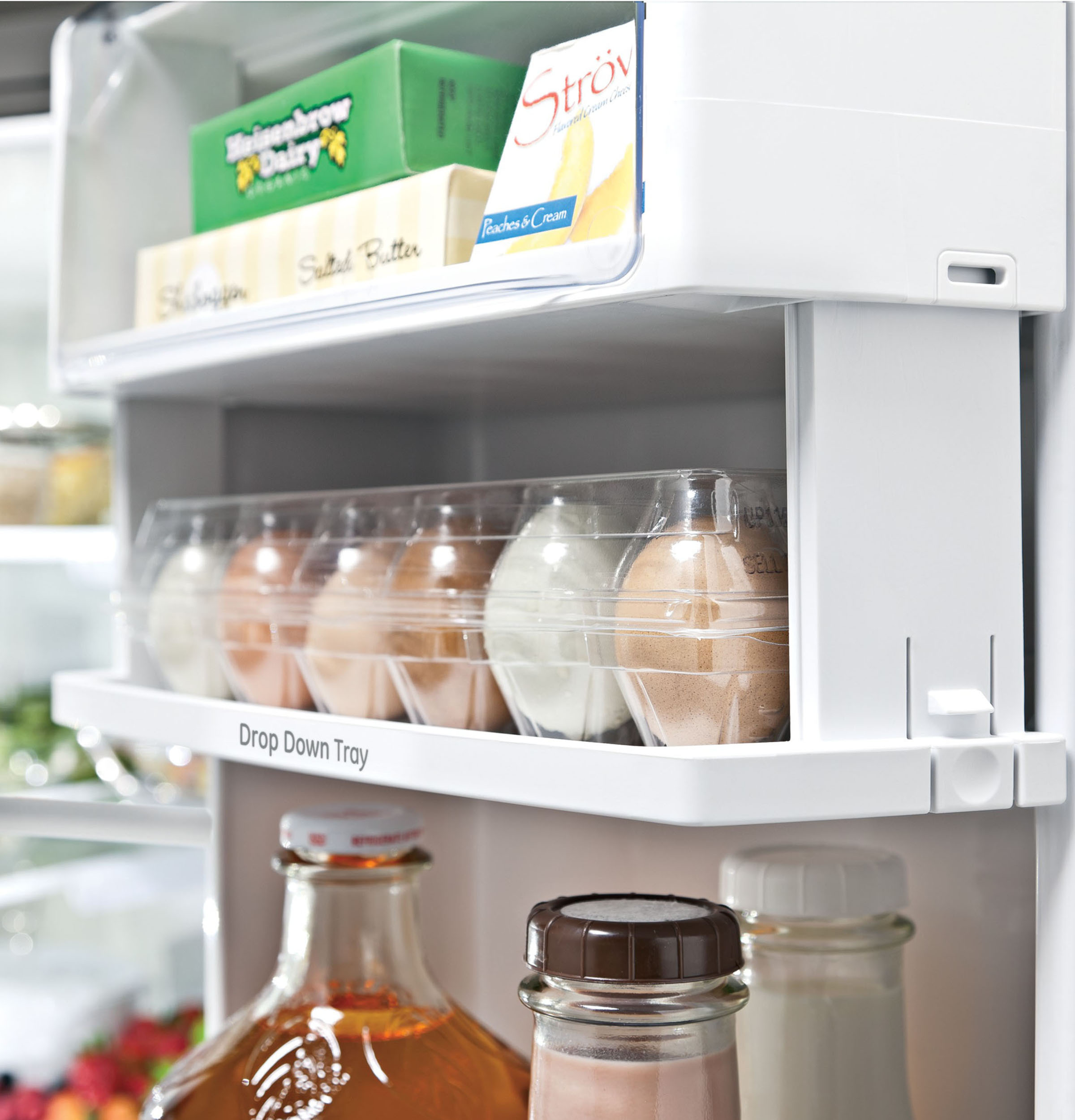

| Fresh Food Door Features | Dairy Compartment |
| Fresh Food Features | Showcase LED Lighting 7 |
| Icemaker | Optional 2nd Icemaker (IM5D) in Freezer |
| Performance Features | Easily Removable Door Gaskets |
| Temperature Management Features | Turbo Cool setting |

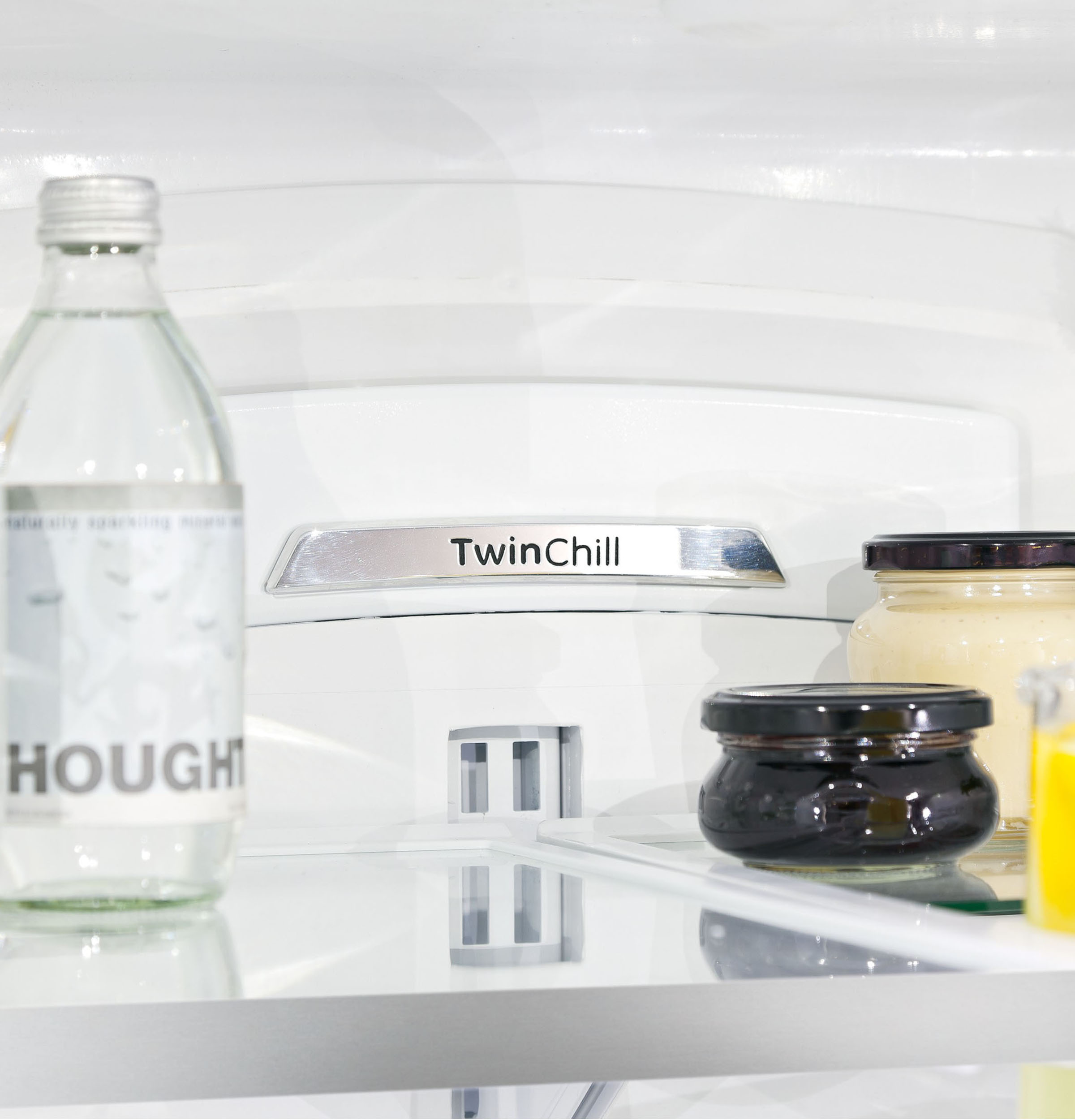

| Temperature Management System | TwinChillâ„¢ Evaporators |
| Water Filtration | Advanced Filtration System (RPWFE) |
| OU Certified | OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately |
CAPACITY |
|
|---|---|
| Total Capacity (cubic feet) | 22.1
cu ft |
| Freezer Capacity | 7.16
cu ft |
| Fresh Food Capacity | 14.92
cu ft |
APPEARANCE |
|
|---|---|
| Door Stops | Yes |
| Door Swing | Hinges on Left & Right |
| Color Appearance | Stainless Steel |
| Counter-Depth Design | true |
| Dispenser Color | Stainless Steel |
| Exterior Design | Contoured Doors |
| Handle Design | Designer Style |
| Hidden Door Hinge(s) | Yes |
| Textured Steel Case | Case Only - Dark Gray |
| Handle Color | Stainless Steel w/Chrome |

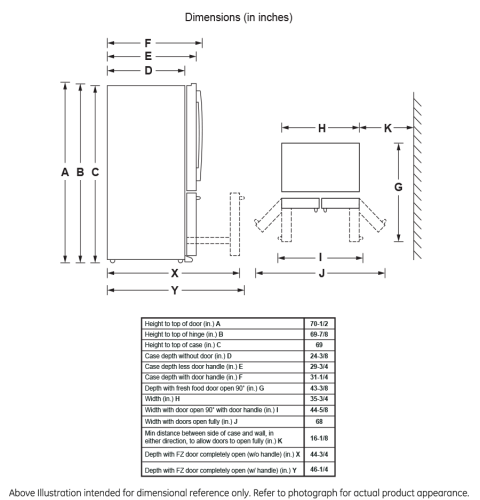

WEIGHTS & DIMENSIONS |
|
|---|---|
| Depth with Door Open 90° | 43.375
in |
| Overall Depth | 31.25
in |
| Overall Height | 69.875
in |
| Overall Width | 35.75
in |
| Top Air Clearances | 1
in |
| Side Air Clearances | 0.125
in |
| Approximate Shipping Weight | 363
lb |
| Net Weight | 333
lb |
| Back Air Clearances | 2
in |
| Case Depth Without Door | 24.375
in |
| Depth Without Handle | 29.75
in |
| Height to Top of Case | 69
in |
| Width w/Door Open 90 Degrees Incl. Handle | 44.625
in |
WARRANTY |
|
|---|---|
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | Limited 5-year Sealed System |
POWER / RATINGS |
|
|---|---|
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
