FEATURES	Print Specs
Control Type	Electronic

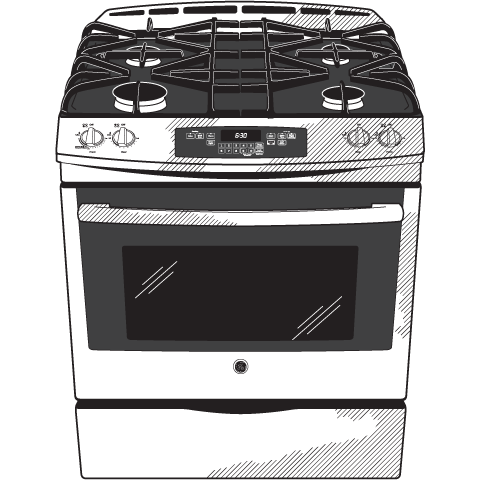

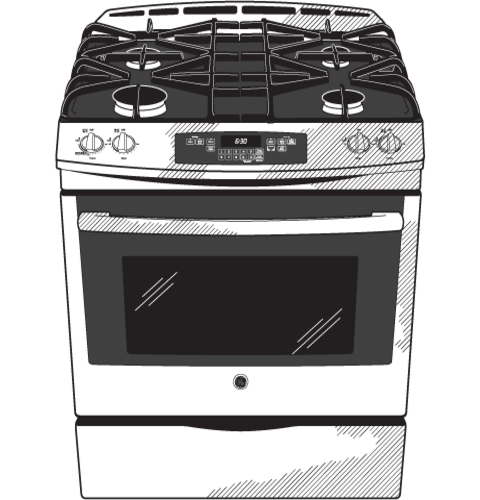

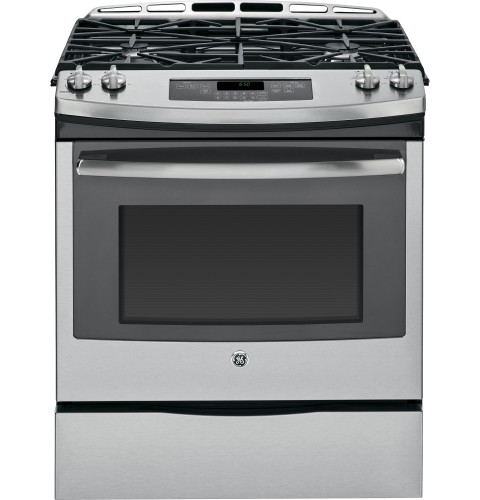

Product Type	Slide-In Single Oven
Configuration	Range with Storage Drawer

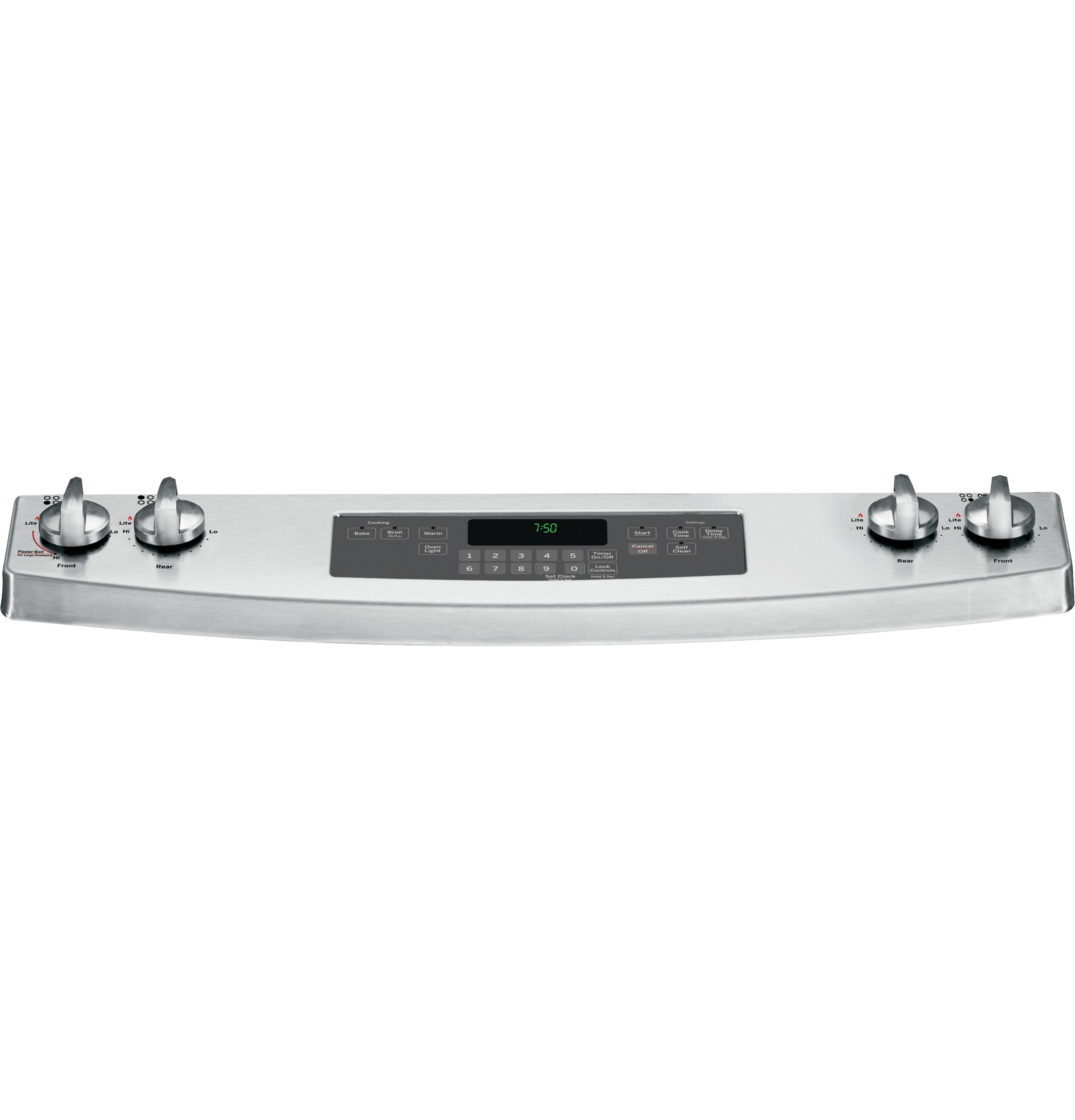

Control Location	Front controls
Ignition System	Electronic
Fuel Type	Natural Gas

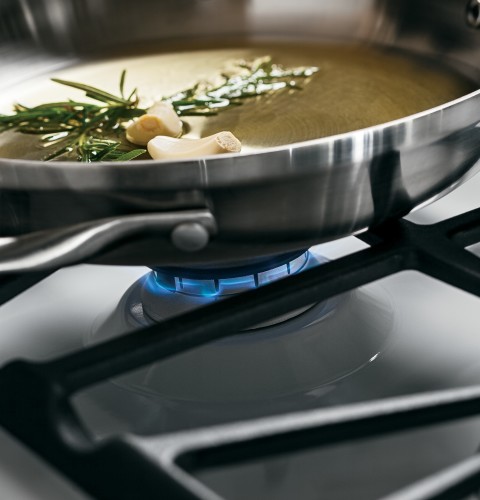

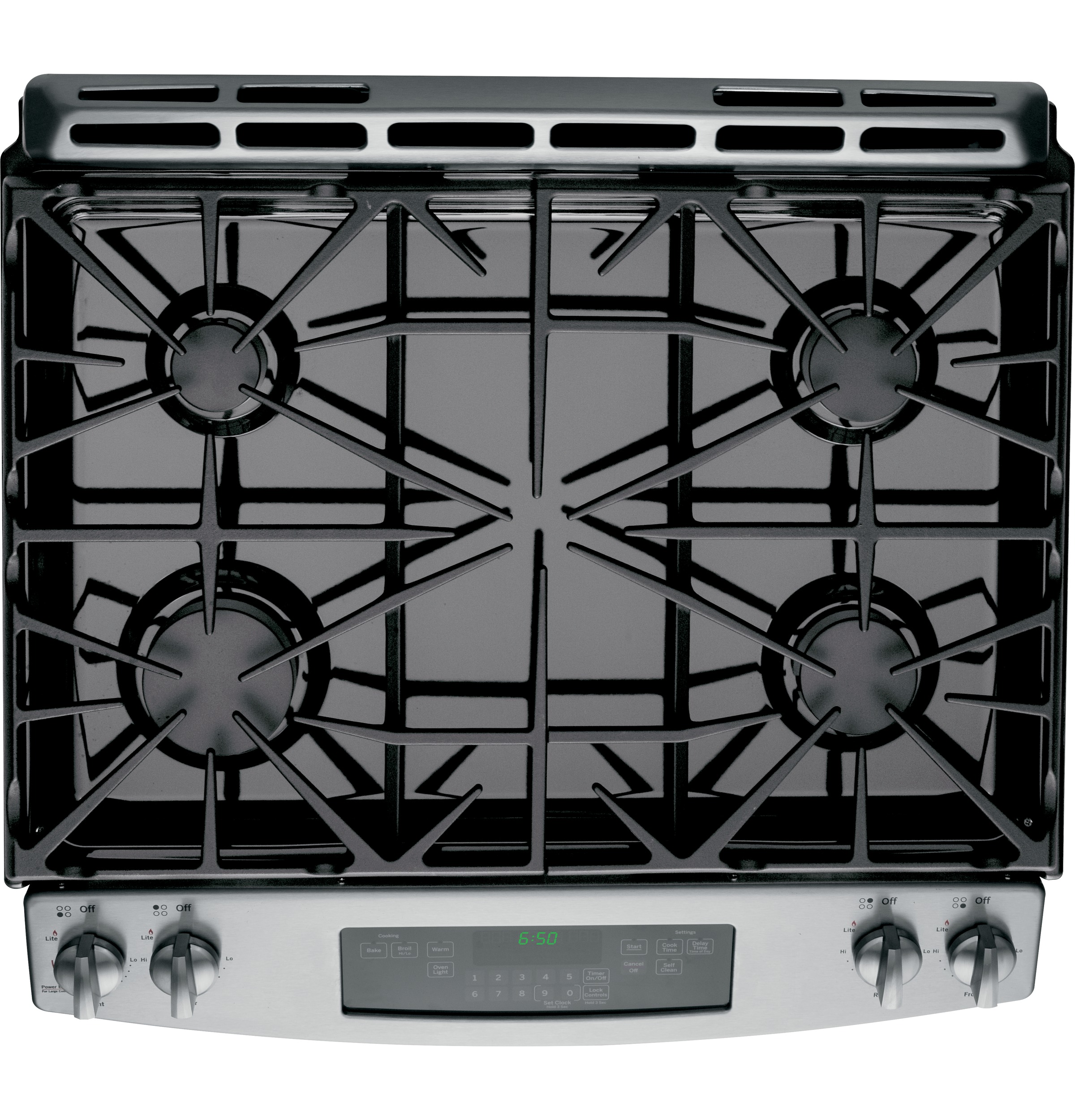

Cooktop Burner Grate Features	Edge-to-Edge Grates
Cooktop Burner Grate Material	Heavy Cast Iron

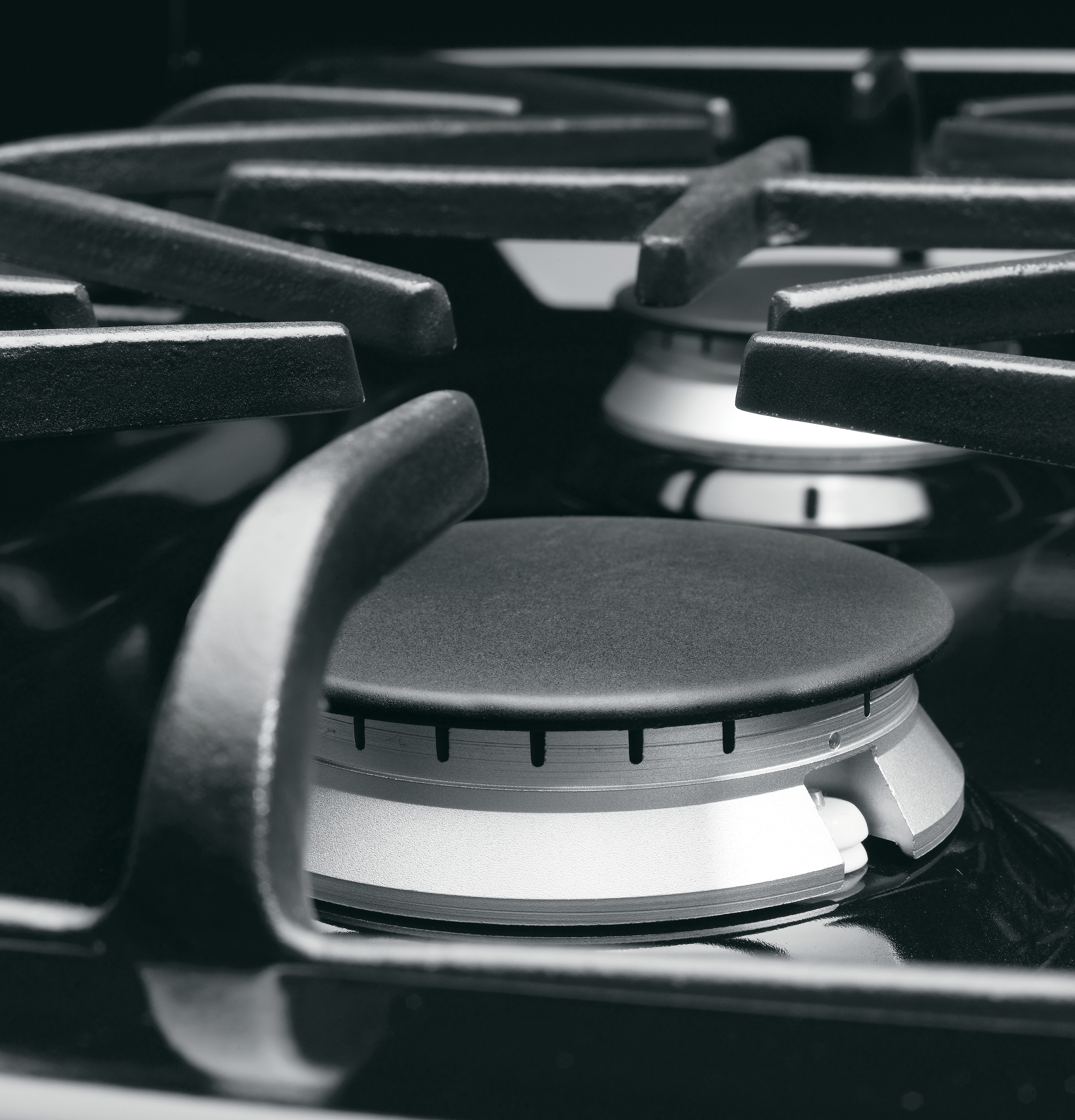

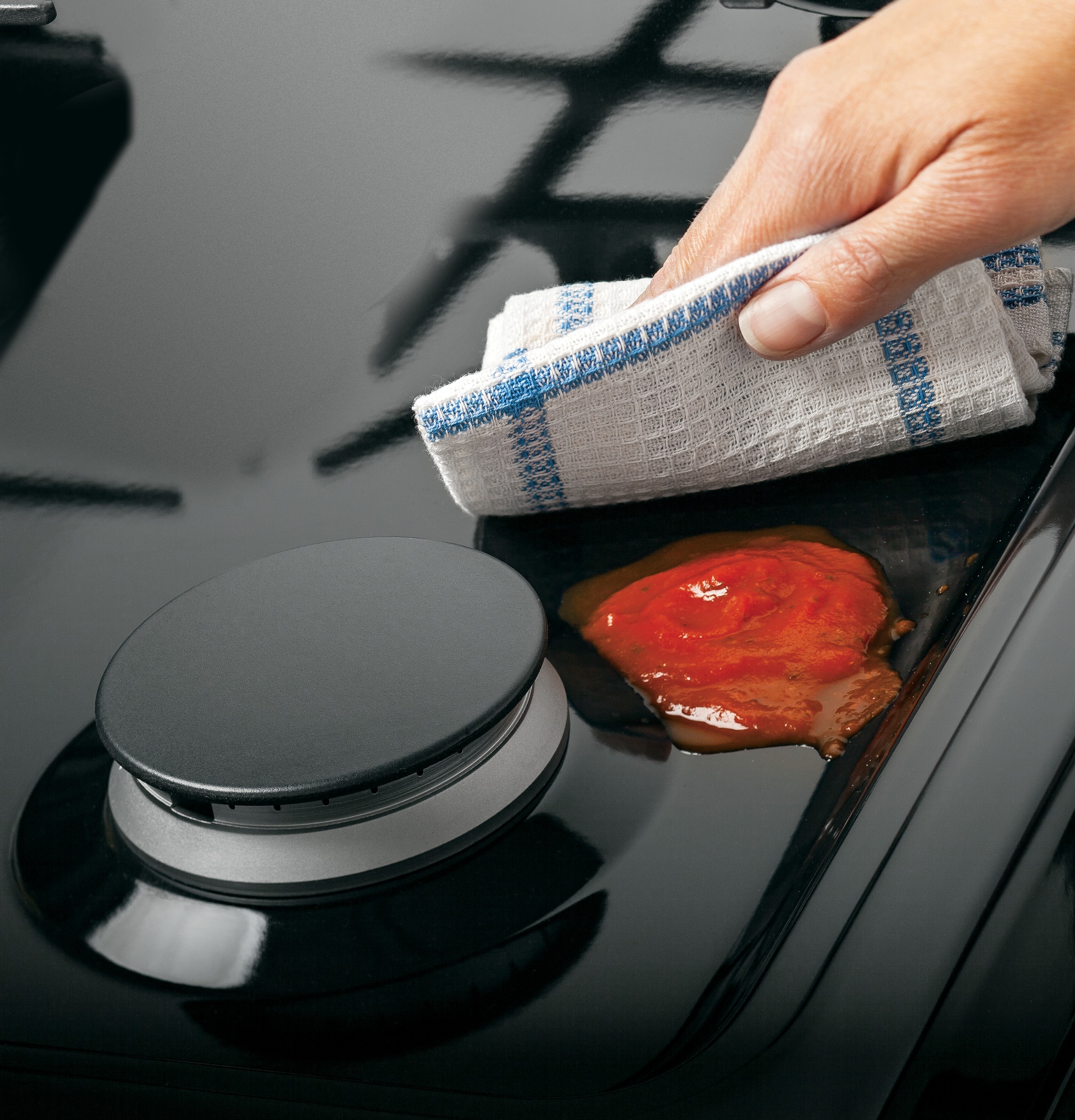

Cooktop Burner Type	Sealed
Cooking System	Traditional
Interior Oven Light	1 Incandescent

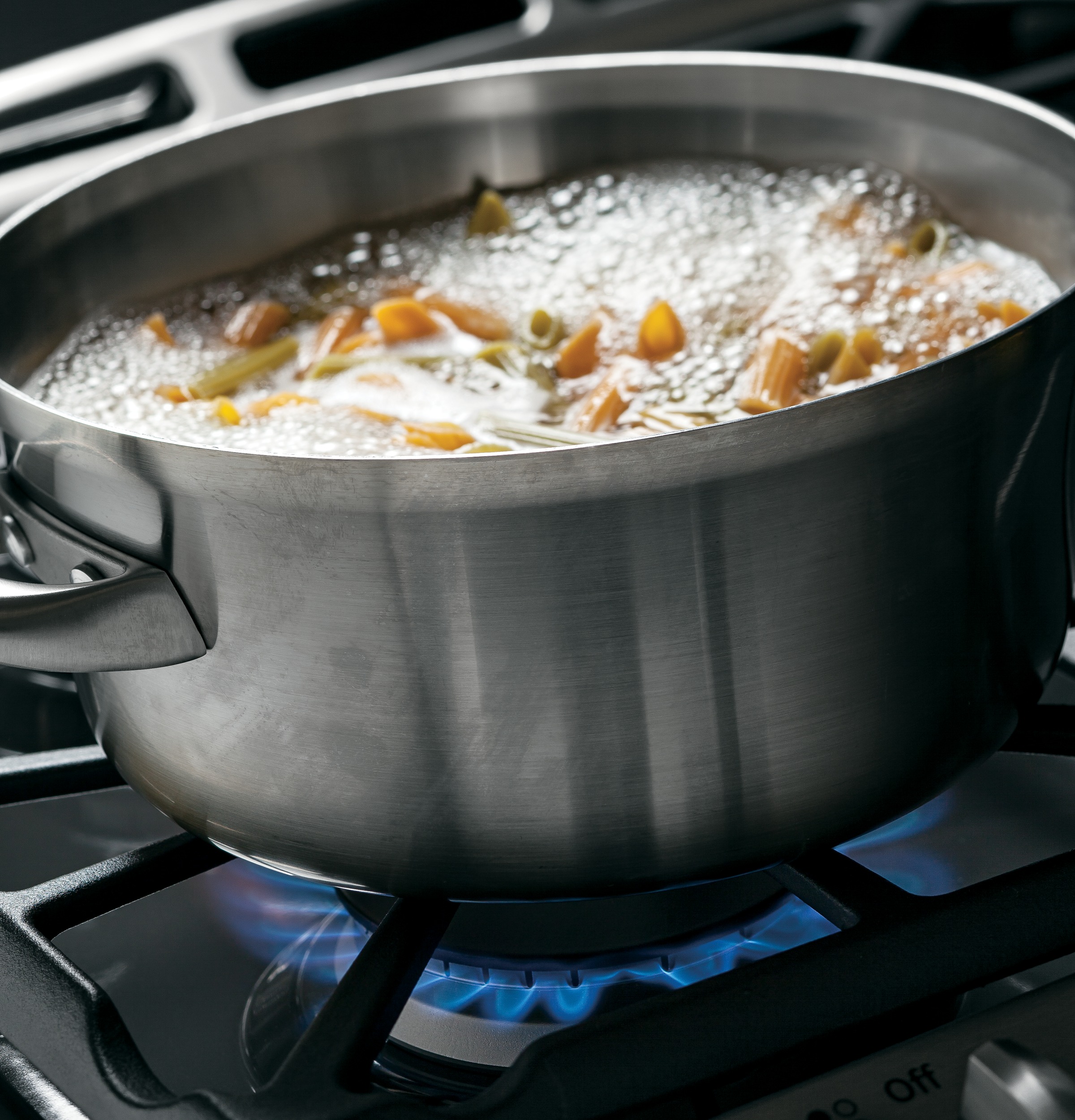

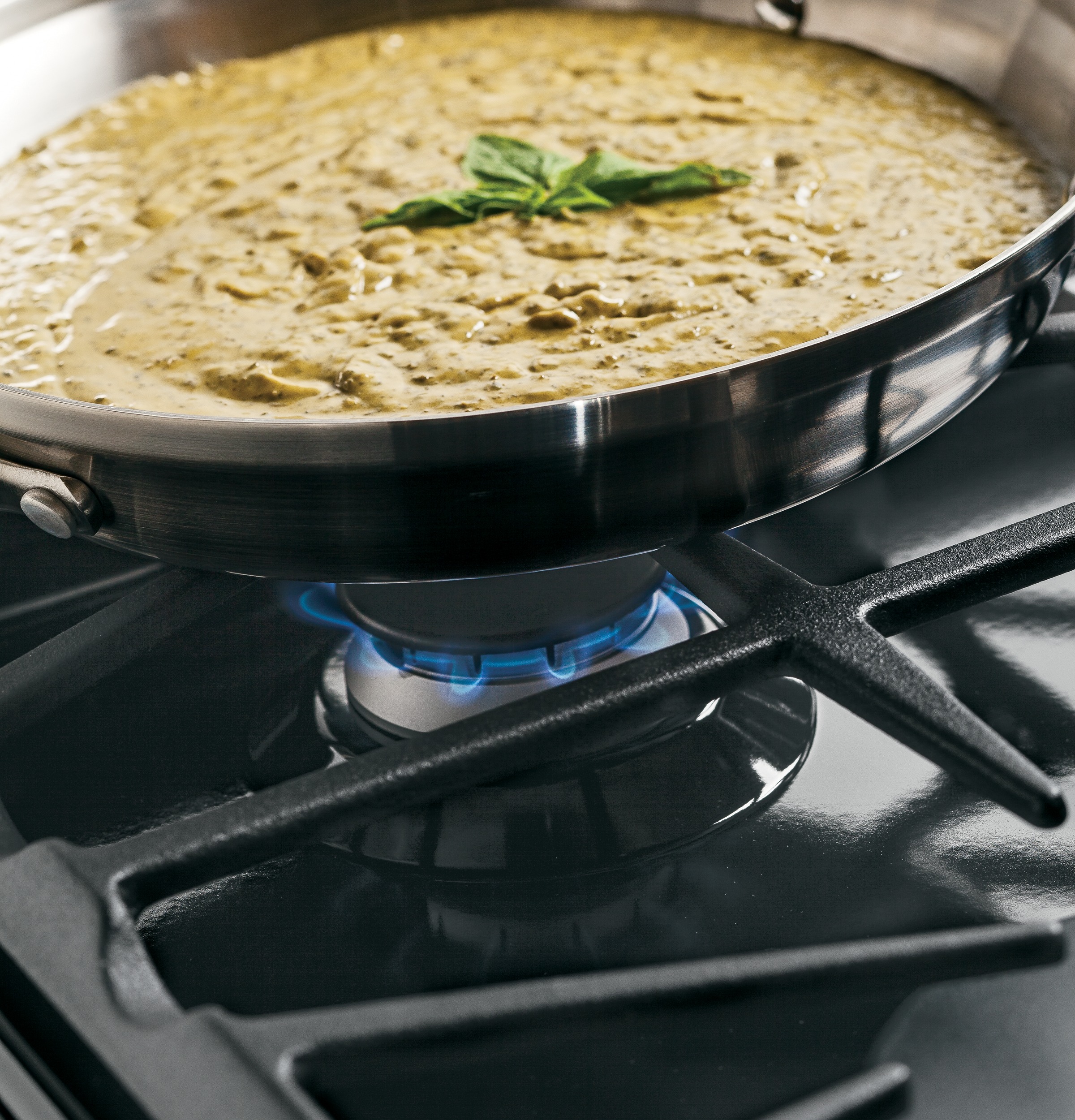

Burner - Left Front	15,000 BTU Power Boil

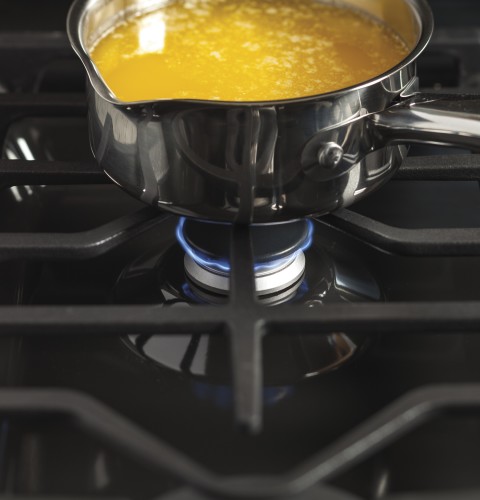

Burner - Left Rear	5,000 BTU Precise Simmer
Burner - Right Front	11,000 BTU
Burner - Right Rear	9,100 BTU
Cooktop Surface	Deep Recessed
Oven Control Features	Audible Preheat Signal
Oven Cleaning Type	Self-Clean

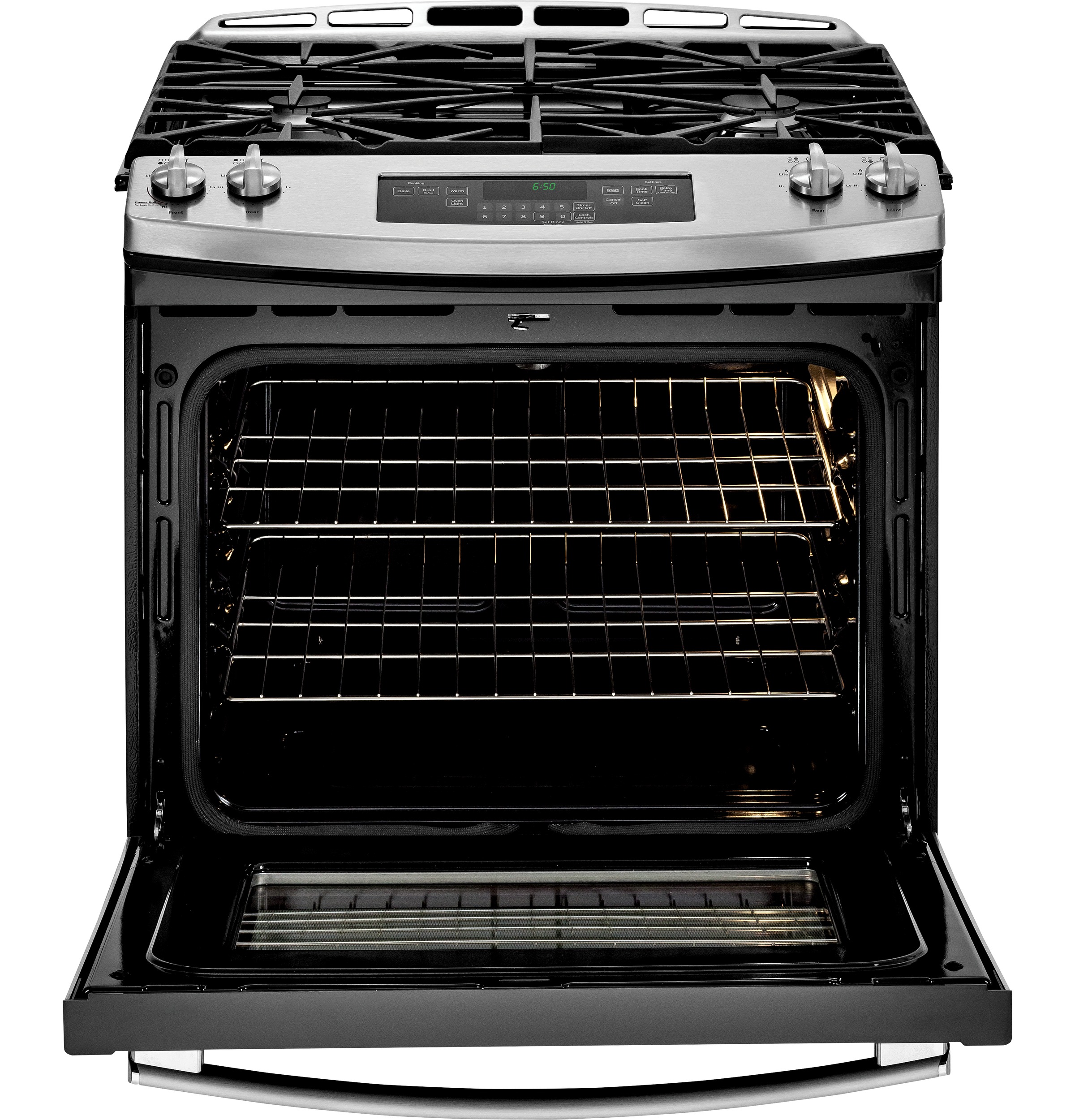

Oven Rack Features	2 Oven Racks

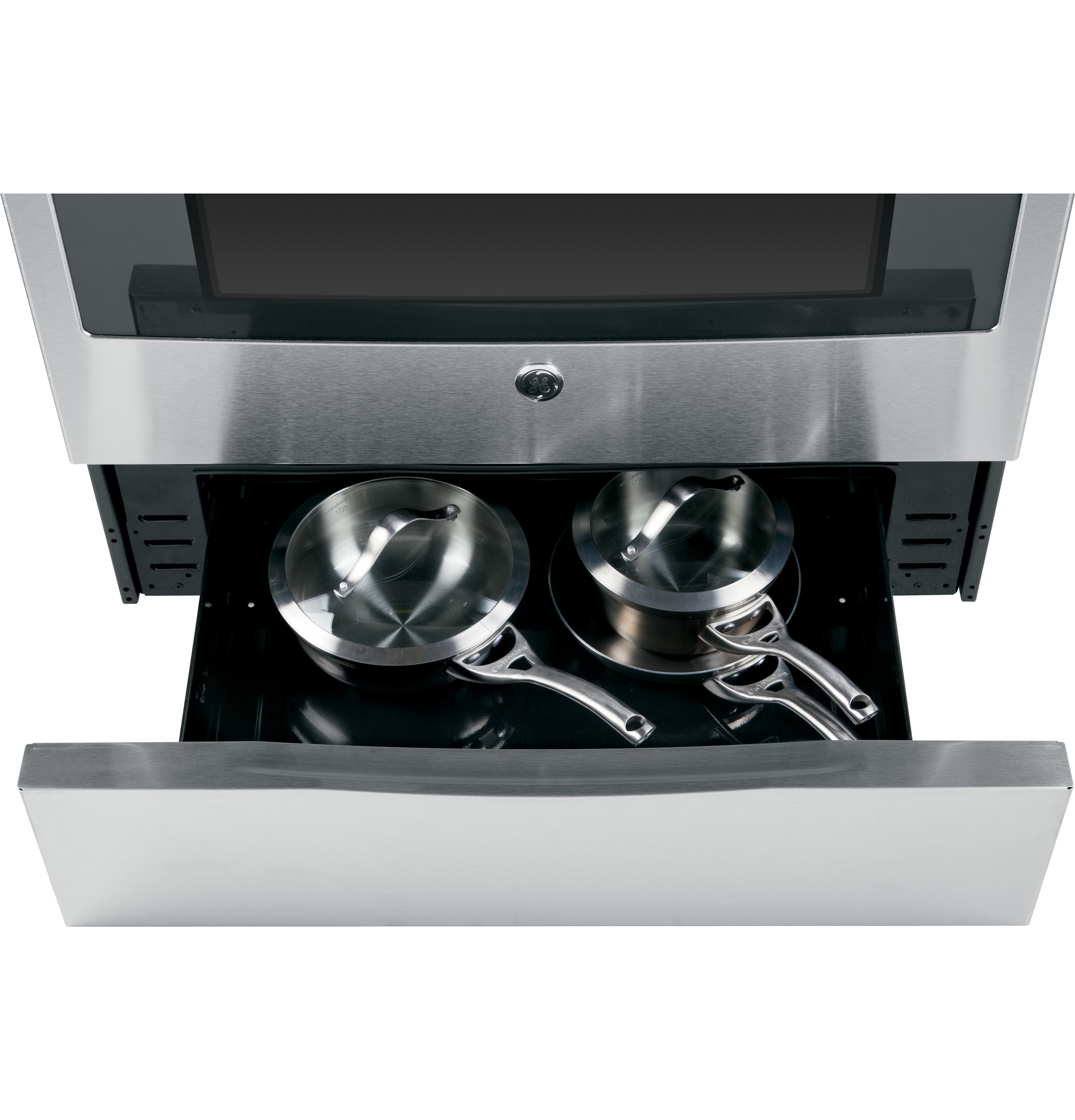

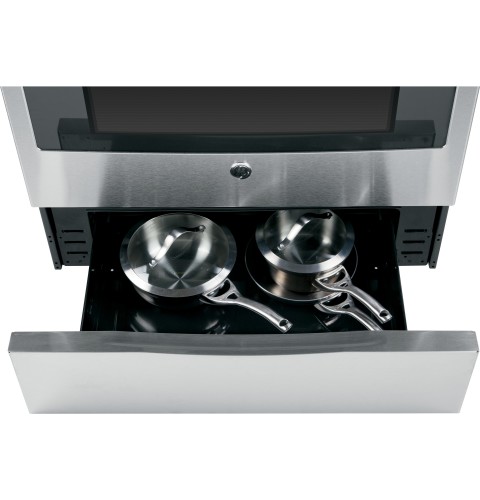

Drawer Type	Storage

CAPACITY
Total Capacity (cubic feet)	5.6  cu ft

APPEARANCE
Handle	Designer Style
Installation	Flush Appearance
Color Appearance	Stainless Steel/Gray
Control Knobs	Weighted Stainless Steel Appearance
Oven Door Features	Big View Oven Window
Cooktop Burner Grate Color	Matte Black

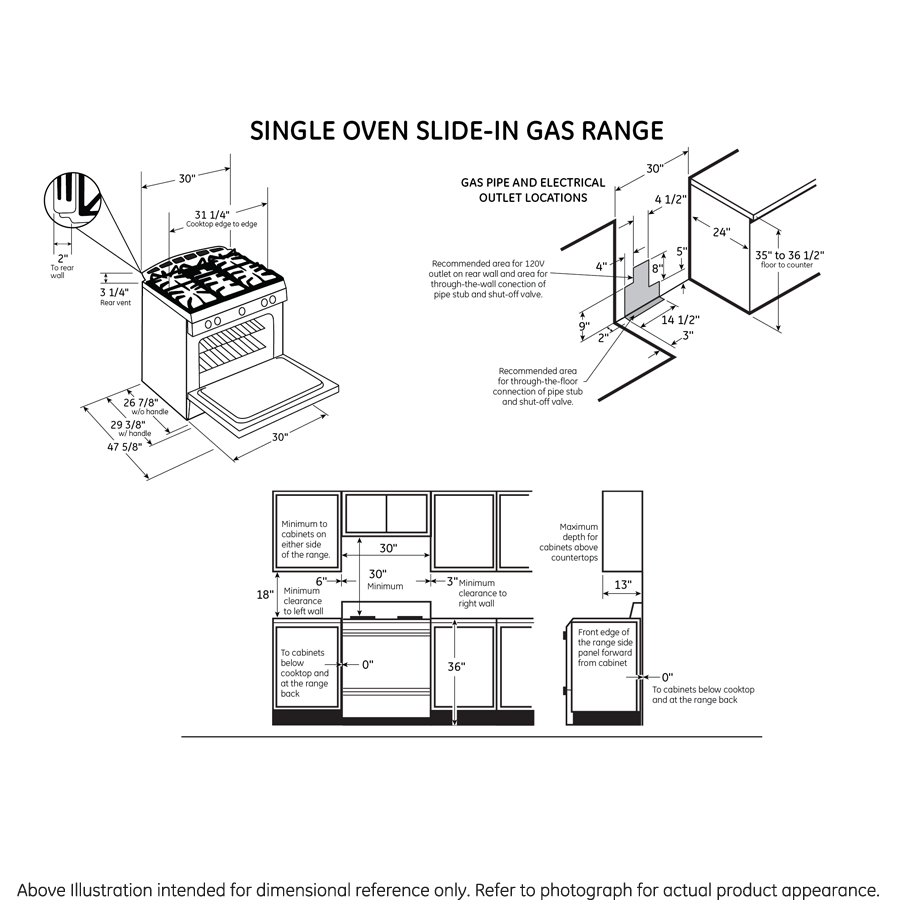

WEIGHTS & DIMENSIONS
Overall Depth	29.375  in
Overall Height	39.25  in
Overall Width	31.25  in
Approximate Shipping Weight	245  lb
Net Weight	225  lb
Depth Without Handle	26.875  in
Cabinet Width	30  in
Depth with Door Open	47.625  in
Oven Interior Dimensions (W x H x D) (in.)	24 x 19-1/2 x 20-5/8
Cabinet Opening	30  in

ACCESSORIES
LP Conversion Kit	Included
Optional Body Sides	Included
Trim Kit - Island	JXS81ES

WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

POWER / RATINGS
Volts/Hertz/Amps	120v; 60Hz; 15A
Bake/Broiler BTU Rating - LP (000's BTU's)	16.0 Bake / 12.0 Broiler
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	16.0 Bake / 13.5 Broiler
Top Burner BTU Rating - LP (000's BTU's)	(1) 15.0; (1) 5.0; (1) 10.0; (1) 9.1
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 11.0 (1) 9.1; (1) 15.0; (1) 5.0
