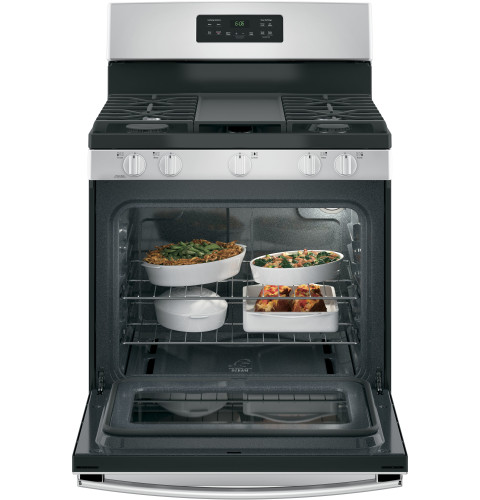

About this Product
-

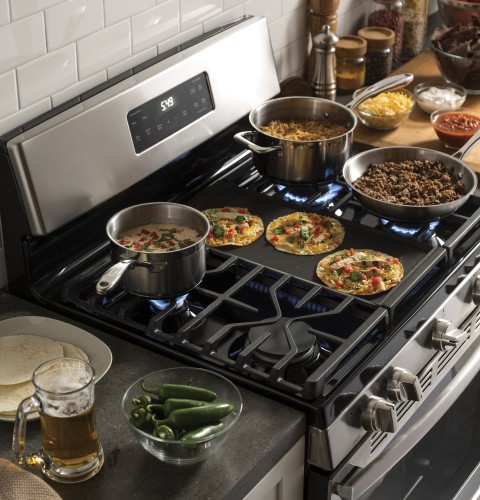

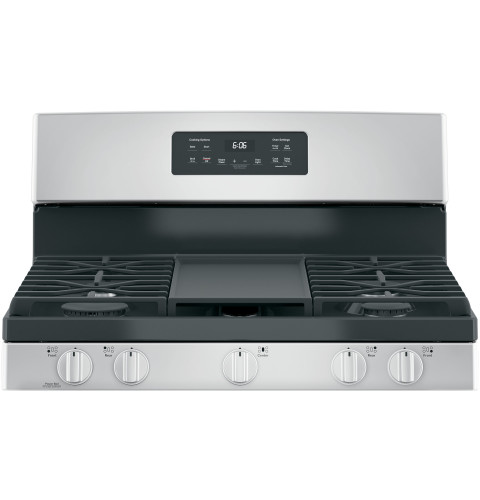

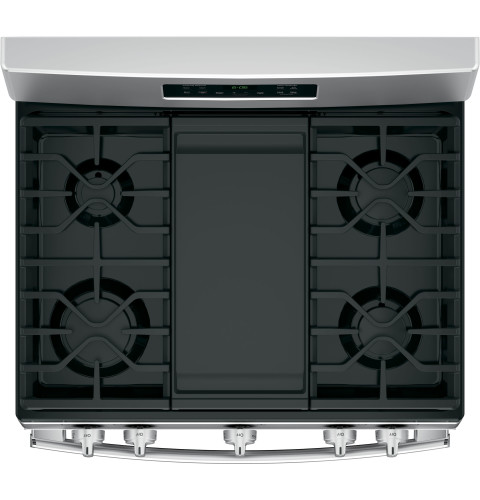

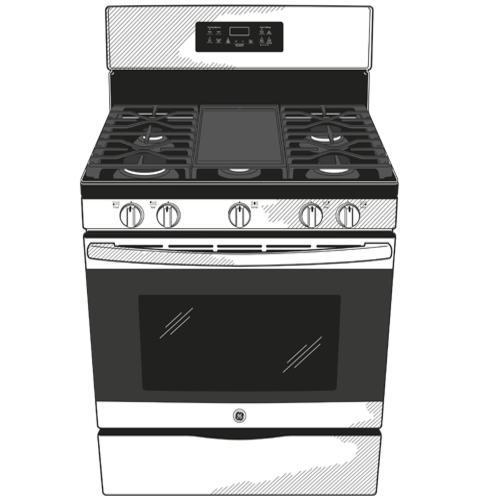

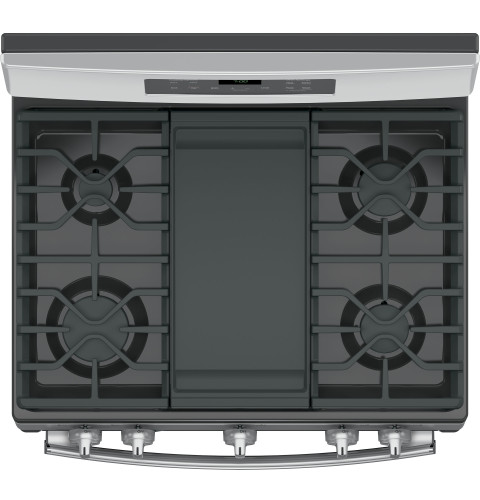

Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner
-

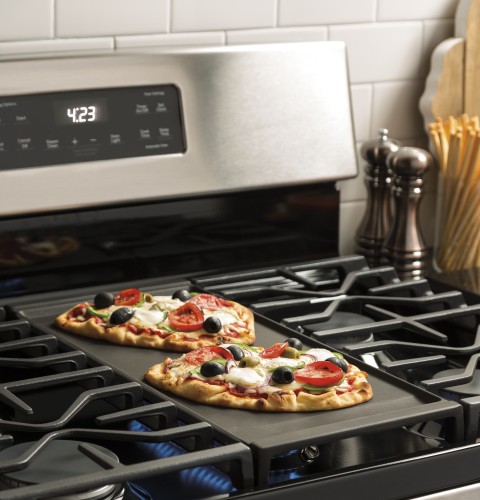

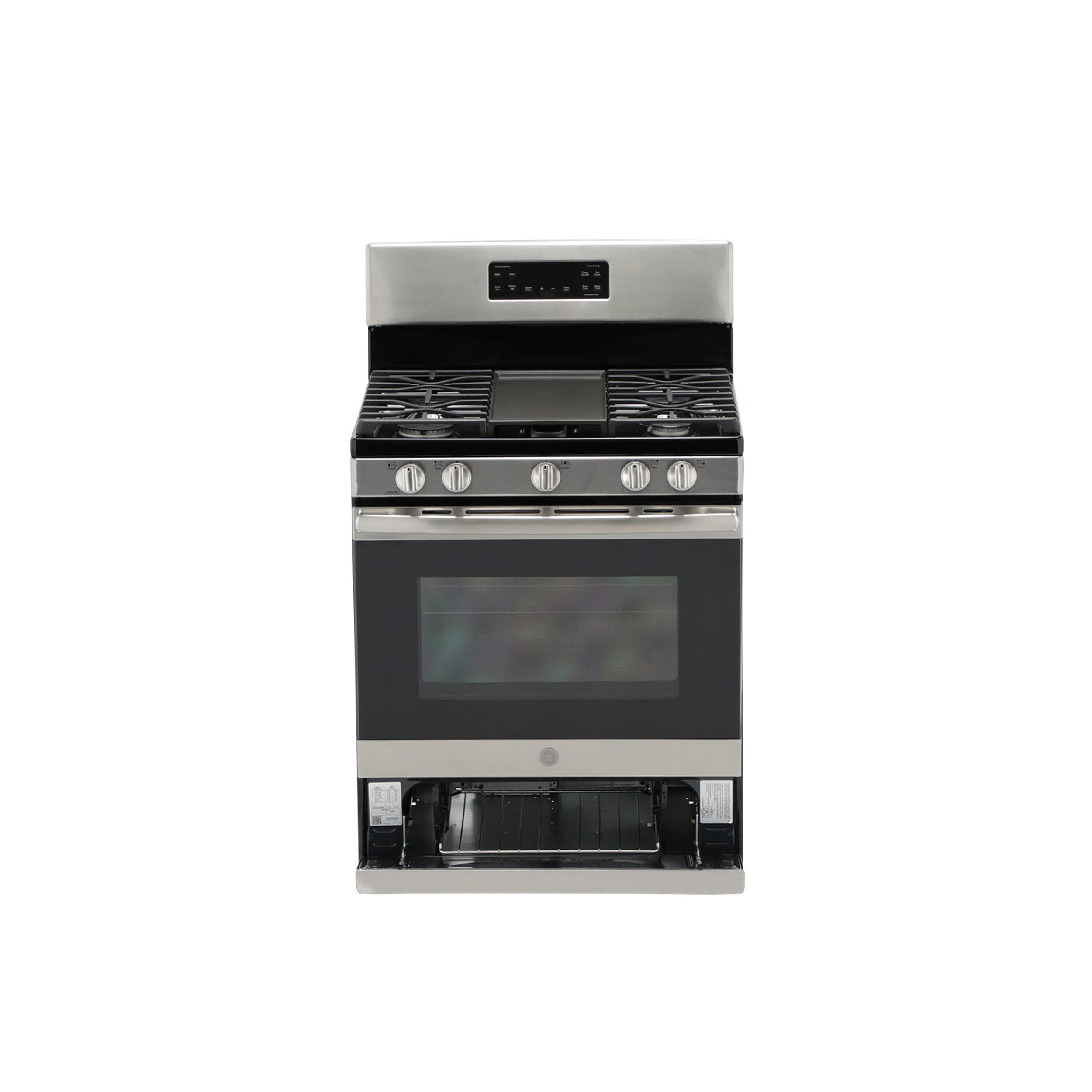

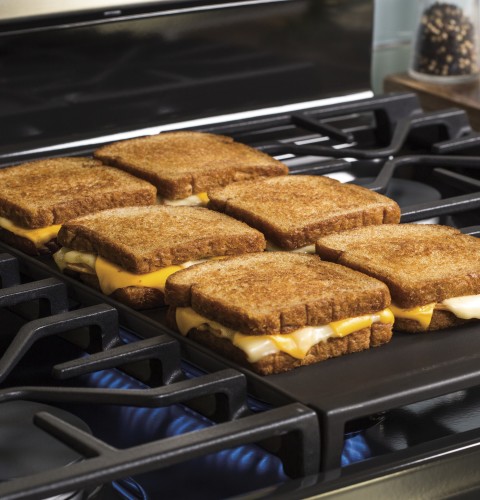

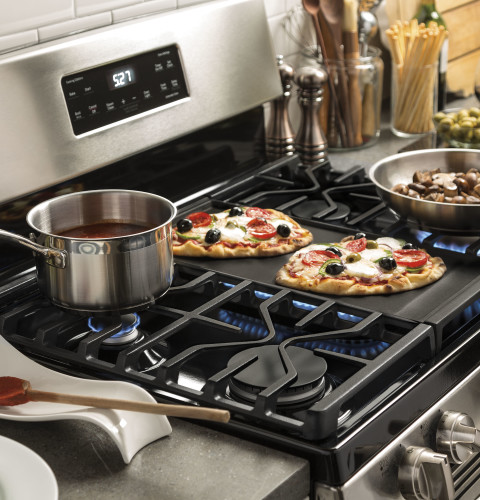

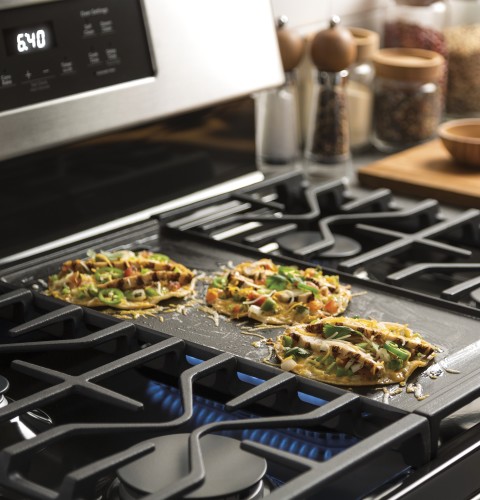

Extra-large integrated griddle
Cook up to six grilled cheeses at once on the industry’s largest integrated griddle
-

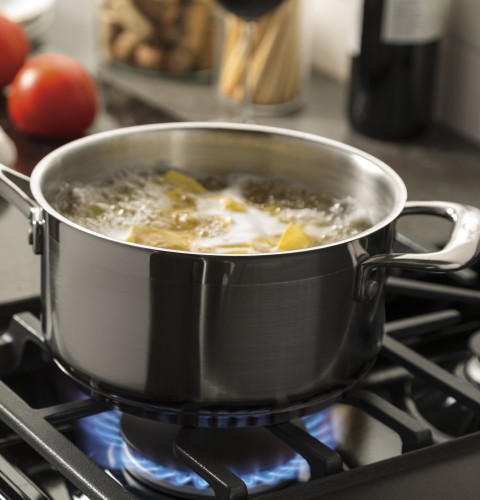

15,000 BTU Power Boil Burner
Delivers high heat for fast boiling
-

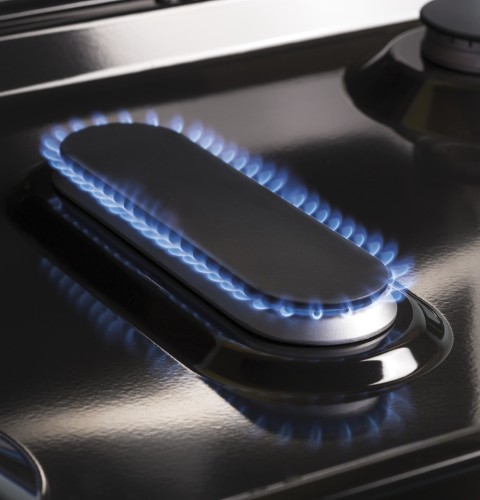

Center oval burner
Large oval fifth burner is ideal for griddle cooking
Features
-
Sealed cooktop burners
Contains spills and make cleaning quick and easy
-
Deep-recessed cooktop
Contains spills for quick and easy cleaning
-
Flexible broiling
Broil in any size cookware with a flexible broiling element that can be set to hi or low based on your broiling needs
-

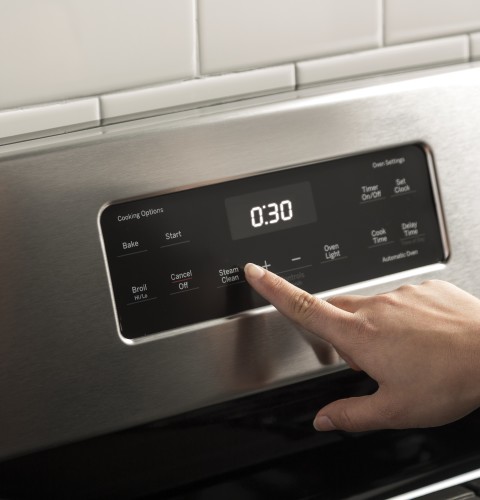

Electronic clock and timer
Help cooks coordinate meal preparation and cooking
Claims & Certifications
For California Residents:
View Proposition 65 Warning
Manuals & Downloads
- Installation Instructions    
- Quick Specs  
- Owner’s Manual      
FEATURES |
Print Specs |
|---|---|
| Control Type | Electronic Touch |
| Product Type | Free-Standing Single Oven |
| Sabbath Mode | Yes |
| Configuration | Range with Broiler Drawer |
| Control Location | Front |
| Ignition System | Electronic |
| Fuel Type | Natural Gas |
| Griddle | Integrated (Included) |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Cooktop Burner Type | Sealed |
| Cooking Technology | Traditional |
| Interior Oven Light | 1 Incandescent |
| Burner - Center | 10,000 BTU Oval |
| Burner - Left Front | 15,000 BTU |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Burner - Right Front | 9,500 BTU |
| Burner - Right Rear | 12,000 BTU |
| Cooktop Surface | Black |
| Oven Control Features | Audible Preheat Signal |

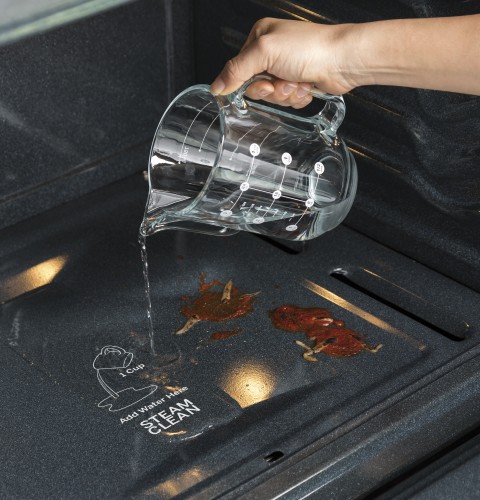

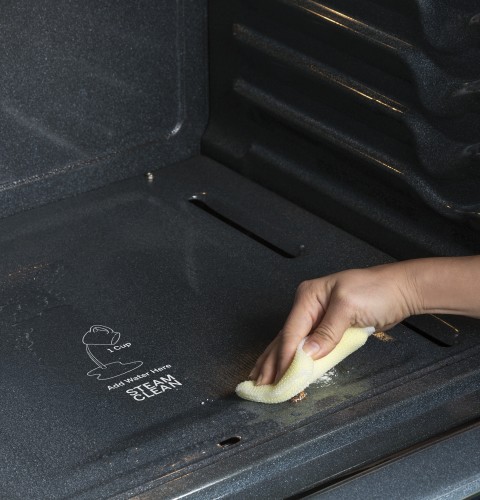

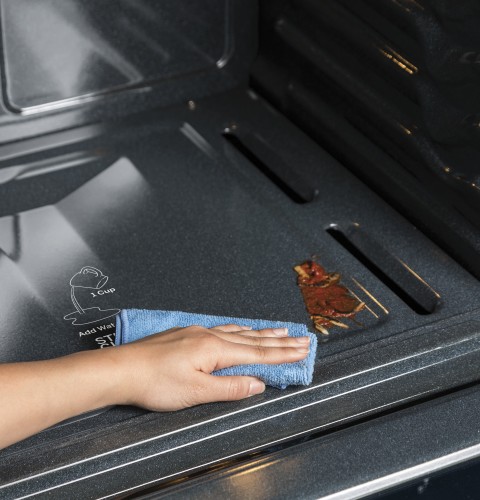

| Oven Cleaning Type | Steam Clean |
| Oven Rack Features | 2 Flat Nickel Racks |

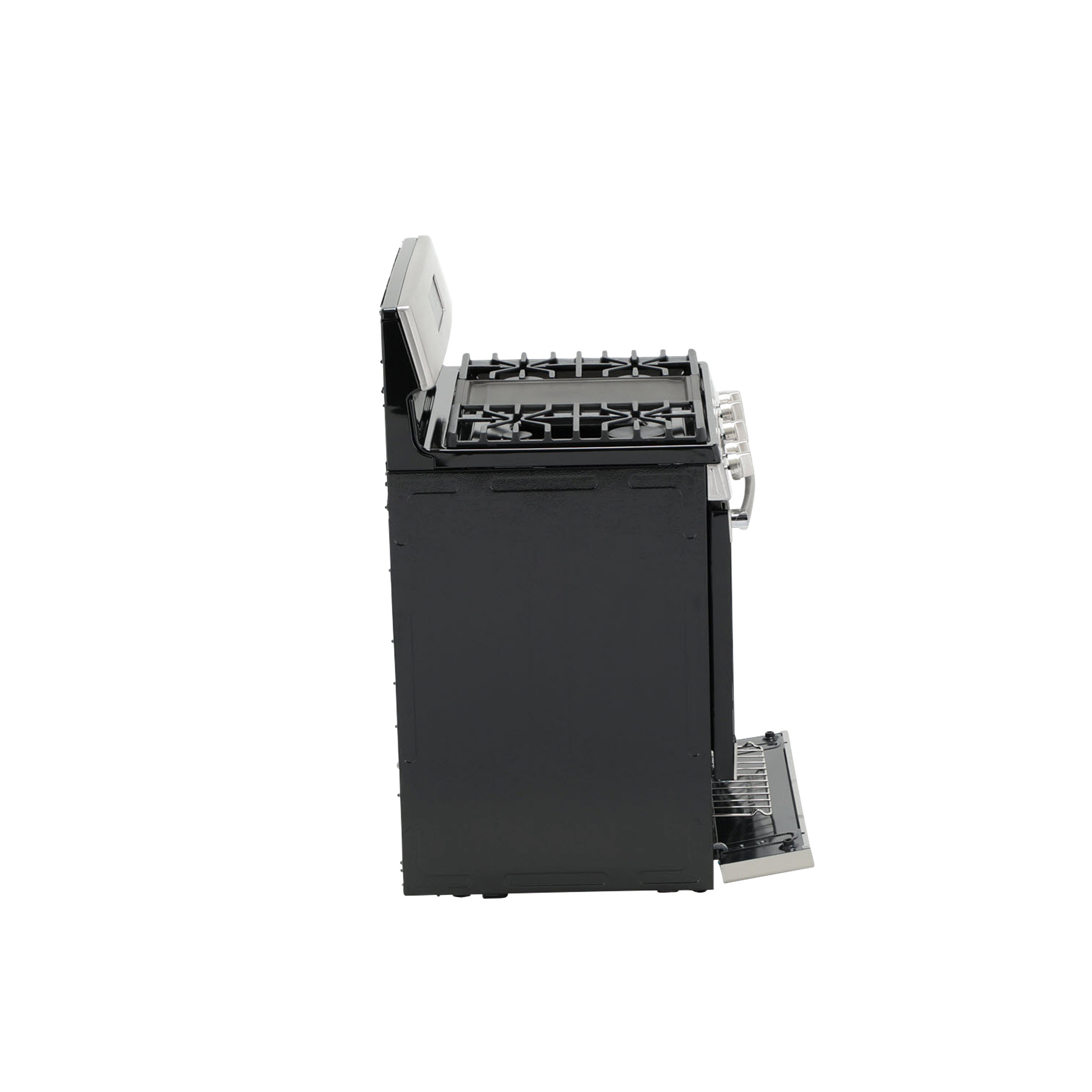

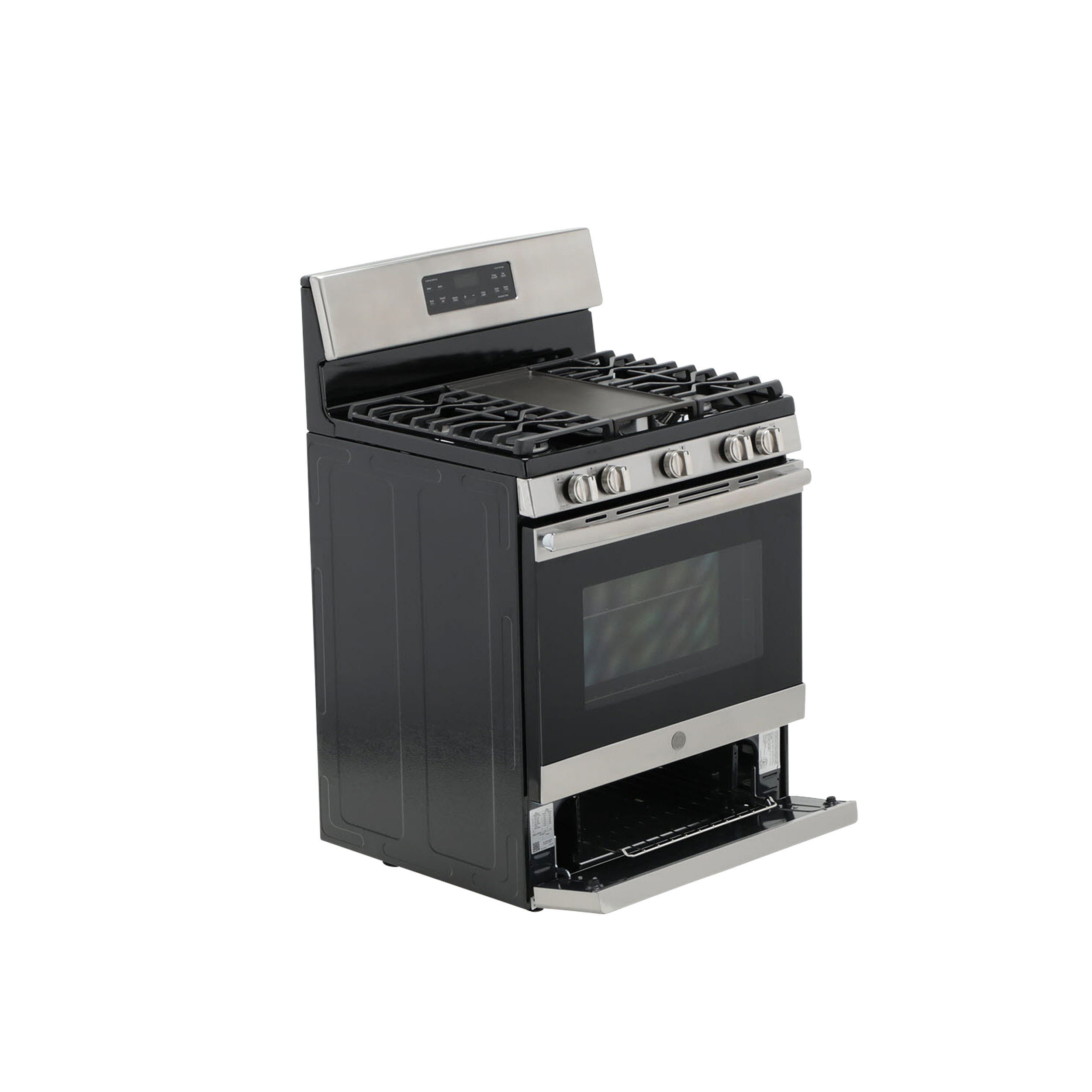

| Drawer Type | Broiler |
| Cooktop Type | Continuous Grates with Griddle |
| OU Certified | Embedded OU/CRC Enhanced Shabbos Mode |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
CAPACITY |
|
|---|---|
| Total Capacity (cubic feet) | 5
cu ft |
APPEARANCE |
|
|---|---|
| Handle | Designer Style |
| Color Appearance | Stainless Steel/Black |
| Handle Color | Stainless Steel |
| Control Knobs | Stainless Steel Appearance |
| Oven Door Features | Big View Oven Window |
| Cooktop Burner Grate Color | Matte Black |

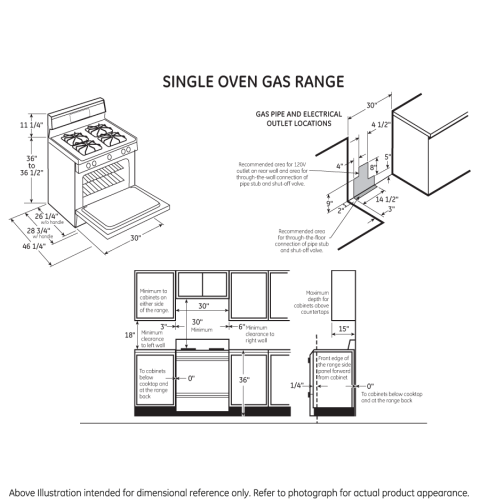

WEIGHTS & DIMENSIONS |
|
|---|---|
| Overall Depth | 28.75
in |
| Overall Height | 47.25
in |
| Overall Width | 30
in |
| Approximate Shipping Weight | 172
lb |
| Net Weight | 150
lb |
| Depth Without Handle | 26.25
in |
| Cabinet Width | 30
in |
| Depth with Door Open | 46.25
in |
| Height to Cooking Surface (in.) | 36 - 36.5 |
| Height w/Legs Extended - Maximum Height | 36.5
in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Cabinet Opening | 30
in |
| Height w/ Legs Retracted - Minimum Height | 36
in |
ACCESSORIES |
|
|---|---|
| LP Conversion Kit | Included |
| Griddle Accessory | Integrated Griddle (Included) |
| Center Grate | Optional - JXGRATE1 |
WARRANTY |
|
|---|---|
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
POWER / RATINGS |
|
|---|---|
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.0 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0 |
