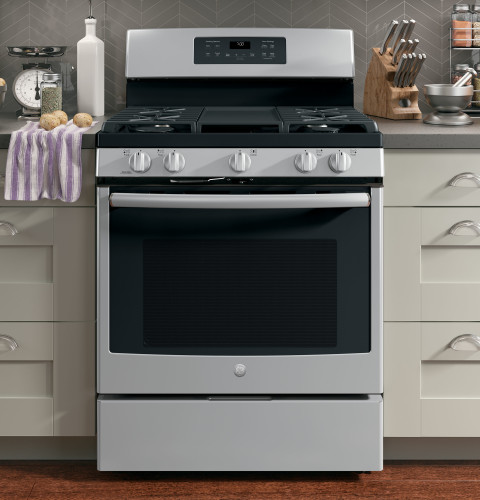

About this Product
-

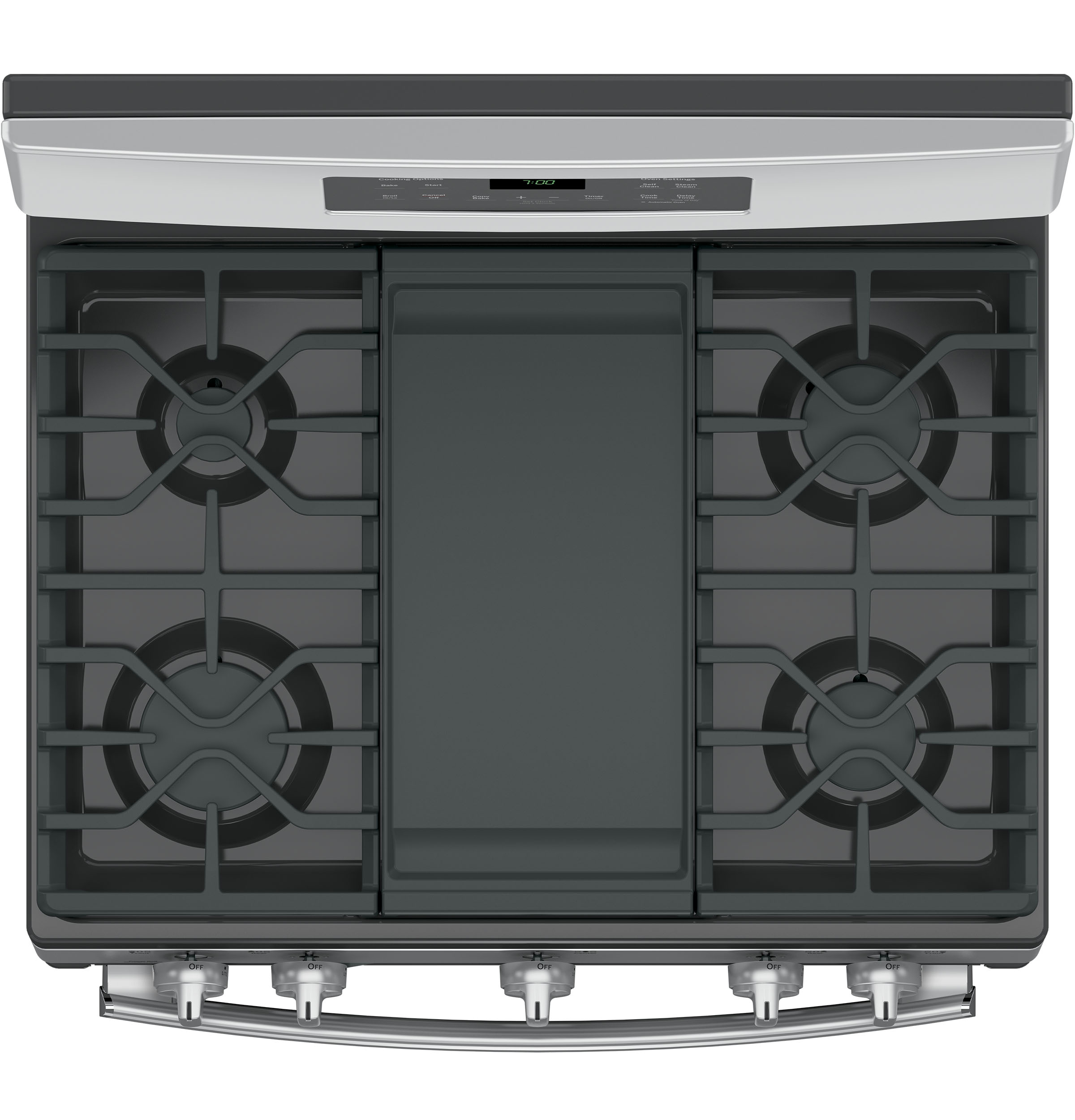

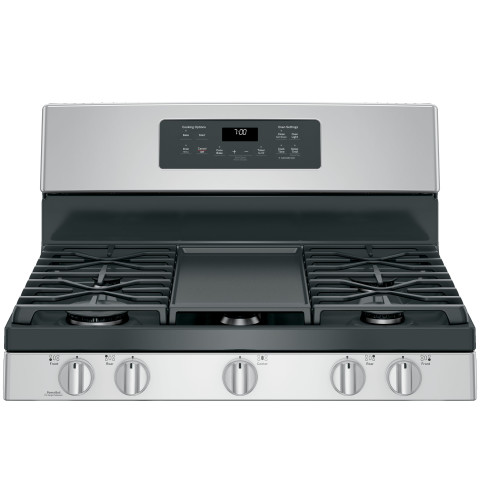

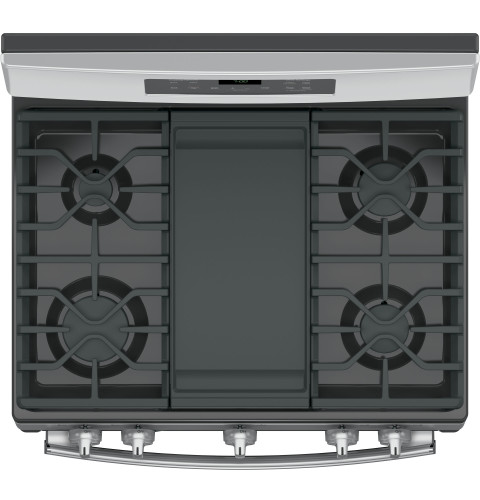

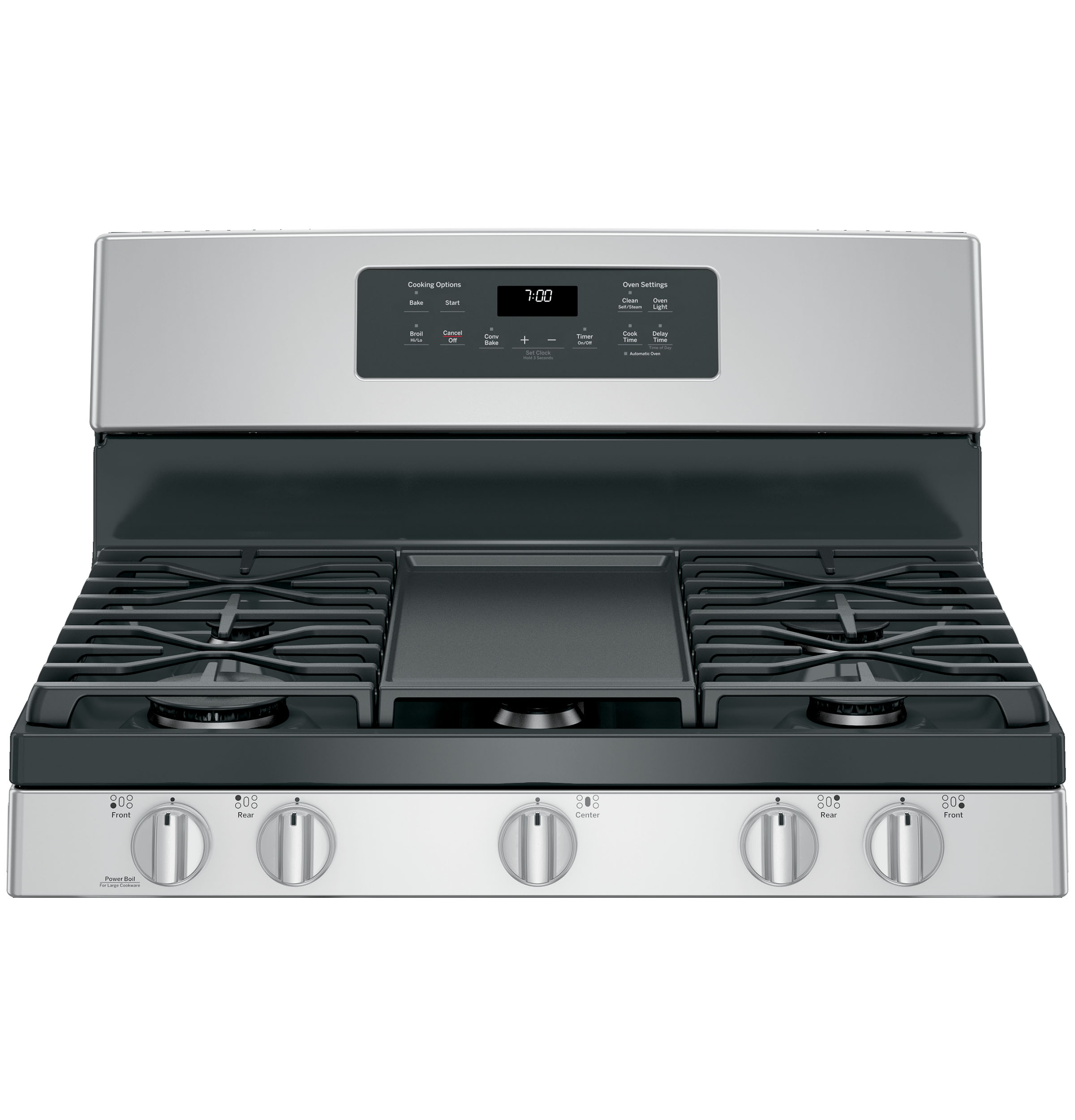

Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner
-

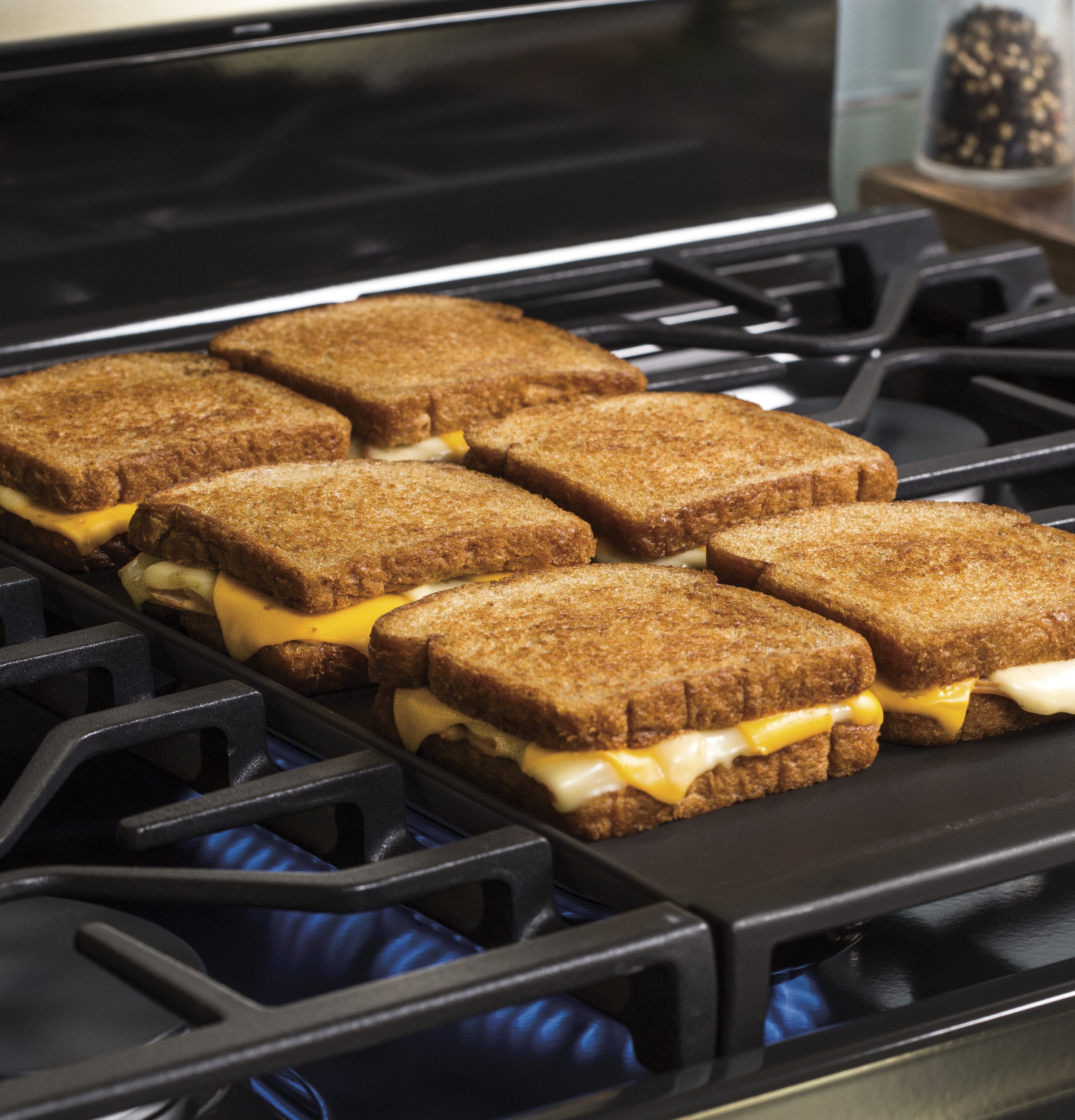

Extra-large integrated non-stick griddle
Cook up to six grilled cheeses at once on the industry's largest integrated griddle
-

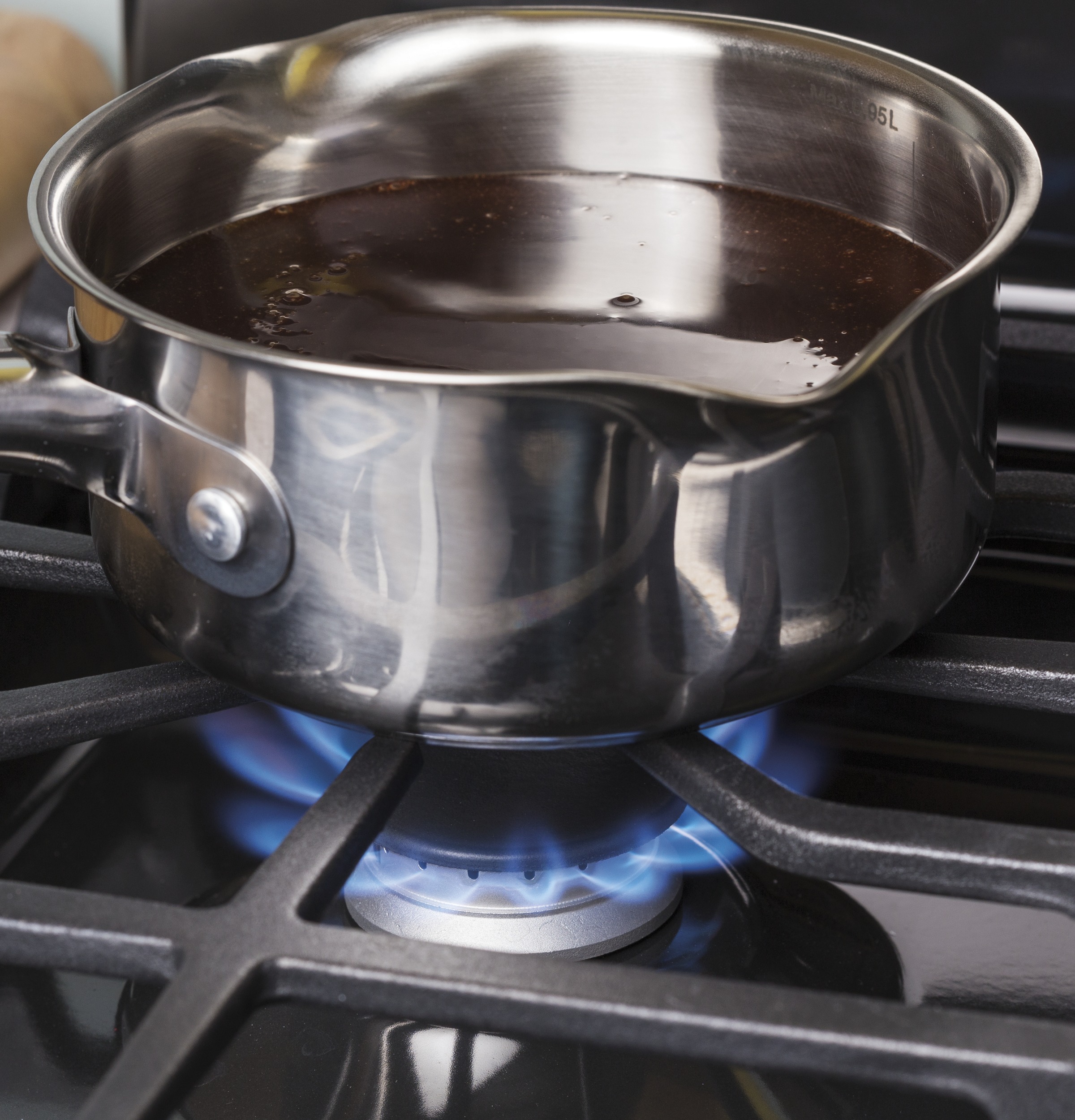

18,000 BTU Power Boil burner
Boil water fast with intense heat from this 18,000 BTU burner
-
Self-clean with Steam Clean option
Clean your oven the way you want
Features
-

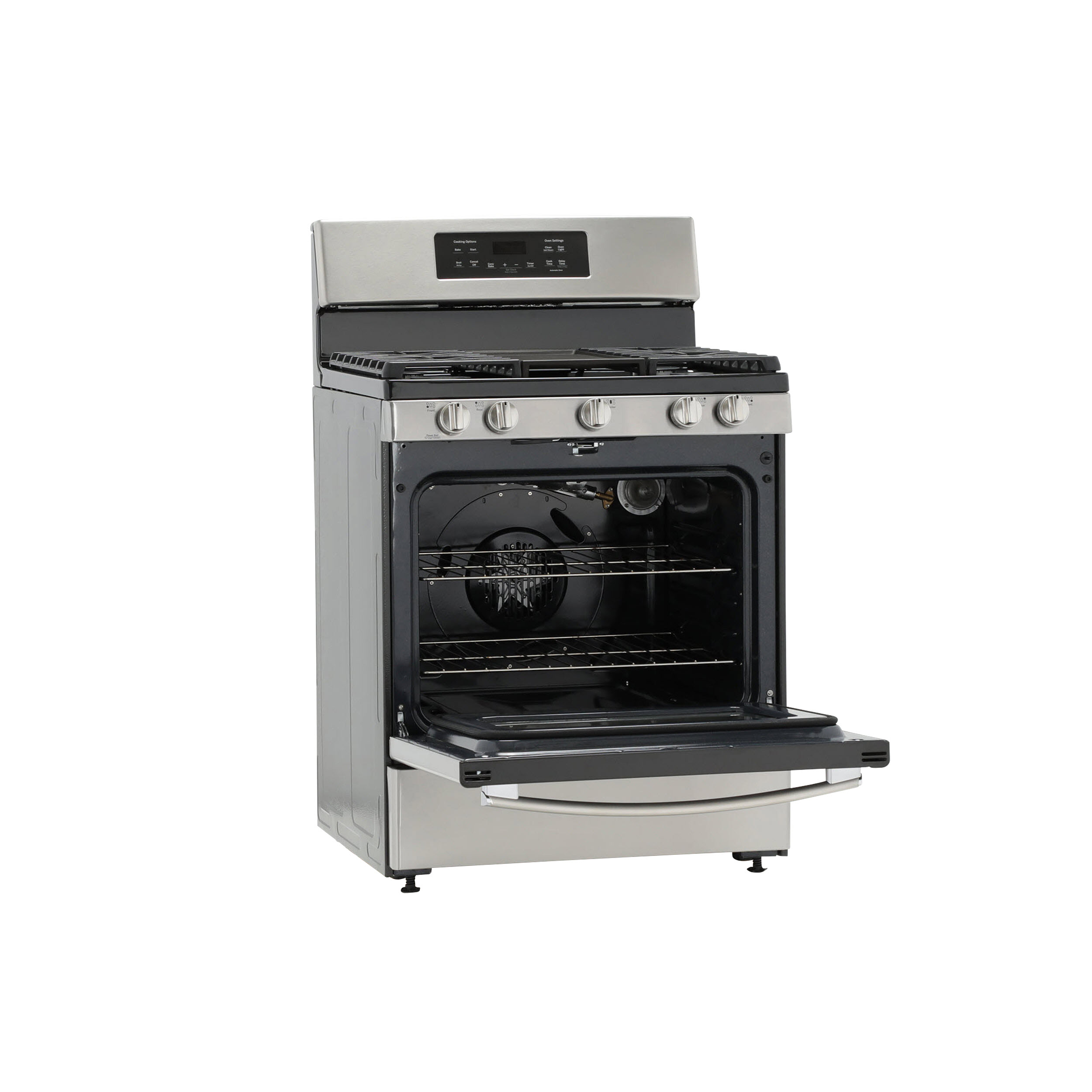

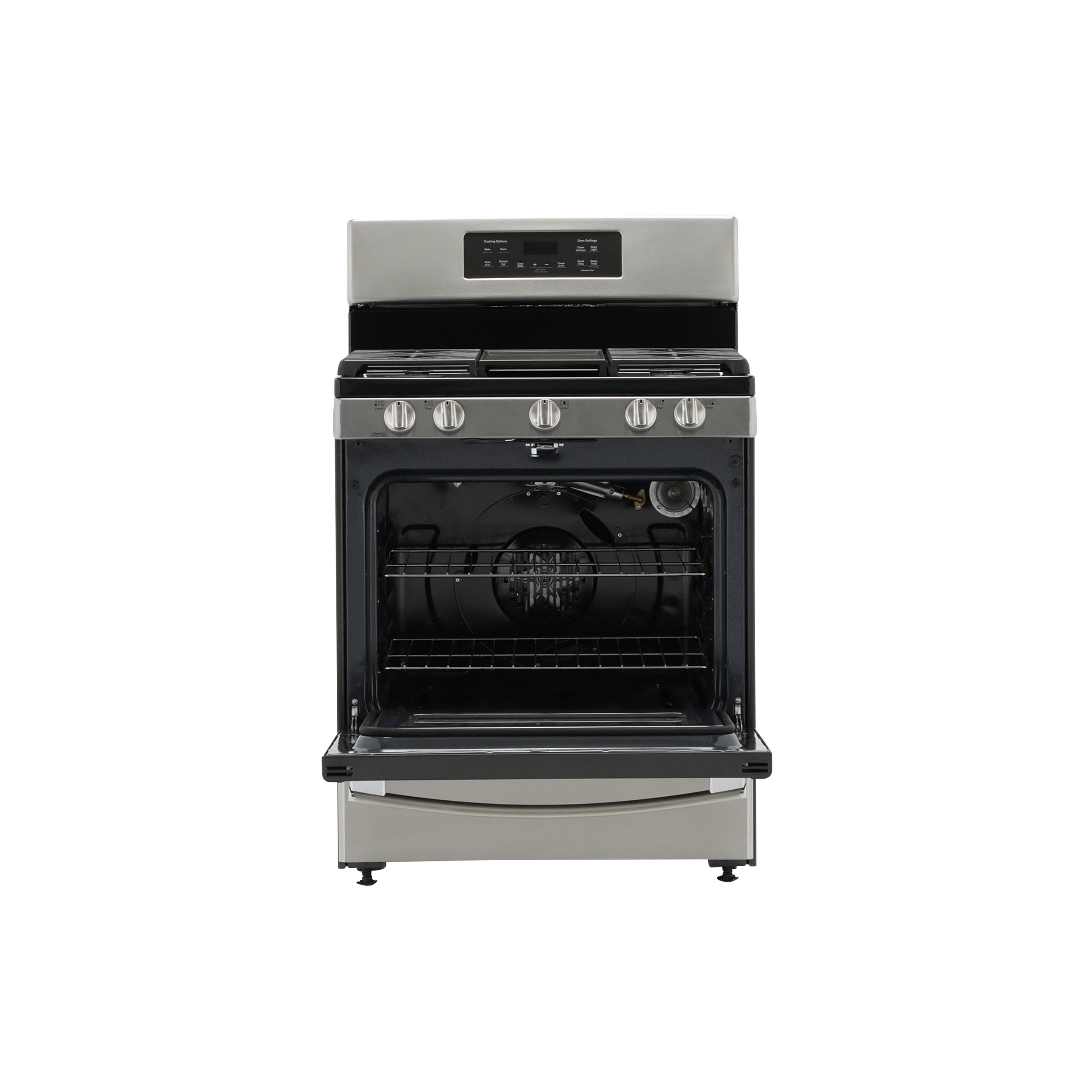

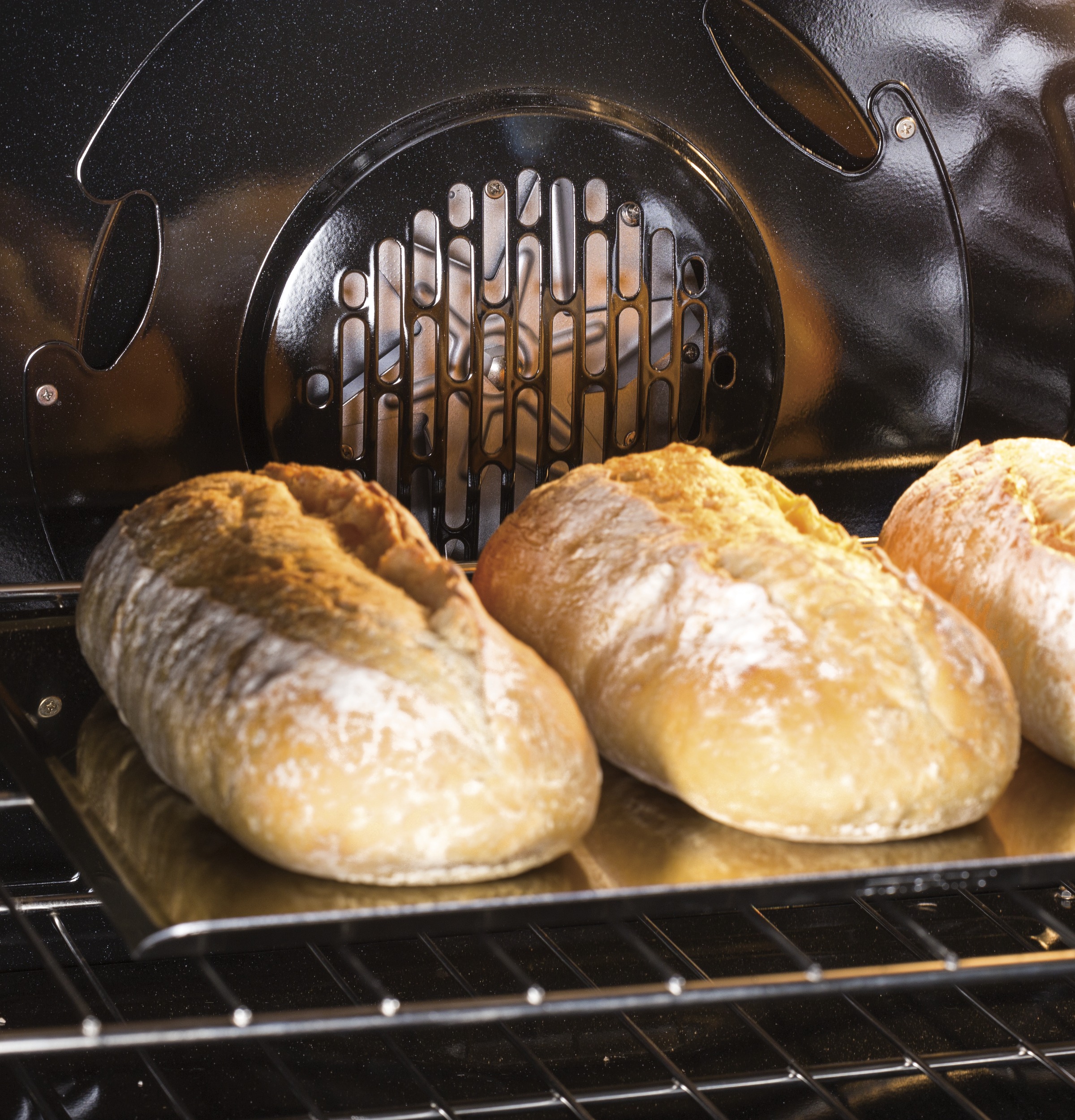

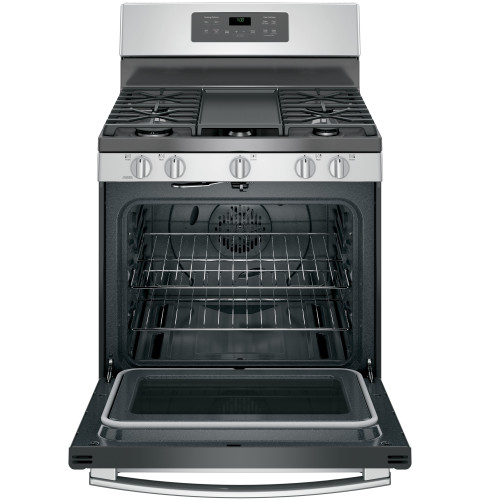

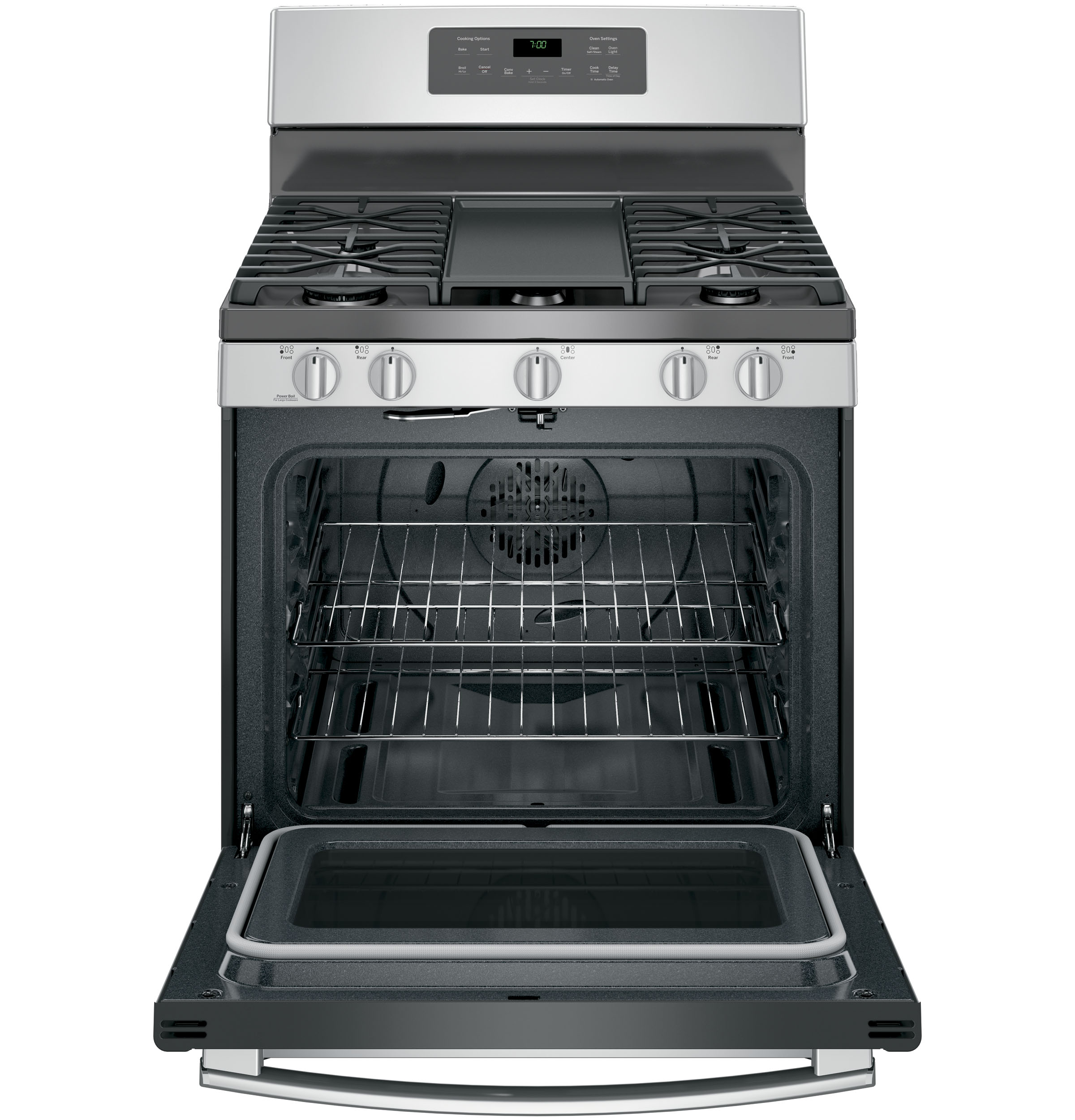

Gas convection oven
Circulates heat for high-quality results
-

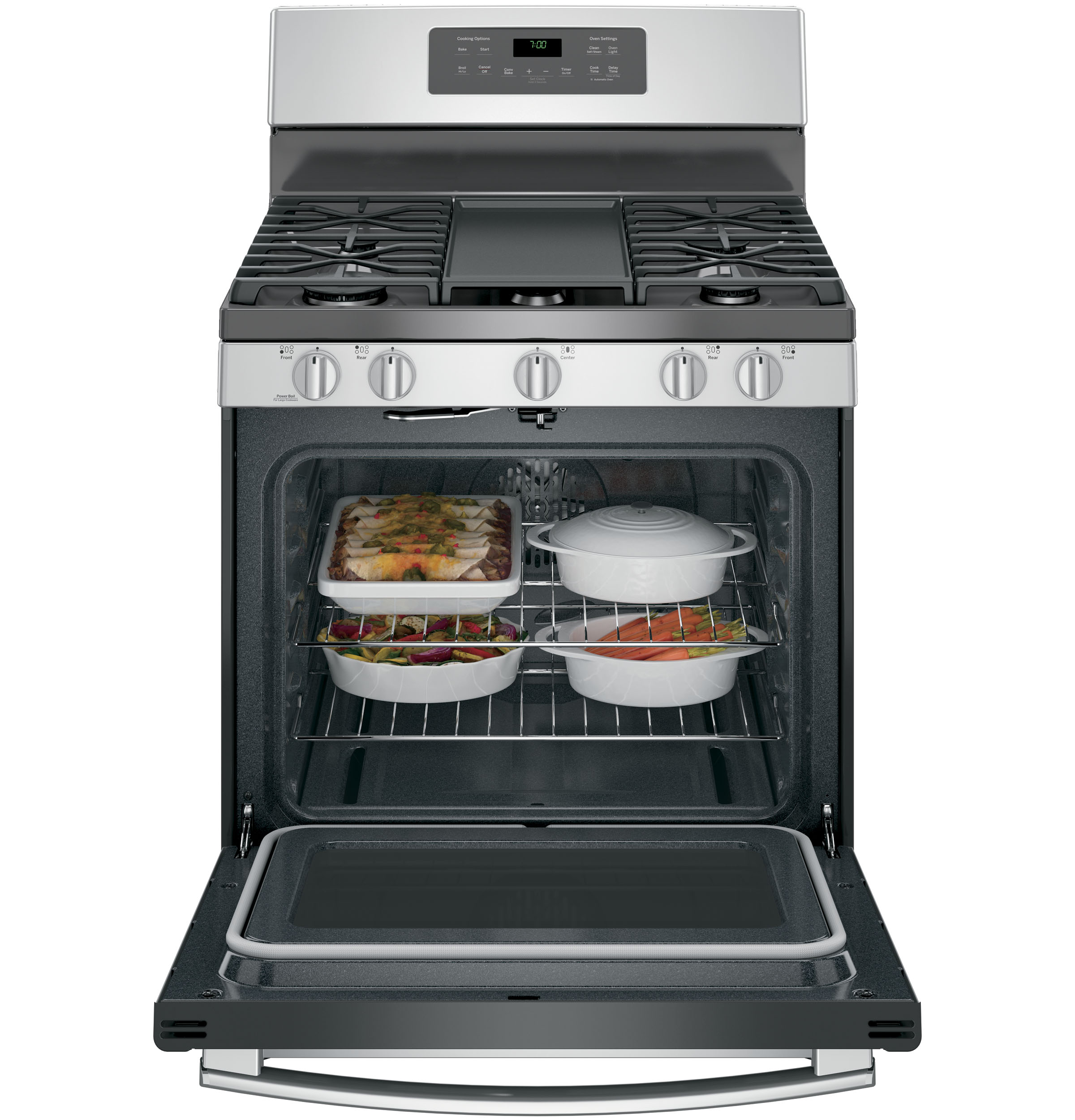

5.0 cu. ft. oven capacity
Cook more dishes at once
Claims & Certifications
For California Residents:
View Proposition 65 Warning
Manuals & Downloads
FEATURES |
Print Specs |
|---|---|
| Control Type | Electronic Touch |
| Product Type | Free-Standing Single Oven |
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Fuel Type | Natural Gas (factory set) |
| Griddle | Integrated Non-Stick (Included) |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Cooktop Burner Type | Sealed |
| Cooking Technology | Convection |
| Interior Oven Light | 1 Auto Incandescent |
| Oven Cooking Modes | Convection Bake |
| Burner - Center | 10,000 BTU Oval |
| Burner - Left Front | 18,000 BTU Power Boil |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Burner - Right Front | 9,500 BTU |
| Burner - Right Rear | 12,000 BTU |
| Cooktop Surface | Edge-to-Edge |
| Oven Control Features | Audible Preheat Signal |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Oven Rack Features | 2 Oven Racks |

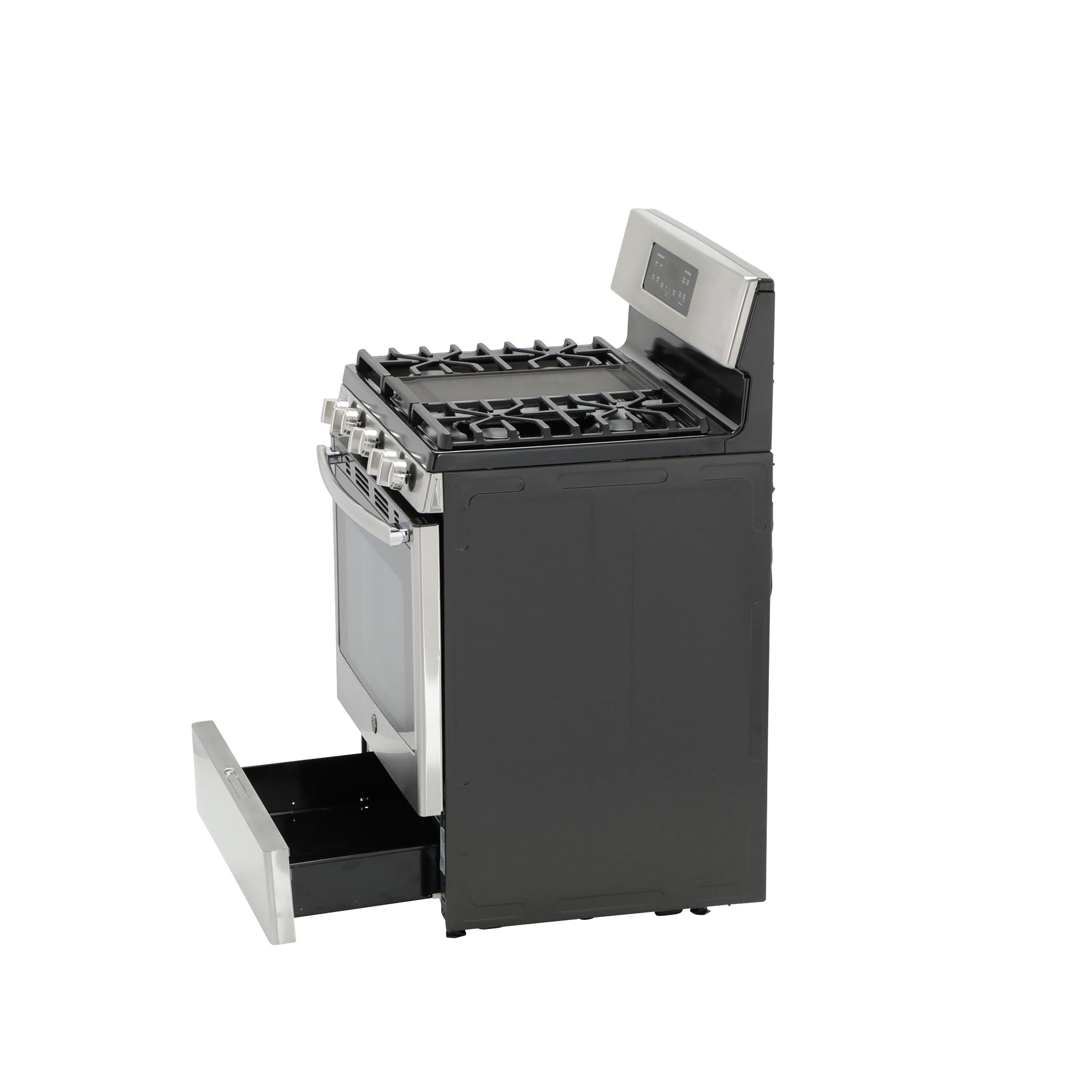

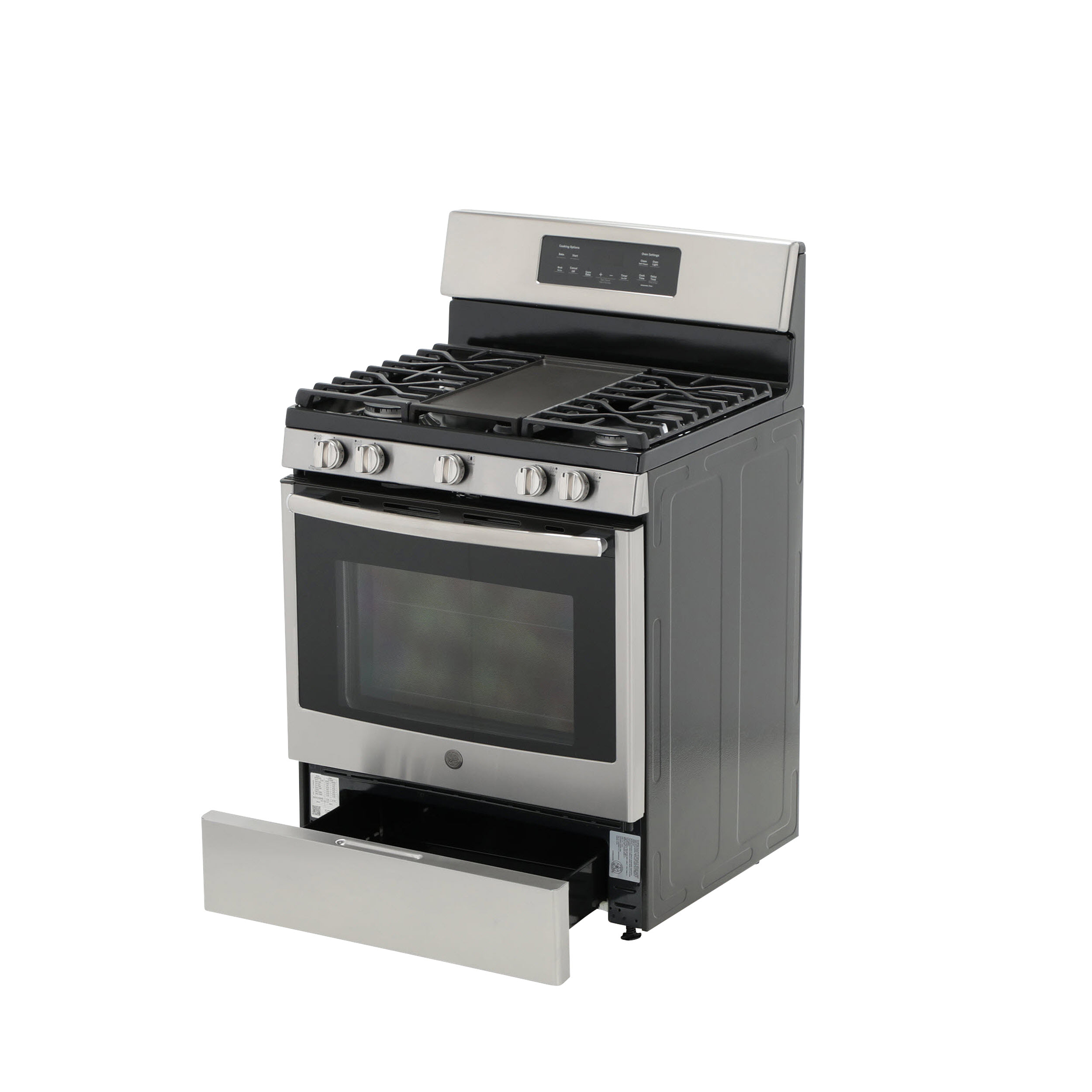

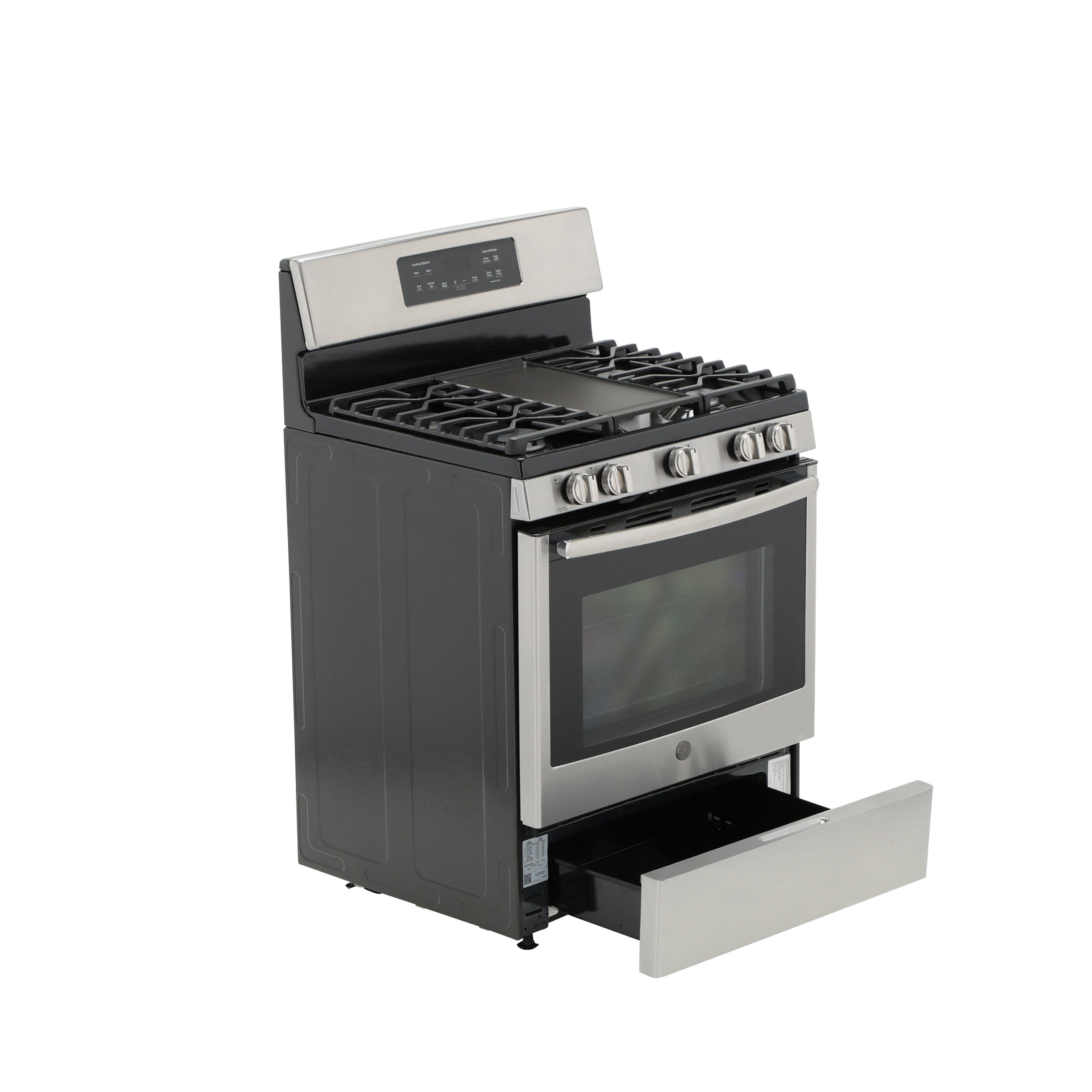

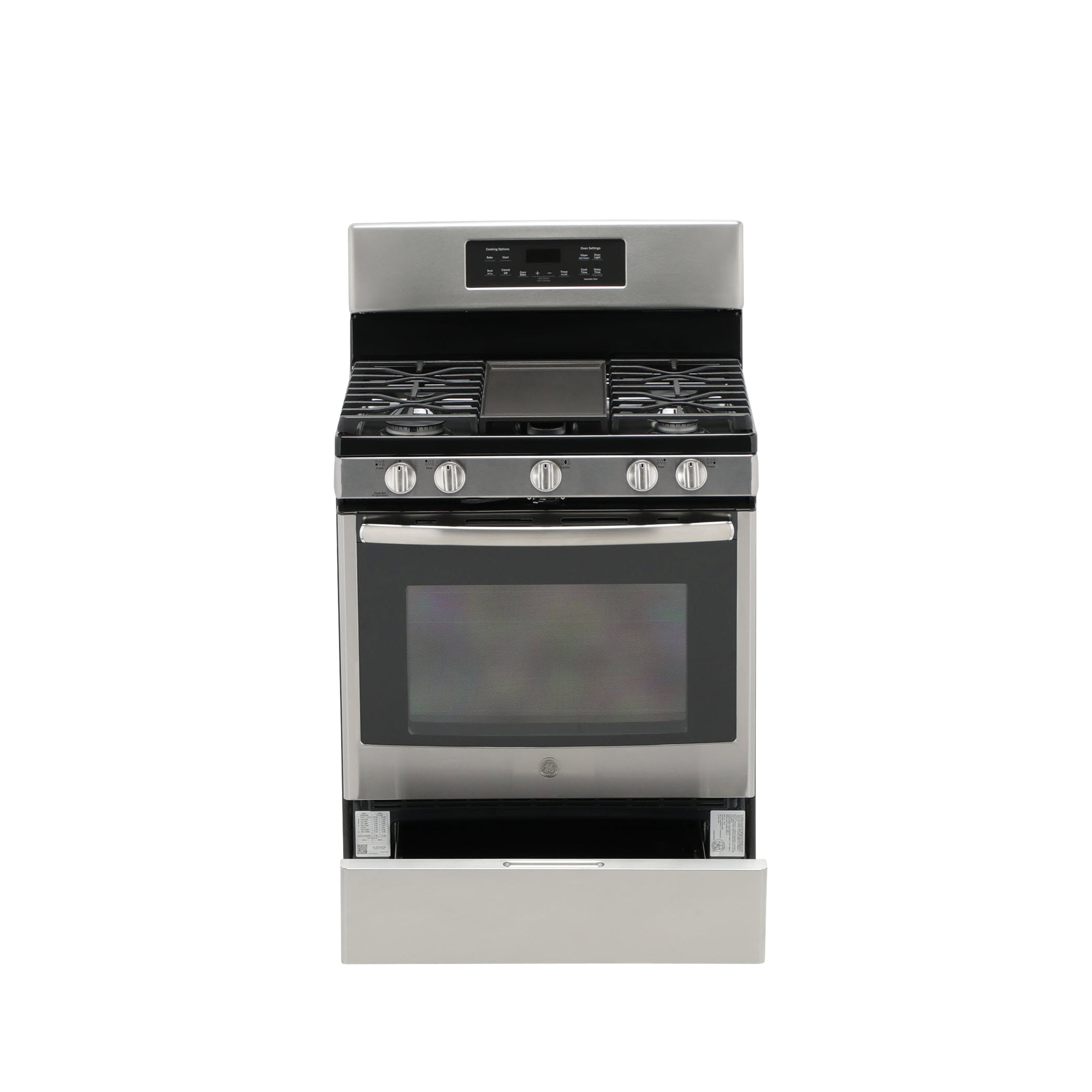

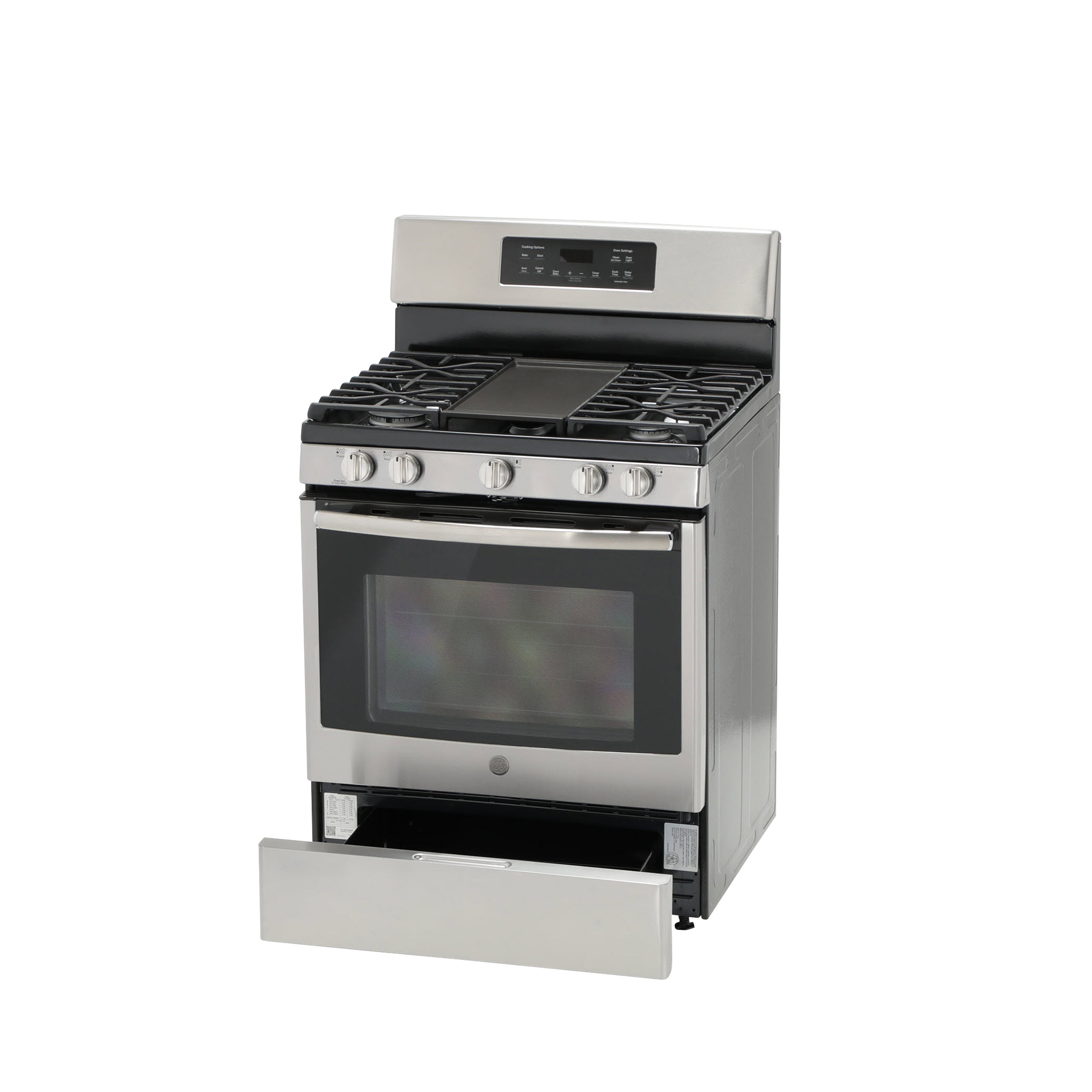

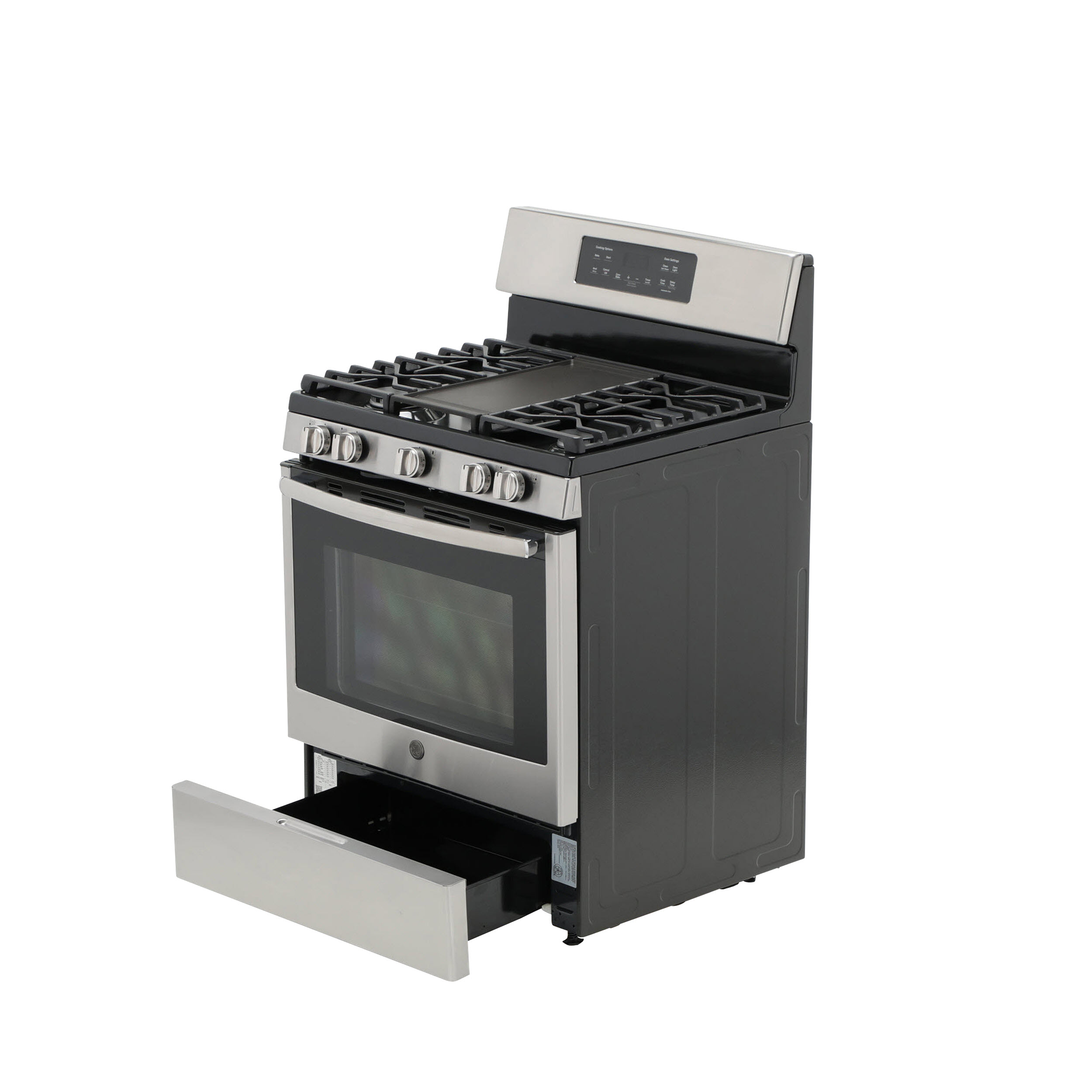

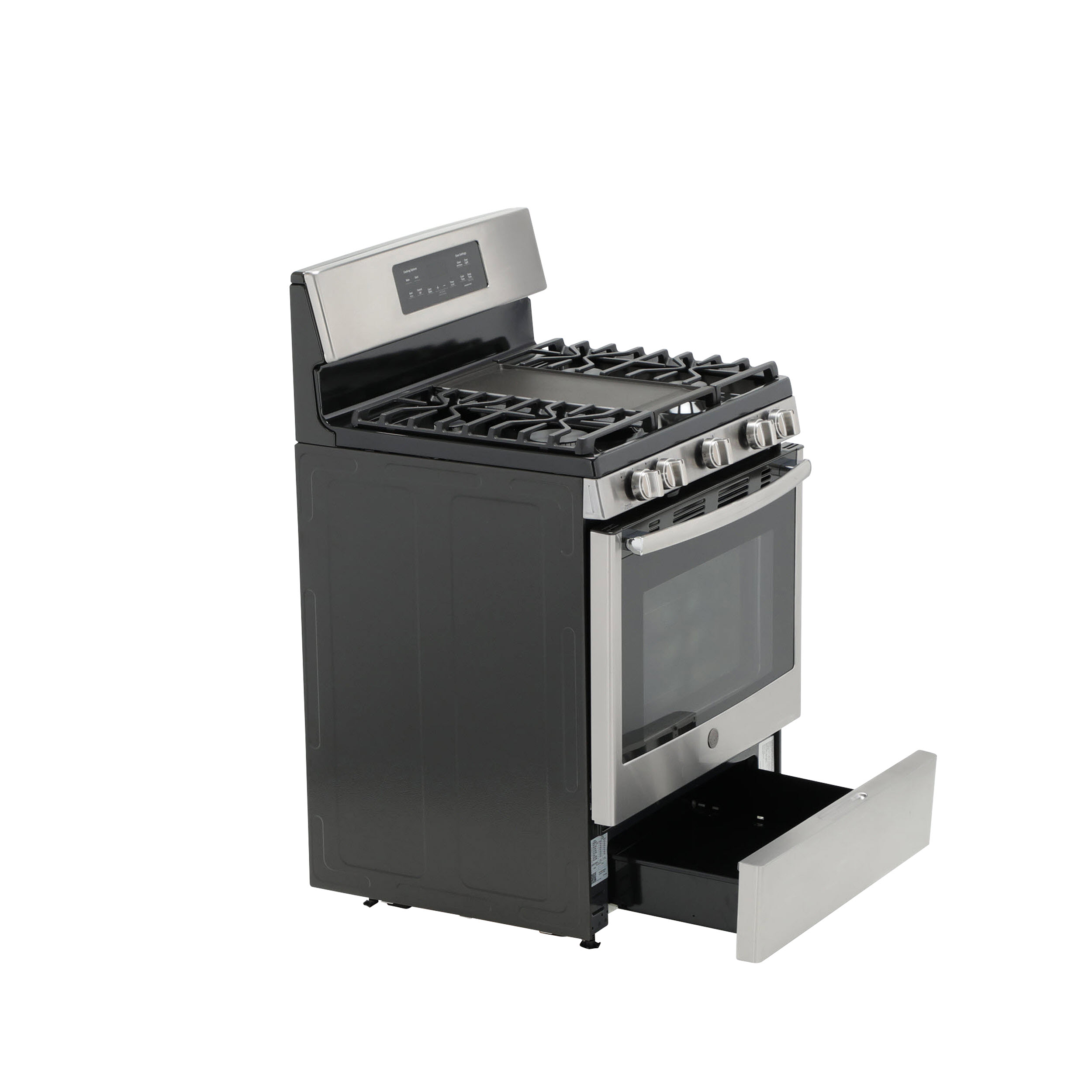

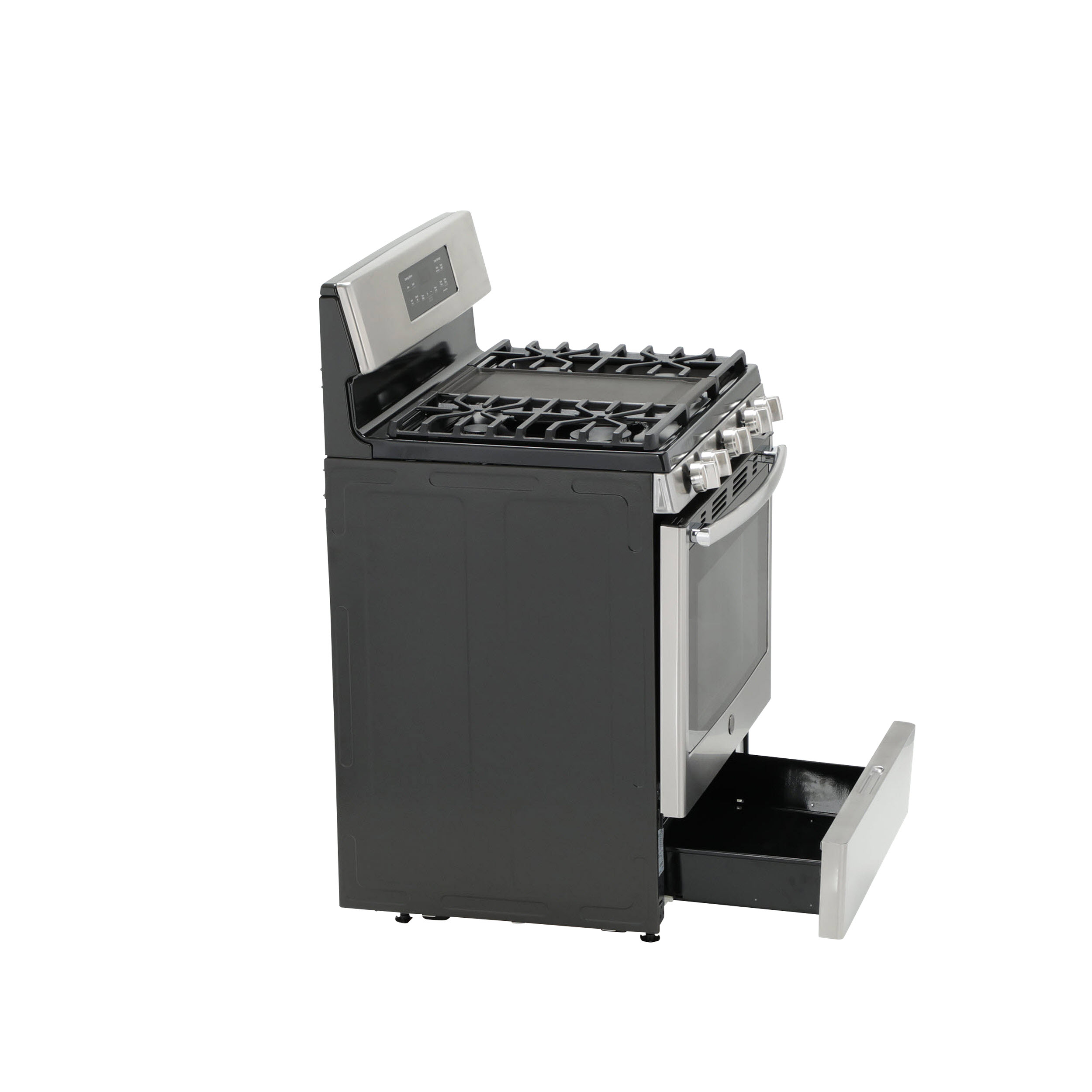

| Drawer Type | Storage |
| Cooktop Type | Continuous Grates with Griddle |
CAPACITY |
|
|---|---|
| Total Capacity (cubic feet) | 5
cu ft |
APPEARANCE |
|
|---|---|
| Color Appearance | Stainless Steel/Gray |
| Handle Design | Designer Style |
| Handle Color | Stainless Steel |
| Control Knobs | Stainless Steel Appearance |
| Oven Door Features | Big View Oven Window |
| Cooktop Burner Grate Color | Matte Black |

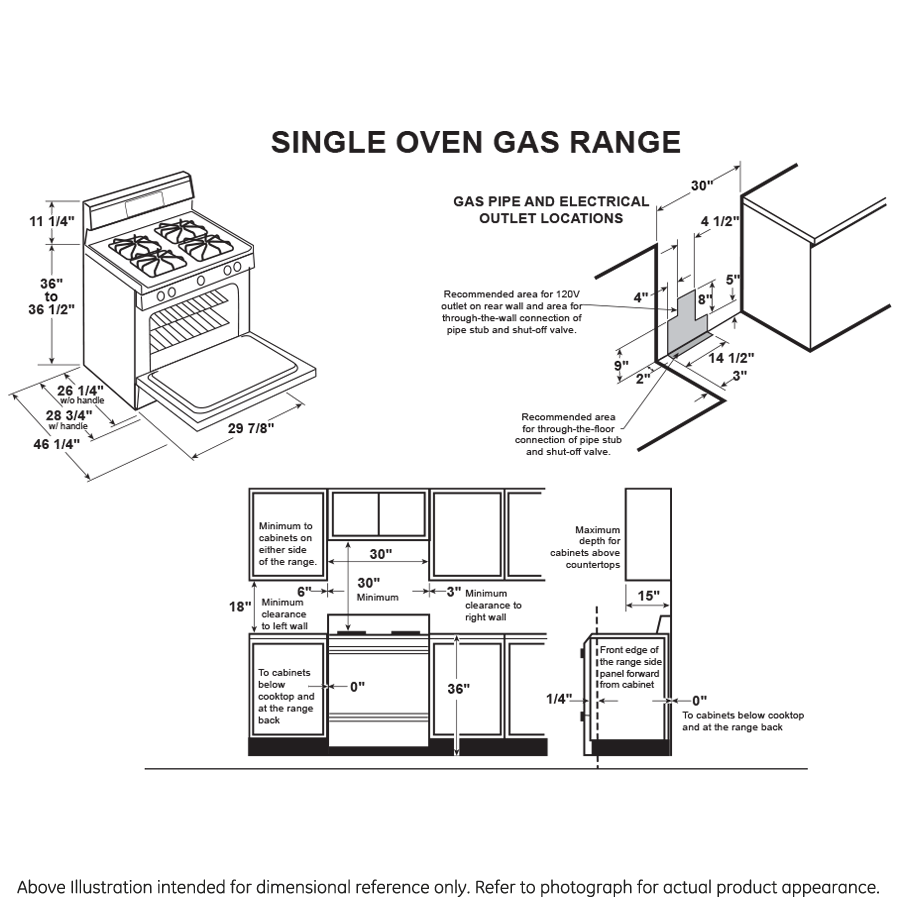

WEIGHTS & DIMENSIONS |
|
|---|---|
| Overall Depth | 28.75
in |
| Overall Height | 47.25
in |
| Overall Width | 30
in |
| Approximate Shipping Weight | 210
lb |
| Net Weight | 190
lb |
| Depth Without Handle | 26.25
in |
| Cabinet Width | 30
in |
| Depth with Door Open | 46.25
in |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
ACCESSORIES |
|
|---|---|
| Optional Accessories | WB48X21543 Roller Rack |
| LP Conversion Kit | Included |
| Griddle Accessory | Integrated Non-Stick (Included) |
| Center Grate | Optional - JXGRATE1 |
WARRANTY |
|
|---|---|
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
POWER / RATINGS |
|
|---|---|
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 18.0; (1) 12.0; (1) 8.0; (1) 9.5; (1) 5.0 |
