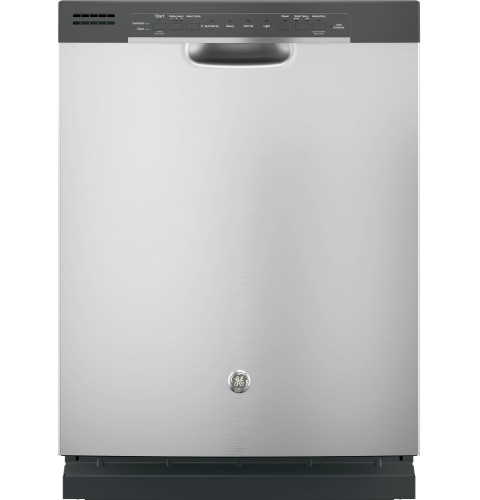

GDF520PSJSS

1 of 19

About this Product

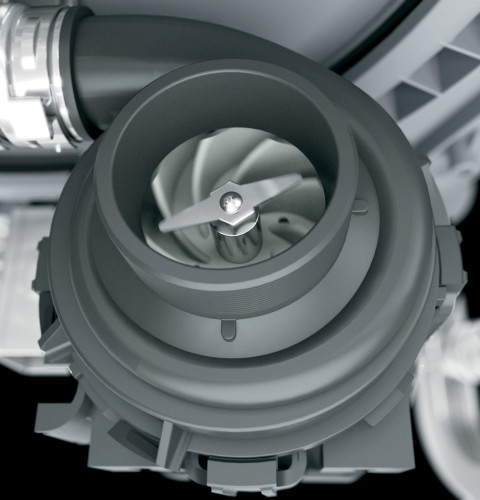

Piranha™ hard food disposer with removable filter

To ensure consistently clean items, this stainless steel blade rotates to pulverize food particles and helps to prevent large particles from clogging the wash arms
Sanitize option (NSF Certified)

High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes

Features

Steam PreWash
Loosens tough soils before any cycle, virtually eliminating the need for soaking or pre-rinsing dishes

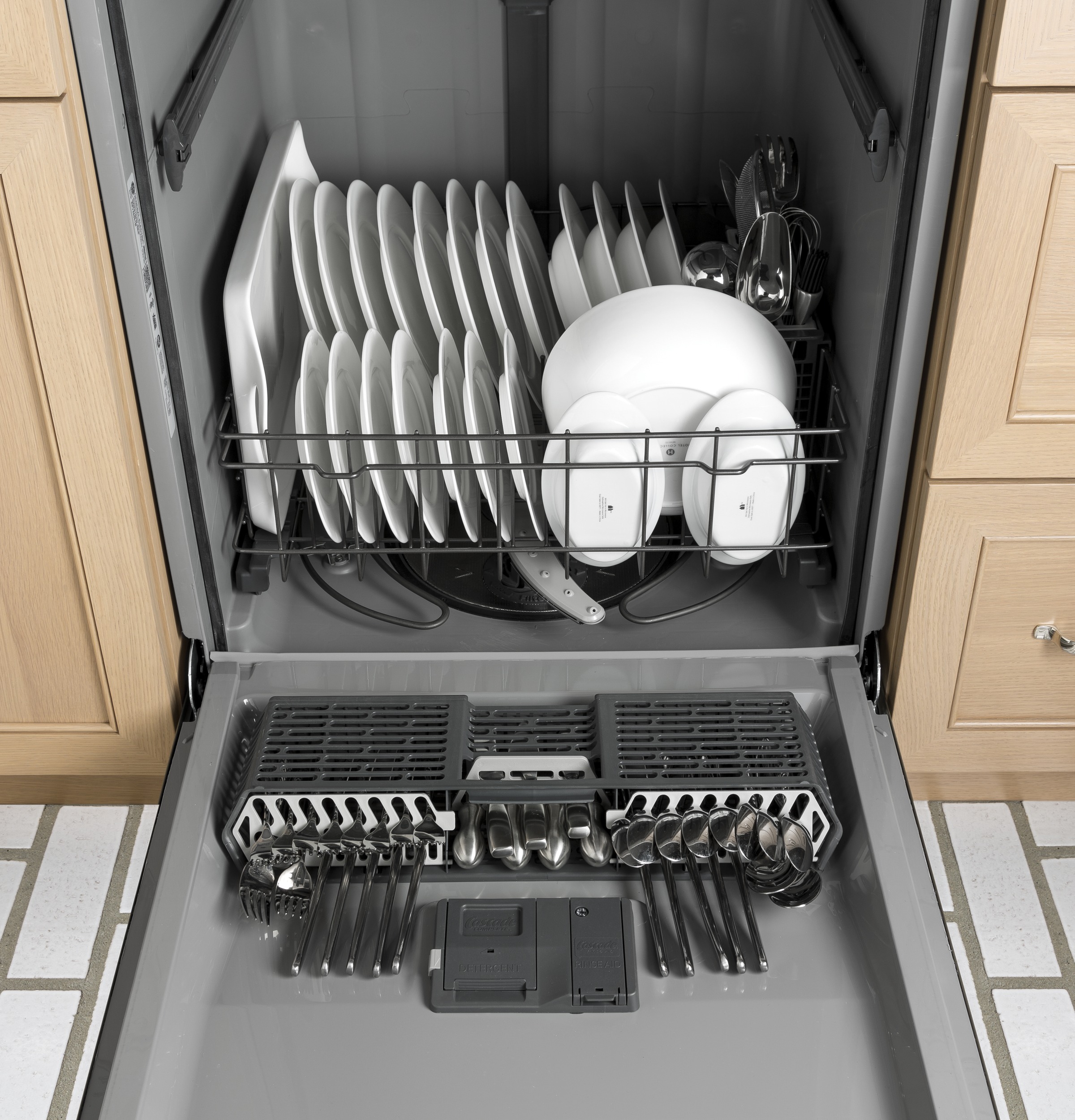

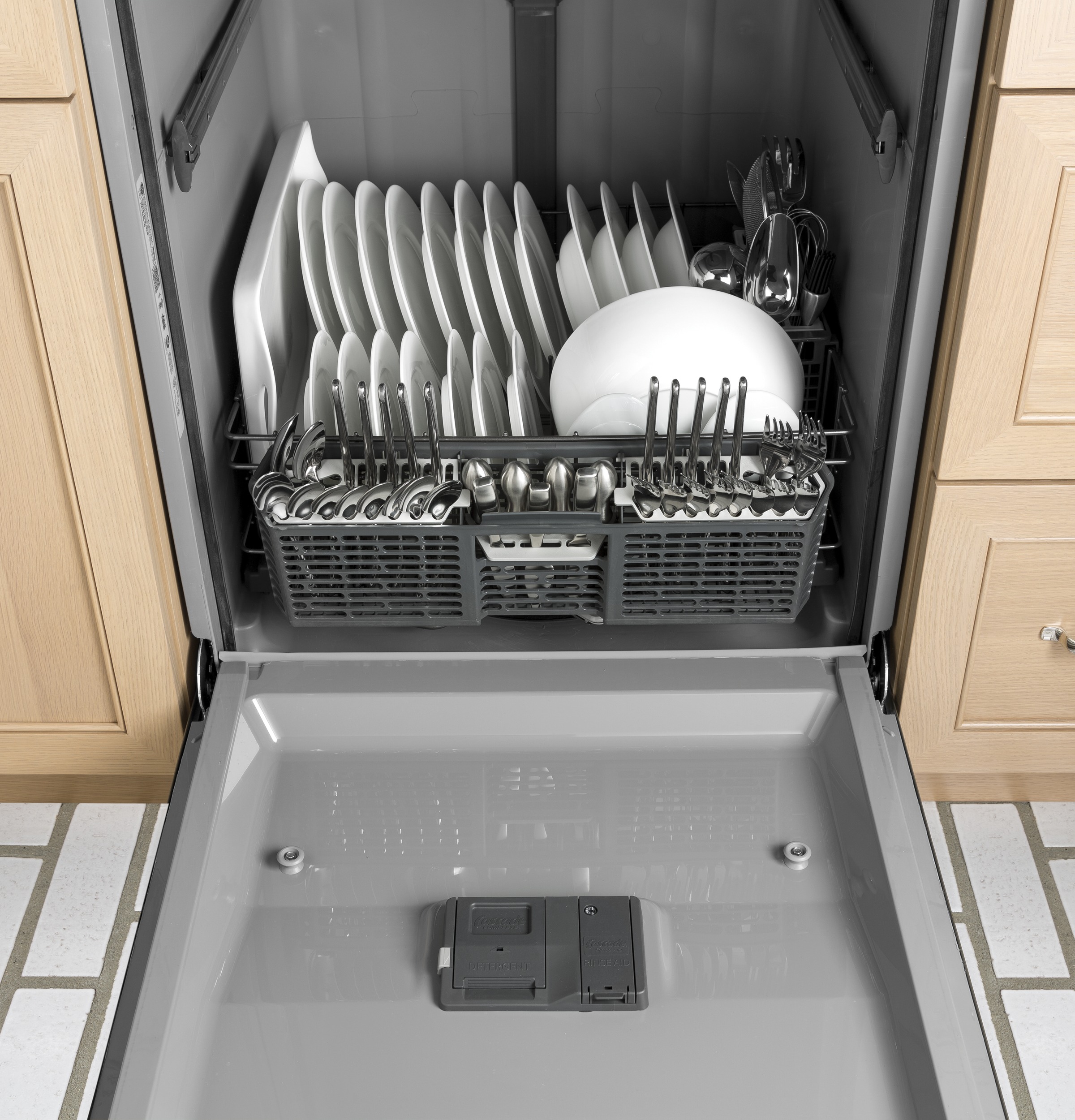

SpaceMaker® silverware basket
Enjoy table-ready silverware and loading flexibility with this unique basket that can be placed on the rack or onto the door

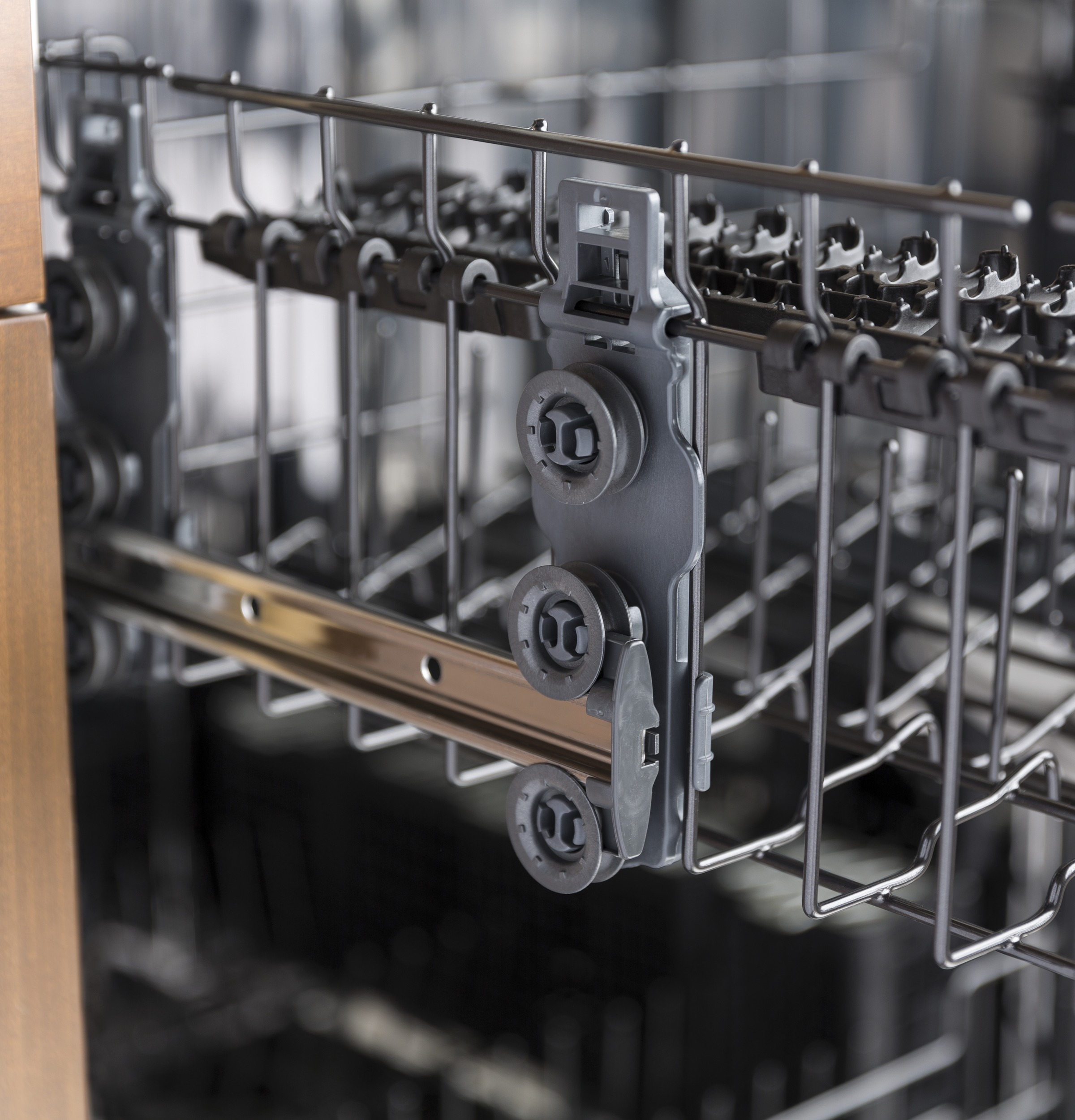

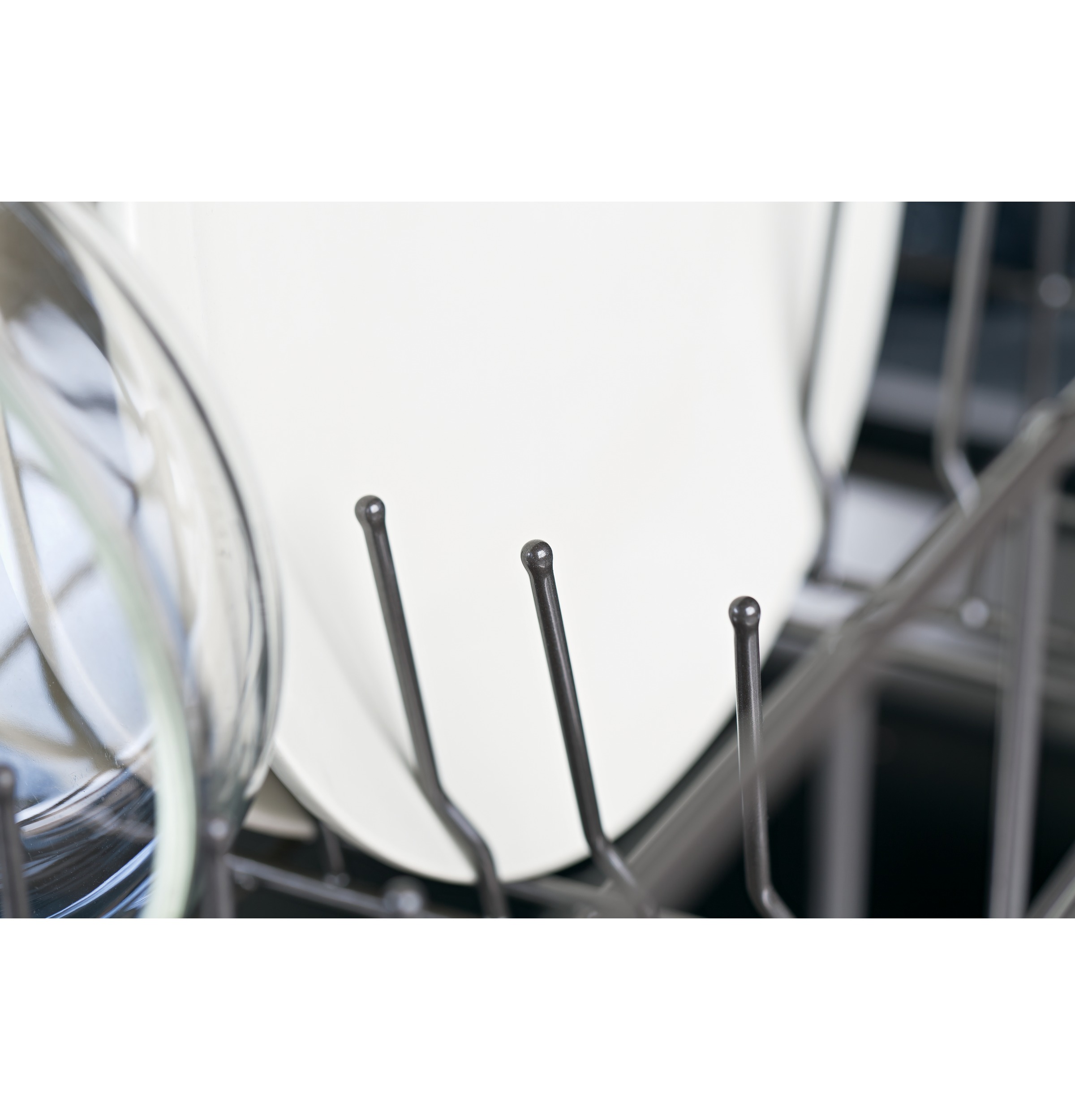

Pearlescent dark gray racks with ball tip tines
Offer durability and secure dishes
54 dBA with status light on door
A dishwasher this quiet has a multi-colored status light to let you know it is running
2/4/8-hour Delay Start
Wash dishes at your convenience
Dedicated Silverware Jets
Get table-ready silverware thanks to powerful jets that focus on silverware baskets in multiple locations

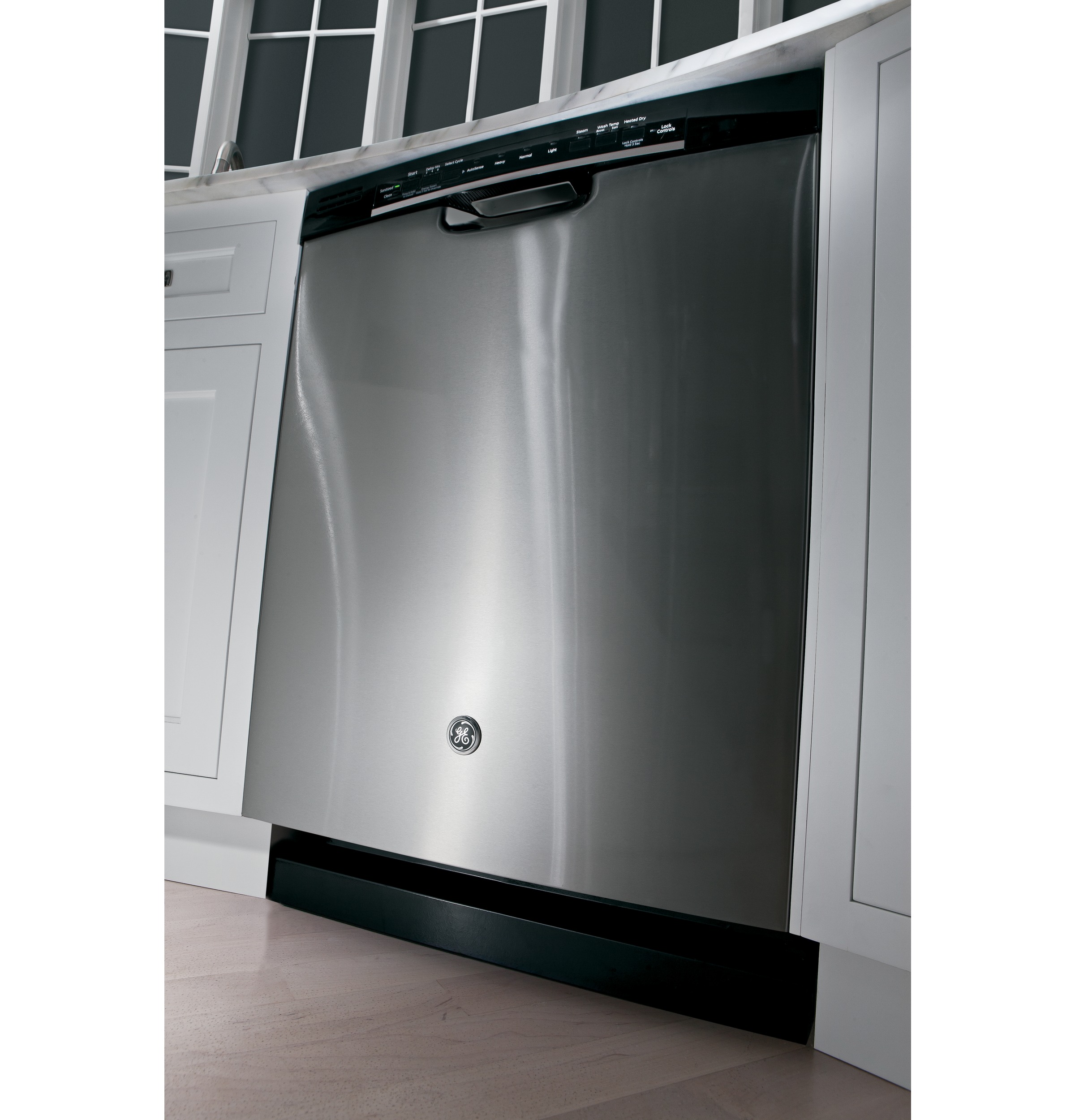

Cabinet depth installation
Achieving an attractive, flush appearance that complements and blends in with cabinetry is possible with a unique design that doesn't reduce rack capacity
Clean design inner door
The clean, attractive appearance features no visible hardware, so it’s also easy to maintain
Built-up floor capable
Installation over built-up floors is simple with the ability to adjust the dishwasher height
Auto sense cycle
Automatically adjusts to soil level to maximize energy savings and ensure clean dishes

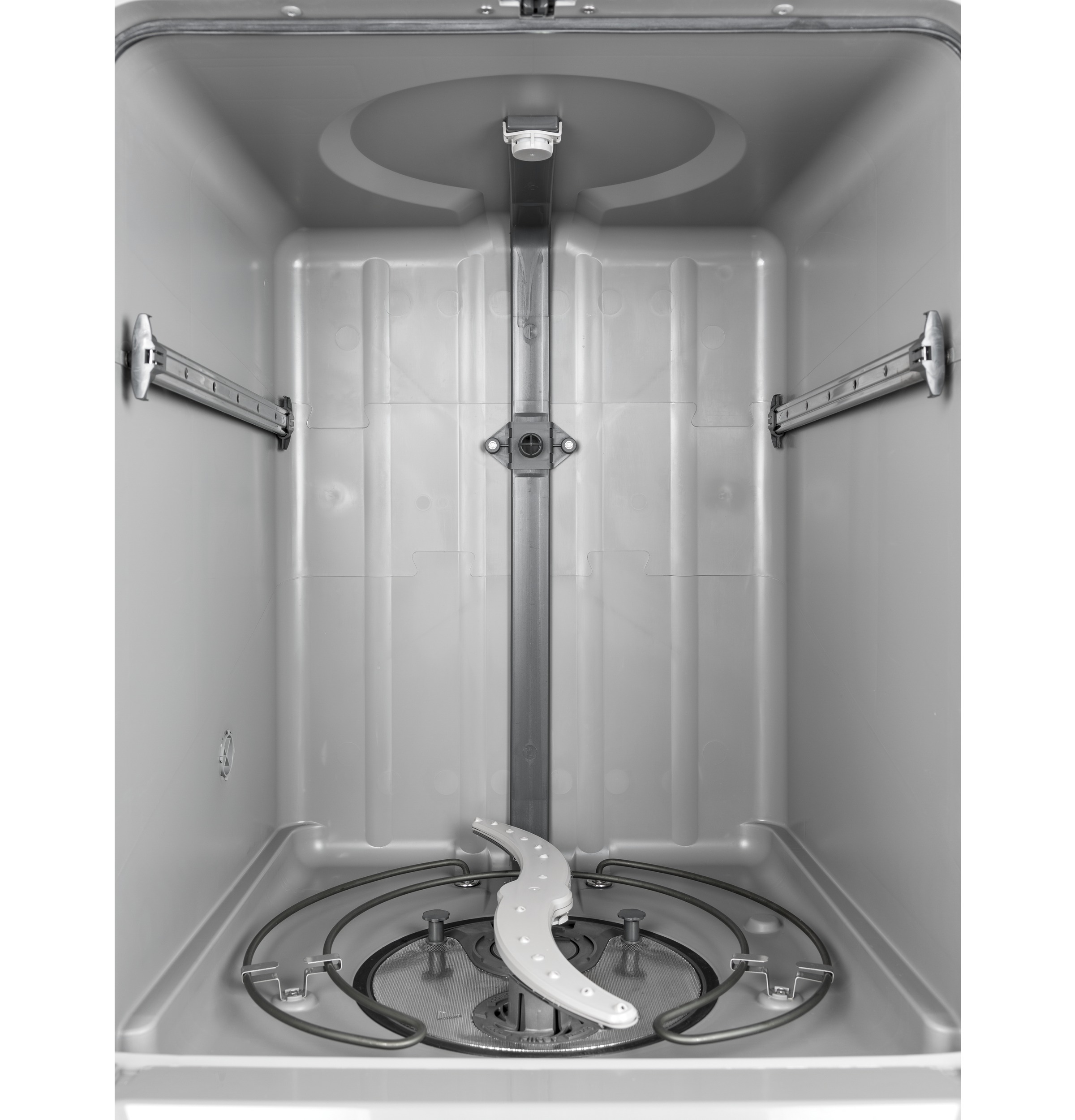

American gray plastic interior
Heavy-duty material is designed for years of dependability and has an attractive finish

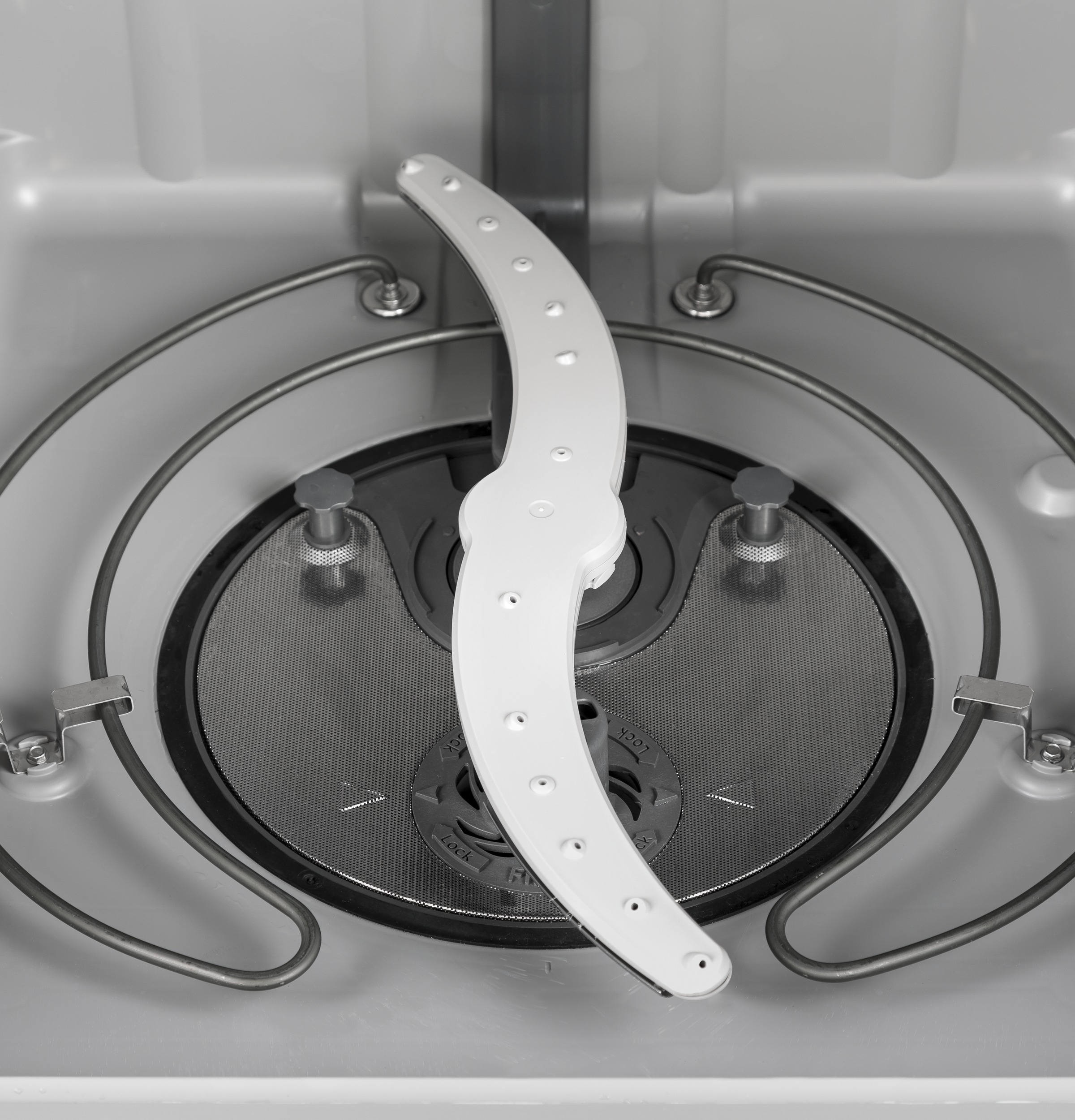

4-pass wash and dry element
Items come out consistently clean and dry with the help of this element, which evenly heats water for washing and air for drying
Chrome accents on control panel
Enjoy a touch of modern style with this chrome accent on the control panel

More Features

Claims & Certifications

For California Residents:
View Proposition 65 Warning

Manuals & Downloads

- GDF520PSJSS

Specs & Details

Print Specs

FEATURES	Print Specs

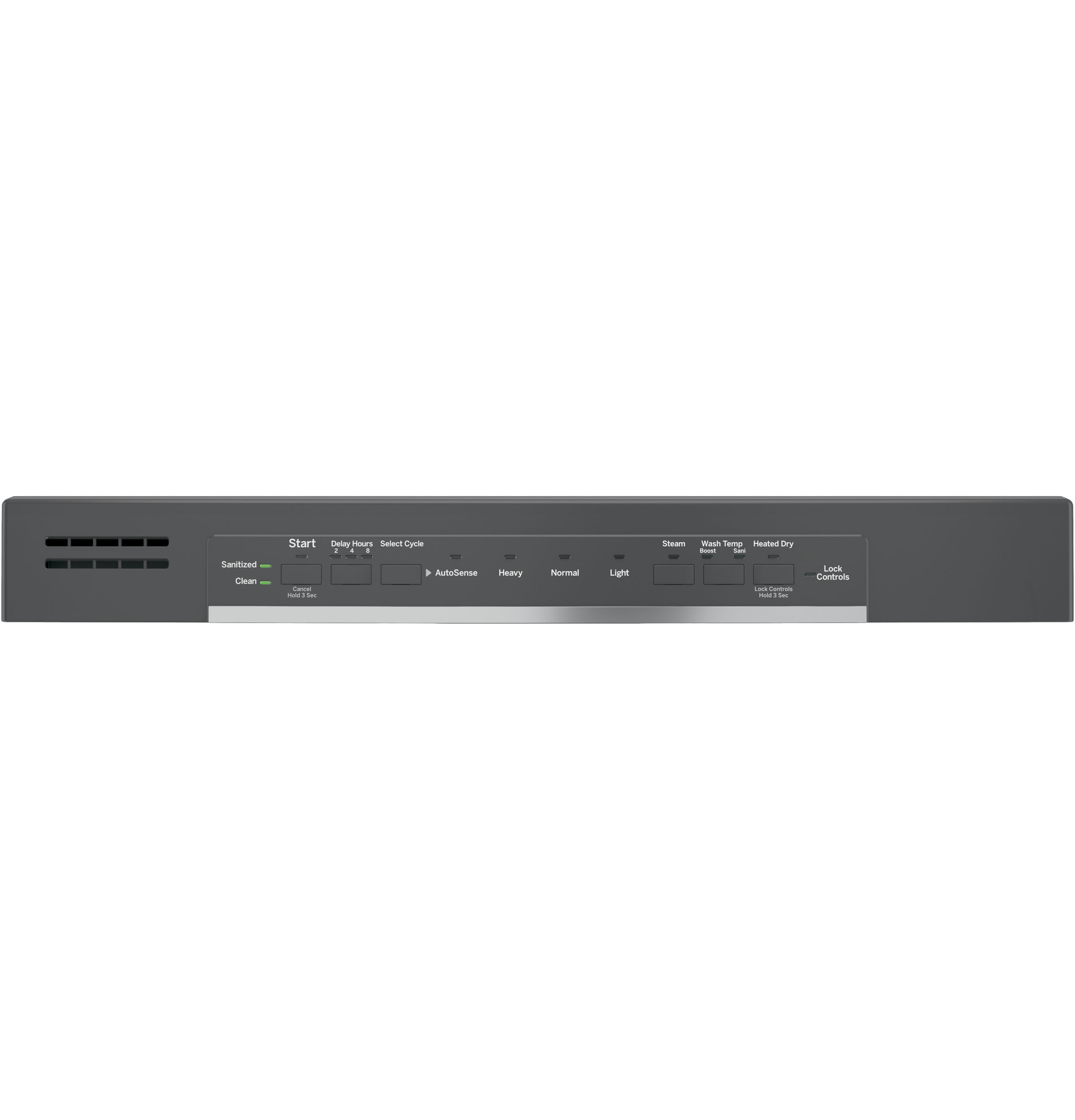

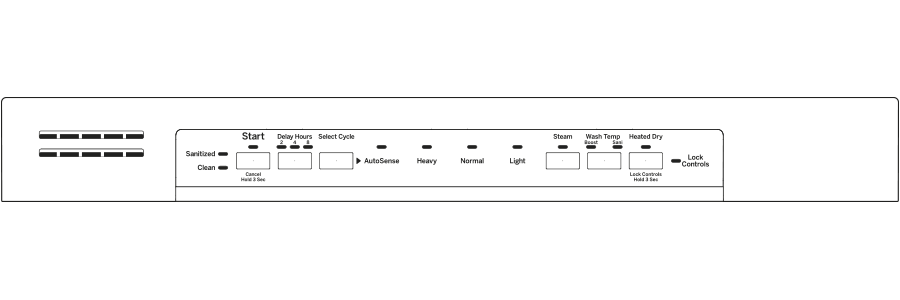

Control Type	6 Touchpads
Leveling System	4 Leveling Legs
Dispenser	Rinse Aid with Indicator and Adjustment
Door Liner	Clean Design with Plastic
Exterior Style	Traditional
Style	Built-In
Sensor	Clean Sensor
Number of Cycles	4
Wash System	500 Series
Number of Options	7
Dishwasher Control Features	1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
Dishwasher Drying Features	Heated Dry - On/Off
Dishwasher Options	Child Lock

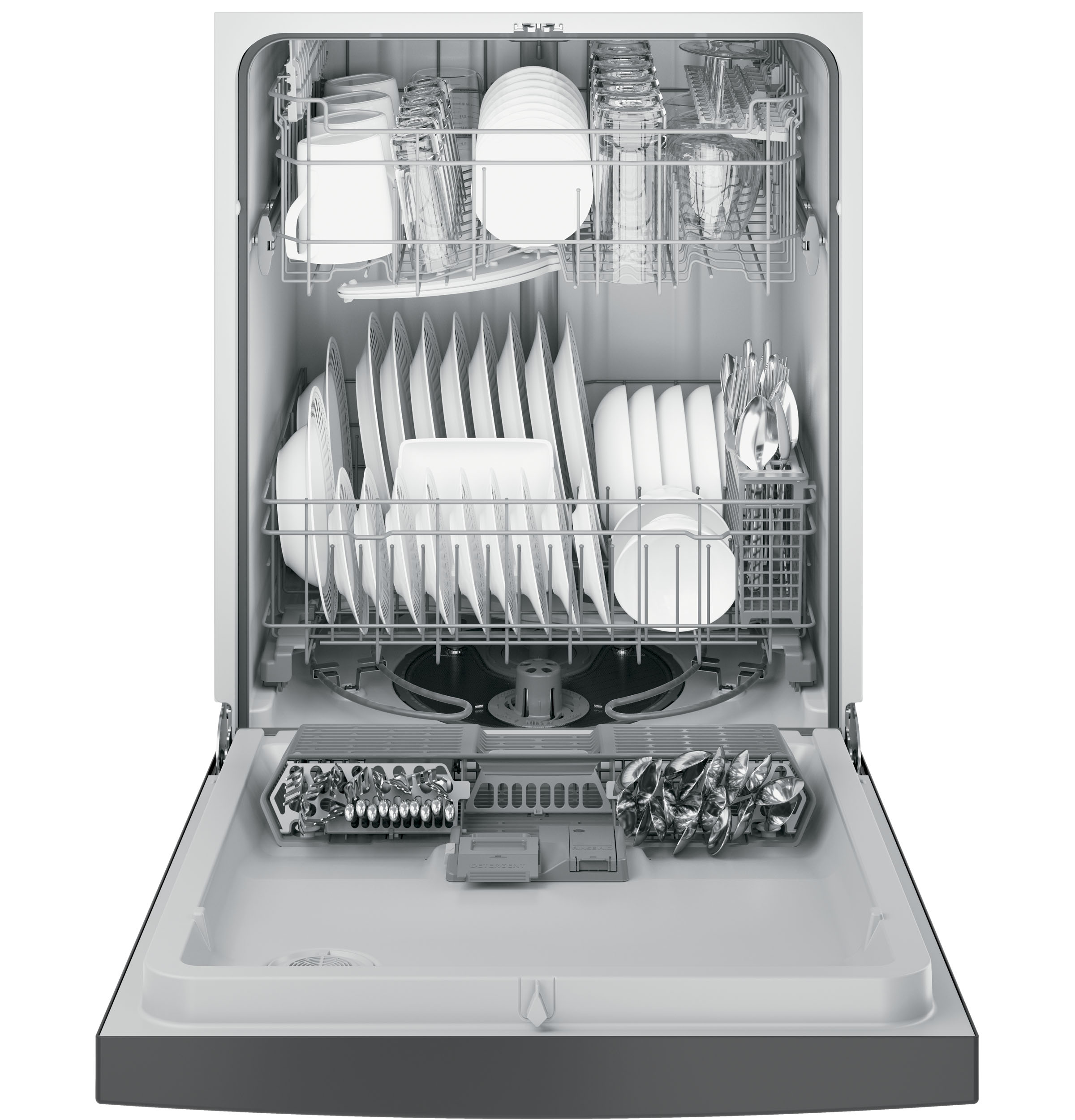

Number of Place Settings	16

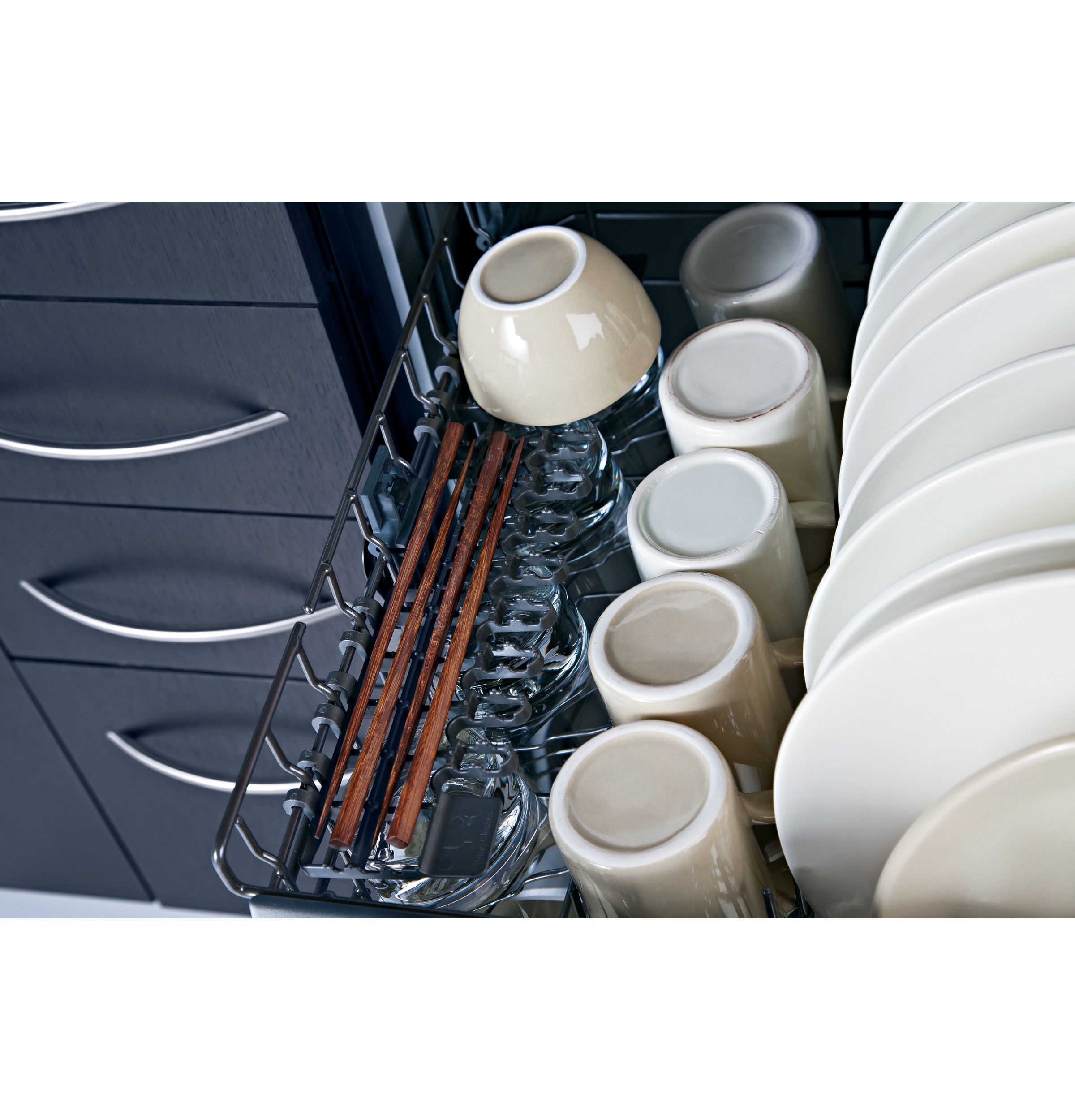

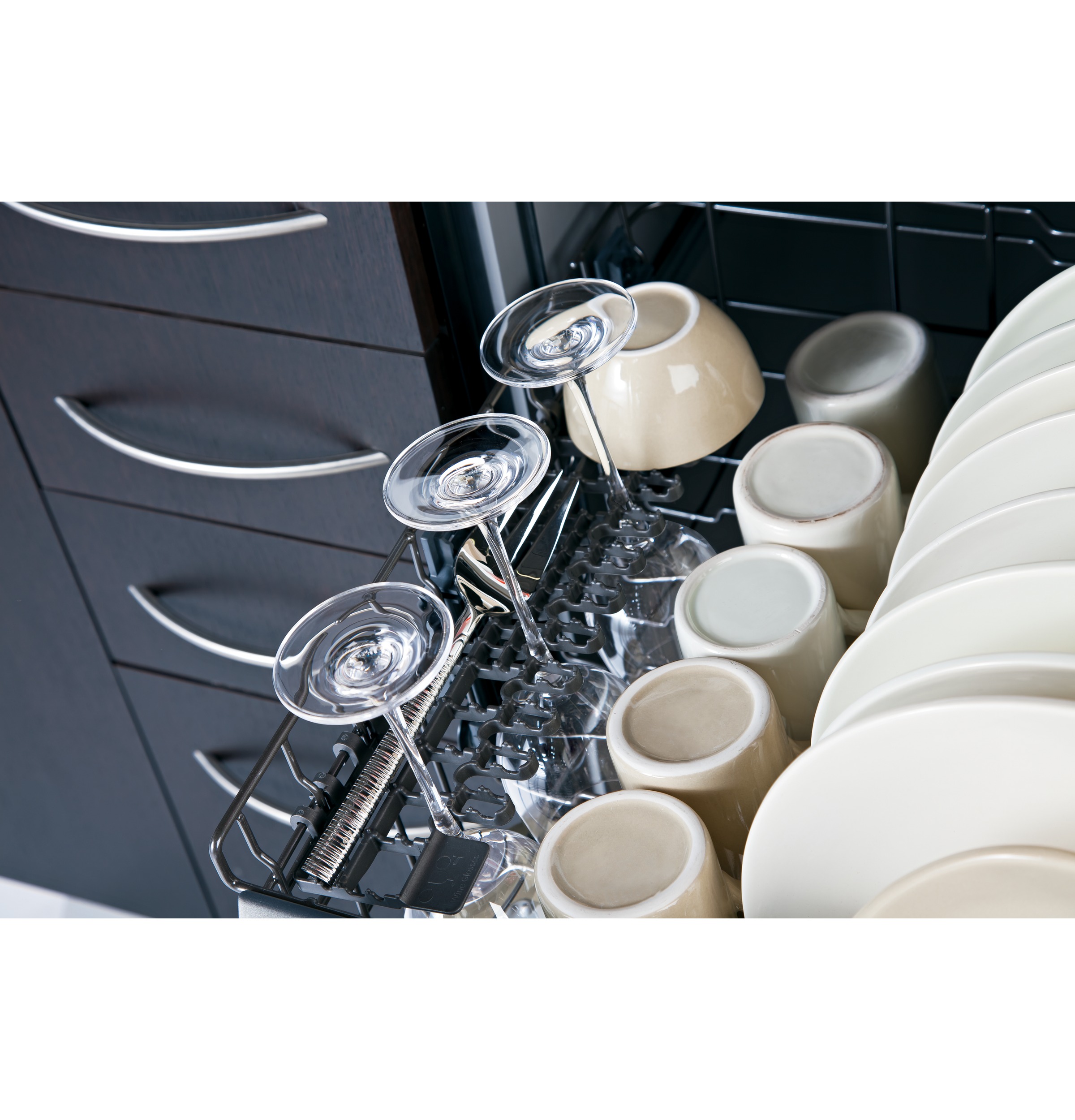

Rack Features	2 Utility Shelves with Stem Safe - Upper
Racking System	Pearlescent Dark Gray
Tub Liner	Plastic
Tub Type	Tall Tub
Upper Rack	Ball-Tip Tines
Water Filtration System	100% Filtration with Piranha Hard Food Disposer and Removable Filter
Dishwasher Cycles	AutoSense
Latch	Center Pull
Rack Color	Pearlescent Dark Gray
Showroom Power Mode	Yes
Wash System Features	Automatic HotStart
Lower Rack	Ball-Tip Tines
Tub and Door Liner	Gray Plastic
Wash Arms	3 Wash Levels

APPEARANCE
Door Style	Long Door
Installation	Built-Up Floor Capable
Color Appearance	Stainless Steel
Handle Design	Recessed
Handle Color	Color-Matched
Control Panel Color	Color Matched
Door Appearance	Contour door

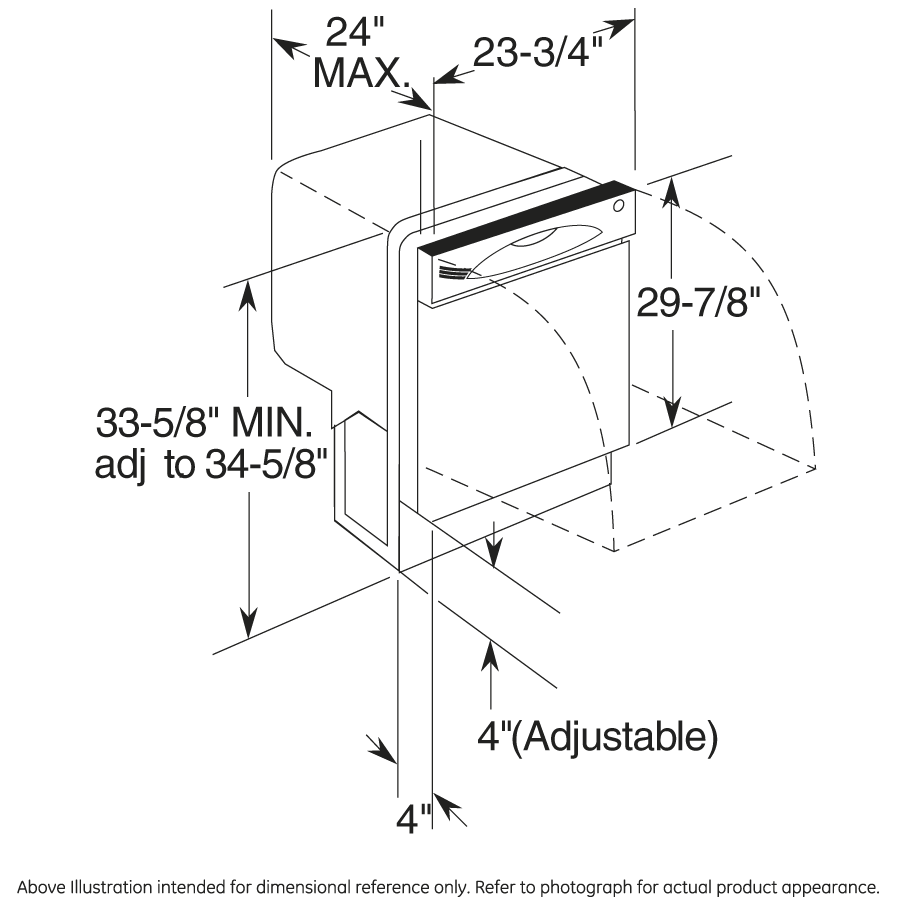

WEIGHTS & DIMENSIONS
Overall Depth	24 in
Overall Height	34 in
Overall Width	23.75 in
Approximate Shipping Weight	77 lb
Net Weight	62 lb
Cabinet Width	24 in
Height w/Legs Extended - Maximum Height	34.625 in
Height w/ Legs Retracted - Minimum Height	33.375 in
