About this Product

Fit Guarantee

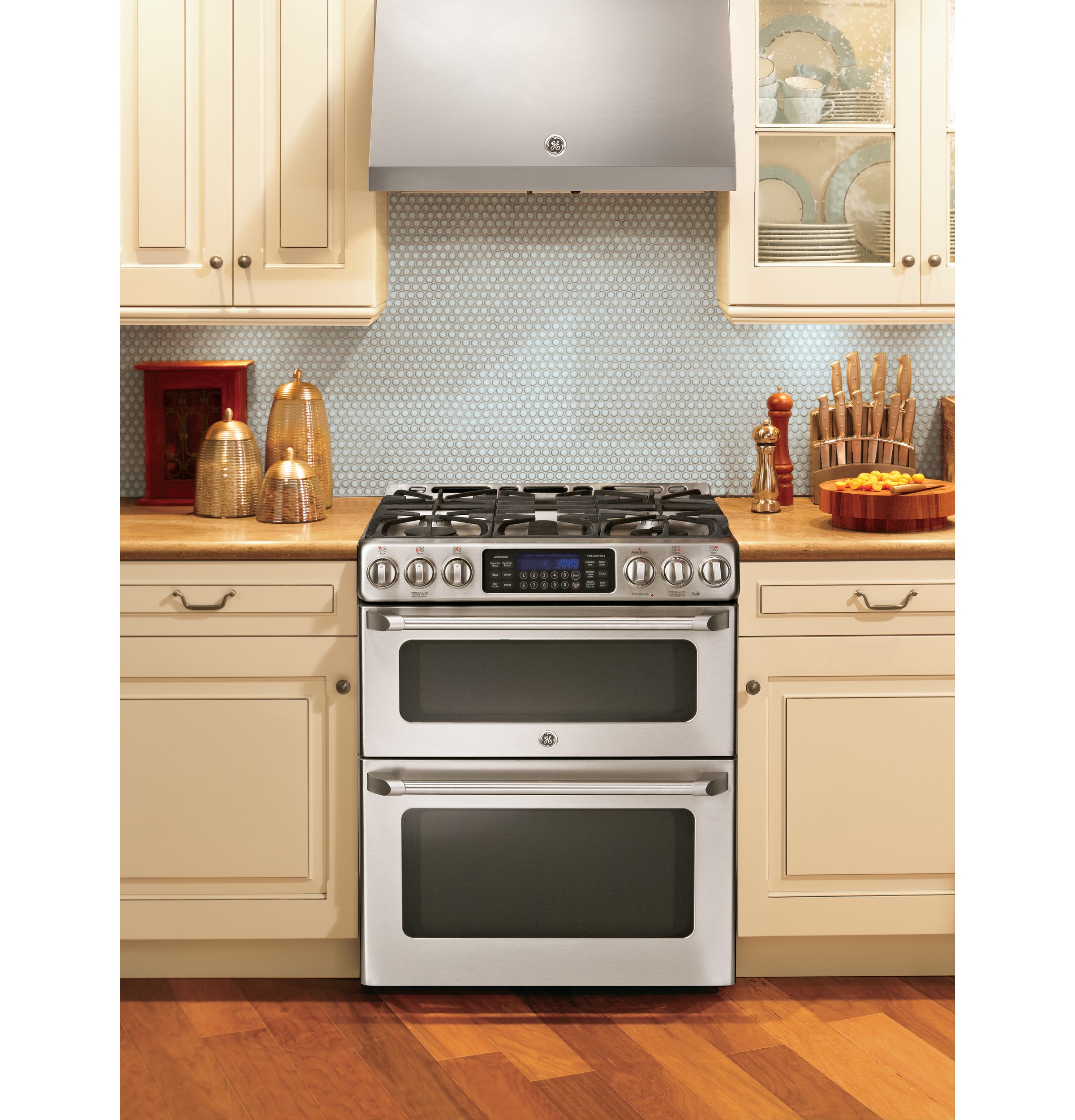

Replace your old 30” free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications.  See offer criteria and details

Play Video
Self-clean oven

Cleans the oven cavity without the need for scrubbing

Play Video

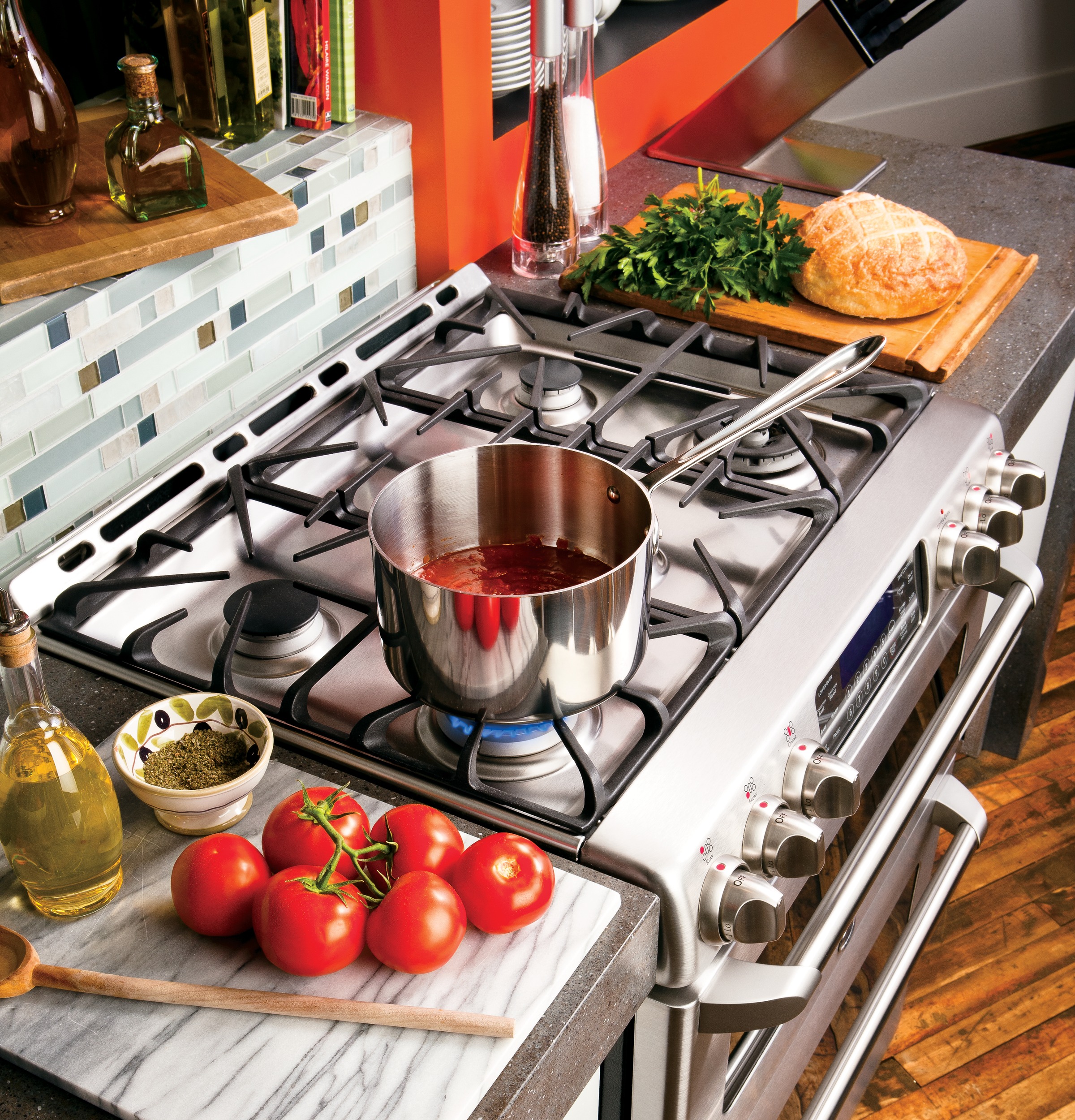

20,000 BTU tri-ring burner

Offers the flexibility of three different burners

Play Video
Precise Simmer burner

Delicate foods don’t burn with low, even heat

Play Video

Features

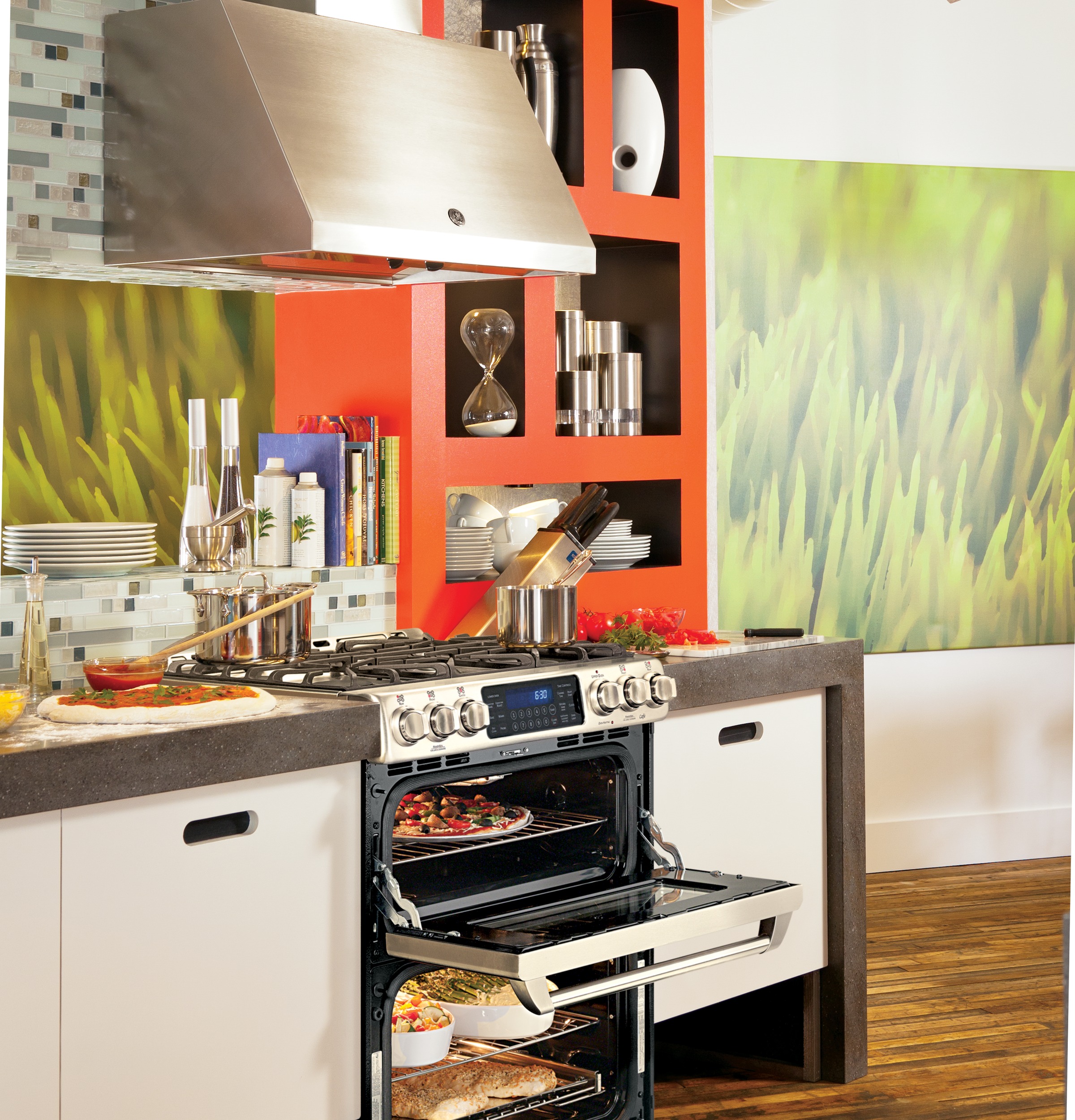

Double oven 6.7 cu. ft. total capacity
Largest capacity in the industry means cooking more at once and in less time
Gas convection oven
Circulates heat for high-quality results

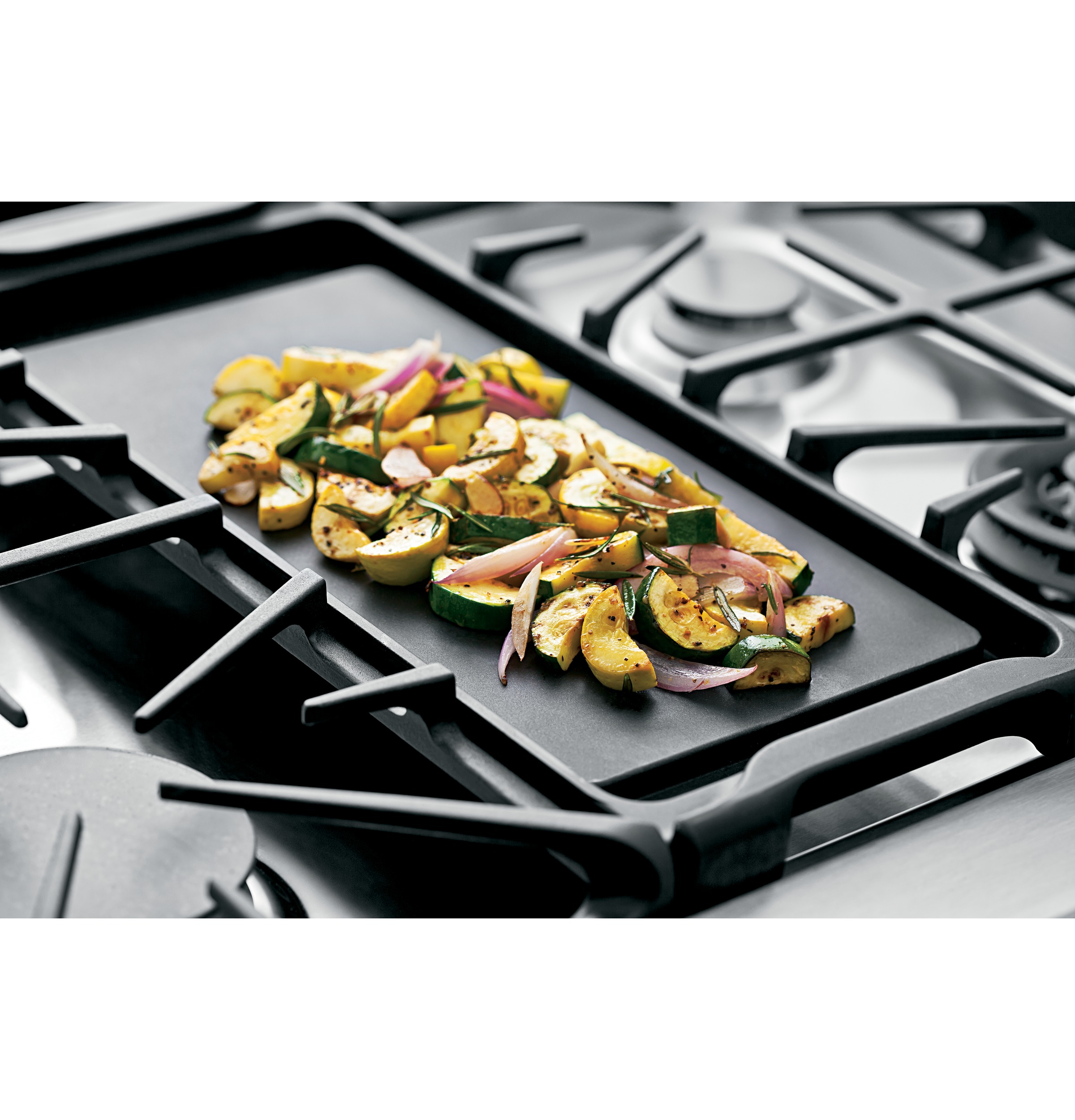

Non-stick griddle
Ideal for pancakes, bacon, sandwiches and more
Stainless steel, deep-recessed cooktop
Contains spills for quick and easy cleaning
Range lockout
Gas burners lock to prevent accidental operation
Heavy-duty roller rack
Easily access items with a rack that glides smoothly
Black gloss oven interior
Adds a stylish touch to the kitchen

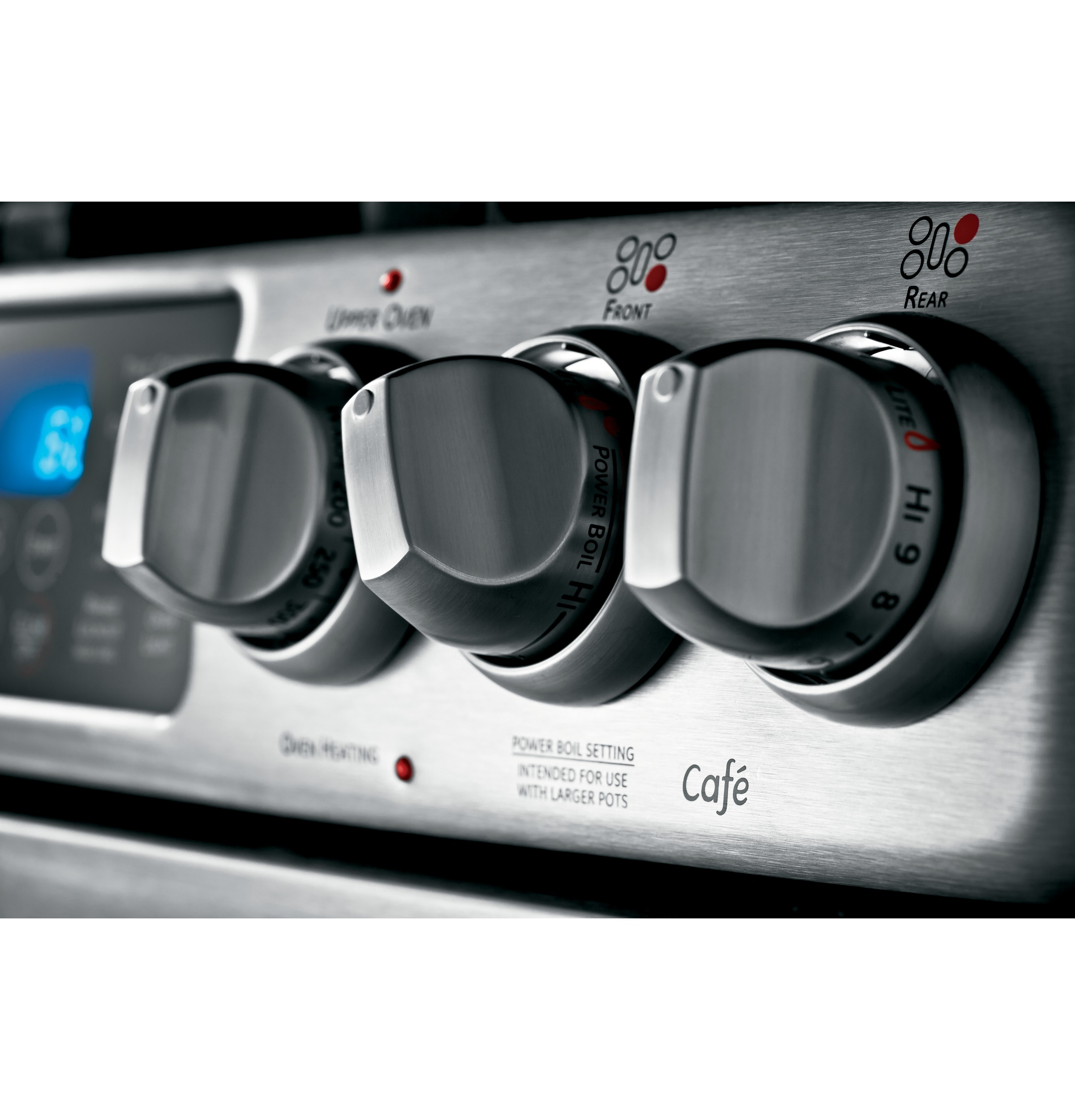

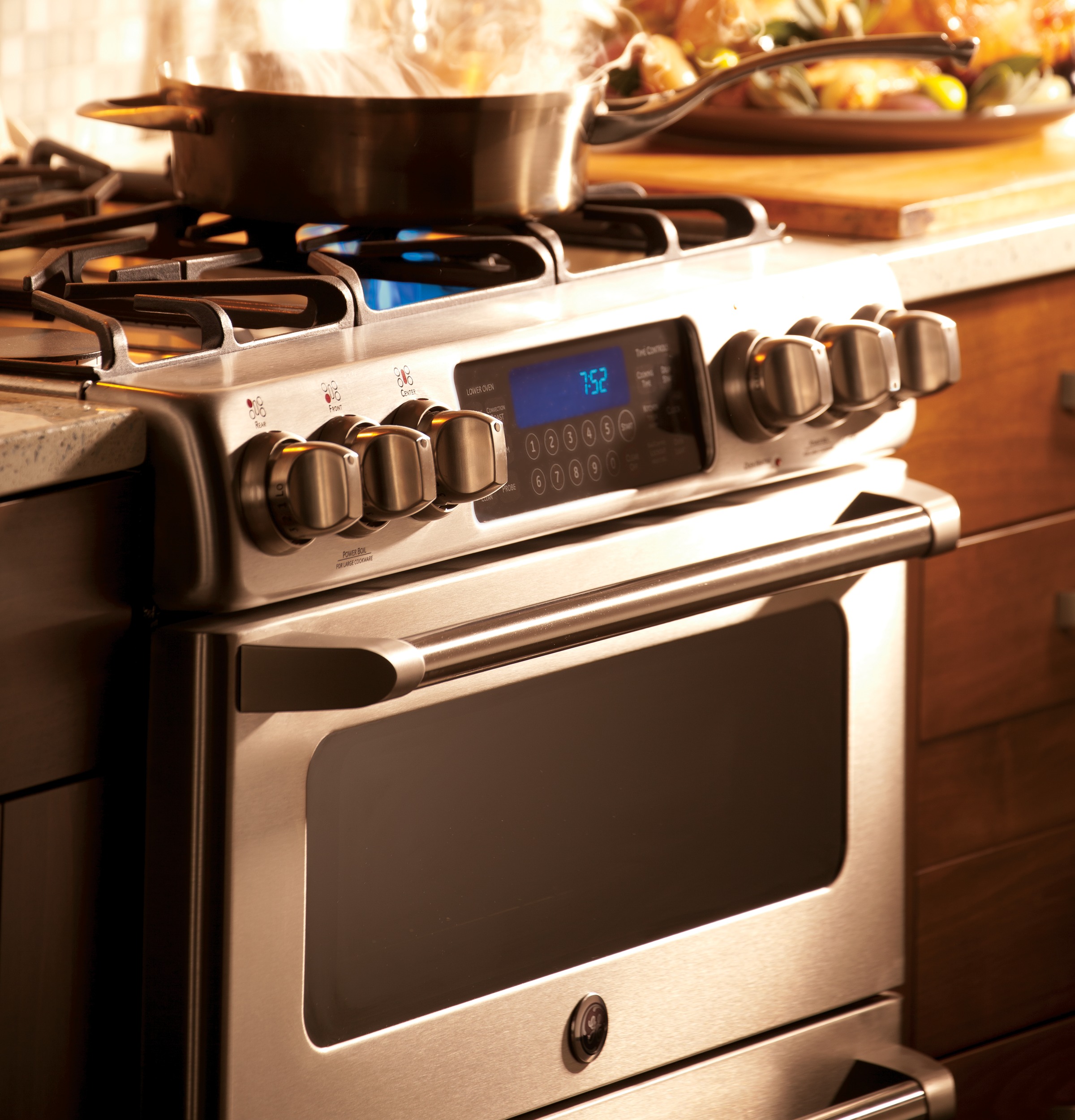

Front controls

FEATURES	Print Specs
Control Type	Digital Temperature Display
Leveling System	4 Leveling Legs

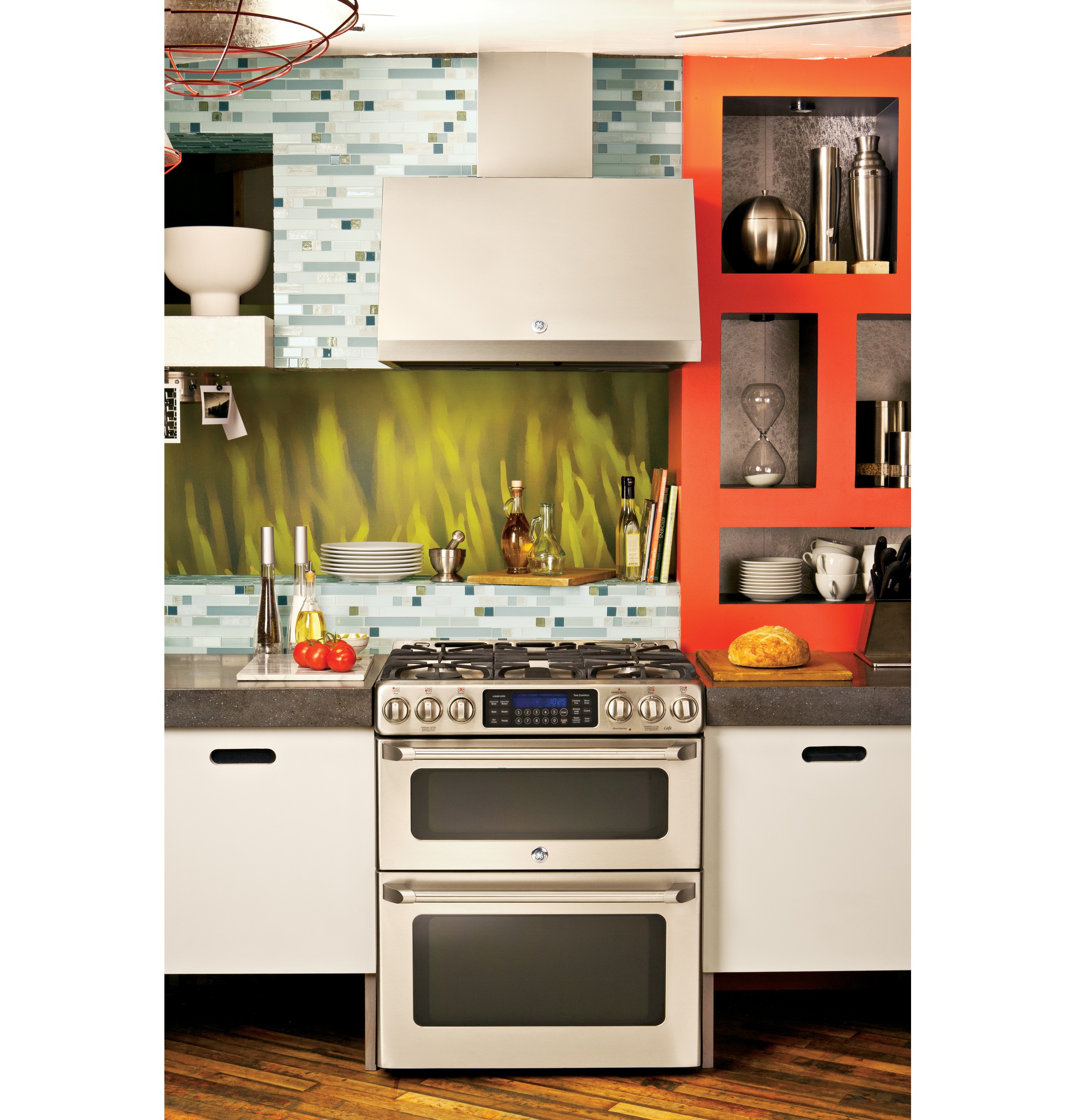

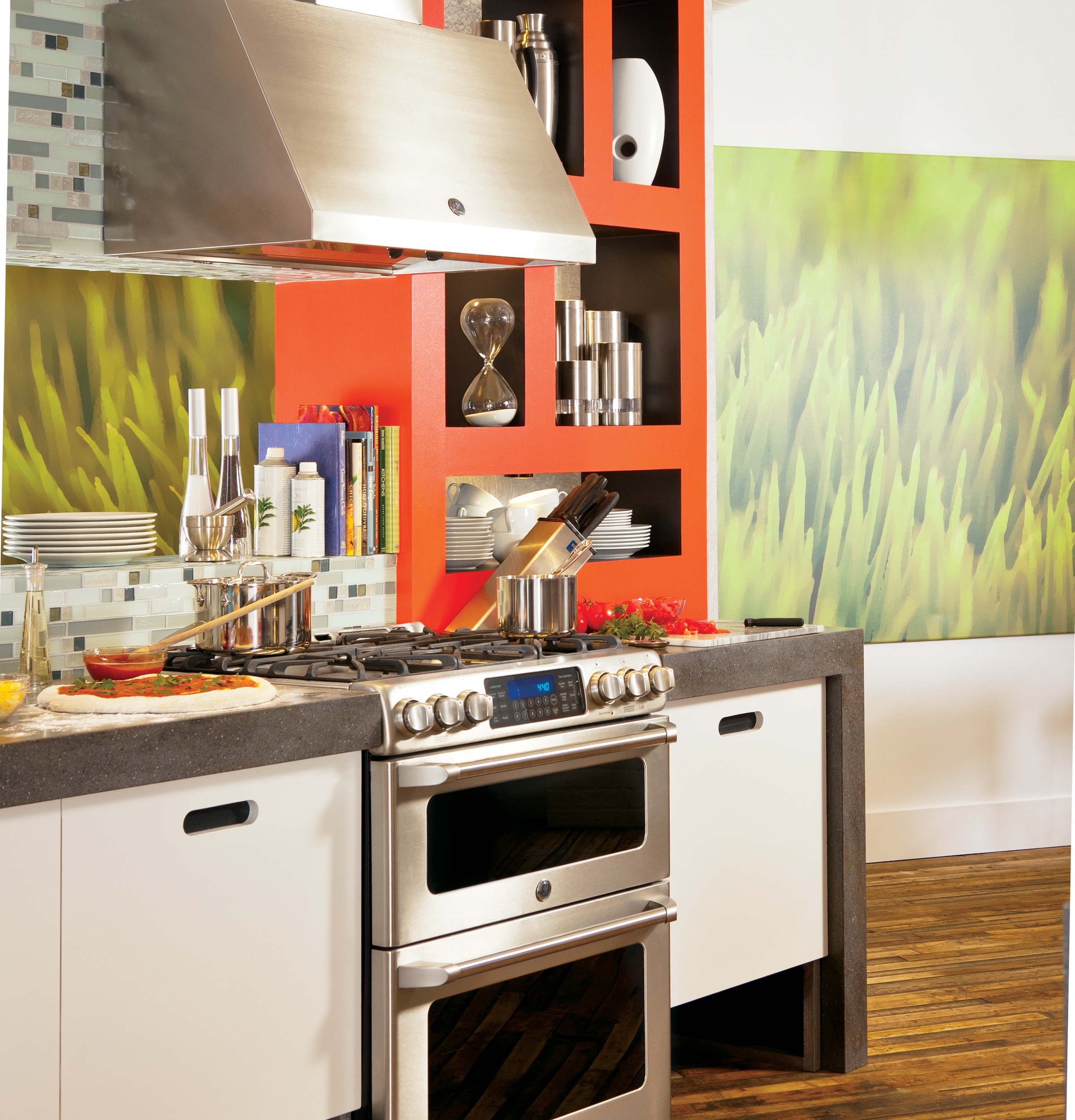

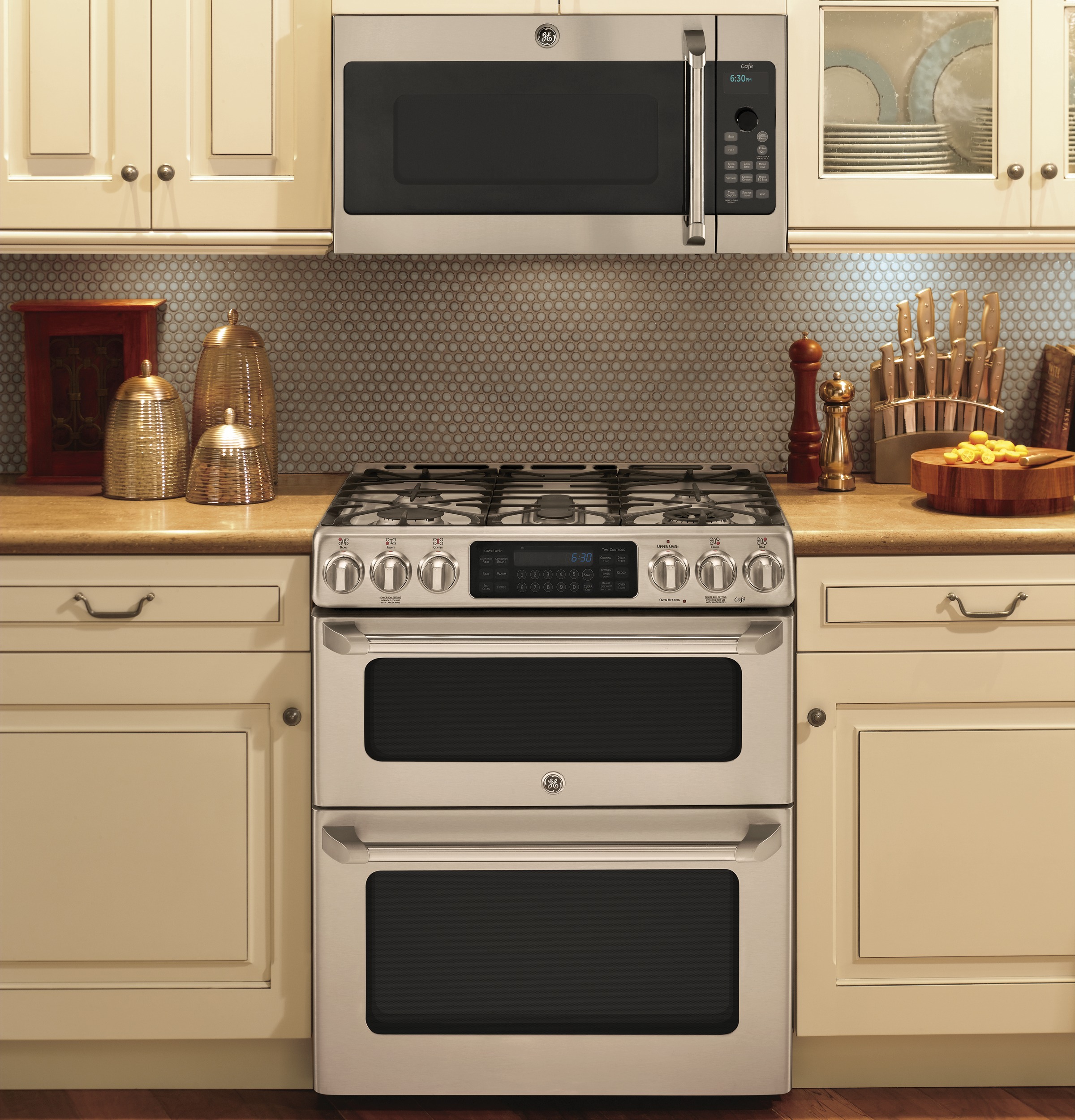

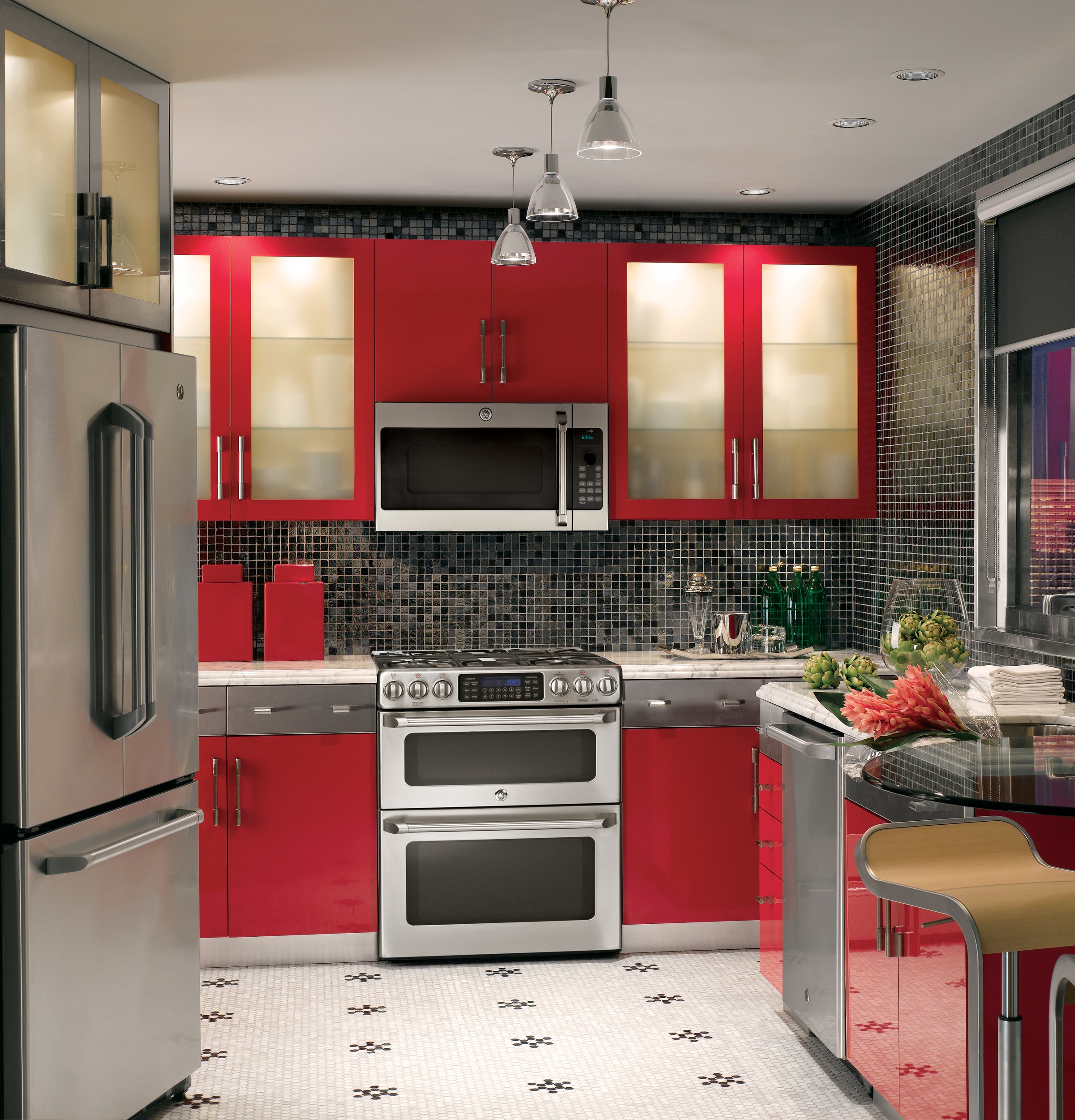

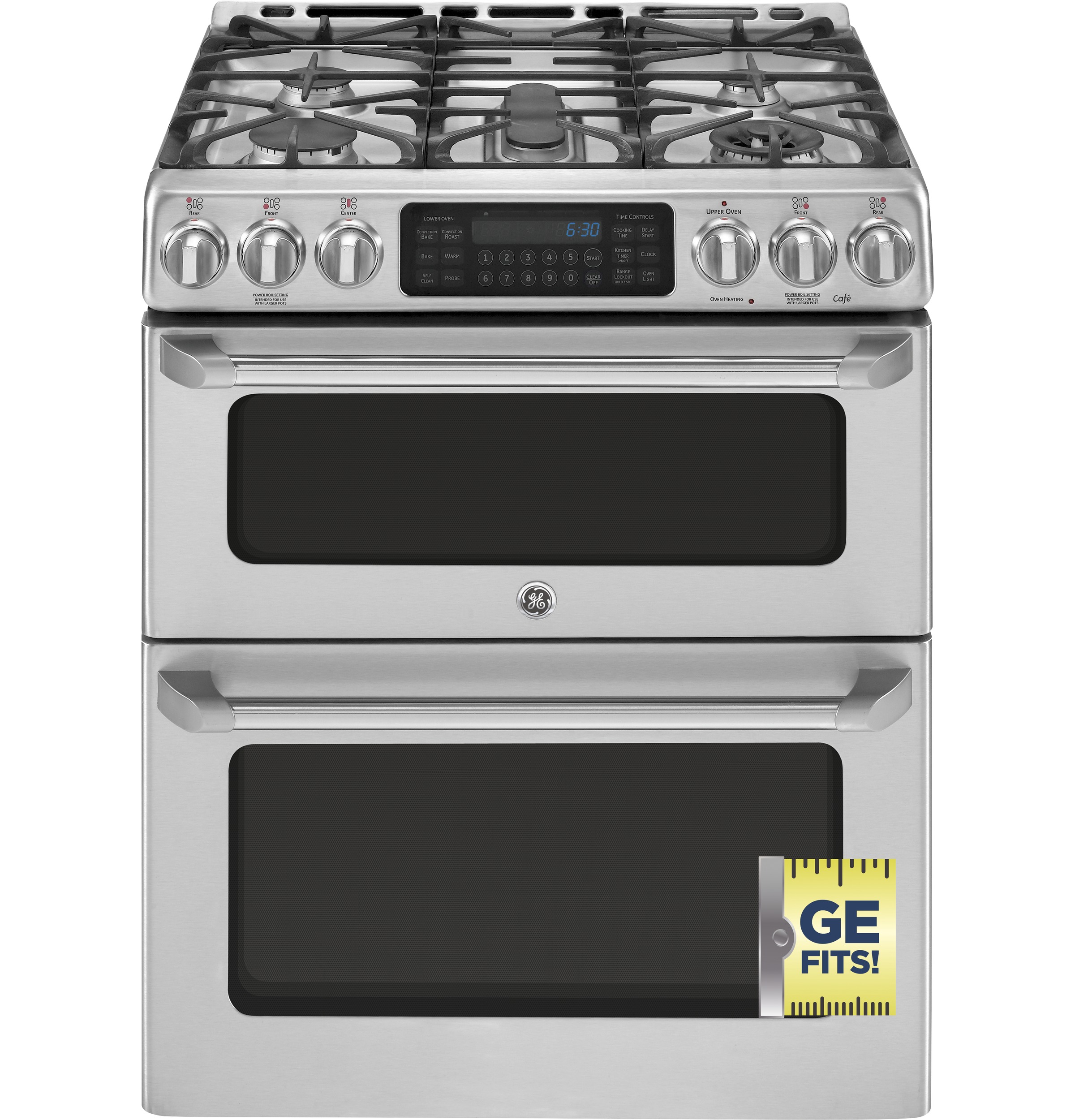

Product Type	Slide-In Double Oven
Configuration	Double Oven Range
Control Location	Front controls
Temperature Management System	True Temp System
Style	Commercial
Ignition System	Electronic
Fuel Type	Natural Gas (factory set)
Griddle	Non-Stick
Cooktop Burner Grate Features	Heavy-Cast Edge-to-Edge Grates
Cooktop Burner Grate Material	Cast-Iron
Cooktop Burner Type	Sealed
Cooking Technology	Traditional Upper; Convection Lower
Oven Cooking Modes	Convection Bake
Oven Interior	2 Oven Interior Lights
Burner - Center	8,000 BTU Oval
Burner - Left Front	17,000 BTU Power Boil
Burner - Left Rear	9,100 BTU
Burner - Right Front	20,000 BTU Tri-ring
Burner - Right Rear	5,000 BTU Precise Simmer
Cleaning Time	Variable with Delay Clean Option
Cooktop Surface	Deep Recessed
Oven Control Features	Audible Preheat Signal
Self-Clean Oven Door Lock	Automatic
Oven Cleaning Type	Self-Clean
Oven Rack Features	2 Heavy-Duty and 1 Roller Rack
Valves (Degree of Turn)	270
Dishwasher Safe Knobs	Yes
Lower Oven Features	Dual element bake
Oven Rack Positions (Single or Upper/Lower)	9

CAPACITY
Capacity (Cu. Ft.)	2.4 Upper / 4.3 Lower
Total Capacity (cubic feet)	6.7 cu ft

WEIGHTS & DIMENSIONS
Overall Depth	29.25 in
Overall Height	36.5 in
Overall Width	30 in
Approximate Shipping Weight	245 lb
Net Weight	225 lb
Cabinet Width	30 in
Height to Top of Rear Vent Trim	37.25 in
Depth with Door Open	43.375 in
Height to Cooking Surface (in.)	36 1/4
Oven Interior Dimensions (W x H x D) (in.)	24 x 9-1/8 x 18-7/8 - Upper; 24 x 15 x 20-5/8 - Lower

ACCESSORIES
LP Conversion Kit	Included
Optional Backguard	JXS80SS

WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

POWER / RATINGS
Volts/Hertz/Amps	120v; 60Hz; 15A
Bake/Broiler BTU Rating - LP (000's BTU's)	10.0 / 10.0 - Upper; 13.5 / 0.0 - Lower
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	12.0 / 10.0 - Upper; 14.0 / 0.0 - Lower
Top Burner BTU Rating - LP (000's BTU's)	(1) 15.0 Tri-Ring; (1) 11.0; (1) 9.1; (1) 5.0; (1) 8.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 20.0 Tri-Ring; (1) 17.0; (1) 9.1; (1) 5.0; (1) 8.0
