CGS986EELDS

1 of 18

About this Product

Fit Guarantee

Replace your old 30” free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications.  See offer criteria and details

Play Video

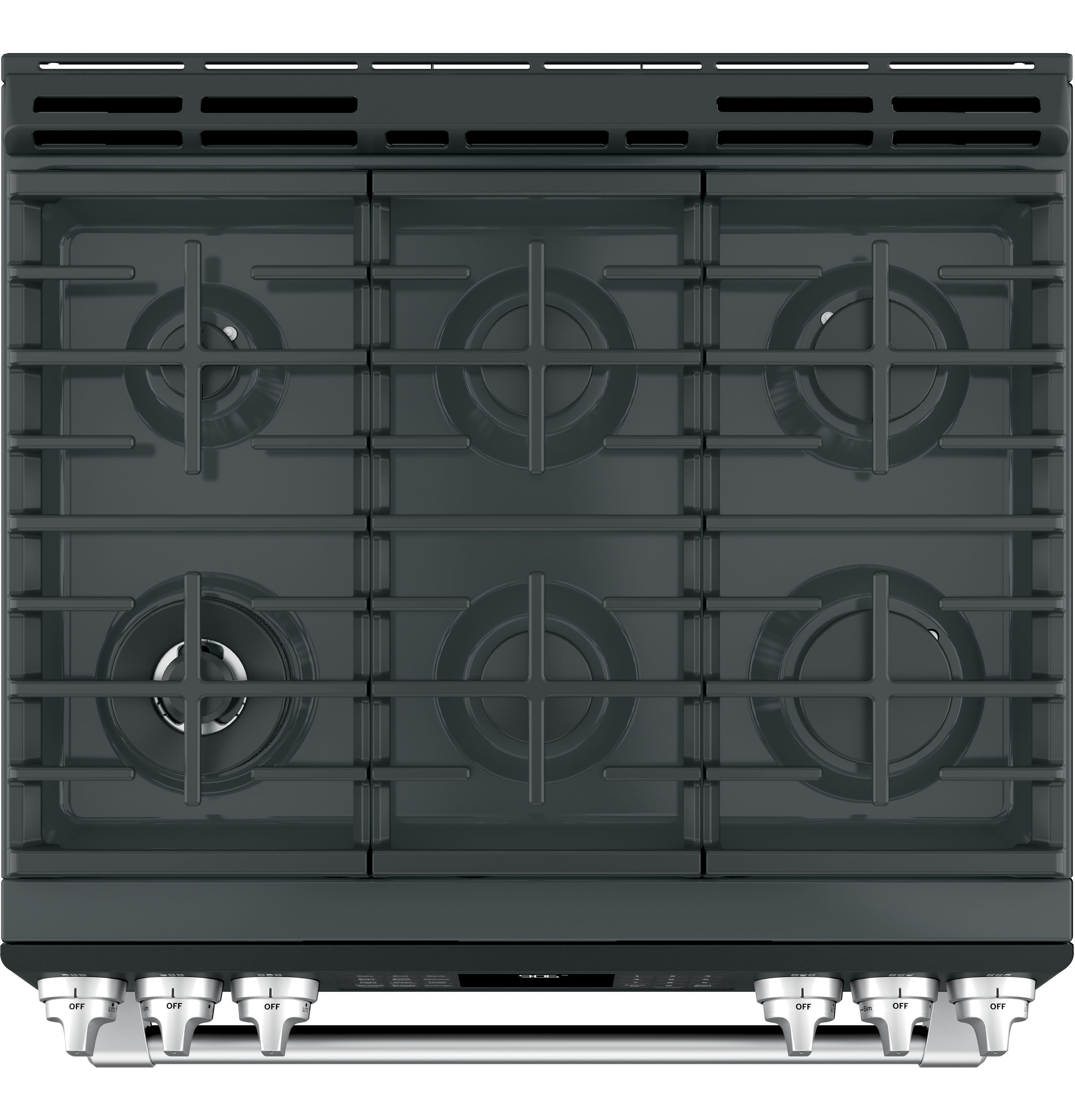

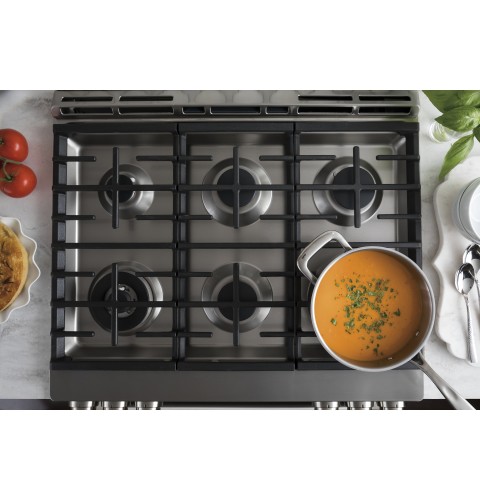

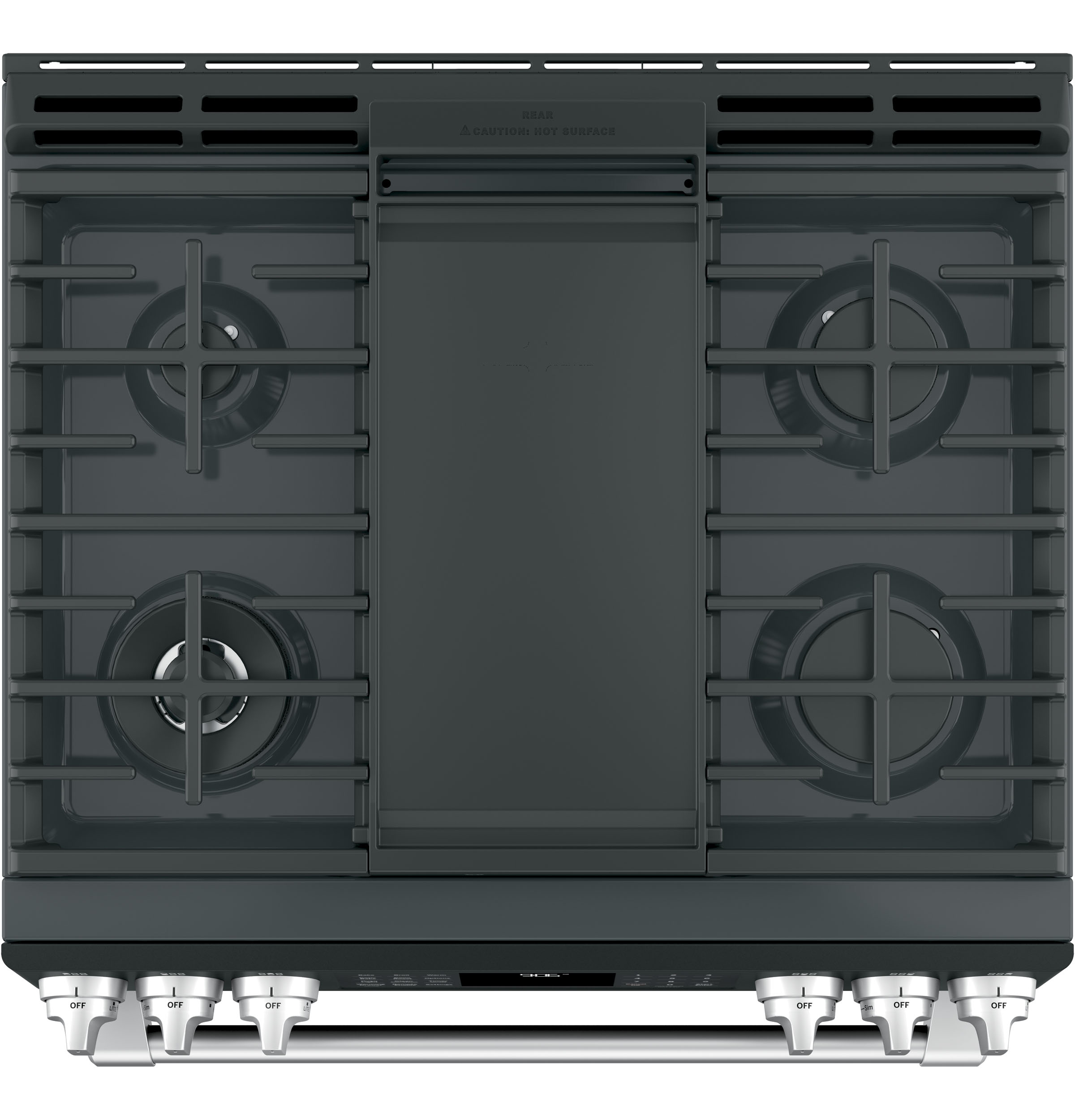

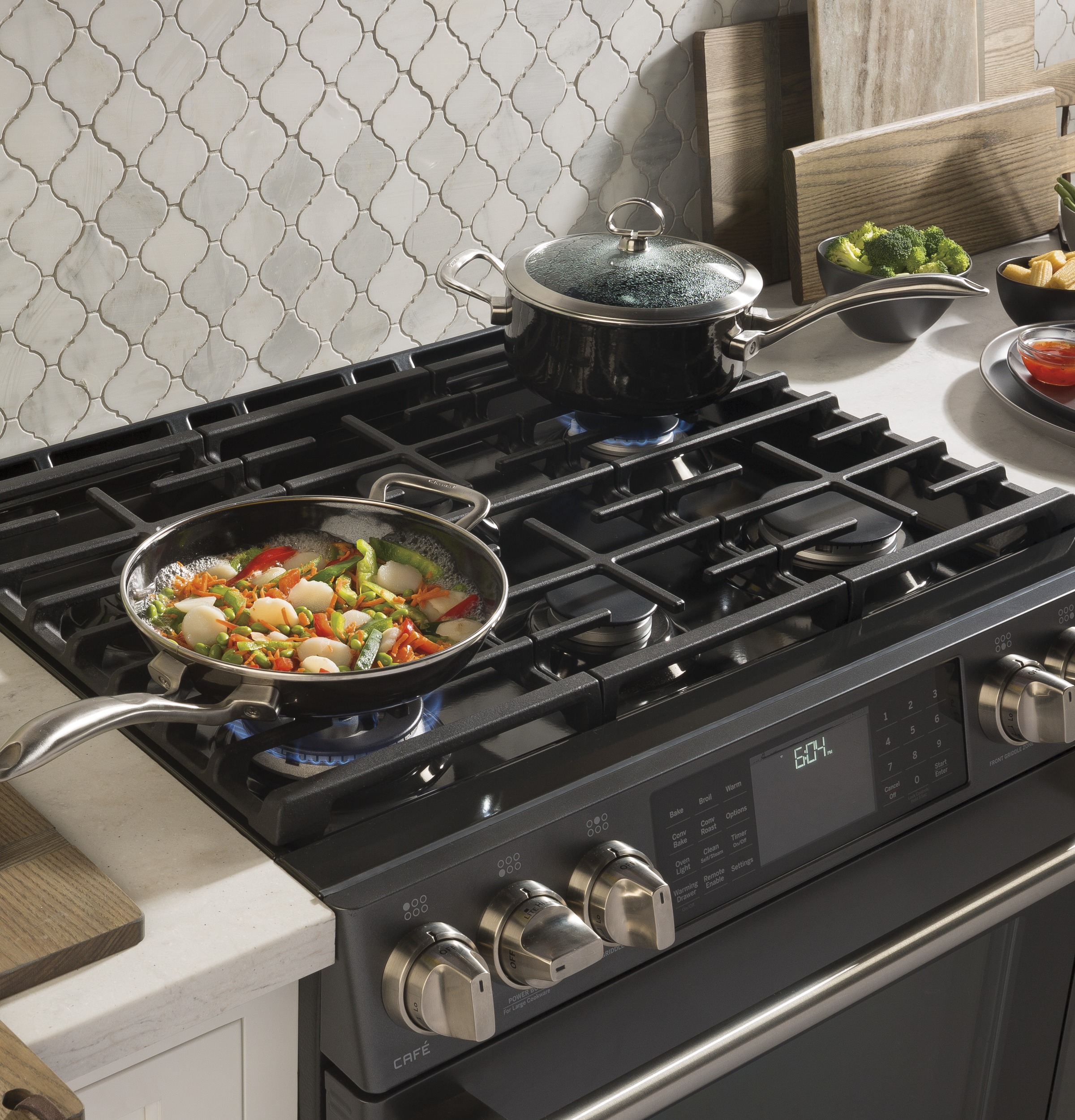

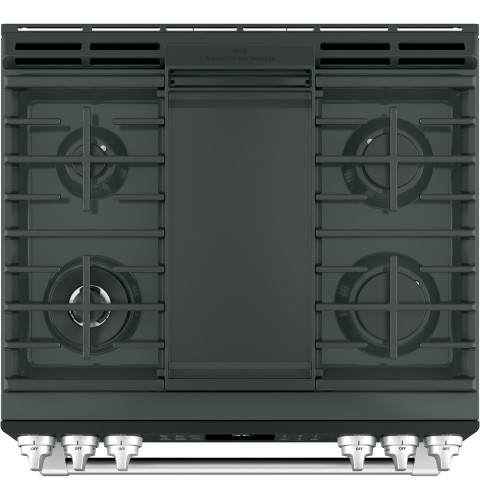

Edge-to-edge six burner cooktop

A full range of burner options give you everything you need to cook like a pro

Play Video

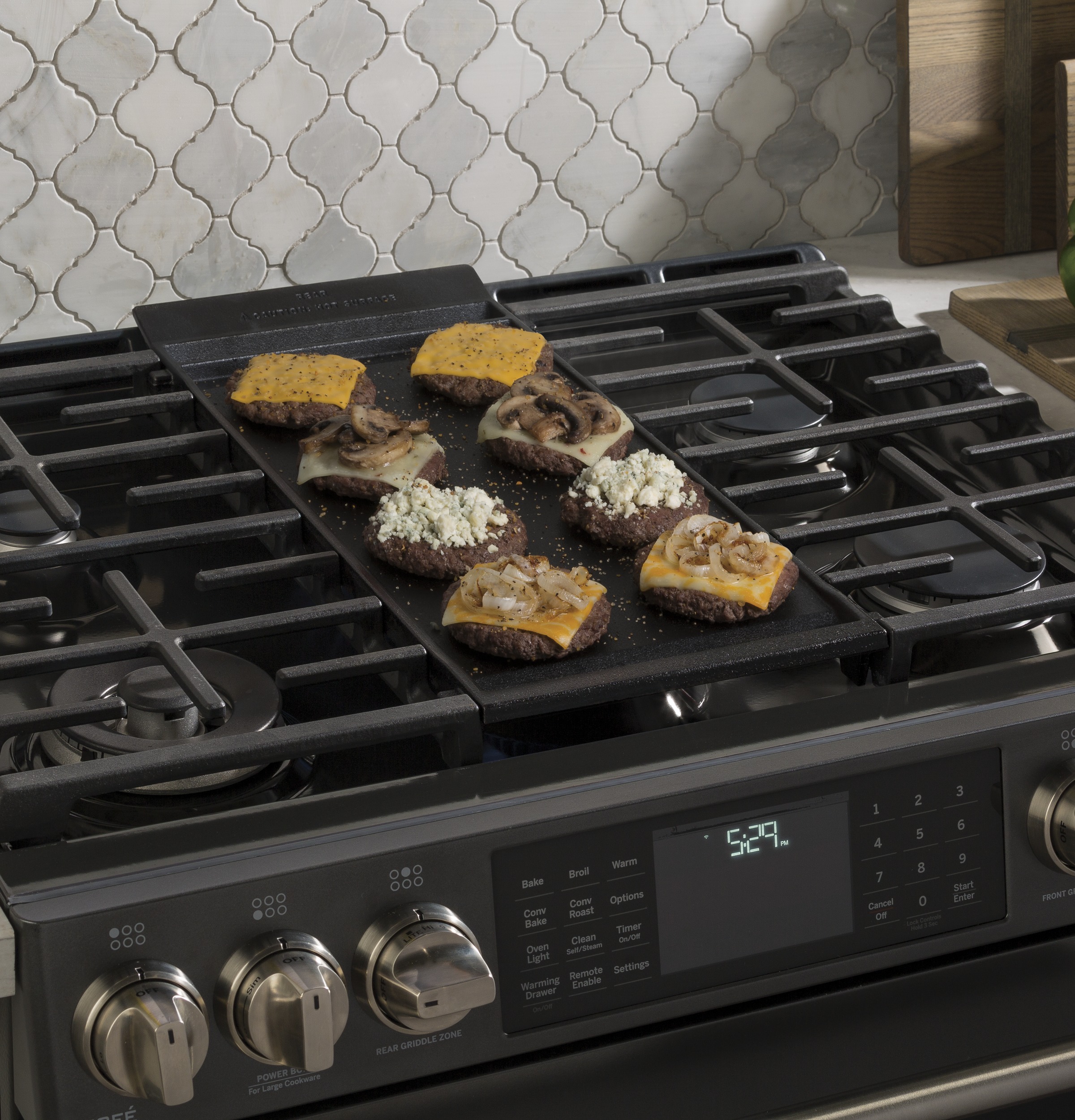

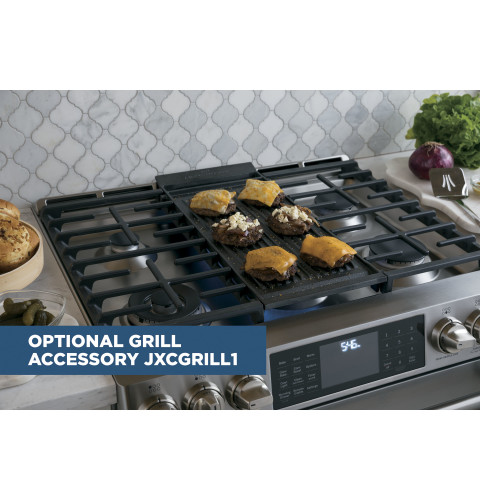

Cast-iron integrated griddle

From grilled cheese to pancakes to quesadillas, do it all right on the cooktop

Play Video

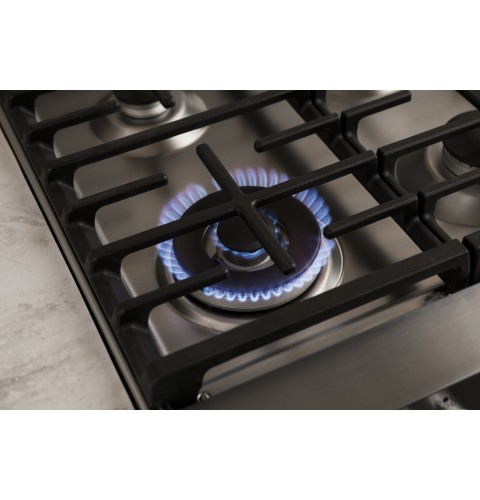

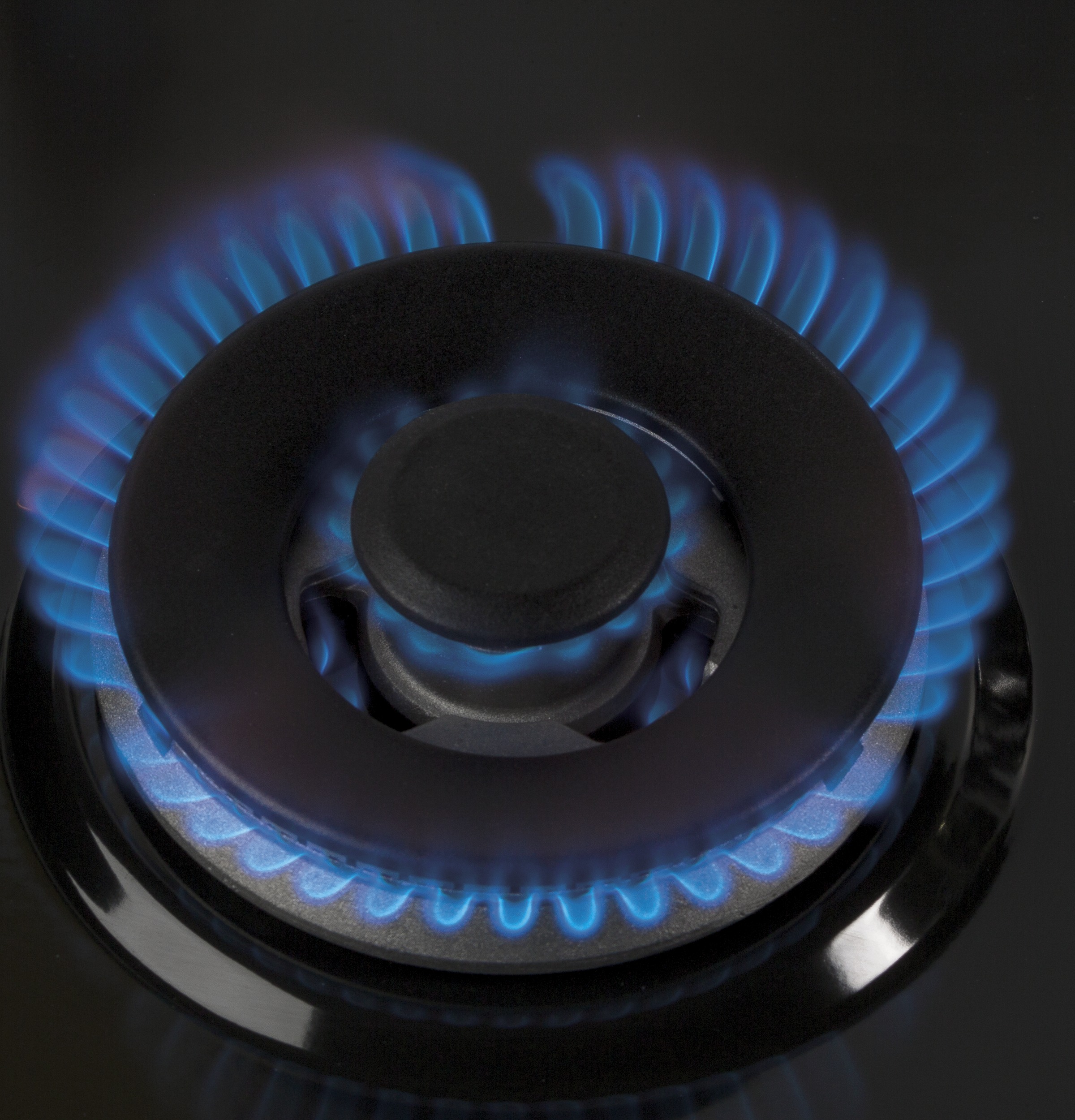

21,000 BTU Tri-ring burner

Versatile burner creates intense heat perfect for searing, frying and sautéing

Play Video

Features

15,000 BTU Power Boil Burner
Delivers high heat for fast boiling
Chef Connect
Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range elements with the microwave's surface light and vent

FEATURES	Print Specs

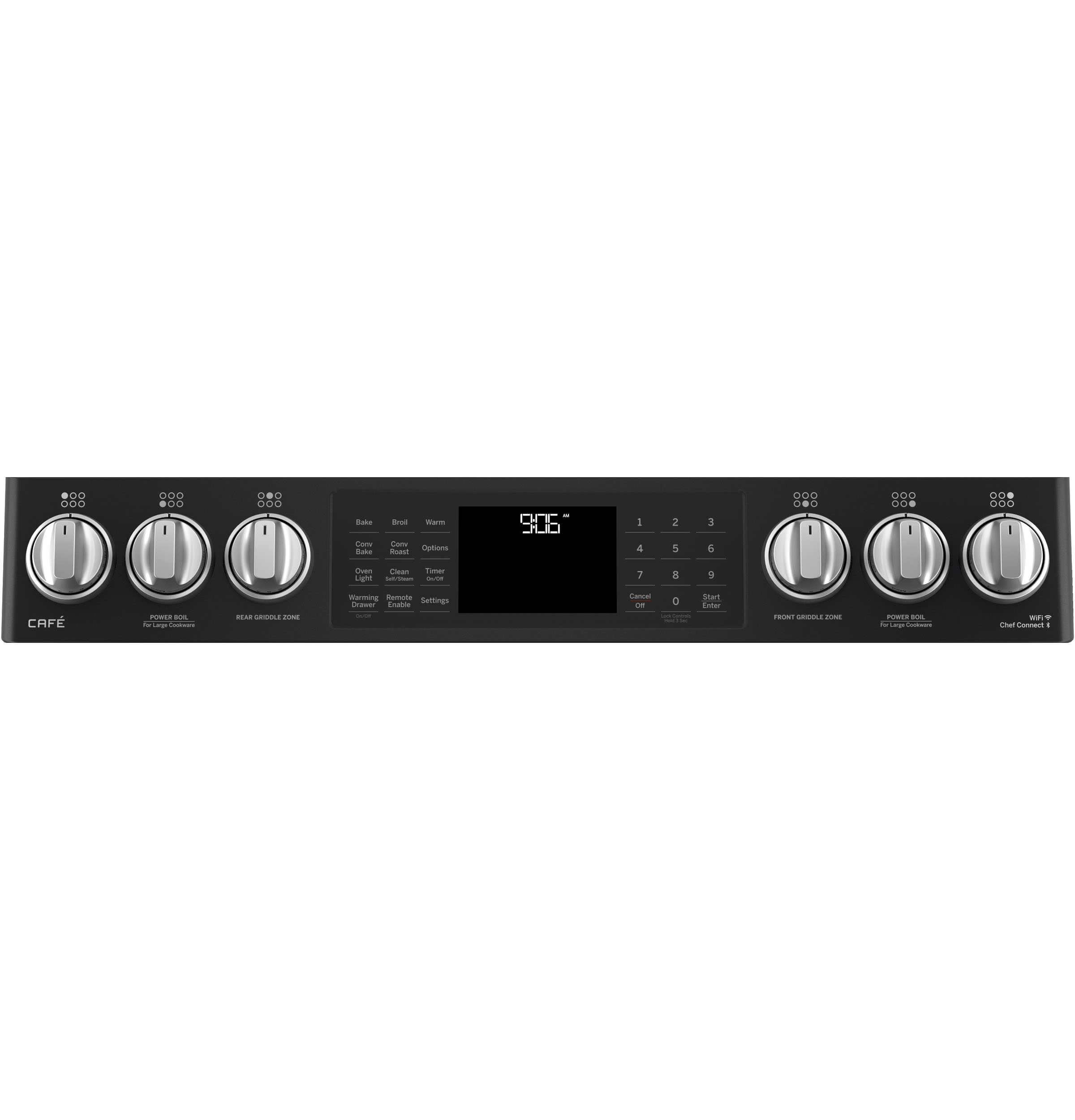

Control Type	Digital Temperature Display
Leveling System	4 Leveling Legs
Product Type	Slide-In Single Oven
WiFi Connect	Built-In
Configuration	Range with Warming Drawer
Connected Capabilities	Amazon Alexa
Control Location	Front controls
Temperature Management System	True Temp System
Style	Commercial
Ignition System	Electronic
Fuel Type	Natural Gas
Griddle	Included
Cooktop Burner Grate Features	Heavy-Cast Edge-to-Edge Grates
Cooktop Burner Grate Material	Cast-Iron
Cooktop Burner Type	Sealed
Cooking Technology	Convection
Oven Cooking Modes	Convection Bake

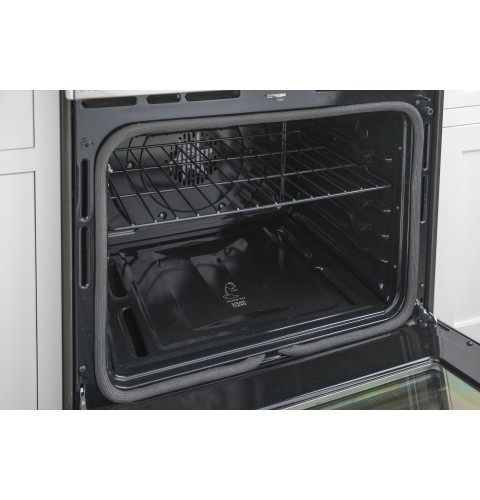

Oven Interior	1 Oven Interior Light
Burner - Center	9,500 BTU Front / 9,500 BTU Rear
Burner - Left Front	21,000 BTU Tri-ring Burner
Burner - Left Rear	5,000 BTU Precise Simmer
Burner - Right Front	15,000 BTU
Burner - Right Rear	12,000 BTU
Cleaning Time	Variable with Delay Clean Option
Cooktop Surface	Deep Recessed
Grill	Integrated Cast Iron
Oven Control Features	Audible Preheat Signal
Self-Clean Oven Door Lock	Automatic

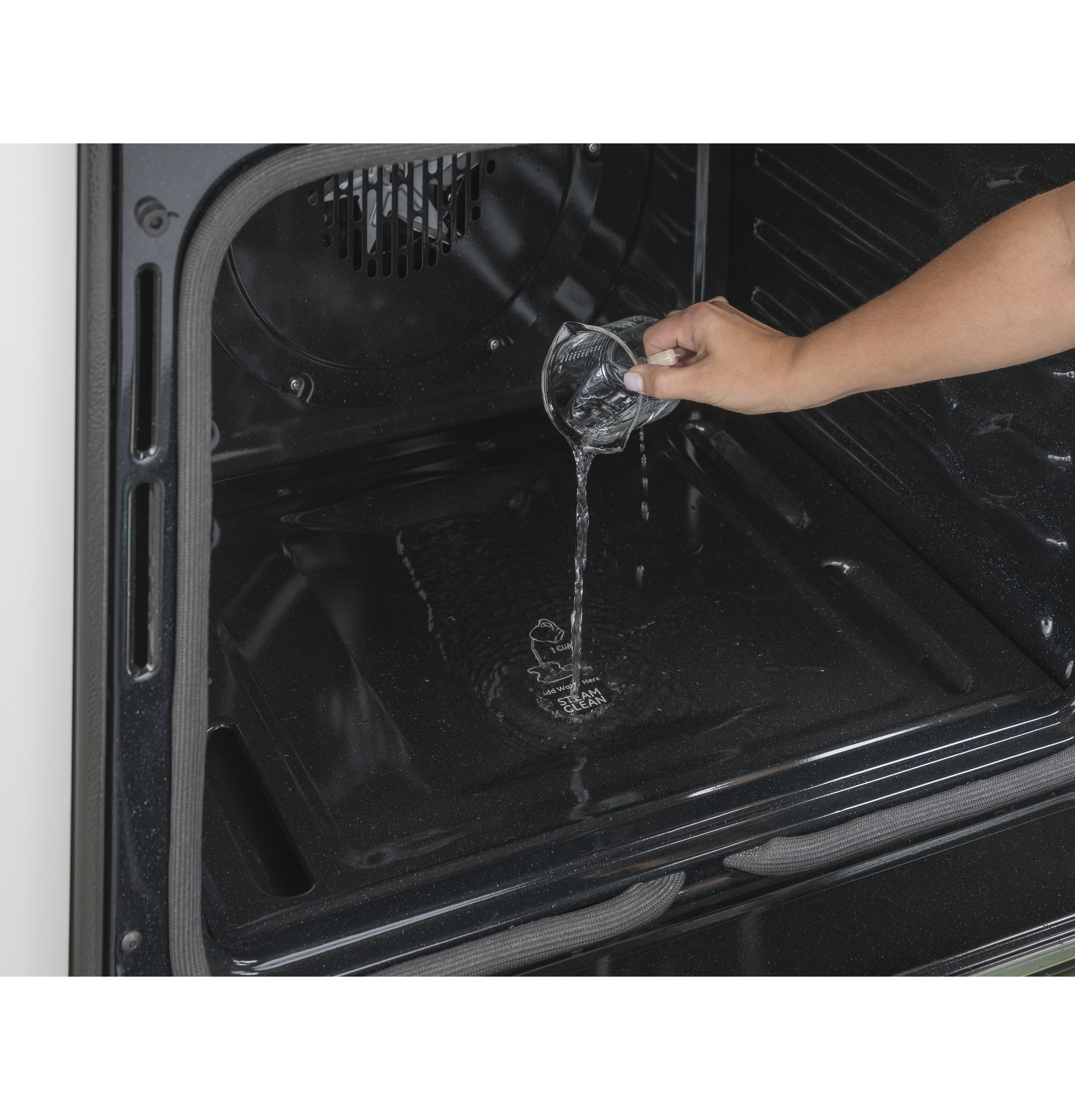

Oven Cleaning Type	Self-Clean with Steam Clean Option

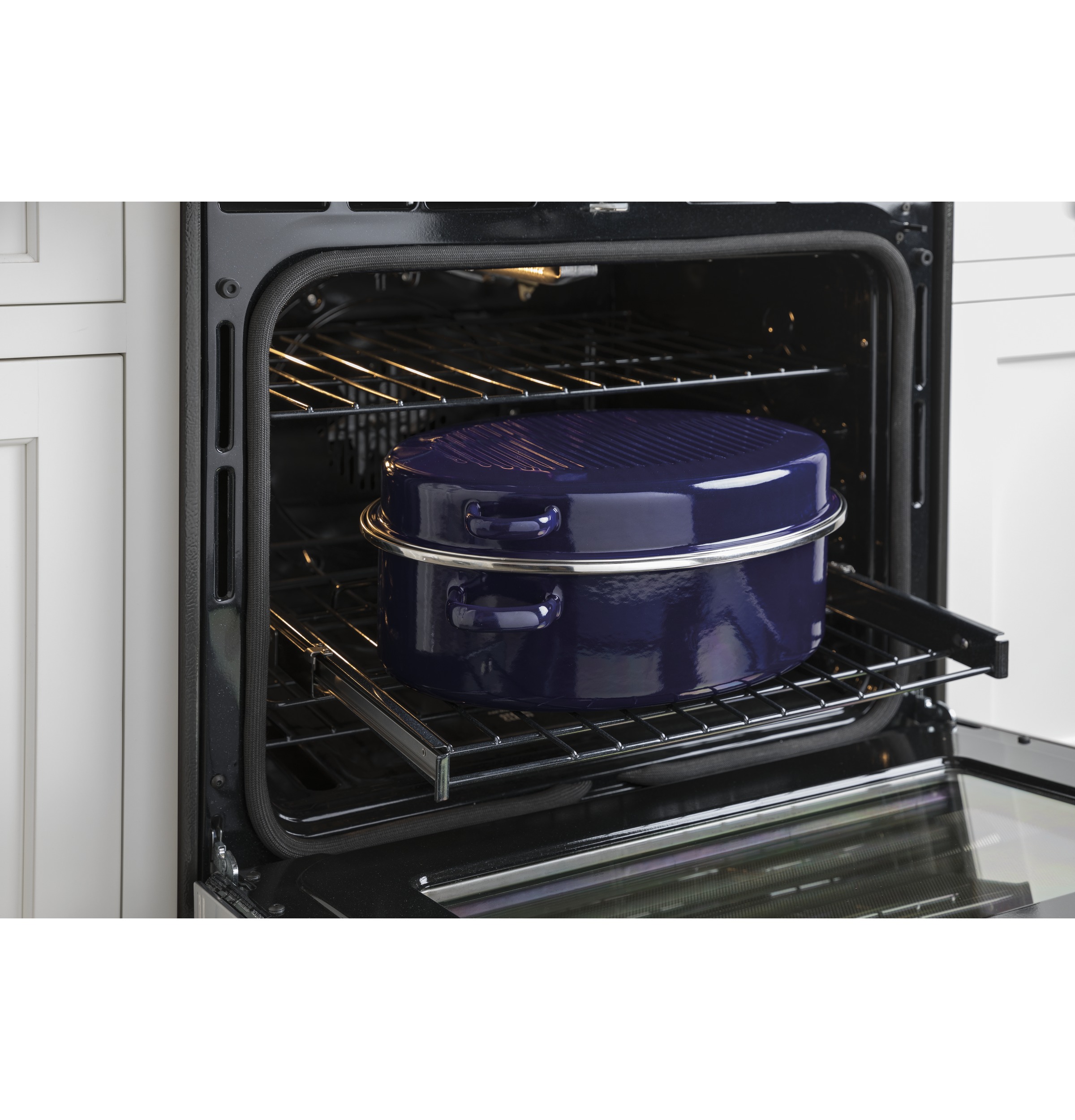

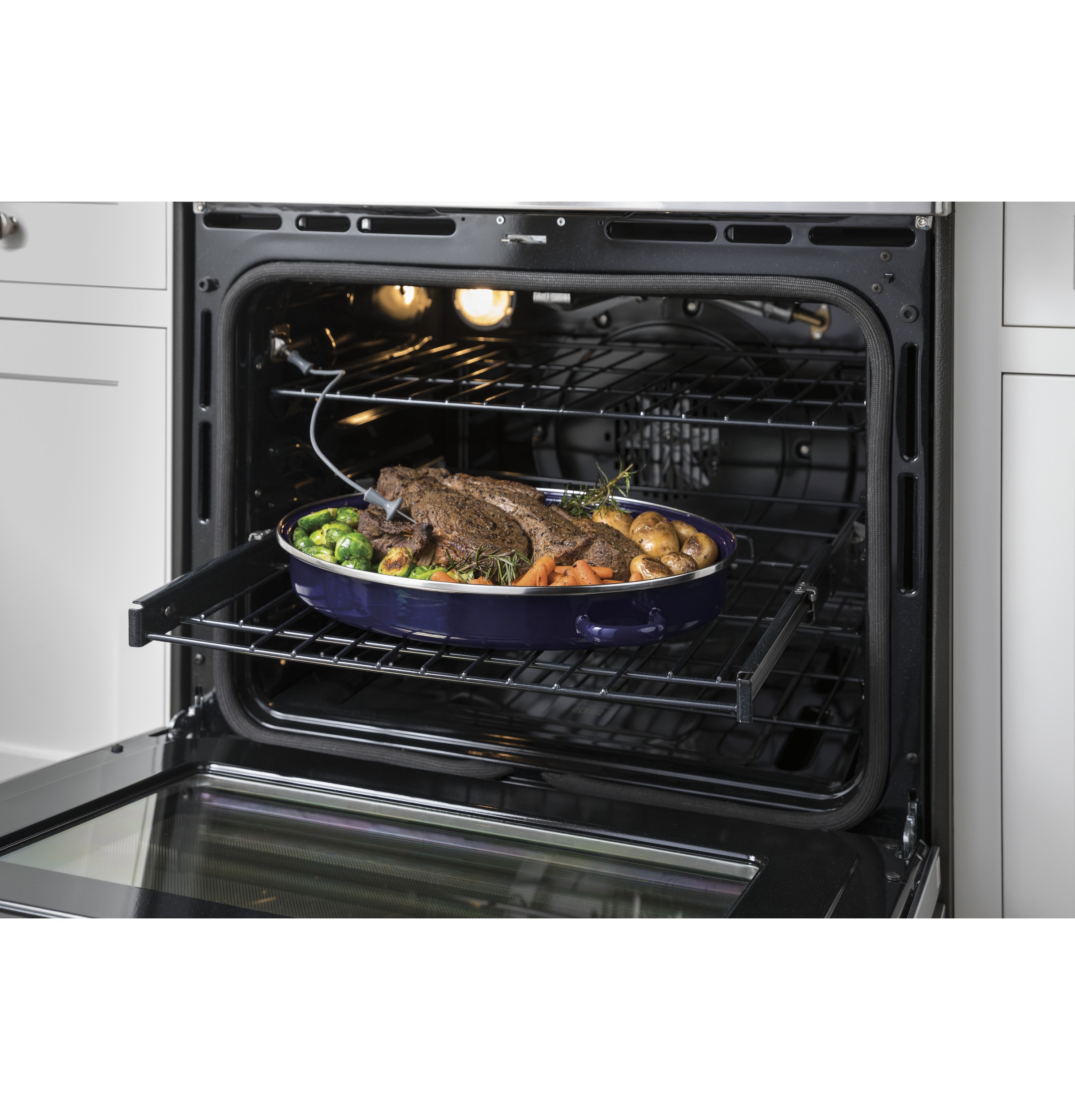

Oven Rack Features	1 Roller Rack
Drawer Type	Warming Drawer
Valves (Degree of Turn)	270
Dishwasher Safe Knobs	Yes
Oven Rack Positions (Single or Upper/Lower)	6

CAPACITY
Total Capacity (cubic feet)	5.6 cu ft

APPEARANCE
Color Appearance	Fingerprint Resistant Black Slate
Handle Design	GE Café
Handle Color	Stainless Steel
Control Knobs	Stainless Steel
Oven Door Features	Big Clear View Oven Window
Cooktop Burner Grate Color	Matte Black

WEIGHTS & DIMENSIONS
Overall Depth	29.5 in
Overall Height	36.5 in
Overall Width	30 in
Approximate Shipping Weight	244 lb
Net Weight	224 lb
Depth Without Handle	26.875 in
Cabinet Width	30 in
Height to Top of Rear Vent Trim	37.625 in
Depth with Door Open	47.5 in
Height to Cooking Surface (in.)	36.25 +/- .25
Oven Interior Dimensions (W x H x D) (in.)	24 x 19-1/2 x 20-5/8

ACCESSORIES
LP Conversion Kit	Included
Trim Kit	JXFILLR1DD

WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

POWER / RATINGS
Volts/Hertz/Amps	120v; 60Hz; 15A
Bake/Broiler BTU Rating - LP (000's BTU's)	16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	16.0 Bake / 16.5 Broiler
Top Burner BTU Rating - LP (000's BTU's)	(1) 18.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0;
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 21.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0
