About this Product

Features

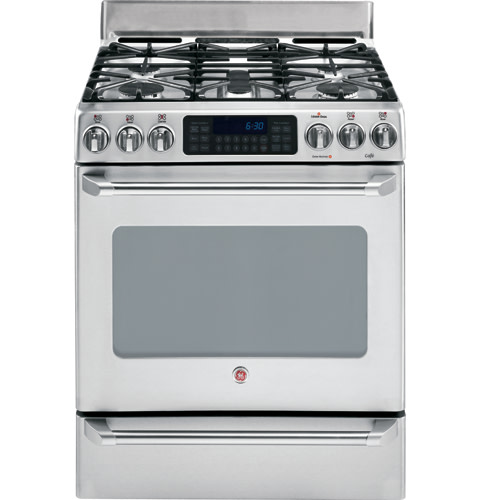

Gas convection oven
Circulates air throughout the oven cavity ensuring better baking and roasting results
5.0 cu. ft. oven capacity
Enough room to cook an entire meal at once
Self-clean oven
Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

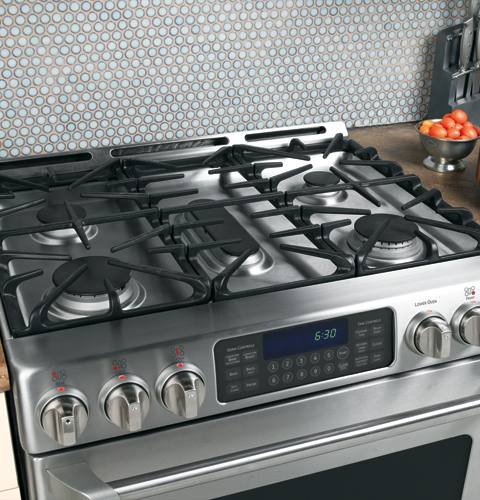

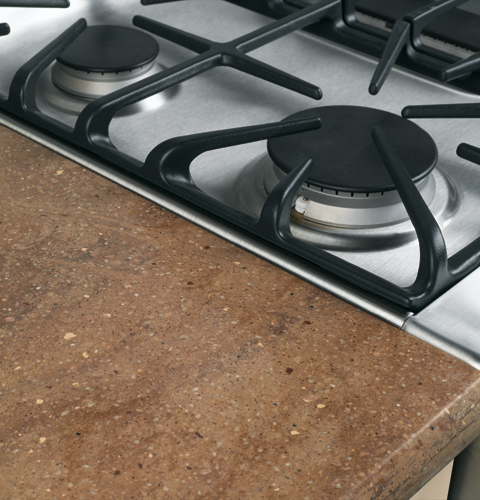

Deep-recessed cooktop
Deep recessed cooktop keeps spills, and everything else, contained in one area that’s easy to wipe clean
Power Boil 17,000 BTU burner
Delivers 17,000 BTUs of forceful heat for rapid boiling
High output burner
This 12,000 (or 11,000) BTU burner element provides the high heat ideal for frying or sautéing and fast heat-up

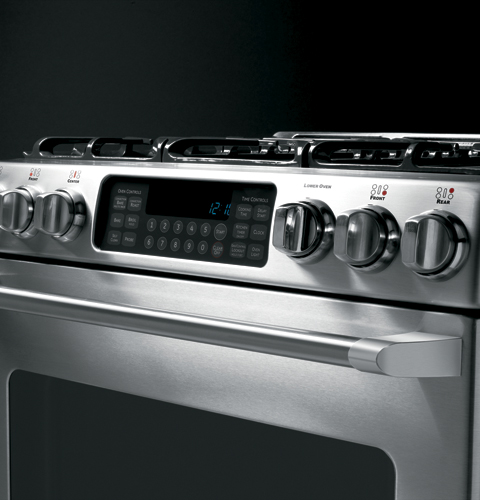

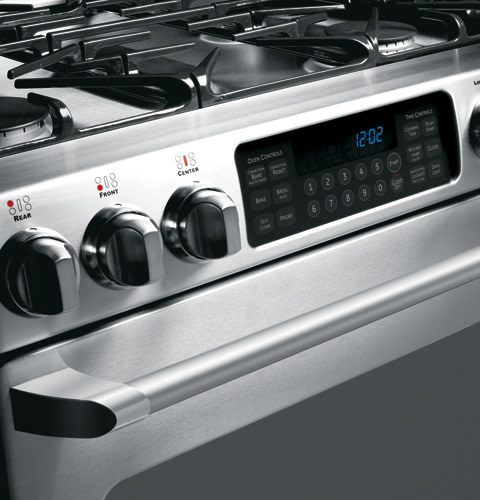

Control lock capability
Control panel locks easily to help avoid accidental operation from curious children or when cleaning

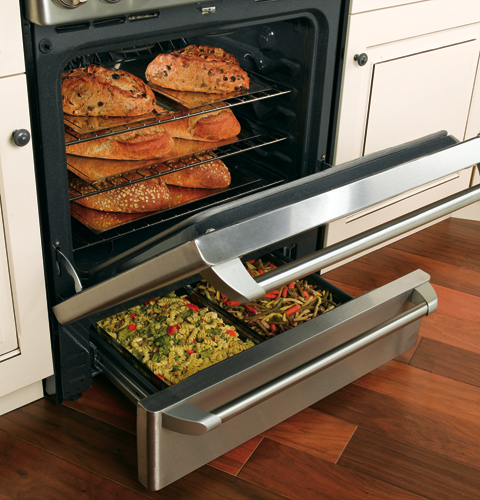

Baking drawer
Offers an additional 1.0 cu. ft. of capacity for convenient baking from 140º to 450º
Play Video
Center oval burner
Oval fifth burner in the center of the cooktop is large to accommodate odd-sized cookware or griddles

FEATURES	Print Specs
Control Type	Digital Temperature Display
Configuration	Range with Baking Drawer
Temperature Management System	True Temp System
Style	Commercial Heavy-Duty
Ignition System	Electronic
Fuel Type	Natural Gas (factory set)

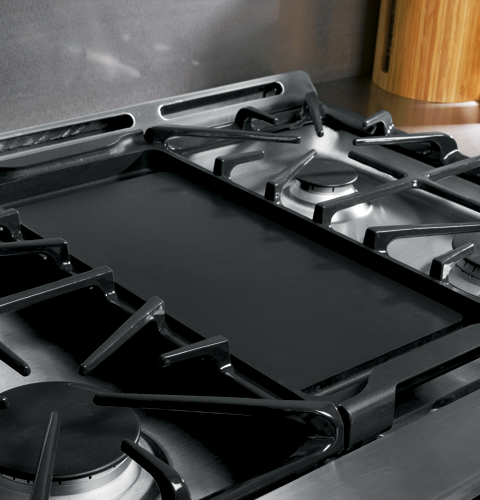

Griddle	Non-Stick
Cooktop Burner Type	Sealed
Cooking Technology	Convection
Oven Cooking Modes	Convection Bake Multi/Single Rack
Oven Interior	Interior Oven Light
All-Purpose Burners	(1) 9,100 BTU/150F degree simmer
Cleaning Time	Variable with Delay Clean Option
Clock and Minute Timer	Electronic
Cooktop Surface	Deep Recessed
Dual Flame Stacked Burners	(1) 18,000 BTU/140F degree simmer
Oven Control Features	Audible Preheat Signal
Self-Clean Oven Door Lock	Automatic
Oven Cleaning Type	Self-Clean
Oven Rack Features	3 Self-Clean Heavy-Duty Oven Racks
Precise Simmer Burner	(1) 5,000 BTU/140F degree simmer
Center Oval Burner	(1) 6,000 BTU
Power Boil Burner	(1) 17,000 BTU
Valves (Degree of Turn)	270
Dishwasher Safe Knobs	Yes
Lower Oven Features	Dual element bake
Oven Lockout	Yes

CAPACITY
Capacity (Cu. Ft.)	5.0 Upper / 1.0 Lower
Total Capacity (cubic feet)	6 cu ft

WEIGHTS & DIMENSIONS
Depth with Door Open 90°	46.375 in
Overall Depth	26.25 in
Overall Height	36.25 in
Overall Width	30 in
Approximate Shipping Weight	245 lb
Net Weight	225 lb
Cabinet Width	30 in
Height to Top of Rear Vent Trim	37.25 in
Height to Cooking Surface (in.)	36 1/4 +/- 1/4
Oven Interior Dimensions (W x H x D) (in.)	24 x 19 x 19

ACCESSORIES
LP Conversion Kit	Included

WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance

POWER / RATINGS
Volts/Hertz/Amps	120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)	(1) 11.0 (1) 15.0 (1) 4.0 (2) 8.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 17.0 (1) 18.0 (1) 5.0 (1) 9.1 (1) 8.0
