About this Product
-
Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
-

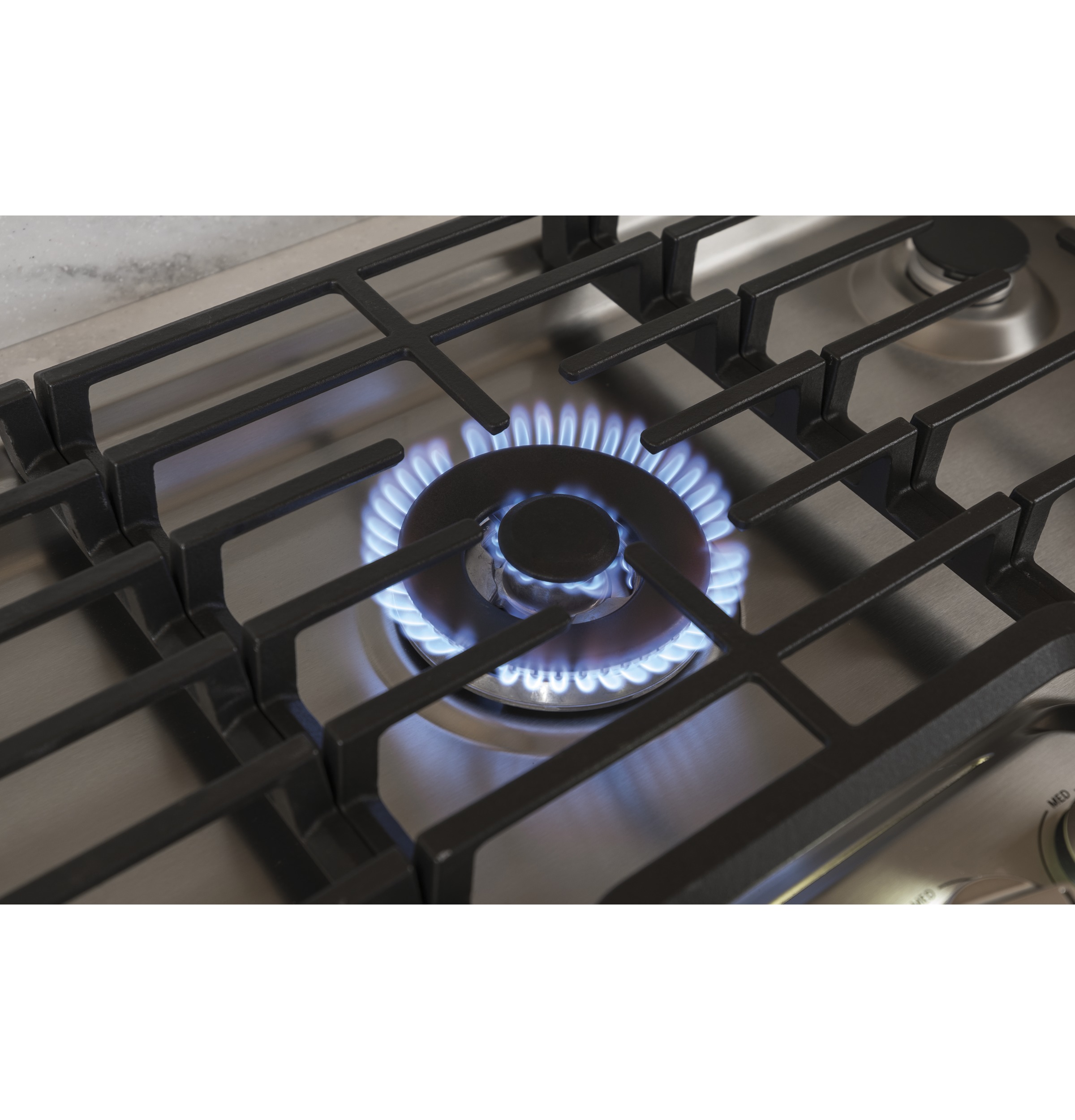

20,000 BTU tri-ring burner
Versatile burner creates intense heat perfect for searing, frying and sautéing
-

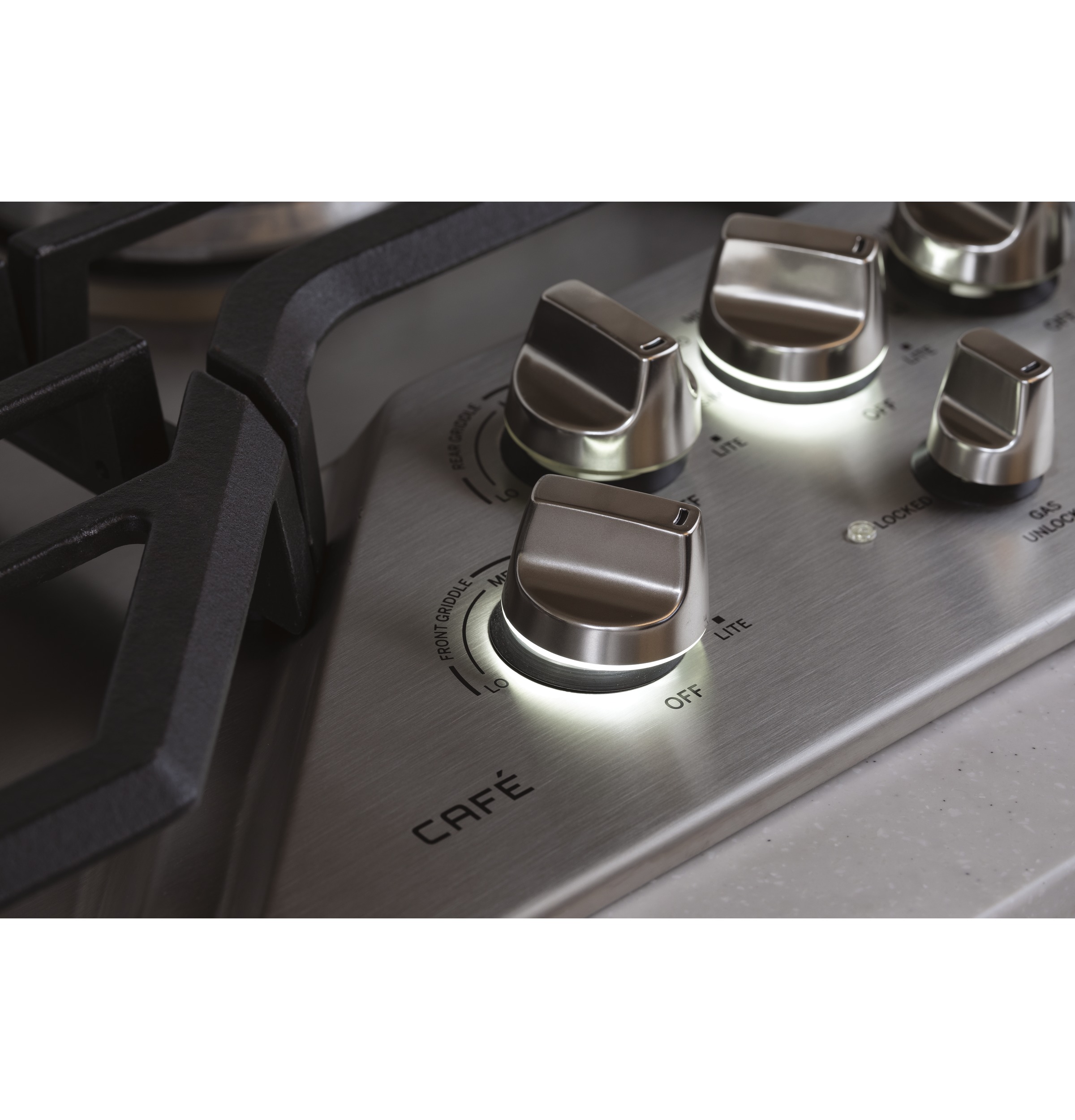

White LED backlit heavy-duty knobs
Durable knobs are back-lit with white LED lighting that lend a sleek appearance and let you know if burners are on
-

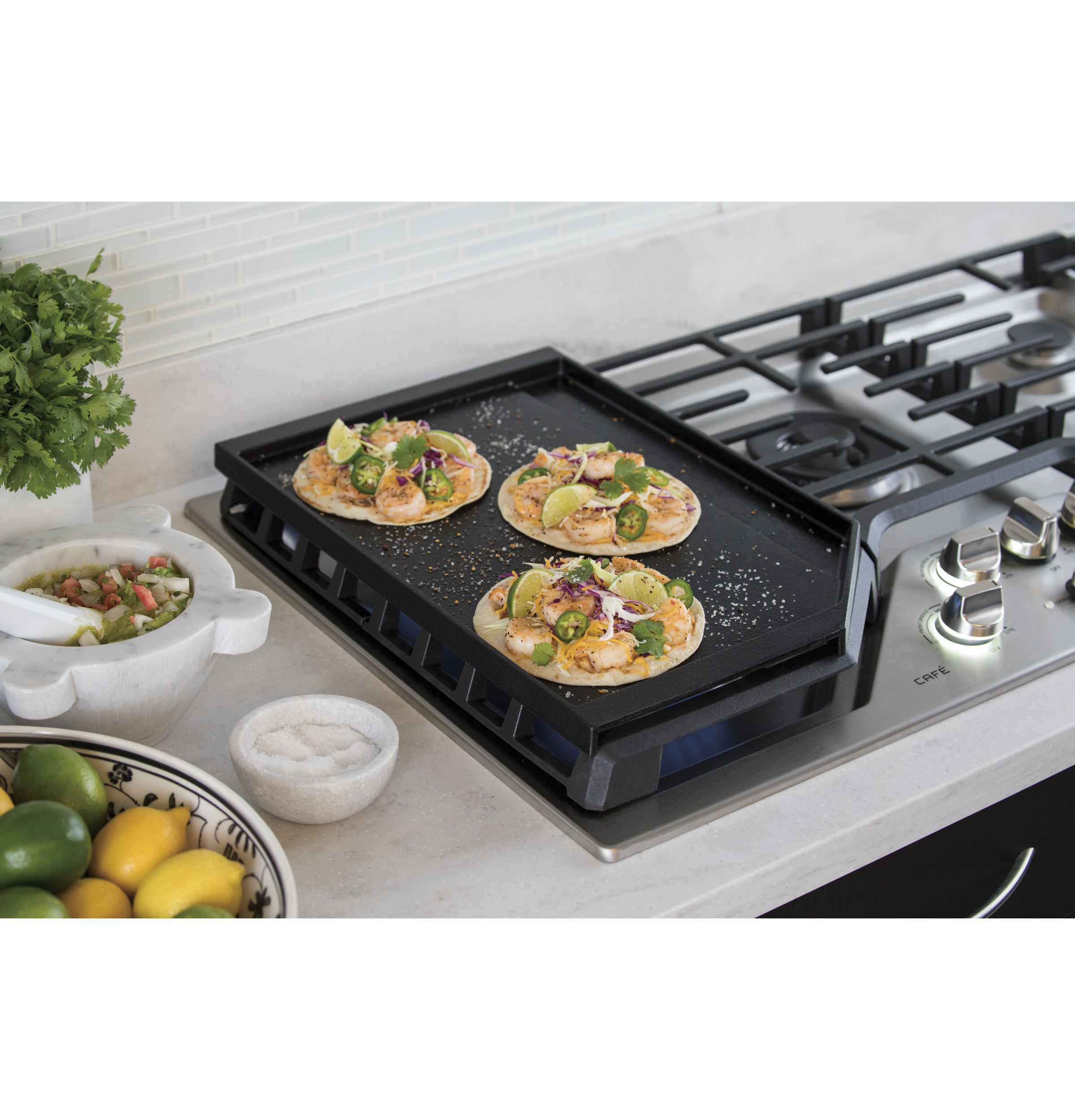

Extra-large, integrated cooktop griddle
Eliminate the need for extra cookware and enjoy a built-in cooking surface for pancakes, grilled cheeses and other favorites
Features
- No features are available for this product.
Claims & Certifications
For California Residents:
View Proposition 65 Warning
Manuals & Downloads
- Installation Instructions    
- Quick Specs  
- Owner’s Manual  
FEATURES |
Print Specs |
|---|---|
| Control Type | Knob |
| Control Location | Front Center |
| Ignition System | Electronic |
| Fuel Type | Natural Gas |
| Griddle | Cast Iron |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast |
| Cooktop Burner Type | 5 Sealed |
| Burner - Center | 20,000 BTU Tri-ring Power Boil |
| Burner - Left Front | 9,500 BTU |
| Burner - Left Rear | 9,500 BTU |
| Burner - Right Front | 15,000 BTU Power Boil |
| Burner - Right Rear | 5,000 BTU |
| Cooktop Surface | Deep Stainless Steel |
| Valves (Degree of Turn) | 270 |
| Cooktop Control Features | Child Lock |
APPEARANCE |
|
|---|---|
| Color Appearance | Stainless Steel |
| Control Knobs | Dishwasher Safe |
| Cooktop Burner Grate Color | Matte Black |
WEIGHTS & DIMENSIONS |
|
|---|---|
| Overall Depth | 21
in |
| Overall Height | 5.5
in |
| Overall Width | 36
in |
| Approximate Shipping Weight | 57
lb |
| Net Weight | 51
lb |
| Cabinet Width | 36
in |
| Cutout Width (in) | 33.875 |
| Cutout Depth (in) | 19.125 |
ACCESSORIES |
|
|---|---|
| LP Conversion Kit | Included |
| Griddle Accessory | JXGRIDL236 |
| Stainless Steel Cleaner | Included |
WARRANTY |
|
|---|---|
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
POWER / RATINGS |
|
|---|---|
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 20.0; (1) 15.0; (2) 9.5; (1) 5.0 |
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 18.0; (1) 15.0; (2) 9.5; (1) 5.0 |
