About this Product

Fit Guarantee

Replace your old 30” free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications.  See offer criteria and details

Play Video
Self-clean oven

Cleans the oven cavity without the need for scrubbing

Play Video

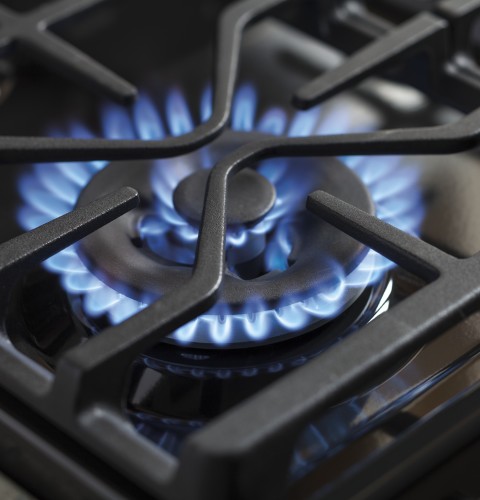

20,000 BTU tri-ring burner

Offers the flexibility of three different burners

Play Video

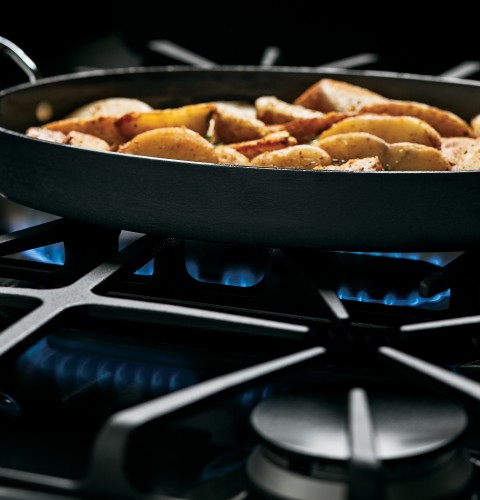

Center oval burner

Large oval fifth burner is ideal for griddle or odd-size cookware

Play Video

Features

Convection Bake
Optimal setting for baked goods and casseroles
5.4 cu. ft. oven capacity
Enough room to cook an entire meal at once
Baking drawer
Offers an additional 1.0 cu. ft. of capacity for convenient baking from 140º to 450º
Play Video
Non-stick griddle
Ideal for pancakes, bacon, sandwiches and more
Front controls

FEATURES	Print Specs
Control Type	Digital Temperature Display
Leveling System	4 Leveling Legs
Product Type	Slide-In Single Oven
Configuration	Range with Baking Drawer
Control Location	Front controls
Temperature Management System	True Temp System
Style	Commercial
Ignition System	Electronic
Fuel Type	240V Electric and Natural Gas
Griddle	Non-Stick
Cooktop Burner Grate Features	Heavy-Cast Edge-to-Edge Grates
Cooktop Burner Grate Material	Cast-Iron
Cooktop Burner Type	Sealed
Cooking Technology	Convection
Oven Cooking Modes	Convection Bake
Oven Interior	2 Oven Interior Lights
All-Purpose Burners	(1) 9,100 BTU/150F degree simmer
Cleaning Time	Variable with Delay Clean Option
Clock and Minute Timer	Electronic
Cooktop Surface	Deep Recessed
Oven Control Features	Audible Preheat Signal
Self-Clean Oven Door Lock	Automatic
Tri-Ring Burner	(1) 20,000 BTU / 140F degree simmer
Oven Cleaning Type	Self-Clean
Oven Rack Features	3 Self-Clean Heavy-Duty Oven Racks
Precise Simmer Burner	(1) 5,000 BTU/140F degree simmer
Drawer Type	Baking Drawer
Center Oval Burner	(1) 8,000 BTU
Power Boil Burner	(1) 17,000 BTU
Valves (Degree of Turn)	270
Dishwasher Safe Knobs	Yes
Lower Oven Features	Bake knob control; infinite heat settings

CAPACITY
Capacity (Cu. Ft.)	5.4 Upper / 1.0 Lower
Total Capacity (cubic feet)	6.4 cu ft

WEIGHTS & DIMENSIONS
Overall Depth	26.5 in
Overall Height	37.25 in
Overall Width	30 in
Approximate Shipping Weight	245 lb
Net Weight	225 lb
Cabinet Width	30 in
Depth with Door Open	47 in
Height to Cooking Surface (in.)	35 13/16
Oven Interior Dimensions (W x H x D) (in.)	24 x 19 x 20-5/8

ACCESSORIES
LP Conversion Kit	Included
Optional Backguard	JXS80SS

WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

POWER / RATINGS
Volts/Hertz/Amps	208/240V; 60Hz; 40A
Power Connection	Power Cord - Included
Amp Rating at 208V	40
Amp Rating at 240V	40
Top Burner BTU Rating - LP (000's BTU's)	(1) 15.0 Tri-Ring; (1) 11.0; (1) 9.1; (1) 5.0; (1) 8.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 20.0 Tri-Ring; (1) 17.0; (1) 9.1; (1) 5.0; (1) 8.0
Bake/Broil Wattage - Main Oven	2585/3410W
