About this Product
Features
-
6,000 BTU, 12.1 CEER, 115 Volts
-

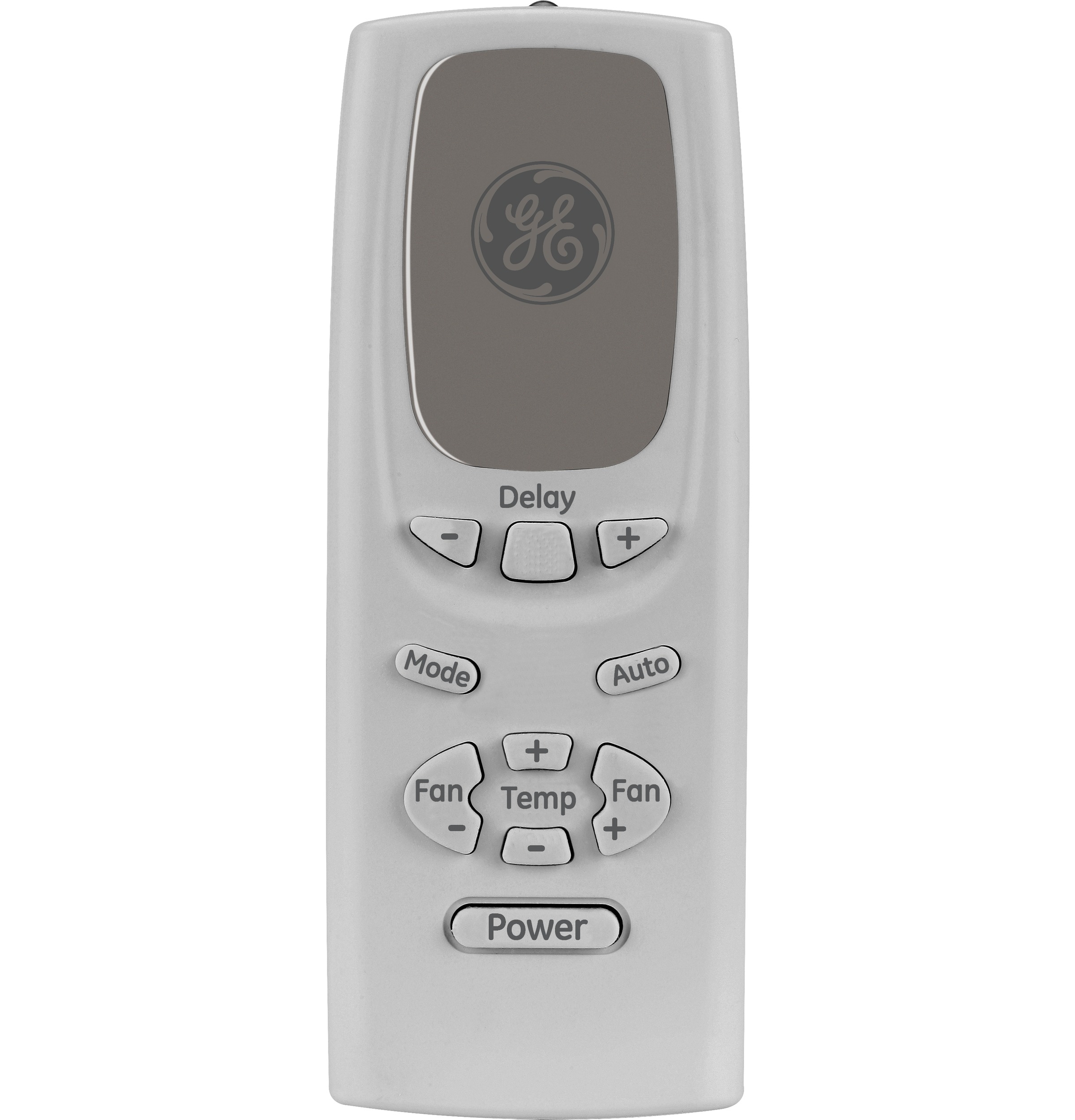

Electronic digital thermostat with remote
-
3 cooling / 3 fan speeds
-

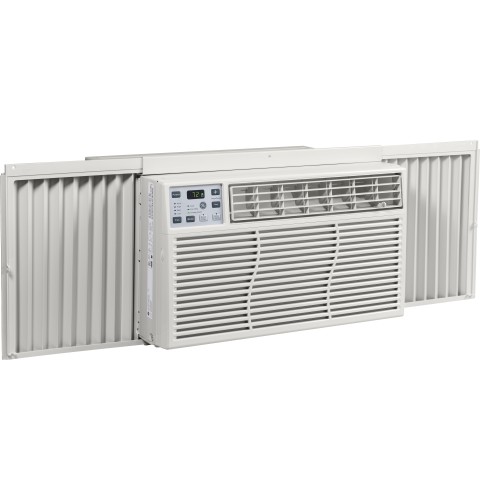

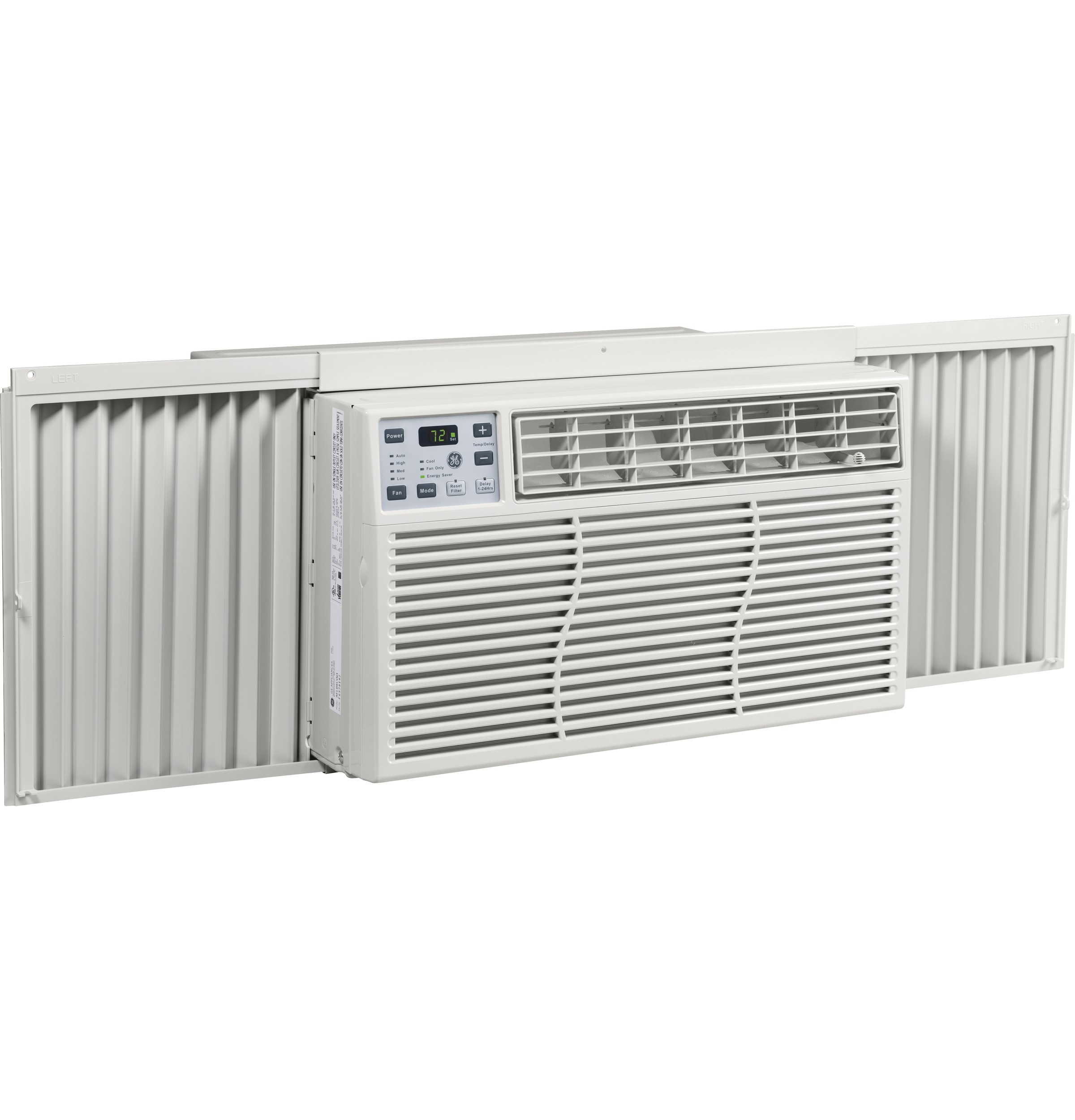

EZ Mount window installation kit included
-
Fixed chassis
-
Energy Saver mode
Fan and compressor shut off temporarily when the room is cool enough, saving you time and money
-

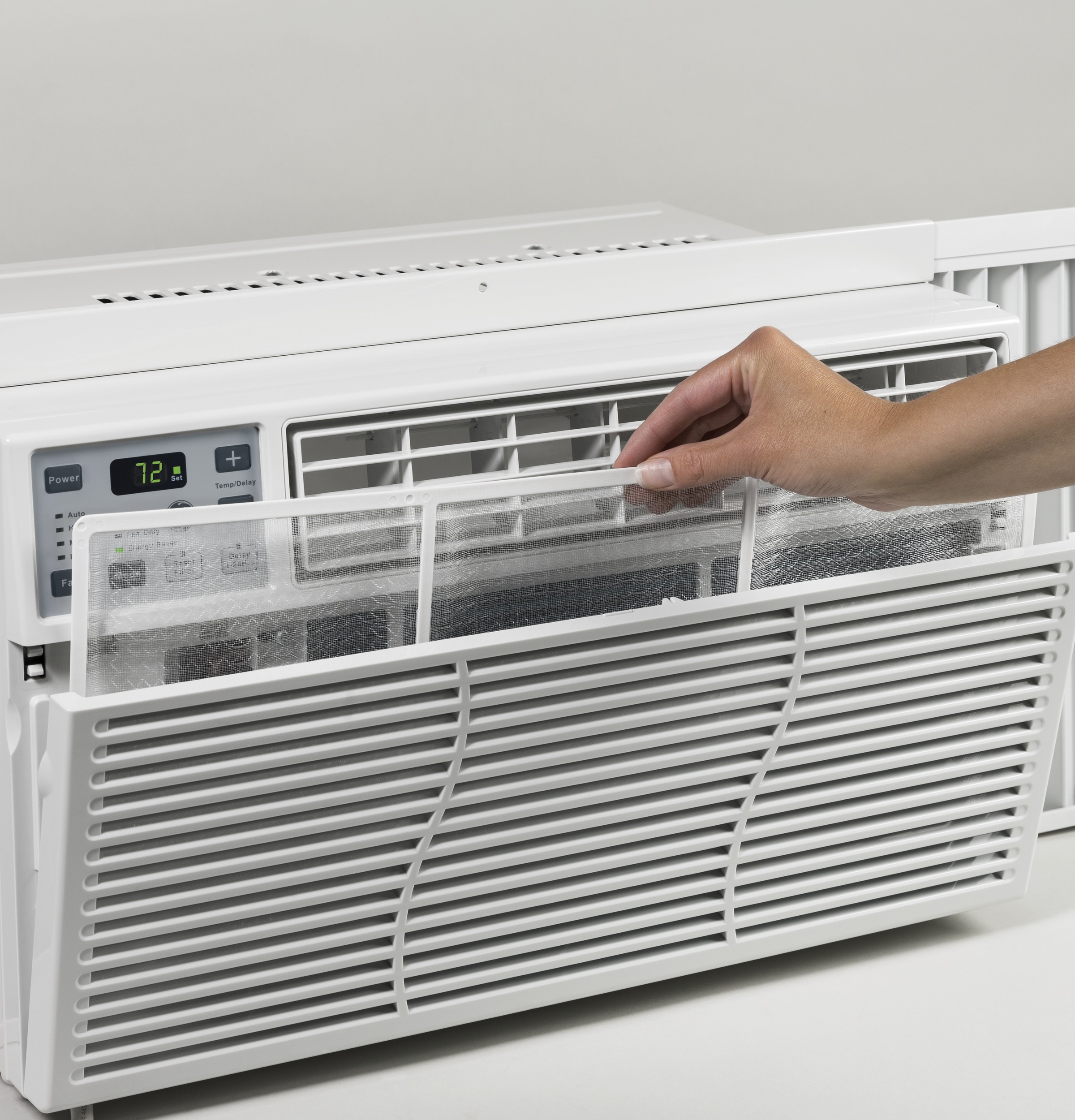

Filter reminder light
Prompts you when to clean the filter to ensure optimal performance
-
Power interruption restart
-
Non-ozone-depleting refrigerant (R-410A)
-
Fits windows 22-1/2" - 38" wide, minimum height 13-1/2"
Claims & Certifications
For California Residents:
View Proposition 65 Warning
Manuals & Downloads
-
Energy Guide
 
- Installation Instructions  
- Owner’s Manual  
- AEL06LV
FEATURES |
Print Specs |
|---|---|
| Refrigerant Type | R-410A - Non-Ozone-Depleting Refrigerant |
| Remote Control | Yes |
| Plug Type | Parallel/NEMA 5-15 |
| Fan Speed Selections | 3 Cooling |
| Mounting Type | EZ Mount |
| Filter Type | One Touch Lift-Out |
| Chassis Type | Fixed |
| Delay Timer | 24-Hour On/Off Timer |
| Rotary Compressor | Yes |
| Thermostat Type | Electronic |
| Unit Type | Cool Only |
| Vent/Air Exchange Exhaust | Top Air Discharge |
| Louver Style | 4-Way |
| Airflow (cfm) Roomside | 177 |
CAPACITY |
|
|---|---|
| Cooling EER (BTUH / Watt) | 11.2 |
| Dehumidification (pts./hr.) | 1.5 |
| Cooling BTUH (MAX) | 6000
Btu |
APPEARANCE |
|
|---|---|
| Installation | EZ Mount |
| Color Appearance | Light Cool Gray |
WEIGHTS & DIMENSIONS |
|
|---|---|
| Overall Depth | 15.71875
in |
| Overall Height | 12.75
in |
| Overall Width | 18.59375
in |
| Approximate Shipping Weight | 51
lb |
| Net Weight | 44
lb |
| Depth to Louvers | 4.71875
in |
| Grille Depth | 1.40625
in |
| Minimum Window Opening Height (in.) | 13.5 in |
| Min./Max. Window Opening Width (in.) | 22-1/2 /38 |
WARRANTY |
|
|---|---|
| Labor Warranty | No Warranty |
| Parts Warranty | Limited 1-Year Exchange Only |
| Warranty Notes | See written warranty for full details |
ECONOMICAL / QUIET |
|
|---|---|
| Energy Saver | Yes |
POWER / RATINGS |
|
|---|---|
| CEER | 11.0 |
| Cooling - Rated Cooling Amps AHAM | 4.9 |
| Cooling - Watts | 540 |
| Voltage (MAX) | 115
V |
- AEL06LV
