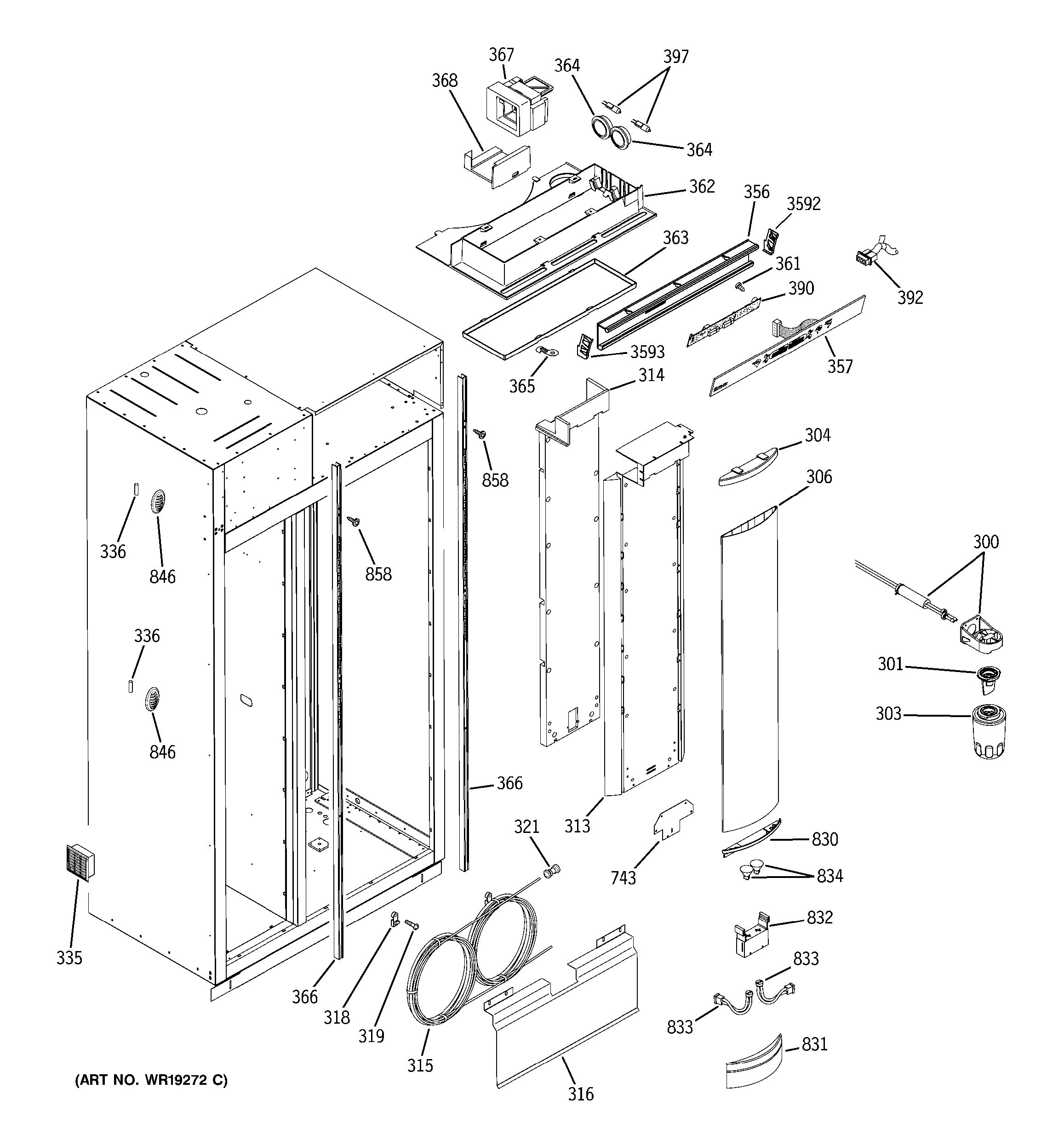

Assembly View for FRESH FOOD SECTION

300 — Diagram Number

FILTER MNT & TUBE ASM

WR02X11448

No Longer Available
Item has been replaced by
WR02X45207

301 — Diagram Number

PLUG BYPASS FILTER

WR02X10577

No Longer Available
Item has been replaced by
WR17X22070

303 — Diagram Number

GE® Replacement Water Filter

GWF

No Longer Available
Item has been replaced by
MWFP

304 — Diagram Number

END CAP LIGHT COLUMN TOP

WR17X11174

No Longer Available
Item has been replaced by
NLA ITEM

306 — Diagram Number

Monogram Refrigerator Light Column Assembly

WR17X11207

No Longer Available
Item has been replaced by
NLA ITEM

314 — Diagram Number

FOAM INSERT AIR TOWER

WR02X11197

No Longer Available

Temporarily Out of Stock.

315 — Diagram Number

WATER TANK ASM

WR17X11437

No Longer Available
Item has been replaced by
WR17X11176

316 — Diagram Number

COVER WATER TANK(PLASTIC

WR74X10101

No Longer Available
Item has been replaced by
NLA ITEM

318 — Diagram Number

WIRE TIE (TANK HOLDER)

WR02X11481

No Longer Available
Item has been replaced by
NLA ITEM

319 — Diagram Number

SCREW TRIM (SELF DRILLING)

WR01X10188

^$6.07

Add to Cart

321 — Diagram Number

CONNECTOR, UNION 1/4

WR02X10472

No Longer Available
Item has been replaced by
WR02X13738

335 — Diagram Number

QC INLET DUCT FZ

WR02X11199

^$18.80

Add to Cart

336 — Diagram Number

Refrigerator temperature sensor

WR55X10025

^$15.98

Add to Cart

356 — Diagram Number

TEMP CONTROL HOUSING

WR31X10019

^$38.90

Add to Cart

357 — Diagram Number

HMI CONTROL ASM

WR55X10158

No Longer Available
Item has been replaced by
NLA ITEM

361 — Diagram Number

4-40 X 1/4 PH SMS SCREW

WR02X11200

^$12.50

Add to Cart

362 — Diagram Number

CEILING LIGHT BRACKET

WR17X11178

No Longer Available
Item has been replaced by
NLA ITEM

363 — Diagram Number

CEILING LIGHT SHIELD 48"

WR02X11201

No Longer Available
Item has been replaced by
NLA ITEM

364 — Diagram Number

Refrigerator Halogen Bulb Assembly - 12V, 20W - G4

WR02X11202

No Longer Available
Item has been replaced by
NLA ITEM

365 — Diagram Number

LATCH LIGHT SHIELD

WR02X11203

No Longer Available
Item has been replaced by
WR01X22266

366 — Diagram Number

FF SHELF TRACK

WR17X11179

No Longer Available
Item has been replaced by
NLA ITEM

367 — Diagram Number

DAMPER ASM 48

WR60X10112

No Longer Available
Item has been replaced by
WR49X10107

368 — Diagram Number

FOAM DUCT

WR02X11205

No Longer Available
Item has been replaced by
WR49X10107

390 — Diagram Number

BOARD HMI CONTRL

WR55X10159

No Longer Available

Temporarily Out of Stock.

392 — Diagram Number

HARNESS HMI TE

WR23X10266

No Longer Available
Item has been replaced by
WR23X10607

397 — Diagram Number

BULB HALOGEN LAMP QC/HMI

WR02X11184

No Longer Available
Item has been replaced by
WB01X10239

743 — Diagram Number

BRKT LIGHT COLUMN MT

WR02X11223

No Longer Available
Item has been replaced by
NLA ITEM

830 — Diagram Number

ENDCAP LIGHT COLUMN BTM

WR17X11201

No Longer Available
Item has been replaced by
NLA ITEM

831 — Diagram Number

BULB HOUSING COVER

WR17X11202

No Longer Available
Item has been replaced by
NLA ITEM

832 — Diagram Number

BULB HOUSING

WR02X11226

No Longer Available
Item has been replaced by
NLA ITEM

833 — Diagram Number

SOCKET BULB FIXTURE

WR02X11227

No Longer Available
Item has been replaced by
NLA ITEM

834 — Diagram Number

Refrigerator Halogen Bulb 12V 35W

WR02X11183

^$45.18

Add to Cart

846 — Diagram Number

Refrigerator grille sensor

WR02X10647

^$7.05

Add to Cart

846 — Diagram Number

THERMISTOR GRILL KIT- AL

WR02X11228

No Longer Available
Item has been replaced by
NLA ITEM

858 — Diagram Number

10-24X1" PHIL P-HD TAP

WR01X10051

^$6.07

Add to Cart

3592 — Diagram Number

RH HMI ENDCAP

WR02X11291

No Longer Available
Item has been replaced by
NLA ITEM

3593 — Diagram Number

LH HMI ENDCAP

WR02X11292

No Longer Available
Item has been replaced by
NLA ITEM

FRESH FOOD SECTION

(ZISW480DMB)

37 Results
