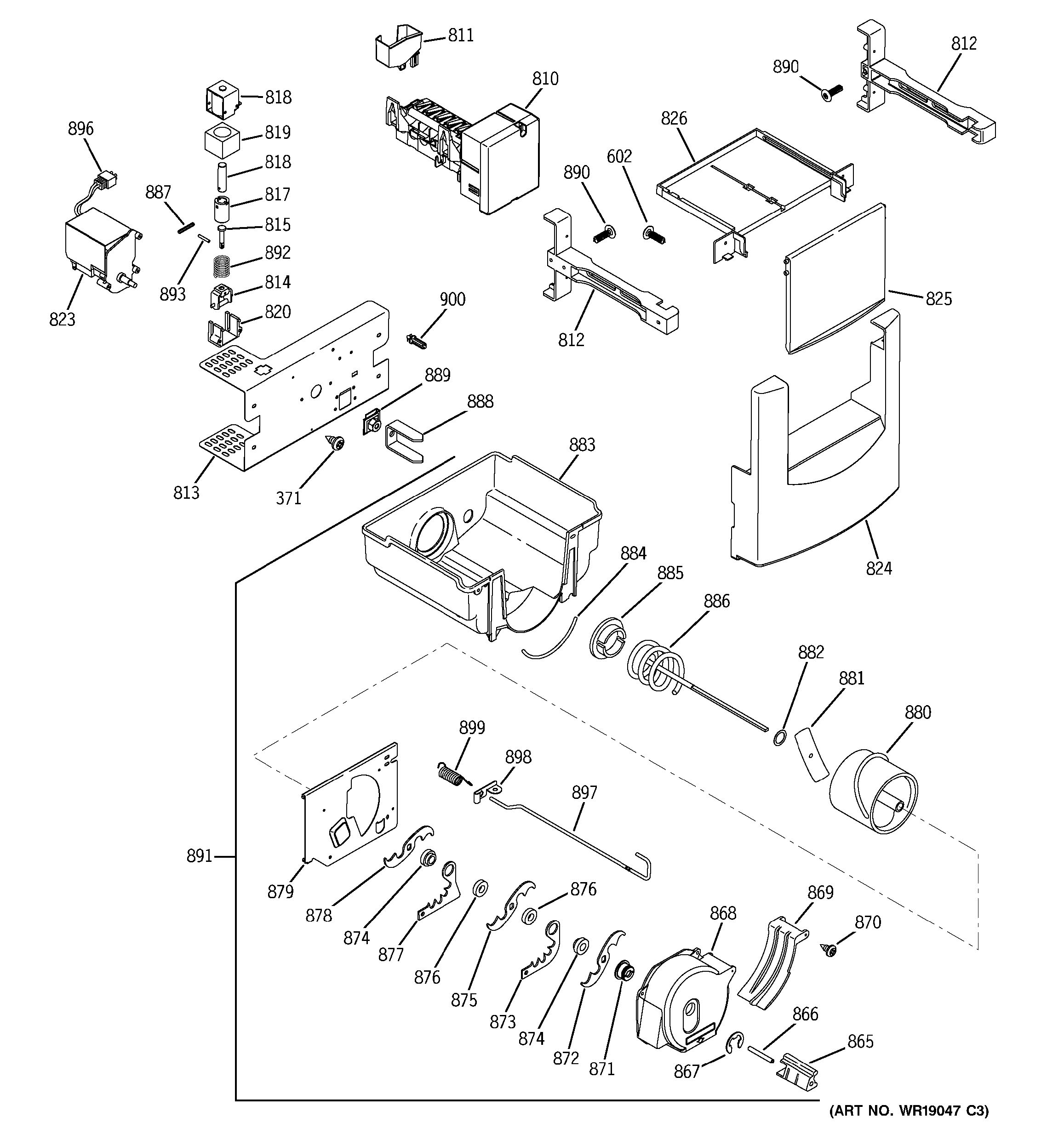

Assembly View for ICE MAKER & DISPENSER

371 — Diagram Number

SCREW 10-18 HI/LO HXW 1/

WR01X10192

No Longer Available
Item has been replaced by
WR01X10619

602 — Diagram Number

6-20 X 1\2 S\S PH PHIL

WR01X10310

No Longer Available

Temporarily Out of Stock.

810 — Diagram Number

ELECTRONIC IM-DOM

WR30X10012

No Longer Available
Item has been replaced by
WR30X10093

811 — Diagram Number

CUP FILL IM

WR29X10021

No Longer Available
Item has been replaced by
WR29X10092

812 — Diagram Number

BUCKET SLIDE

WR72X10103

^$50.91

Add to Cart

813 — Diagram Number

COVER MOTOR SOLENOID

WR17X11197

No Longer Available
Item has been replaced by
NLA ITEM

814 — Diagram Number

STIRRUP SOLENOID DISPLAY

WR17X1066

No Longer Available
Item has been replaced by
WR62X26536

815 — Diagram Number

Refrigerator Ice Crusher Solenoid Plunger

WR17X1064

No Longer Available
Item has been replaced by
WR62X26536

817 — Diagram Number

COLLAR SOLENOID DISPLAY

WR17X1065

No Longer Available
Item has been replaced by
WR62X26536

818 — Diagram Number

SOLENOID ARM ASM

WR62X0058

No Longer Available
Item has been replaced by
WR62X23154

819 — Diagram Number

Refrigerator Shroud Solenoid

WR17X1063

^$5.00

Add to Cart

820 — Diagram Number

SADDLE SOLENOID

WR02X7309

No Longer Available
Item has been replaced by
WR2X7309

823 — Diagram Number

MOTOR CRUSHER DISP

WR60X10123

No Longer Available
Item has been replaced by
WR60X10262

824 — Diagram Number

ICE BIN FRONT

WR17X11198

^$118.07

Add to Cart

825 — Diagram Number

ICE BIN DOOR

WR17X11199

No Longer Available
Item has been replaced by
WR17X12547

826 — Diagram Number

ICE BIN DOOR TRACK

WR71X10420

^$82.78

Add to Cart

865 — Diagram Number

BLADE REST DISP

WR02X4140

No Longer Available
Item has been replaced by
WR2X4140

867 — Diagram Number

RETAINER RING E

WR01X1367

No Longer Available
Item has been replaced by
WR1X1367D

868 — Diagram Number

HOUSING CRUSHER DISPLAY

WR17X2061

^$32.34

Add to Cart

869 — Diagram Number

SPRING ICE DEFLECTOR

WR02X4561

No Longer Available
Item has been replaced by
WR2X4561

870 — Diagram Number

SCREW 8-15 A PA 3/8 SS

WZ04X0230

No Longer Available
Item has been replaced by
WZ4X230D

872 — Diagram Number

BLADES MOVING DISPLAY

WR17X1361

^$10.00

Add to Cart

875 — Diagram Number

BLADES MOVING DISPLAY

WR17X1362

^$14.16

Add to Cart

876 — Diagram Number

SPACER CRUSHER STATIONAR

WR02X4138

No Longer Available
Item has been replaced by
WR2X4138

877 — Diagram Number

REFRIGERATOR ICE CRUSHER STATIONARY BLADE

WR17X2058

^$12.02

Add to Cart

878 — Diagram Number

BLADES MOVING DISPLAY

WR17X1363

^$8.66

Add to Cart

879 — Diagram Number

Refrigerator Ice Bucket Auger Plate

WR17X2062

No Longer Available
Item has been replaced by
NLA ITEM

880 — Diagram Number

Refrigerator Front Helix

WR17X4207

^$32.25

Add to Cart

881 — Diagram Number

BLADE IN DISP

WR02X7351

No Longer Available
Item has been replaced by
NLA ITEM

882 — Diagram Number

WASHER

WR01X1366

No Longer Available
Item has been replaced by
WR1X1366D

883 — Diagram Number

BUCKET ICE DISP

WR30X0322

No Longer Available
Item has been replaced by
WR30X322

884 — Diagram Number

BUCKET SEAL DISP

WR02X7905

No Longer Available
Item has been replaced by
WR2X7905

885 — Diagram Number

CUP DRIVE DISPENSER

WR02X4550

No Longer Available
Item has been replaced by
WR2X4550

886 — Diagram Number

AUGER HELIX DISPLAY

WR17X4204

No Longer Available
Item has been replaced by
NLA ITEM

887 — Diagram Number

PIN SPIRAL

WR02X4259

No Longer Available
Item has been replaced by
WR62X26536

888 — Diagram Number

DRIVE AUGER DISPENSER

WR02X4854

No Longer Available
Item has been replaced by
NLA ITEM

889 — Diagram Number

NUT J

WR01X1547

No Longer Available
Item has been replaced by
NLA ITEM

890 — Diagram Number

#10X1\2 PH SMS

WD02X0295

No Longer Available
Item has been replaced by
WD2X295

891 — Diagram Number

BUCKET & AUGER ASM DISP

WR17X11410

No Longer Available
Item has been replaced by
WR30X32633

892 — Diagram Number

SPRING SOLENOID LINKAGE

WR02X4258

No Longer Available
Item has been replaced by
WR62X26536

893 — Diagram Number

PIN SPIRAL

WR02X4257

No Longer Available
Item has been replaced by
WR62X26536

896 — Diagram Number

HARNESS MOTOR DISP

WR23X0463

No Longer Available
Item has been replaced by
NLA ITEM

897 — Diagram Number

WIRE ACTUATOR DISP

WR17X11411

^$45.07

Add to Cart

898 — Diagram Number

RETAINER ACTUATOR WIRE

WR02X4251

No Longer Available
Item has been replaced by
NLA ITEM

899 — Diagram Number

SPRING DEFLECTOR

WR02X4145

No Longer Available
Item has been replaced by
NLA ITEM

ICE MAKER & DISPENSER

(ZISW480DMB)
