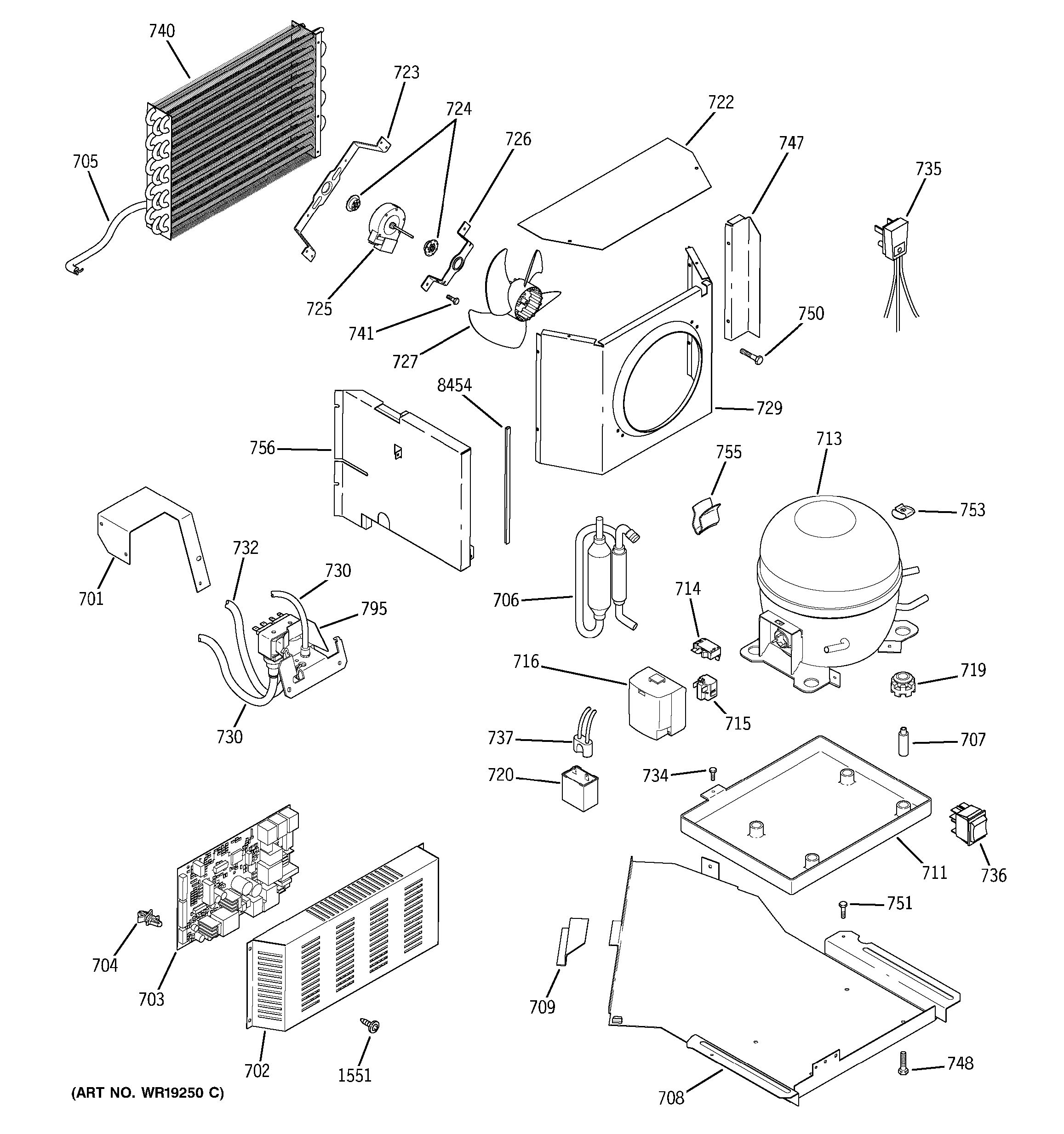

Assembly View for SEALED SYSTEM & MOTHER BOARD

701 — Diagram Number

WATER VALVE BRACKET

WR02X11219

No Longer Available
Item has been replaced by
WR02X12768

702 — Diagram Number

MAIN BOARD COVER

WR02X11220

No Longer Available
Item has been replaced by
NLA ITEM

703 — Diagram Number

MAIN BOARD

WR55X10286

No Longer Available
Item has been replaced by
WR55X11130

704 — Diagram Number

MAIN BOARD STAND OFFS

WR01X10301

^$5.40

Add to Cart

705 — Diagram Number

REFRIGERATOR SUCTION TUBE CAP

WR86X10021

^$122.21

Temporarily Out of Stock.

706 — Diagram Number

DRYER FILTER ASS'Y

WR86X0096

No Longer Available
Item has been replaced by
WR86X25269

707 — Diagram Number

STUD COMP MTG

WR01X10382

No Longer Available
Item has been replaced by
WR1X1779

708 — Diagram Number

PAN SYSTEM

WR17X11432

No Longer Available
Item has been replaced by
NLA ITEM

709 — Diagram Number

SYSTEM PAN RETAINER

WR02X11221

^$26.97

Add to Cart

711 — Diagram Number

PAN SLEEVE

WR17X11436

No Longer Available
Item has been replaced by
WR17X11924

713 — Diagram Number

COMPRESSOR REPL. ASM.

WR87X10041

No Longer Available
Item has been replaced by
WR87X10226

714 — Diagram Number

OVERLOAD

WR08X10052

No Longer Available
Item has been replaced by
NLA ITEM

715 — Diagram Number

RELAY PTCR

WR07X10074

No Longer Available
Item has been replaced by
NLA ITEM

719 — Diagram Number

GROMMET COMP. MTG.

WR01X10306

No Longer Available
Item has been replaced by
WR02X40305

720 — Diagram Number

CAPACITOR

WR62X0080

No Longer Available
Item has been replaced by
WR55X24065

722 — Diagram Number

COND. SHROUD TOP

WR17X11433

No Longer Available
Item has been replaced by
NLA ITEM

723 — Diagram Number

BRKT COND FAN MOTOR LG

WR02X10945

No Longer Available

Temporarily Out of Stock.

724 — Diagram Number

GROMMET FAN MOTOR

WR02X10520

^$7.41

Add to Cart

725 — Diagram Number

MOTOR DC COND FAN

WR60X10053

No Longer Available
Item has been replaced by
WR60X10209

726 — Diagram Number

BRKT COND FAN (MTG)

WR02X10521

No Longer Available
Item has been replaced by
WR02X11863

727 — Diagram Number

BLADE COND FAN ASSY

WR60X10049

No Longer Available
Item has been replaced by
WR60X24484

729 — Diagram Number

SHROUD CONDENSER

WR84X10049

No Longer Available

Temporarily Out of Stock.

730 — Diagram Number

Refrigerator water line 1/4" diameter

WR17X1948

^$11.02

Add to Cart

732 — Diagram Number

Refrigerator plastic tube

WR17X2891

^$21.57

Add to Cart

735 — Diagram Number

CORD POWER ASM

WR23X0420

No Longer Available
Item has been replaced by
WR23X10300

736 — Diagram Number

MASTER LIGHT SWITCH

WR23X10220

No Longer Available
Item has been replaced by
WR49X10070

737 — Diagram Number

CAPACITOR HARNESS

WR23X0474

No Longer Available
Item has been replaced by
NLA ITEM

740 — Diagram Number

CONDENSER REPL. ASM.

WR84X10048

^$541.93

Not Available for Online Consumer Purchase
Call 1.800.432.2737 to Schedule Service.

741 — Diagram Number

SCR 8-32 T HXW 3/8 S

WR01X1466

No Longer Available
Item has been replaced by
WZ5X158D

747 — Diagram Number

COND BAFFLE RH

WR17X11434

No Longer Available
Item has been replaced by
NLA ITEM

750 — Diagram Number

#8-18 TYPE AB X 3/8 PH P

WR01X1826

No Longer Available
Item has been replaced by
WR1X1826

751 — Diagram Number

BOLT 1/4-20X1.5"

WR01X10302

No Longer Available
Item has been replaced by
NLA ITEM

753 — Diagram Number

CLIP MT COMP

WR01X10381

No Longer Available
Item has been replaced by
WR1X1779

755 — Diagram Number

CLIP TUBE

WR02X9501

No Longer Available
Item has been replaced by
NLA ITEM

756 — Diagram Number

LH CONDENSER BAFFLE

WR17X11435

No Longer Available
Item has been replaced by
NLA ITEM

795 — Diagram Number

REFRIGERATOR WATER VALVE ASSEMBLY

WR57X10032

No Longer Available
Item has been replaced by
WR57X33326

1551 — Diagram Number

#10X1\2 PH SMS

WR01X5645

No Longer Available
Item has been replaced by
WR1X5645

8454 — Diagram Number

EDGE TRIM 1.1257"

WR38X10190

^$40.80

Add to Cart

SEALED SYSTEM & MOTHER BOARD

(ZISW480DMB)

38 Results
