FREEZER DOOR

(ZISW480DMB)

28 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

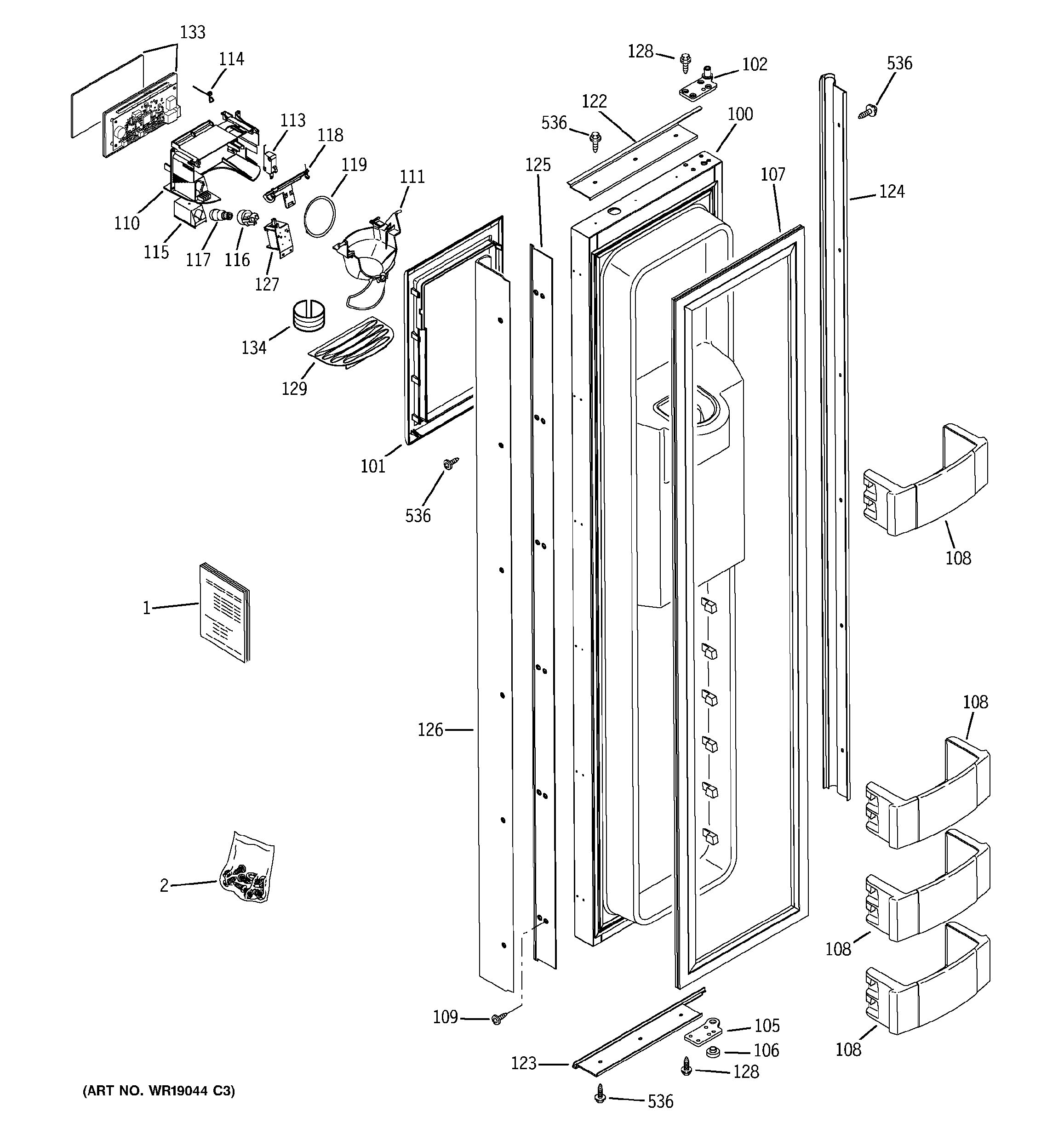

Use the diagram to find the number of the part you need.

2 — Diagram Number

HARDWARE PACK

WR01X10304

^$112.60

Add to Cart

100 — Diagram Number

FZ FOAMED DOOR ASM 48 WH

WR78X10586

No Longer Available
Item has been replaced by
NLA ITEM

101 — Diagram Number

COLLAR KIT- WHITE

WR38X10267

No Longer Available

Temporarily Out of Stock.

102 — Diagram Number

HINGE ASM DOOR TOP

WR13X10238

^$132.34

Add to Cart

105 — Diagram Number

REFRIGERATOR BOTTOM FREEZER DOOR HINGE

WR13X10250

^$91.04

Add to Cart

106 — Diagram Number

BUSHING LOWER HINGE

WR01X10297

^$25.61

Temporarily Out of Stock.

107 — Diagram Number

36FF/48FZ DOOR GASKET

WR24X10106

No Longer Available
Item has been replaced by
WR78X20989

108 — Diagram Number

Refrigerator door shelf bin

WR71X10408

No Longer Available
Item has been replaced by
WR71X25604

109 — Diagram Number

HANDLE TRIM SCREW

WR01X10303

^$6.07

Add to Cart

110 — Diagram Number

HOUSING SHIELD DISP WH

WR17X10719

No Longer Available
Item has been replaced by
WR49X10227

111 — Diagram Number

Refrigerator ice dispenser lever and funnel

WR17X11264

^$37.07

Add to Cart

113 — Diagram Number

SWITCH

WR23X10171

No Longer Available
Item has been replaced by
WR23X10783

114 — Diagram Number

SPRING FUNNEL

WR02X10584

No Longer Available
Item has been replaced by
NLA ITEM

115 — Diagram Number

REFRIGERATOR LIGHT REFLECTOR

WR02X10670

^$5.67

Add to Cart

116 — Diagram Number

LAMP SOCKET

WR02X9561

No Longer Available
Item has been replaced by
WR2X9561

117 — Diagram Number

BULB RECS 12V

WR02X10675

No Longer Available
Item has been replaced by
WR01X37886

118 — Diagram Number

Refrigerator recessed door crank

WR17X10706

^$6.07

Add to Cart

119 — Diagram Number

DOOR RECESS ASSY

WR17X3093

No Longer Available
Item has been replaced by
WR17X11653

123 — Diagram Number

DOOR TRIM FZ BTM

WR38X10269

No Longer Available

Temporarily Out of Stock.

124 — Diagram Number

DOOR TRIM FZ SIDE

WR38X10270

^$152.51

Temporarily Out of Stock.

125 — Diagram Number

HANDLE TRIM

WR38X10271

^$114.65

Add to Cart

126 — Diagram Number

HANDLE

WR12X10526

^$452.19

Add to Cart

127 — Diagram Number

SOLENOID ASSY

WR62X10020

No Longer Available
Item has been replaced by
WR62X10055

128 — Diagram Number

BOLT HINGE

WR01X1845

No Longer Available
Item has been replaced by
WR1X1754D

129 — Diagram Number

GRILLE RECESS WH

WR17X10810

No Longer Available
Item has been replaced by
WR17X11654

133 — Diagram Number

DISP ASM- BOARD/GLASS WH

WR55X10161

No Longer Available
Item has been replaced by
WR55X11191

134 — Diagram Number

EXTENSION FUNNEL WH

WR17X11265

No Longer Available
Item has been replaced by
NLA ITEM

536 — Diagram Number

SCREW TRIM DOOR/HANDLE

WR01X2130

No Longer Available
Item has been replaced by
WR1X2130
