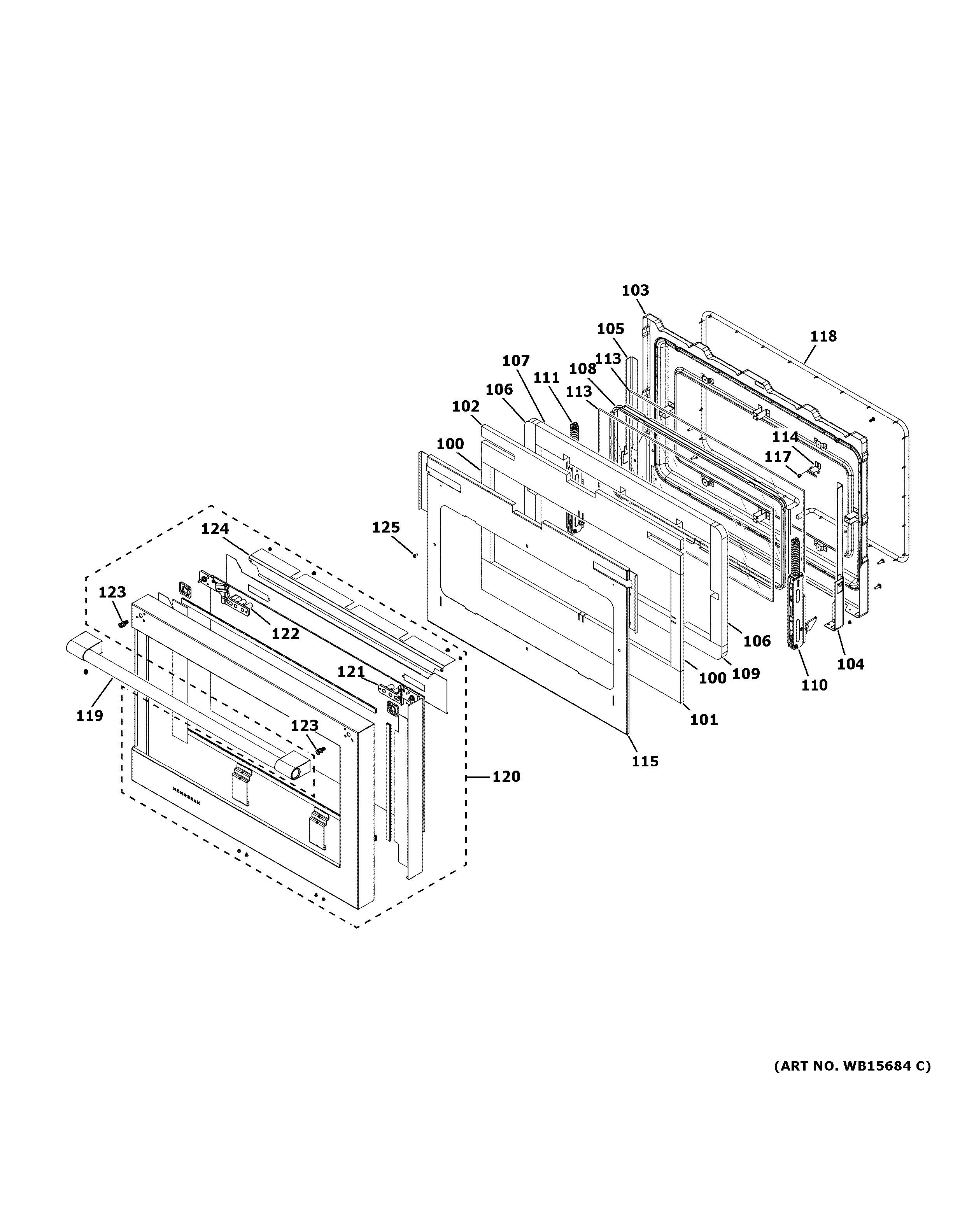

LARGE DOOR ASSEMBLY

(ZDP486NDT1SS)

23 Results

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

Product Image

100 — Diagram Number

FT INSUL DOOR SIDE

WB35K10174

^$11.00

101 — Diagram Number

FT INSULATION DOOR BOTTOM 27"

WB35K10178

^$16.49

Product Image

102 — Diagram Number

INSULATION DOOR

WB35X39623

^$5.97

Product Image

103 — Diagram Number

LINER OVEN DOOR

WB56X39495

^$65.20

104 — Diagram Number

GUSSET DOOR RIGHT

WB34X39872

^$27.98

Product Image

105 — Diagram Number

GUSSET DOOR LEFT

WB34X39869

^$27.98

106 — Diagram Number

RR INSULATION DOOR SIDE

WB35K10181

^$6.23

107 — Diagram Number

RR INSULATION DOOR TOP 27"

WB35K10183

^$6.00

108 — Diagram Number

SPACER WINDOW

WB34K10109

^$99.53

110 — Diagram Number

HINGE DOOR RIGHT

WB10X39277

^$70.46

111 — Diagram Number

HINGE DOOR LEFT

WB10X39284

^$70.46

113 — Diagram Number

GLASS DOOR

WB57K10138

^$130.67

114 — Diagram Number

RANGE GLASS WINDOW CLIP

WB02K10222

^$7.98

115 — Diagram Number

Guard Insulation

WB34X39456

^$90.30

Product Image

117 — Diagram Number

SCR 10-32 TR T 1/2 S

WB01X39621

^$6.41

118 — Diagram Number

GASKET DOOR

WB35X39591

^$33.43

119 — Diagram Number

RANGE HANDLE 48" - STAINLESS

WB15X39441

^$107.18

120 — Diagram Number

STAINLESS OUTER DOOR LARGE

WB56X39851

^$774.22

121 — Diagram Number

BRACKET HANDLE RT

WB34X39686

^$32.64

122 — Diagram Number

BRACKET HANDLE LT

WB34X39685

^$32.64

123 — Diagram Number

Refrigerator door handle fastener

WR01X11007

^$6.07

124 — Diagram Number

HEAT DEFLECTOR

WB34X39603

^$23.91

125 — Diagram Number

SCREW 10-32 TRP 1/2

WB01K10100

^$6.84
