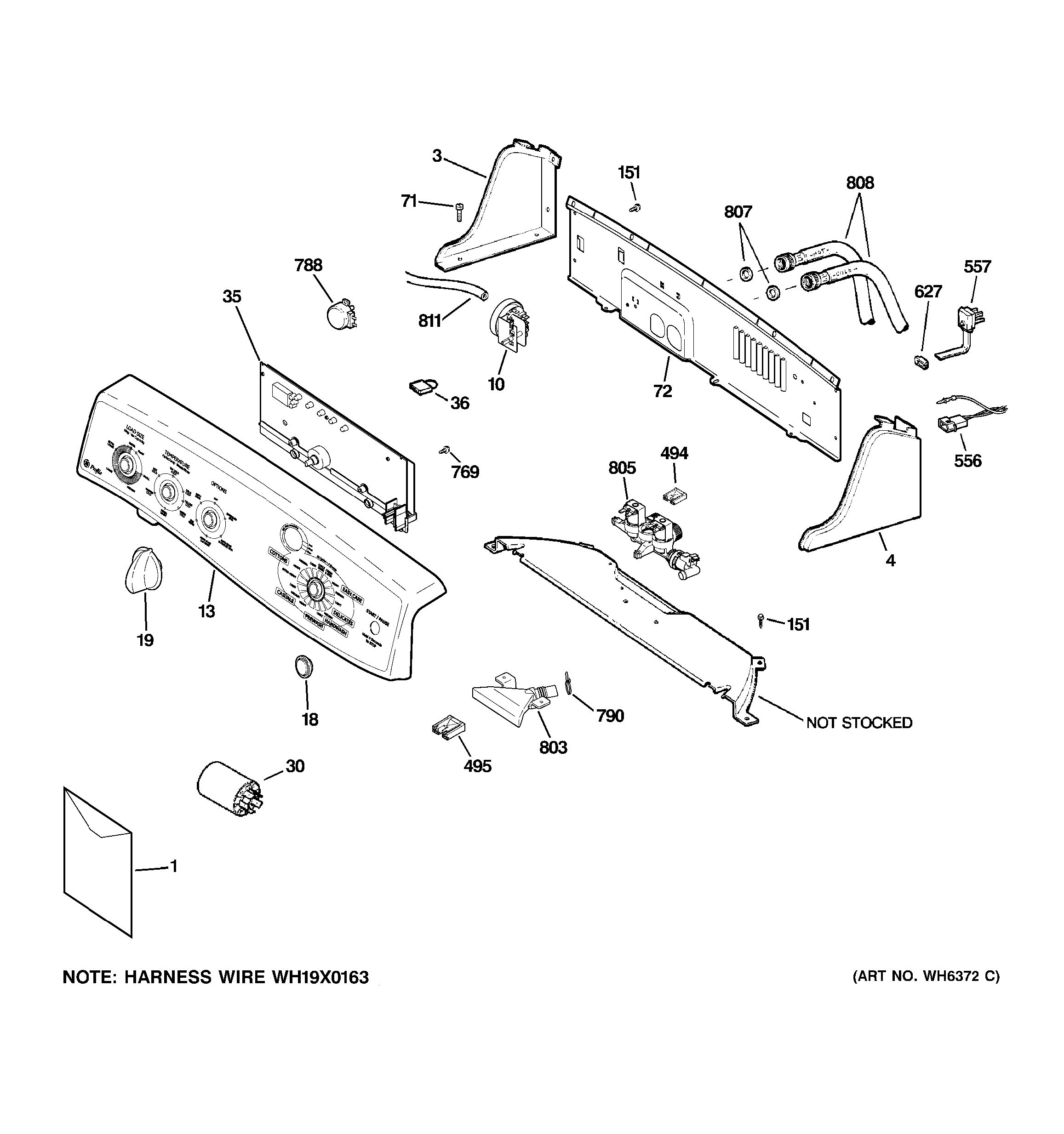

Assembly View for CONTROLS & BACKSPLASH

3 — Diagram Number

END CAP LH WH

WH42X10623

No Longer Available
Item has been replaced by
NLA ITEM

4 — Diagram Number

END CAP RH WH

WH42X10622

No Longer Available
Item has been replaced by
NLA ITEM

10 — Diagram Number

SWITCH PRESSURE

WH12X10365

No Longer Available
Item has been replaced by
NLA ITEM

13 — Diagram Number

BACKSPLASH ASM

WH42X10747

No Longer Available

Temporarily Out of Stock.

18 — Diagram Number

Washer Button Switch

WH01X10306

No Longer Available
Item has been replaced by
WH01X10088

19 — Diagram Number

KNOB ASM

WH01X10305

No Longer Available
Item has been replaced by
NLA ITEM

30 — Diagram Number

FILTER POWER LINE

WH12X10330

No Longer Available
Item has been replaced by
WH12X10408

35 — Diagram Number

BOARD ASM MOUNTED

WH12X10366

No Longer Available
Item has been replaced by
WH12X10399

36 — Diagram Number

CONNECTOR, MODEL SELECT

WH12X10114

No Longer Available
Item has been replaced by
NLA ITEM

71 — Diagram Number

SCR 8-18 B 1/2 HXW P

WH02X1205

No Longer Available
Item has been replaced by
WH2X1205

72 — Diagram Number

PANEL BACK

WH46X10104

No Longer Available
Item has been replaced by
NLA ITEM

151 — Diagram Number

WASHING MACHINE SCREW 8-18 B 1HW 1/2 SN

WH02X10126

^$6.07

Add to Cart

494 — Diagram Number

HOUSING TERMINAL

WD21X10257

No Longer Available
Item has been replaced by
WD21X10356

495 — Diagram Number

HOUSING SPECIAL

WD21X10258

No Longer Available
Item has been replaced by
WD21X10355

556 — Diagram Number

HOUSING TERMINAL

WH12X0497

No Longer Available
Item has been replaced by
NLA ITEM

557 — Diagram Number

CORDSET ASM

WH19X0311

No Longer Available
Item has been replaced by
NLA ITEM

627 — Diagram Number

WASHING MACHINE SELF-LOCKING STRAIN RELIEF

WH12X10208

No Longer Available
Item has been replaced by
NLA ITEM

769 — Diagram Number

TERMINAL SCREW

WB01X0500

No Longer Available
Item has been replaced by
WB1X500D

769 — Diagram Number

WASHING MACHINE SCREW 8-18 HI/LO 5/8

WR01X10196

^$6.07

Add to Cart

790 — Diagram Number

CONNECTOR PLUG CLAMP

WH01X2036

No Longer Available
Item has been replaced by
WH1X2036

803 — Diagram Number

FUNNEL SHOWER HEAD

WH41X10162

No Longer Available
Item has been replaced by
NLA ITEM

805 — Diagram Number

VALVE TRIPLE WATER

WH13X10033

^$94.82

Add to Cart

807 — Diagram Number

WASHER FLAT

WH02X10161

No Longer Available
Item has been replaced by
WH2X42D

808 — Diagram Number

HOSE INLET ASM

WH41X10094

No Longer Available
Item has been replaced by
WH41X10207

808 — Diagram Number

HOSE INLET ASM

WH41X10095

No Longer Available
Item has been replaced by
WH41X10207

811 — Diagram Number

HOSE PRESSURE SWITCH

WH41X0365

No Longer Available
Item has been replaced by
WH41X365

CONTROLS & BACKSPLASH

(WPRE8150H0WT)

26 Results
