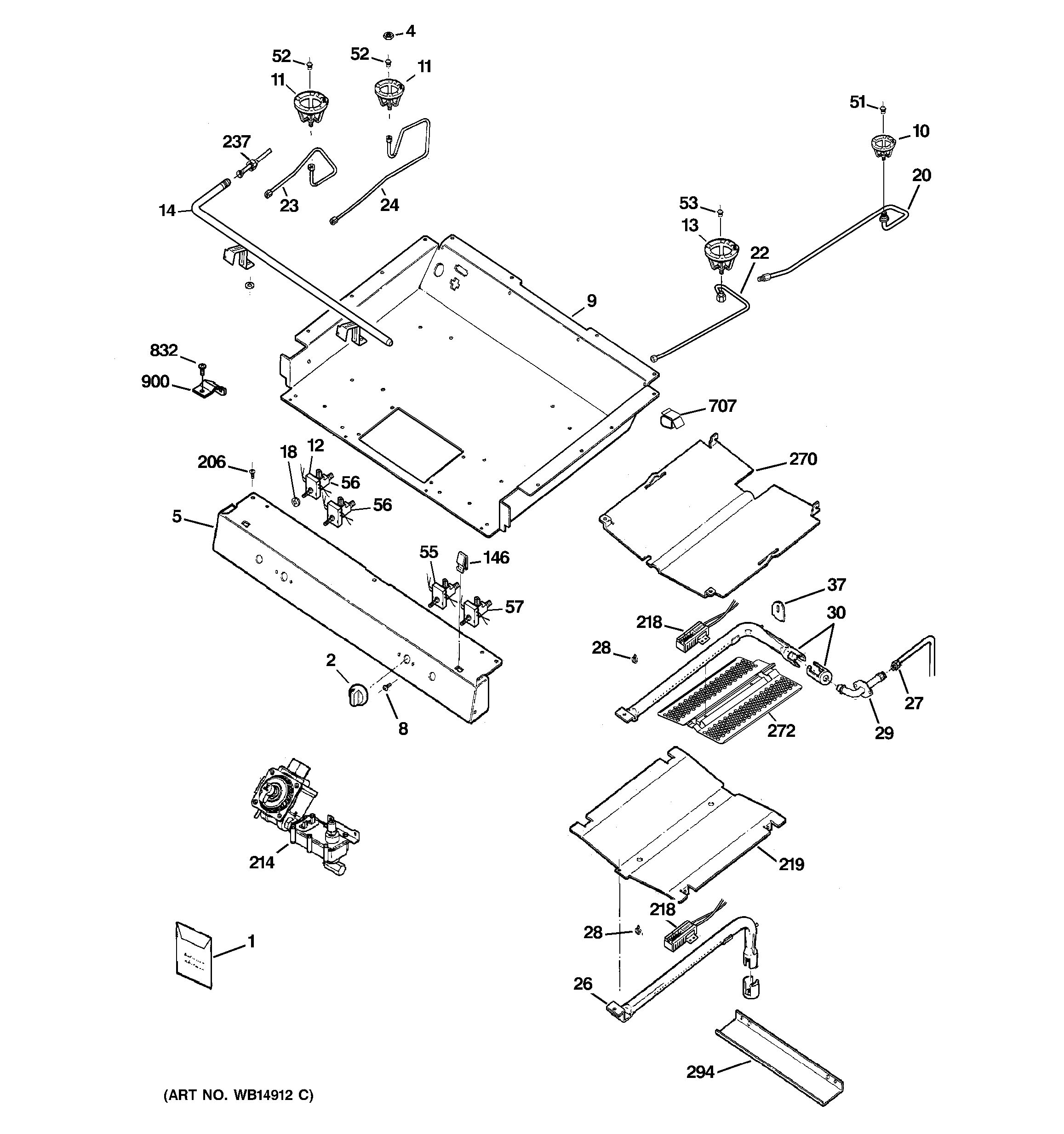

Assembly View for GAS & BURNER PARTS

1 — Diagram Number

Range conversion kit assembly

WB28K10556

^$12.12

Add to Cart

2 — Diagram Number

Range Black Top Burner Knob

WB03K10035

^$56.90

Add to Cart

4 — Diagram Number

Range Economic Nut

WB01K10037

^$6.09

Add to Cart

5 — Diagram Number

MANIFOLD PANEL

WB36K10766

No Longer Available
Item has been replaced by
NLA ITEM

8 — Diagram Number

SCREW 8-32

WB01K10002

^$16.96

Add to Cart

9 — Diagram Number

BOX BURNER SP

WB63K10190

No Longer Available
Item has been replaced by
NLA ITEM

10 — Diagram Number

CKT BRACKET SMALL

WB02K10360

^$11.55

Add to Cart

11 — Diagram Number

CKT BRACKET MDM & LGE

WB02K10361

^$10.31

Add to Cart

12 — Diagram Number

HARNESS BURNER BOX

WB24K10074

No Longer Available
Item has been replaced by
NLA ITEM

13 — Diagram Number

CKT BRACKET MDM & LGE

WB02K10362

No Longer Available
Item has been replaced by
NLA ITEM

14 — Diagram Number

MANIFOLD PIPE

WB28K10425

No Longer Available
Item has been replaced by
NLA ITEM

18 — Diagram Number

COVER VALVE

WB02K0024

No Longer Available
Item has been replaced by
WB2K24

20 — Diagram Number

Gas range rear orifice holder

WB28K10187

^$18.80

Add to Cart

22 — Diagram Number

FRONT ORIFICE HOLDER

WB28K10783

No Longer Available
Item has been replaced by
NLA ITEM

23 — Diagram Number

Range Front Orifice Holder

WB28K10190

^$24.70

Add to Cart

24 — Diagram Number

Range Burner Supply Tube Left Rear 9 500 BTUs

WB28K10188

^$22.59

Add to Cart

26 — Diagram Number

Gas Range Oven Igniter

WB16K10035

^$183.83

Add to Cart

27 — Diagram Number

TUBE BURNER SUPPLY

WB28K10168

No Longer Available
Item has been replaced by
NLA ITEM

28 — Diagram Number

SCREW REGULATOR

WB01K0050

No Longer Available
Item has been replaced by
WB1X1293

29 — Diagram Number

ELBOW HI BROIL

WB28K10310

No Longer Available
Item has been replaced by
NLA ITEM

30 — Diagram Number

BURNER BROIL

WB16K10067

No Longer Available
Item has been replaced by
NLA ITEM

37 — Diagram Number

COVER IGNITOR

WB34K0014

No Longer Available
Item has been replaced by
WB34K14

51 — Diagram Number

Range Orifice Spud Right Rear - NG to LP 63 mm

WB28K10031

^$18.17

Add to Cart

52 — Diagram Number

Range Orifice Spud - NG to LP 89mm

WB28K10023

^$10.07

Add to Cart

53 — Diagram Number

Range LP Orifice 99MM

WB28K10032

^$20.20

Add to Cart

55 — Diagram Number

VALVE BURNER 270 RR

WB21K10101

No Longer Available
Item has been replaced by
NLA ITEM

56 — Diagram Number

Range Surface Burner Valve

WB21K10100

^$27.57

Add to Cart

57 — Diagram Number

VALVE BURNER 270 LF

WB21K10099

^$25.32

Add to Cart

146 — Diagram Number

CLIP RANGETOP

WB02K0052

No Longer Available
Item has been replaced by
NLA ITEM

206 — Diagram Number

Screw

WB01K10091

^$7.61

Add to Cart

214 — Diagram Number

VALVE CONTROL ASM NOR. D

WB19K10041

^$210.64

Add to Cart

218 — Diagram Number

IGNITER-OVEN BAKE/BROIL

WB13K0021

No Longer Available
Item has been replaced by
WB13K21

218 — Diagram Number

IGNITER GLOWBAR BROILER

WB13K10026

No Longer Available
Item has been replaced by
WB13K21

219 — Diagram Number

FLAME SPREADER

WB49K0044

No Longer Available
Item has been replaced by
NLA ITEM

237 — Diagram Number

TUBE MANIFOLD SUPPLY

WB28K10186

No Longer Available
Item has been replaced by
WB28X24772

243 — Diagram Number

SUPPORT BASE RT

WB63K10232

^$23.71

Add to Cart

243 — Diagram Number

RANGE BASE SUPPORT

WB63K10233

^$21.97

Add to Cart

270 — Diagram Number

RANGE DEFLECTOR

WB49K10025

^$71.46

Add to Cart

272 — Diagram Number

SHIELD BROIL

WB49K10026

No Longer Available
Item has been replaced by
WB34X20303

294 — Diagram Number

COVER TERMINAL DUAL COMB

WB63K10040

No Longer Available
Item has been replaced by
NLA ITEM

300 — Diagram Number

RANGE DRAWER BODY

WB58K10015

^$105.84

Add to Cart

707 — Diagram Number

CLIP WIRE

WB02K10267

^$5.78

Add to Cart

832 — Diagram Number

SCREW TORX 6-32 T T 3/8

WB01K10043

^$6.07

Add to Cart

832 — Diagram Number

RANGE THERMOSTAT SCREW

WB01K10080

^$6.11

Add to Cart

900 — Diagram Number

RANGE VALVE BRACKET

WB02K10297

^$6.13

Add to Cart

1100 — Diagram Number

SCREW 8-18 AB HXW 5/8 S

WB01T10016

^$5.67

Add to Cart

GAS & BURNER PARTS

(RGB745DEP5CT)
