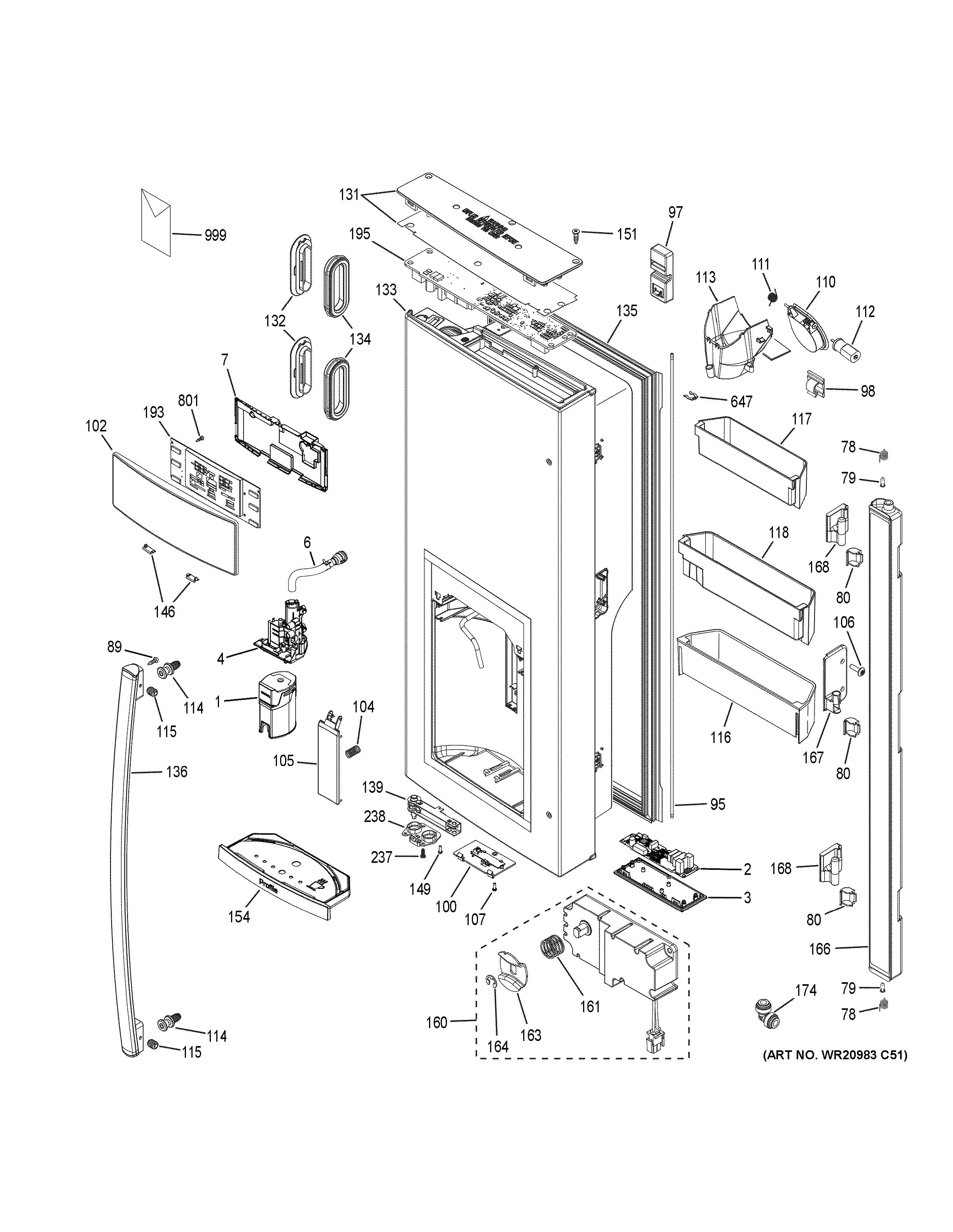

Assembly View for DISPENSER DOOR

1 — Diagram Number

Refrigerator Single Serve Brewer

WR01X26387

No Longer Available
Item has been replaced by
WR02X30247

2 — Diagram Number

PCB ASM FEATURE BOARD

WR55X26546

^$133.79

Add to Cart

3 — Diagram Number

COVER BOTTOM ASM

WR02X26579

^$17.75

Add to Cart

4 — Diagram Number

BRACKET AND MOTOR ASM

WR60X26580

No Longer Available
Item has been replaced by
WR60X36686

6 — Diagram Number

Refrigerator Silicone Tube Assembly

WR02X26448

No Longer Available
Item has been replaced by
WR02X34048

7 — Diagram Number

REAR LCD PCB COVER

WR02X26578

^$18.20

Add to Cart

78 — Diagram Number

Refrigerator springs for articulating mullion on the left fresh food door

WR01X11052

^$6.07

Add to Cart

79 — Diagram Number

Refrigerator plastic tip for spring for articulating mullion on the left fresh food door

WR01X11053

^$6.07

Add to Cart

80 — Diagram Number

Refrigerator hinge cap

WR02X13739

^$6.07

Add to Cart

89 — Diagram Number

Refrigerator Screw for fresh food door handles assembly

WR01X11044

^$6.13

Add to Cart

95 — Diagram Number

Refrigerator PEX door tube -left

WR02X21126

No Longer Available
Item has been replaced by
WR02X32127

97 — Diagram Number

INSERT FUNNEL

WR02X13777

No Longer Available
Item has been replaced by
WR17X30495

98 — Diagram Number

Refrigerator plastic clip to hold duct door motor in place (not always needed)

WR01X11064

^$6.07

Add to Cart

100 — Diagram Number

COVER LED FZ ASM

WR55X23636

No Longer Available
Item has been replaced by
WR55X30604

102 — Diagram Number

CAP TOUCH KCUP SS

WR17X26571

^$125.97

Add to Cart

104 — Diagram Number

Refrigerator spring

WR01X11027

^$6.07

Add to Cart

105 — Diagram Number

Refrigerator cover paddle assembly (stainless steel)

WR17X13060

^$32.79

Add to Cart

106 — Diagram Number

Refrigerator white 1/2" long T15 Torx head screw

WR01X11054

^$6.07

Add to Cart

107 — Diagram Number

Refrigerator screw 8-18 FLP 1/2 S

WR01X11029

^$5.67

Add to Cart

110 — Diagram Number

Refrigerator door duct assembly

WR17X13057

No Longer Available
Item has been replaced by
WR17X13241

111 — Diagram Number

Refrigerator Duct Spring

WR01X11017

^$6.07

Add to Cart

112 — Diagram Number

Refrigerator left fresh food door duct door motor to open and close the ice duct of the dispenser

WR60X10344

^$46.81

Add to Cart

113 — Diagram Number

Refrigerator plastic funnel that the ice cubes fall through. Mounted behind the dispenser display board.

WR17X13099

No Longer Available
Item has been replaced by
WR17X30495

114 — Diagram Number

Refrigerator door handle fastener

WR01X11007

^$6.07

Add to Cart

115 — Diagram Number

Refrigerator Set screw for mounting handles to door studs

WR01X11014

^$7.45

Add to Cart

116 — Diagram Number

REFRIGERATOR DOOR ICE BIN

WR71X24976

^$37.08

Add to Cart

117 — Diagram Number

Refrigerator left fresh food door top bin that mounts to the inside of the door

WR71X11045

^$32.24

Add to Cart

118 — Diagram Number

Refrigerator middle door ice bin (left)

WR71X11046

^$32.25

Add to Cart

131 — Diagram Number

Refrigerator Left fresh food door top door board cover

WR17X13205

^$69.44

Add to Cart

132 — Diagram Number

COLLAR PORT

WR14X25124

^$6.10

Add to Cart

133 — Diagram Number

FGREFRIGERATOR DISPENSER DOOR

WR78X26576

No Longer Available
Item has been replaced by
WR78X37445

134 — Diagram Number

Refrigerator soft white oval gaskets on the left fresh food door that seals to the openings in the liner

WR14X10364

^$21.32

Temporarily Out of Stock.

135 — Diagram Number

Refrigerator dark gray fresh food door gasket

WR14X10377

No Longer Available
Item has been replaced by
WR14X29300

136 — Diagram Number

Refrigerator stainless steel fresh food door handle

WR12X23647

^$87.06

Add to Cart

139 — Diagram Number

Refrigerator closure door assembly (right)

WR11X23034

^$99.99

Add to Cart

146 — Diagram Number

Refrigerator small light lens on the bottom of the dispenser display housing

WR02X13655

^$28.76

Add to Cart

149 — Diagram Number

WASHING MACHINE SCREW 8-18 HI/LO 5/8

WR01X10196

^$6.07

Add to Cart

151 — Diagram Number

Refrigerator door board cover screw

WR01X11028

^$6.07

Add to Cart

154 — Diagram Number

DRIP TRAY KCUP SS

WR17X26572

^$104.90

Add to Cart

160 — Diagram Number

AUGER MOTOR ASM

WR60X10345

No Longer Available
Item has been replaced by
WR49X10322

161 — Diagram Number

Refrigerator auger motor clutch drive spring

WR02X13645

^$33.28

Add to Cart

163 — Diagram Number

Refrigerator Clutch Coupling Assembly

WR02X13647

^$23.46

Add to Cart

164 — Diagram Number

Refrigerator E Clip

WR02X13648

^$6.07

Add to Cart

166 — Diagram Number

Refrigerator mullion articulation assembly

WR17X13240

^$82.01

Add to Cart

167 — Diagram Number

Refrigerator left fresh food door center hinge for articulating mullion, color white

WR13X10984

No Longer Available
Item has been replaced by
WR13X36887

168 — Diagram Number

Refrigerator left fresh food door top and bottom hinge for articulating mullion color white

WR13X10985

^$6.07

Add to Cart

174 — Diagram Number

Refrigerator connector 90 degree 5/16

WR02X13737

^$11.80

Add to Cart

193 — Diagram Number

DISPLAY BOARD KCUP ES

WR55X26574

^$140.90

Add to Cart

195 — Diagram Number

FGPCB ASM DOOR CONTROL

WR55X26330

No Longer Available
Item has been replaced by
WR55X44125

237 — Diagram Number

Refrigerator screw for mounting door stop to the bottom of both fresh food doors

WR01X11032

^$6.07

Add to Cart

238 — Diagram Number

Refrigerator fresh food door stops for both doors

WR02X13634

^$13.60

Temporarily Out of Stock.

647 — Diagram Number

Refrigerator Security clip for 1/4" water line quick connectors

WR01X11041

^$6.11

Add to Cart

801 — Diagram Number

Dishwasher 6-19 X 1/4 TORX PAN HEAD Screw

WD02X10129

^$6.07

Add to Cart

DISPENSER DOOR

(PYE22PSKBSS)
