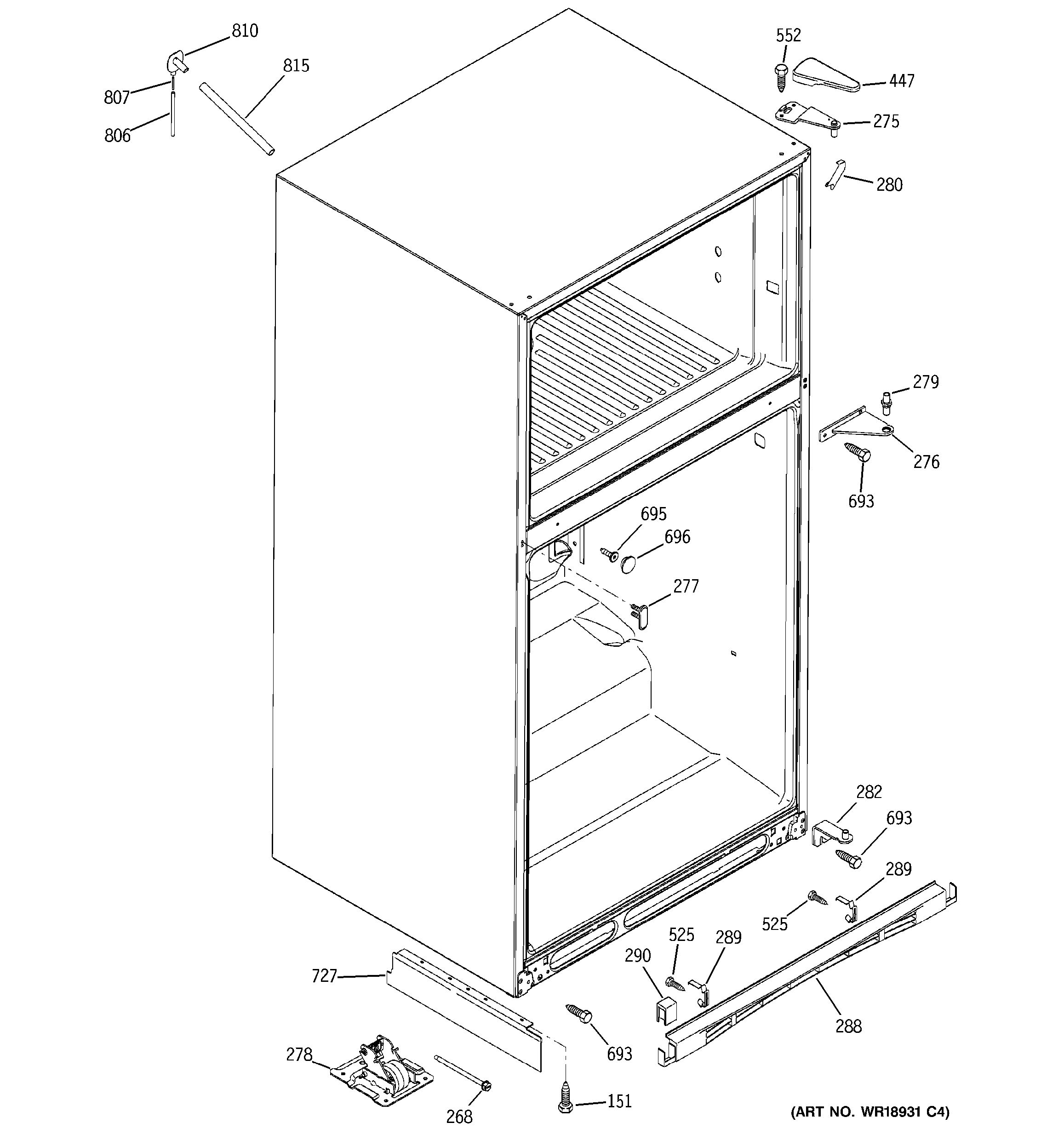

Assembly View for CASE PARTS

151 — Diagram Number

SCREW 8-18 AB IHW 9/16 S

WR01X1554

No Longer Available
Item has been replaced by
WR01X10623

268 — Diagram Number

Refrigerator Leveling Screw

WR01X10210

^$8.53

Add to Cart

275 — Diagram Number

HINGE TOP AND PIN ASM BK

WR13X10187

No Longer Available
Item has been replaced by
NLA ITEM

276 — Diagram Number

HINGE CENTER ASM BK

WR13X10188

No Longer Available
Item has been replaced by
NLA ITEM

277 — Diagram Number

COVER MULLION SCREW BK

WR02X10933

No Longer Available
Item has been replaced by
NLA ITEM

278 — Diagram Number

MOBILITY FRONT ASSY

WR02X10636

No Longer Available
Item has been replaced by
WR02X12274

279 — Diagram Number

PIN HINGE CENTER

WR13X10179

No Longer Available
Item has been replaced by
NLA ITEM

280 — Diagram Number

CAP CORNER OC BLACK

WR02X10781

^$13.28

Add to Cart

282 — Diagram Number

HINGE BTM AND PIN ASM BK

WR13X10186

No Longer Available
Item has been replaced by
NLA ITEM

288 — Diagram Number

GRILLE BASE BK

WR74X10075

No Longer Available
Item has been replaced by
NLA ITEM

289 — Diagram Number

Refrigerator bottom grille spring clip

WR02X10738

No Longer Available
Item has been replaced by
NLA ITEM

290 — Diagram Number

GRILLE CAP BK

WR02X10923

No Longer Available
Item has been replaced by
NLA ITEM

447 — Diagram Number

COVER HINGE BK

WR13X10206

No Longer Available
Item has been replaced by
NLA ITEM

525 — Diagram Number

Screw

WR01X1763

No Longer Available
Item has been replaced by
NLA ITEM

552 — Diagram Number

Screw

WR01X2022

No Longer Available
Item has been replaced by
WR01X10631

693 — Diagram Number

SCR 12-24TT OHT .900 SCA

WR01X10250

No Longer Available
Item has been replaced by
NLA ITEM

695 — Diagram Number

SCREW 12-24 TT .700

WR01X1753

No Longer Available
Item has been replaced by
NLA ITEM

696 — Diagram Number

SCREW COVER BLACK

WR02X10994

No Longer Available
Item has been replaced by
NLA ITEM

727 — Diagram Number

SEPARATOR AIR HISIDE

WR17X10984

No Longer Available
Item has been replaced by
NLA ITEM

806 — Diagram Number

TUBE PLASTIC

WR17X10920

No Longer Available
Item has been replaced by
WR17X11349

807 — Diagram Number

CLAMP

WR02X11187

No Longer Available
Item has been replaced by
WR02X11437

810 — Diagram Number

GROMMET AND GASKET ASSEMBLY

WR02X10967

^$20.83

Add to Cart

815 — Diagram Number

FILL TUBE ASM

WR02X10968

No Longer Available
Item has been replaced by
NLA ITEM

CASE PARTS

(PTS22SCPARBS)

23 Results
