DOOR

(PT7800DH1WW)

20 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

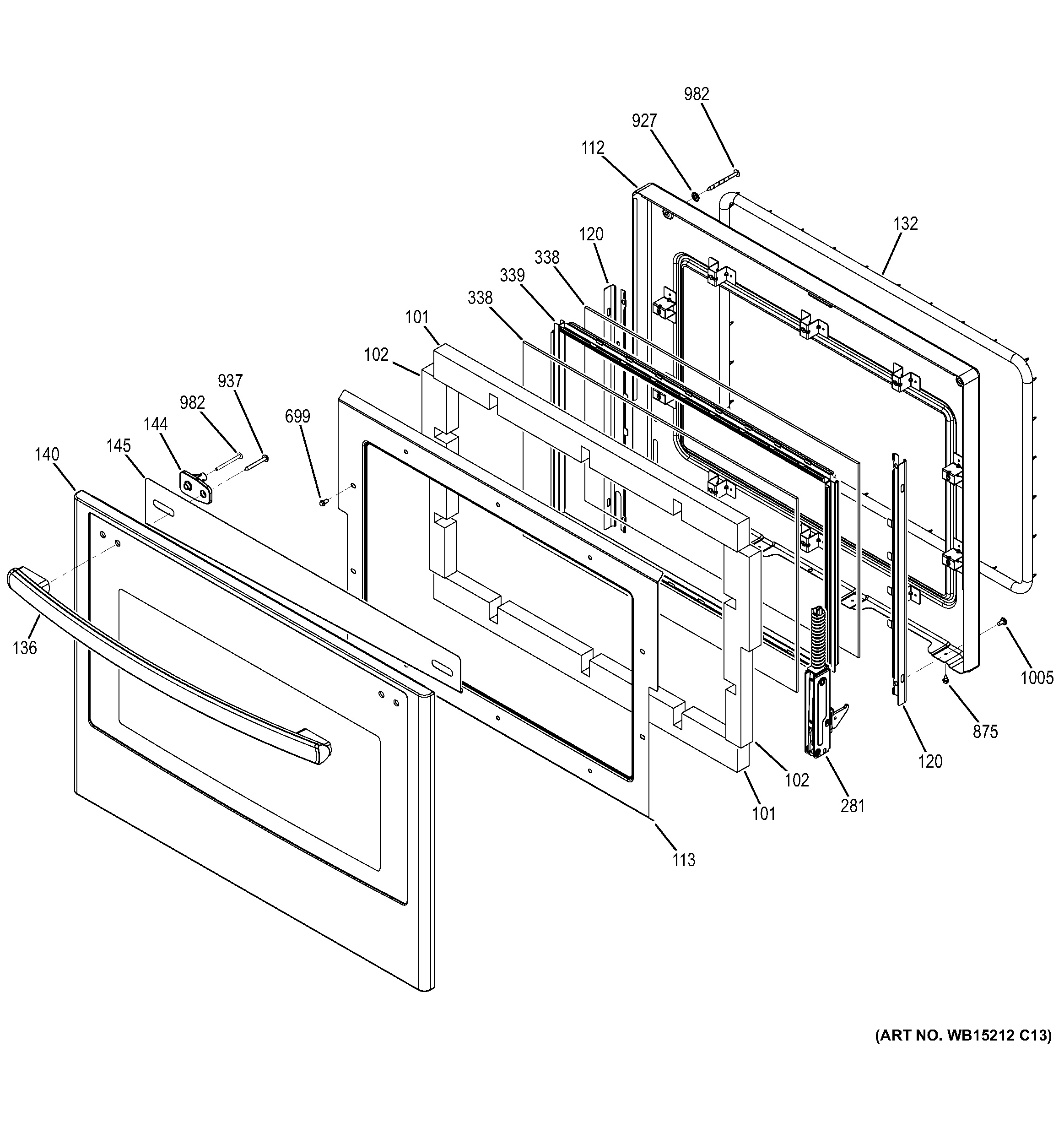

View Larger | Change Section/Diagram

101 — Diagram Number

Range insulation DR top

WB35X21737

^$5.36

Add to Cart

102 — Diagram Number

Range insulation DR side

WB35X21672

No Longer Available
Item has been replaced by
WB35X31513

112 — Diagram Number

Wall oven- inner door liner/30" models

WB55T10199

No Longer Available
Item has been replaced by
WB63X32818

113 — Diagram Number

Wall oven Inner door assembly 30" - insulation retainer

WB34T10131

No Longer Available
Item has been replaced by
WB34X31516

120 — Diagram Number

Range liner support

WB34X21384

No Longer Available
Item has been replaced by
WB34X46746

132 — Diagram Number

Wall oven -gasket

WB04T10091

No Longer Available
Item has been replaced by
WB35X32825

136 — Diagram Number

Wall oven Handle 30" models - WHITE

WB15T10207

^$56.91

Add to Cart

140 — Diagram Number

Micro module oven Outer door assembly- WHITE 30"

WB57T10381

^$458.99

Add to Cart

144 — Diagram Number

Wall oven Bracket for door handle

WB02T10603

^$9.33

Add to Cart

145 — Diagram Number

Wall oven Inner door assembly 30" - deflector under handle support

WB34T10142

No Longer Available
Item has been replaced by
WB34X37051

281 — Diagram Number

Range right door hinge

WB10X21738

^$121.69

Add to Cart

281 — Diagram Number

Range left door hinge

WB10X21739

^$219.12

Add to Cart

338 — Diagram Number

Wall oven- inner door glass/30" models

WB56T10351

^$62.46

Temporarily Out of Stock.

339 — Diagram Number

Wall oven Spacer- inner door glass assembly

WB37T10030

^$17.30

Add to Cart

699 — Diagram Number

SCREW ST10-16X.437HEX ZN

WB01K5150

No Longer Available
Item has been replaced by
WB1M1

875 — Diagram Number

SCREW 8-18 AB HXW 3/8

WH02X0930

No Longer Available
Item has been replaced by
WH2X930

927 — Diagram Number

CONTOURED WASHER

WB01X0119

No Longer Available
Item has been replaced by
WB02X32440

937 — Diagram Number

Screw 10-16

WB01T10066

^$6.07

Add to Cart

982 — Diagram Number

Wall oven Door assembly screw

WB01T10129

^$6.07

Add to Cart

1005 — Diagram Number

Range Screw

WB01T10008

^$6.07

Add to Cart
