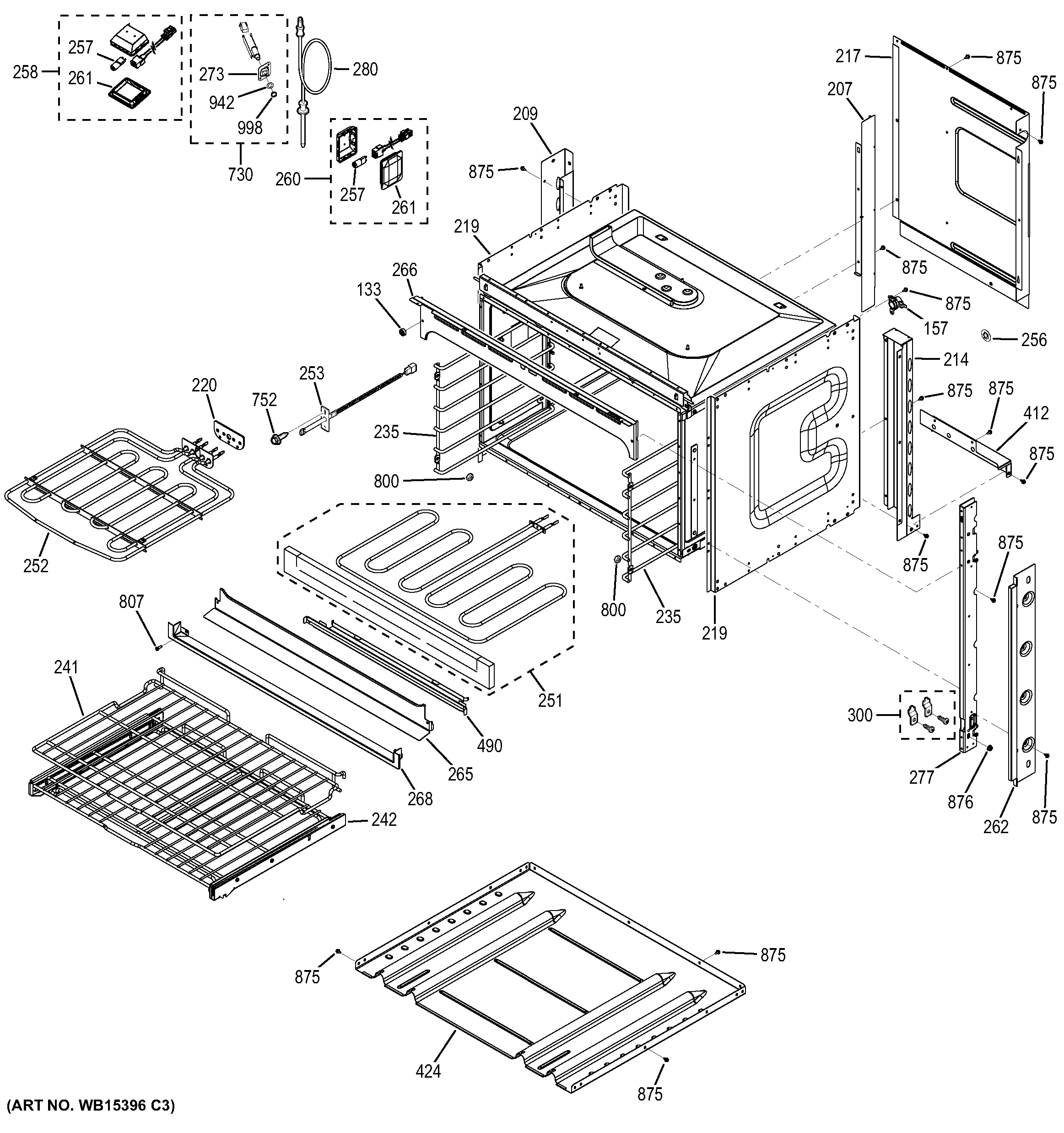

Assembly View for BODY PARTS

157 — Diagram Number

HIGH LIMIT SWITCH OVEN BK

WB24T10164

No Longer Available
Item has been replaced by
WB24X46906

207 — Diagram Number

Wall oven Rear air channel - center - single

WB34T10134

^$49.70

Add to Cart

209 — Diagram Number

CHANNEL REAR LT

WB34X21910

^$35.39

Add to Cart

214 — Diagram Number

Channel Rear Rt

WB34X21912

^$26.85

Add to Cart

217 — Diagram Number

Wall oven- rear wire cover/double oven upper

WB34T10136

^$53.49

Add to Cart

219 — Diagram Number

RETAINER INSLN SDE

WB34X21913

^$39.22

Add to Cart

220 — Diagram Number

GASKET BROIL ELEMENT

WB35X21972

^$6.07

Add to Cart

235 — Diagram Number

Range oven rack guide - right

WB48X21765

^$60.25

Add to Cart

235 — Diagram Number

Range oven rack guide - left

WB48X21766

^$61.58

Temporarily Out of Stock.

241 — Diagram Number

Wall oven- 30" rack assembly

WB48X20780

No Longer Available
Item has been replaced by
WB48X23857

242 — Diagram Number

Range oven slide rack assembly

WB48X21764

^$315.90

Add to Cart

252 — Diagram Number

Micro module oven Broil element

WB44T10124

No Longer Available
Item has been replaced by
WB44X48680

253 — Diagram Number

Wall oven- oven sensor

WB21X10165

^$17.83

Add to Cart

256 — Diagram Number

BOLT RETAINER

WB01T10107

^$6.09

Add to Cart

257 — Diagram Number

Wall Oven Halogen Top-Mounted Bulb - G9

WB25T10102

^$11.86

Add to Cart

258 — Diagram Number

Wall Oven Halogen Bulb Assembly top-mounted - 2/250 18AWG

WB25X20199

^$79.10

Add to Cart

260 — Diagram Number

Wall Oven Halogen Bulb Assembly side-mounted - 2/250 18AWG

WB25X20200

^$76.28

Add to Cart

261 — Diagram Number

Wall oven Top mounted - lens only

WB34T10145

^$23.82

Add to Cart

262 — Diagram Number

Wall oven Vertical trim single oven WHITE

WB07X11404

^$27.62

Add to Cart

265 — Diagram Number

Wall oven power trim vent 30" BLACK

WB07X21187

^$40.80

Add to Cart

266 — Diagram Number

TRIM VENT UPR

WB07X21942

^$62.02

Add to Cart

268 — Diagram Number

Wall oven Lower Trim 30" WHITE

WB07T10773

^$58.86

Add to Cart

273 — Diagram Number

COVER PROBE-UPPER

WB34K5140

No Longer Available
Item has been replaced by
NLA ITEM

277 — Diagram Number

Wall oven Vertical brace BLACK - RIGHT single 30" models

WB07T10754

^$58.55

Add to Cart

277 — Diagram Number

Wall oven Vertical brace BLACK - LEFT single 30" models

WB07T10755

No Longer Available
Item has been replaced by
WB07X35692

280 — Diagram Number

Range Heat Sensor

WB20T10025

No Longer Available
Item has been replaced by
WB20T10024

300 — Diagram Number

Wall oven- kit for door hinges/ all models

WB49X21652

^$20.79

Add to Cart

412 — Diagram Number

Lower air duct cover - single and micro module oven

WB34T10151

^$47.60

Add to Cart

424 — Diagram Number

Wall oven- bottom/ all 30" models

WB34T10158

No Longer Available
Item has been replaced by
WB56X43352

490 — Diagram Number

Wall oven Cover BAKE 30"

WB55T10197

^$84.67

Add to Cart

730 — Diagram Number

Wall oven Meat probe RECEPTICLE and HARNESS

WB08T10050

No Longer Available
Item has been replaced by
NLA ITEM

752 — Diagram Number

Range screw

WB01X21742

^$6.07

Add to Cart

800 — Diagram Number

RACK GUIDE NUT

WB01X21270

^$6.07

Add to Cart

807 — Diagram Number

SCREW ST 8-18X.750(BLK)

WB01K5172

No Longer Available
Item has been replaced by
WB1K5172

875 — Diagram Number

SCREW 8-18 AB HXW 3/8

WH02X0930

No Longer Available
Item has been replaced by
WH2X930

876 — Diagram Number

Wall oven- nut for rack supports

WB01T10127

No Longer Available
Item has been replaced by
NLA ITEM

942 — Diagram Number

WASHER

WB01X5573

No Longer Available
Item has been replaced by
WB1X5573

BODY PARTS

(PT7800DH1WW)

37 Results
