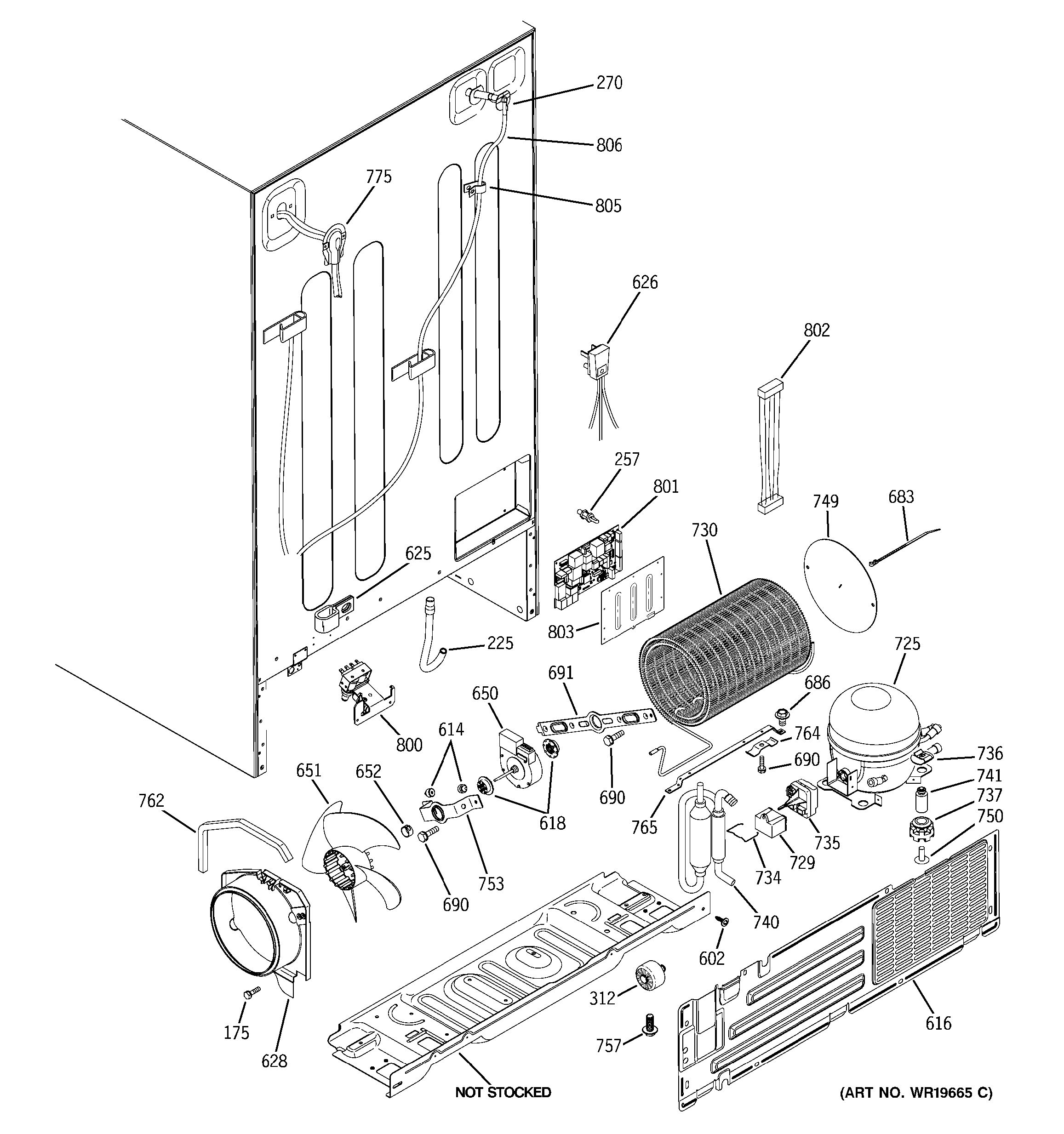

Assembly View for SEALED SYSTEM & MOTHER BOARD

175 — Diagram Number

SCREW 8-18 AB IHW 5/8 S

WR01X10035

No Longer Available
Item has been replaced by
WR01X10652

225 — Diagram Number

TUBE DRAIN

WR02X11426

^$12.87

Add to Cart

257 — Diagram Number

STAND OFF

WR02X10663

^$6.99

Add to Cart

270 — Diagram Number

GROMMET AND TUBE ASM

WR17X11506

No Longer Available
Item has been replaced by
WR17X11168

312 — Diagram Number

MOBILITY BACK ASM

WR02X10571

No Longer Available
Item has been replaced by
NLA ITEM

312 — Diagram Number

MOBILITY WHEELS KIT ASSEMBLY

WR02X11998

^$24.16

Add to Cart

602 — Diagram Number

Screw

WR01X1591

No Longer Available
Item has been replaced by
WR1X1591

614 — Diagram Number

Refrigerator Grommet Lid Bumper

WR02X10540

^$6.07

Add to Cart

616 — Diagram Number

ACCESS COVER

WR82X10100

No Longer Available
Item has been replaced by
NLA ITEM

618 — Diagram Number

Refrigerator Grommet for an Evaporator Fan

WR02X11331

^$6.13

Add to Cart

625 — Diagram Number

CLAMP CABLE

WR01X5278

No Longer Available
Item has been replaced by
WR1X5278

626 — Diagram Number

CORD POWER ASS'Y

WR23X0108

No Longer Available
Item has been replaced by
WR23X10300

628 — Diagram Number

SHROUD CONDENSER

WR17X11252

No Longer Available
Item has been replaced by
WR17X35527

650 — Diagram Number

MOTOR DC COND FAN

WR60X10080

No Longer Available
Item has been replaced by
WR60X10209

651 — Diagram Number

BLADE COND FAN ASSY

WR60X10049

No Longer Available
Item has been replaced by
WR60X24484

652 — Diagram Number

RING COMPRESSION FAN

WR02X10509

No Longer Available
Item has been replaced by
WR02X12149

683 — Diagram Number

WIRE TIE

WR02X11027

^$6.07

Add to Cart

686 — Diagram Number

SCREW 10-32 TT HXW 5/16

WR01X10252

No Longer Available
Item has been replaced by
WR01X10654

690 — Diagram Number

SCR 8-32 T HXW 3/8 S

WR01X1466

No Longer Available
Item has been replaced by
WZ5X158D

691 — Diagram Number

BRACKET COND FAN - REAR

WR02X10593

^$13.59

Add to Cart

725 — Diagram Number

COMPRESSOR MEI

WR87X10067

No Longer Available
Item has been replaced by
WR87X20798

729 — Diagram Number

CAPACITOR

WR62X0079

No Longer Available
Item has been replaced by
WR55X24064

730 — Diagram Number

CONDENSER REPL ASSEMBLY

WR84X10022

^$363.90

Not Available for Online Consumer Purchase
Call 1.800.432.2737 to Schedule Service.

734 — Diagram Number

CLIP RETAINER MEI

WR02X11999

^$13.26

Add to Cart

735 — Diagram Number

OVERLOAD PTCR COMBO

WR08X10068

No Longer Available
Item has been replaced by
WR09X10107

735 — Diagram Number

OVERLOAD

WR08X0164

No Longer Available
Item has been replaced by
NLA ITEM

735 — Diagram Number

OVERLOAD

WR08X10025

^$30.89

Add to Cart

736 — Diagram Number

CLIP COMPRESSOR MOUNT

WR02X8203

No Longer Available
Item has been replaced by
WR2X8203

737 — Diagram Number

GROMMET COMPRESSOR

WR02X10099

No Longer Available
Item has been replaced by
WR02X40305

740 — Diagram Number

DRYER FILTER ASS'Y

WR86X0096

No Longer Available
Item has been replaced by
WR86X25269

741 — Diagram Number

STUD MTG COMPR

WR01X1779

No Longer Available
Item has been replaced by
WR1X1779

749 — Diagram Number

BAFFLE COND AIR

WR17X11039

No Longer Available
Item has been replaced by
WR17X13158

750 — Diagram Number

SCREW 10-32 TR 1/2

WR01X1786

No Longer Available
Item has been replaced by
WR1X1786

753 — Diagram Number

BRKT COND FAN (MTG)

WR02X10521

No Longer Available
Item has been replaced by
WR02X11863

757 — Diagram Number

SCR 10-32 SPECIAL

WR01X10193

No Longer Available
Item has been replaced by
WR01X10194

762 — Diagram Number

FOAM STRIP SE ADH

WR14X10053

^$5.67

Add to Cart

764 — Diagram Number

CLIP, CONDENSER MOUNT

WR02X9000

No Longer Available
Item has been replaced by
WR2X9000

765 — Diagram Number

REFRIGERATOR CONDENSER BAR BRACKET

WR17X10695

^$6.70

Add to Cart

775 — Diagram Number

REFRIGERATOR WATER LINE COVER

WR17X10796

^$6.07

Add to Cart

800 — Diagram Number

WATER VALVE ASM

WR57X10040

No Longer Available
Item has been replaced by
WR57X33326

801 — Diagram Number

BOARD ASM SERVICE DOMEST

WR55X10335

No Longer Available
Item has been replaced by
WR55X10942

802 — Diagram Number

HARNESS BOARD INDIV

WR23X10178

No Longer Available
Item has been replaced by
WR23X10505

803 — Diagram Number

MAIN BOARD ENCLOSURE ASM

WR02X11847

No Longer Available
Item has been replaced by
NLA ITEM

803 — Diagram Number

Refrigerator Main Board Enclosure

WR02X12025

^$21.24

Add to Cart

805 — Diagram Number

CLAMP TUBE

WR02X3736

No Longer Available
Item has been replaced by
WR1X5278

806 — Diagram Number

Refrigerator plastic tube

WR17X11625

^$20.29

Add to Cart

SEALED SYSTEM & MOTHER BOARD

(PSS26MGSACC)

46 Results
