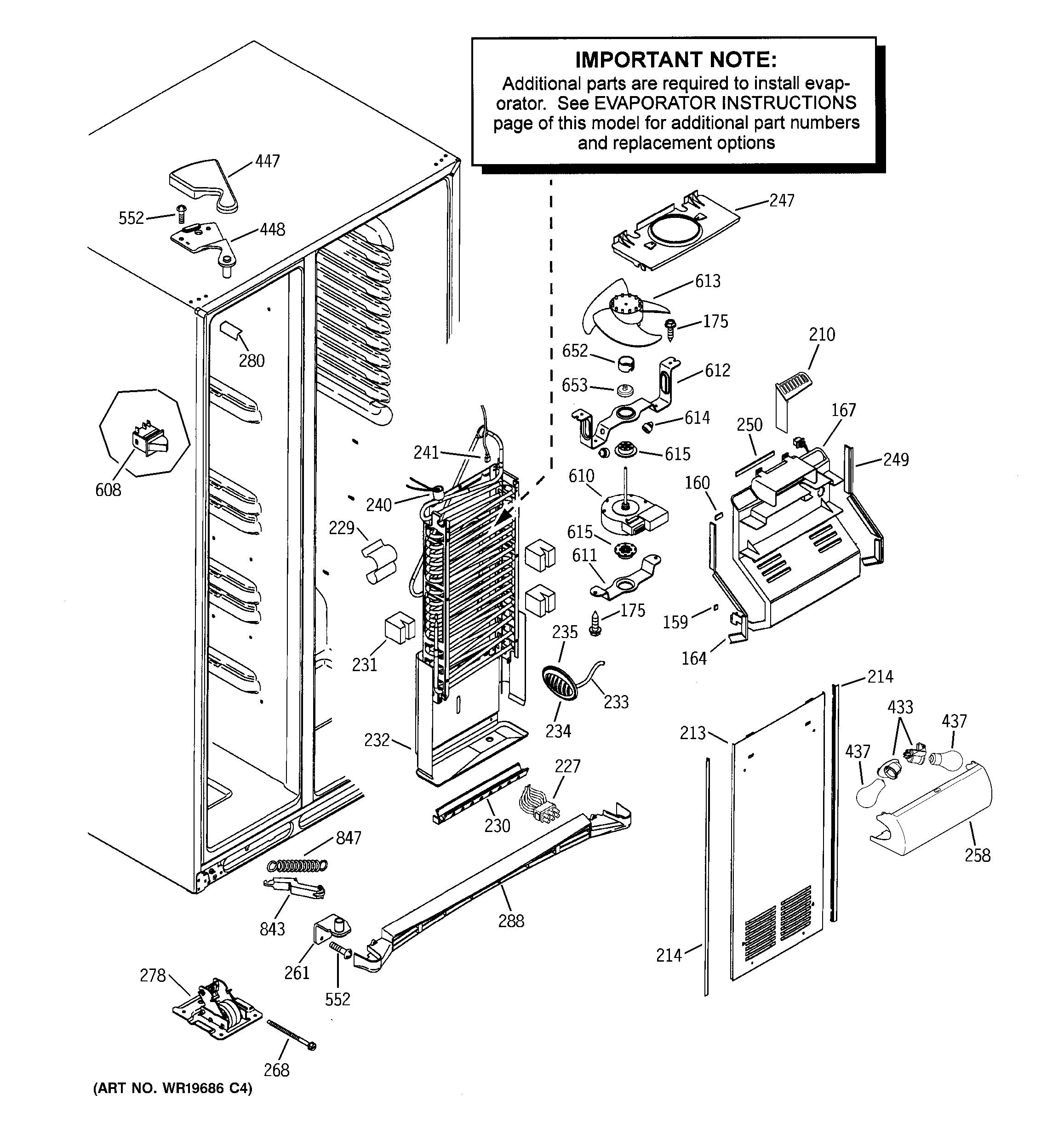

Assembly View for FREEZER SECTION

159 — Diagram Number

FOAM STRIP SE ADH

WR14X10067

^$6.95

Add to Cart

160 — Diagram Number

FOAM STRIP SE ADH

WR14X10068

^$6.95

Add to Cart

164 — Diagram Number

REFRIGERATOR GASKET CASE

WR14X10164

^$12.15

Add to Cart

167 — Diagram Number

PLENUM FAN EVAPORATOR

WR17X11496

No Longer Available
Item has been replaced by
NLA ITEM

175 — Diagram Number

SCREW 8-18 AB IHW 5/8 S

WR01X10035

No Longer Available
Item has been replaced by
WR01X10652

213 — Diagram Number

REFRIGERATOR FRONT EVAPORATOR COVER

WR17X11668

^$72.52

Add to Cart

214 — Diagram Number

GASKET EVAPORATOR COVER

WR14X10072

^$8.56

Add to Cart

227 — Diagram Number

HARNESS AC FZ INTERMEDIA

WR23X10337

No Longer Available
Item has been replaced by
WR23X10487

229 — Diagram Number

THERMISTOR CLIP

WR02X10552

^$5.36

Add to Cart

230 — Diagram Number

HEATER & BRACKET ASSY

WR51X10042

^$105.76

Temporarily Out of Stock.

230 — Diagram Number

Refrigerator Defrost Heater Assembly

WR51X10055

^$94.56

Add to Cart

231 — Diagram Number

Refrigerator Evaporator Seal Block

WR02X10669

^$12.15

Add to Cart

232 — Diagram Number

SHIELD TROUGH ASM

WR17X10811

^$105.72

Add to Cart

233 — Diagram Number

SENSOR TEMPERATURE

WR55X10026

No Longer Available
Item has been replaced by
WR55X10025

234 — Diagram Number

Refrigerator grille sensor

WR02X10647

^$7.05

Add to Cart

235 — Diagram Number

Refrigerator Thermistor Shunt Cover

WR02X10668

^$6.97

Add to Cart

240 — Diagram Number

DEFROST THERMOSTAT

WR50X10028

No Longer Available
Item has been replaced by
WR50X10068

241 — Diagram Number

Refrigerator temperature sensor

WR55X10025

^$15.98

Add to Cart

247 — Diagram Number

ORIFICE FAN ASSY

WR17X10812

^$34.44

Add to Cart

249 — Diagram Number

GASKET PLENUM

WR14X10165

^$11.43

Add to Cart

250 — Diagram Number

FOAM STRIP SE ADH

WR14X10069

^$13.28

Add to Cart

258 — Diagram Number

Refrigerator Freezer Light Shield

WR17X11480

No Longer Available
Item has been replaced by
WR17X11446

261 — Diagram Number

HINGE BTM & PIN ASSY

WR13X10162

^$44.96

Add to Cart

268 — Diagram Number

Refrigerator Leveling Screw

WR01X10210

^$8.53

Add to Cart

278 — Diagram Number

MOBILITY FRONT ASSY

WR02X10636

No Longer Available
Item has been replaced by
WR02X12274

280 — Diagram Number

CAP CORNER OC BQ

WR02X10785

^$5.00

Add to Cart

288 — Diagram Number

GRILLE BASE

WR74X10196

No Longer Available
Item has been replaced by
NLA ITEM

433 — Diagram Number

SOCKET, LIGHT

WR02X9391

No Longer Available
Item has been replaced by
WR2X9391

437 — Diagram Number

Bulbs - 60W soft white - 2 pack

60A

No Longer Available
Item has been replaced by
40A15

447 — Diagram Number

COVER HINGE BQ

WR02X10787

^$5.90

Add to Cart

448 — Diagram Number

Refrigerator Top Hinge and Pin Assembly

WR13X10216

^$26.86

Add to Cart

552 — Diagram Number

Screw

WR01X2022

No Longer Available
Item has been replaced by
WR01X10631

608 — Diagram Number

Refrigerator Light Switch

WR23X10179

No Longer Available
Item has been replaced by
WR23X21444

610 — Diagram Number

MOTOR DC EVAP FAN ASM

WR60X10099

No Longer Available
Item has been replaced by
WR60X10307

611 — Diagram Number

BRACKET EVAP FAN LARGE

WR02X10764

^$9.04

Temporarily Out of Stock.

612 — Diagram Number

BRACKET ORIFICE PAN

WR02X10653

^$11.80

Add to Cart

613 — Diagram Number

BLADE EVAP FAN ASM

WR60X10075

No Longer Available
Item has been replaced by
WR60X30922

614 — Diagram Number

Refrigerator Grommet Lid Bumper

WR02X10540

^$6.07

Add to Cart

615 — Diagram Number

GROMMET EVAP FAN

WR02X10519

No Longer Available
Item has been replaced by
WR02X12008

652 — Diagram Number

RING COMPRESSION FAN

WR02X10509

No Longer Available
Item has been replaced by
WR02X12149

653 — Diagram Number

Refrigerator dust cap

WR02X10322

^$14.82

Add to Cart

843 — Diagram Number

LEVER ASSY FZ SIDE BISQUE

WR11X10012

No Longer Available
Item has been replaced by
WR11X10008

847 — Diagram Number

SPRING CLOSURE

WR01X2027

No Longer Available
Item has been replaced by
WR1X2027

FREEZER SECTION

(PSS26MGSACC)

43 Results
