DOOR

(PHS920SF1SS)

22 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

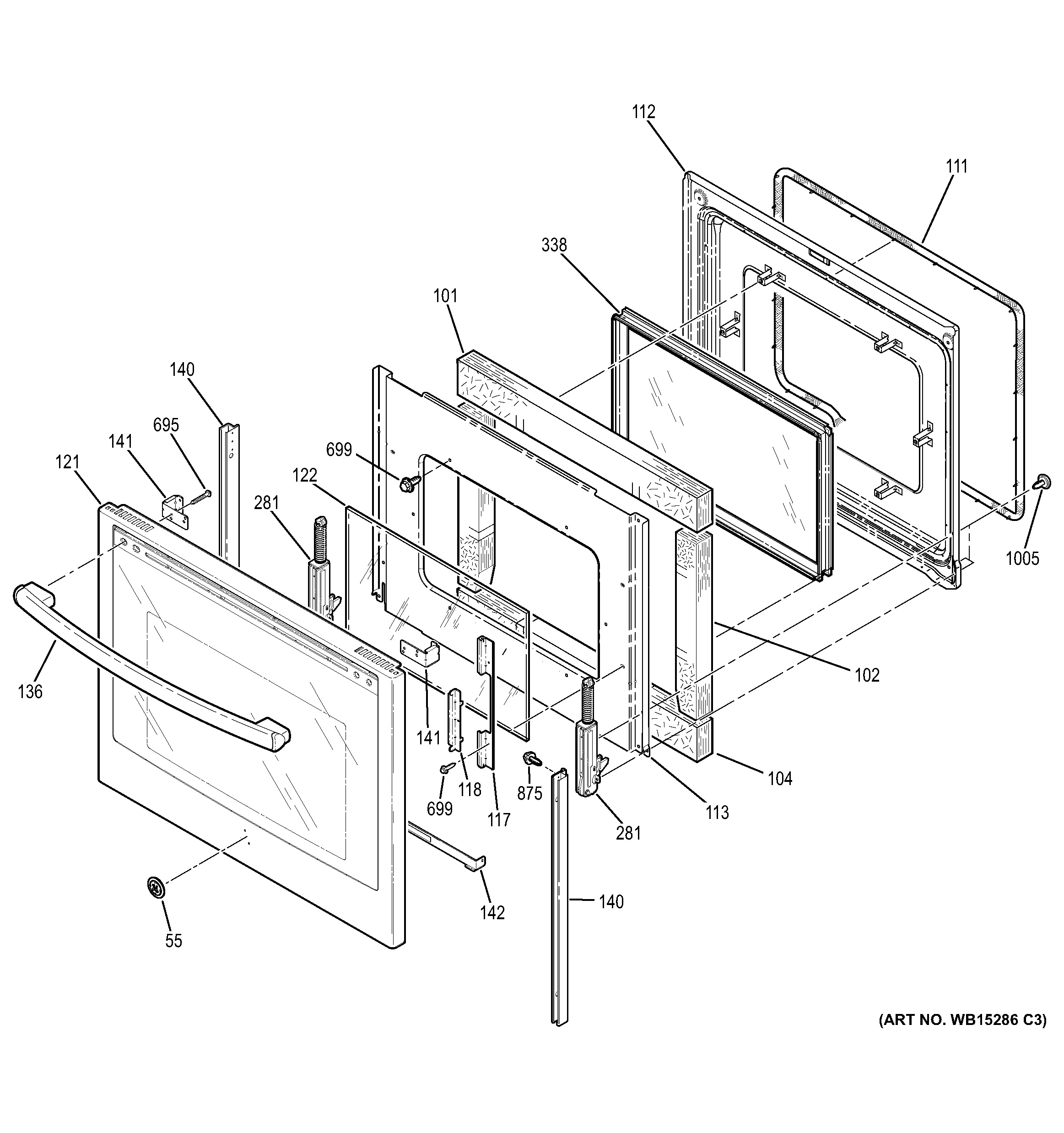

View Larger | Change Section/Diagram

55 — Diagram Number

Range GE Badge

WB02T10589

^$9.65

Add to Cart

101 — Diagram Number

INSULATION DOOR

WB35T10134

^$21.46

Add to Cart

102 — Diagram Number

INSULATION DOOR

WB35T10135

^$6.07

Add to Cart

104 — Diagram Number

INSULATION DOOR

WB35T10255

^$44.39

Add to Cart

111 — Diagram Number

RANGE OVEN DOOR GASKET

WB04T10079

No Longer Available
Item has been replaced by
NLA ITEM

112 — Diagram Number

LINER OVEN DOOR ASM (BK)

WB55T10203

^$108.83

Add to Cart

113 — Diagram Number

RETAINER OVN DR INSLN

WB56T10178

^$92.25

Add to Cart

117 — Diagram Number

RETAINER GLASS OVN DR

WB56T10320

^$468.15

Add to Cart

118 — Diagram Number

RETAINER GLASS OVEN DOOR

WB56T10321

^$454.04

Add to Cart

121 — Diagram Number

PANEL ASSEMBLY BONDED (STAINLESS STEEL)

WB56X21493

^$559.28

Add to Cart

122 — Diagram Number

Inner Glass oven Door Assembly

WB57T10233

^$230.76

Add to Cart

136 — Diagram Number

HANDLE AND END CAP ASM

WB15T10222

No Longer Available
Item has been replaced by
WB15X27280

140 — Diagram Number

FRAME DOOR SIDE ASM LH

WB56X23305

No Longer Available
Item has been replaced by
WB56X24946

140 — Diagram Number

FRAME DOOR SIDE ASM RH

WB56X23306

No Longer Available
Item has been replaced by
NLA ITEM

141 — Diagram Number

RANGE BRACKET

WB02T10611

^$27.09

Add to Cart

142 — Diagram Number

RANGE GLASS DOOR BRACKET

WB02X21494

^$30.60

Add to Cart

281 — Diagram Number

HINGE DOOR

WB10T10067

^$66.63

Add to Cart

338 — Diagram Number

Range Window Pack Assembly

WB55T10191

No Longer Available
Item has been replaced by
WB56T10105

695 — Diagram Number

Door handle mounting screw

WB01T10132

^$6.07

Add to Cart

699 — Diagram Number

SCREW ST10-16X.437HEX ZN

WB01K5150

No Longer Available
Item has been replaced by
WB1M1

875 — Diagram Number

Screw 12 Pack

WZ4X245D

^$21.11

Add to Cart

1005 — Diagram Number

Range Screw

WB01T10008

^$6.07

Add to Cart
