WARMING DRAWER

(PHS920SF1SS)

23 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

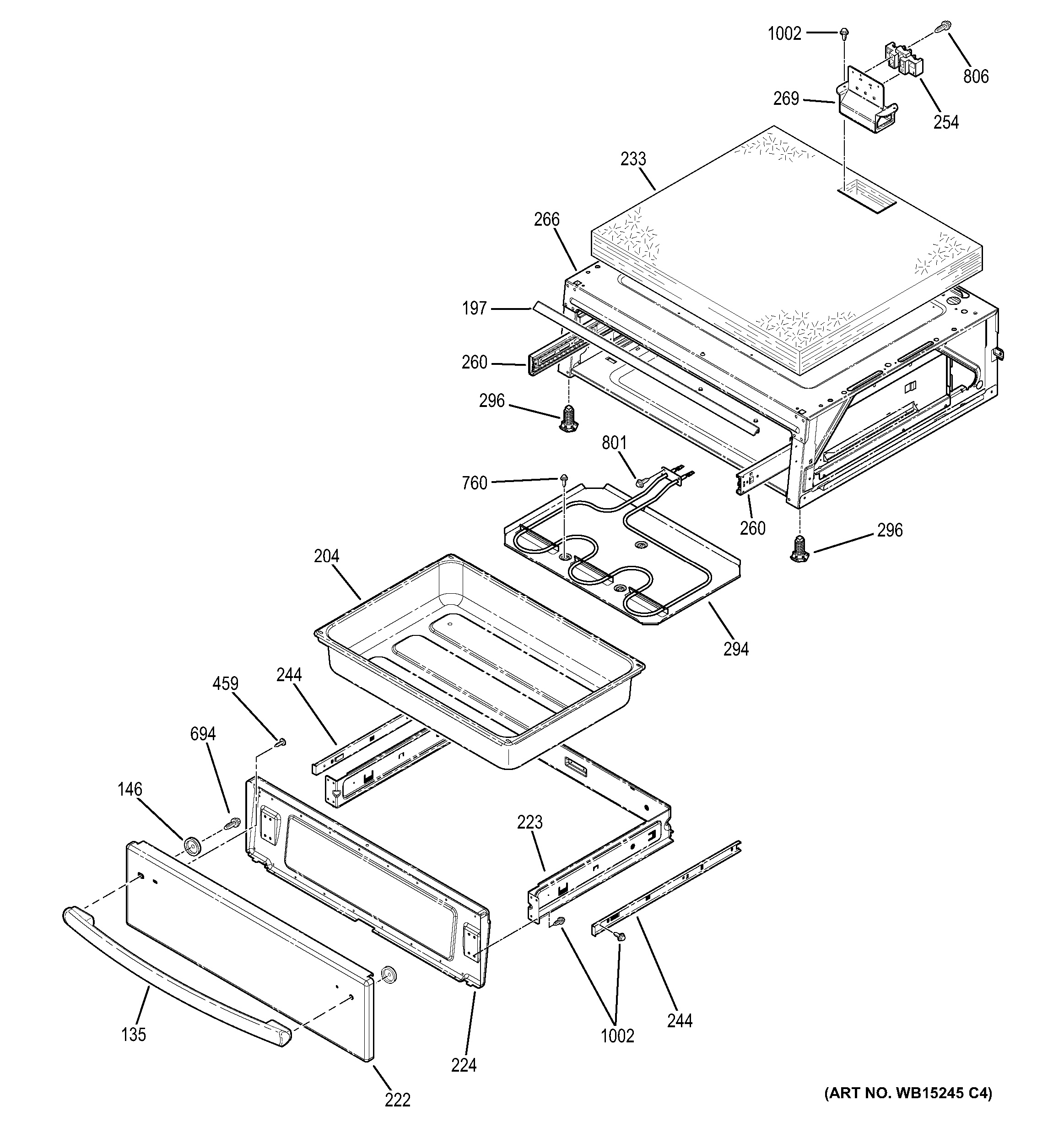

View Larger | Change Section/Diagram

135 — Diagram Number

HANDLE AND END CAPS SS

WB15T10205

No Longer Available
Item has been replaced by
WB15X27281

146 — Diagram Number

WASHER .250IDX.812OD

WB01K5117

No Longer Available
Item has been replaced by
WB1K5117

197 — Diagram Number

RANGE DRAWER GASKET

WB04T10056

^$18.01

Add to Cart

204 — Diagram Number

DRAWER PAN

WB49T10076

No Longer Available
Item has been replaced by
NLA ITEM

222 — Diagram Number

PANEL DRAWER SS

WB56X20135

No Longer Available
Item has been replaced by
NLA ITEM

223 — Diagram Number

FRAME DWR AND BRKT ASM

WB63T10146

^$89.36

Add to Cart

224 — Diagram Number

DRAWER FRONT INNER

WB56T10331

^$46.65

Add to Cart

233 — Diagram Number

HIDDEN BAKE INSULATION

WB35T10022

No Longer Available
Item has been replaced by
NLA ITEM

244 — Diagram Number

GUIDE- SLIDE DRAWER

WB39K10022

No Longer Available
Item has been replaced by
NLA ITEM

254 — Diagram Number

Range Terminal Block

WB17T10011

^$53.59

Temporarily Out of Stock.

260 — Diagram Number

DRAWER SLIDE ASSY RIGHT

WB39K10020

^$53.81

Add to Cart

260 — Diagram Number

DRAWER SLIDE ASSY LEFT

WB39K10021

^$51.57

Add to Cart

266 — Diagram Number

BASE RIVET ASM

WB39T10014

No Longer Available
Item has been replaced by
NLA ITEM

269 — Diagram Number

MOUNT TERMINAL BLOCK

WB17T10020

^$11.70

Add to Cart

294 — Diagram Number

ELEMENT HEATING (WARM)

WB30T10144

^$59.75

Add to Cart

296 — Diagram Number

Range Leveling Leg

WB02X10521

^$10.24

Add to Cart

459 — Diagram Number

Screw

WB01X0537

No Longer Available
Item has been replaced by
WB1X537

694 — Diagram Number

SCREW-COOKTOP SUPPORT

WB01X1116

No Longer Available
Item has been replaced by
WB1X1116

760 — Diagram Number

SCREW ST8-18X.437HEXNI

WB01K5028

No Longer Available
Item has been replaced by
WB1X536

801 — Diagram Number

SCR 10-16 AB TRT20 1/2 B

WB01X21497

No Longer Available
Item has been replaced by
WB01X21735

801 — Diagram Number

SCREW ST10-16X.437HXNI

WB01M0001

No Longer Available
Item has been replaced by
WB1M1

806 — Diagram Number

SCR 10-32 1/4 HEX .350

WB01T10125

^$5.61

Add to Cart

1002 — Diagram Number

Screw 8-18 3/8

WB01T10017

^$6.07

Add to Cart
