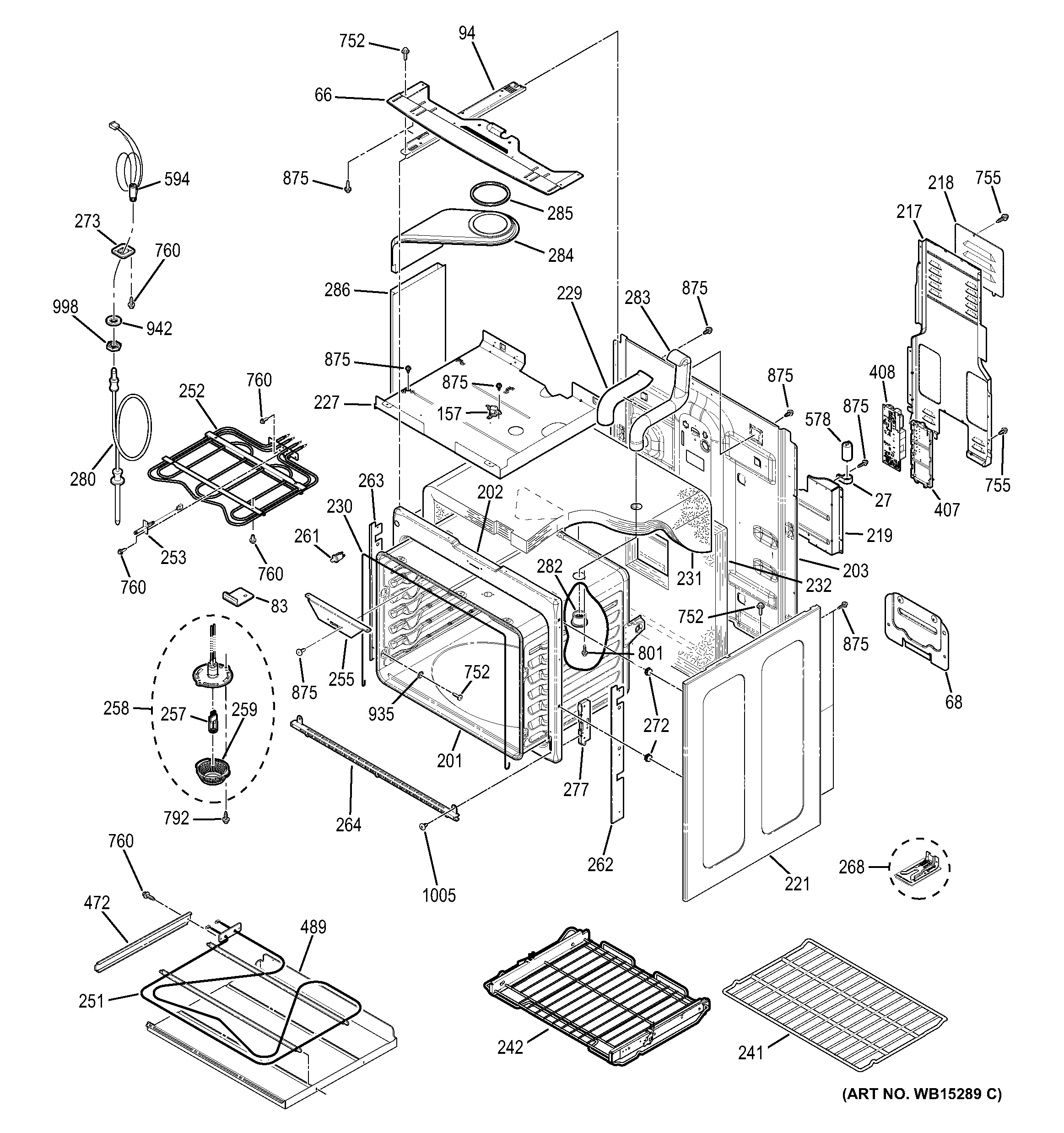

Assembly View for BODY PARTS

27 — Diagram Number

BRACKET CAPACITIOR

WB02T10533

^$5.00

Add to Cart

66 — Diagram Number

ENCLOSURE CONTROL

WB34X21500

^$40.10

Add to Cart

68 — Diagram Number

RANGE COVER PLATE

WB02X21423

^$5.80

Add to Cart

83 — Diagram Number

RANGE OVEN CLIP SEAM

WB02T10118

^$6.07

Add to Cart

94 — Diagram Number

OVEN BRACE CHASSIS SC RIGHT

WB02X21498

No Longer Available
Item has been replaced by
NLA ITEM

94 — Diagram Number

OVEN BRACE CHASSIS SC LEFT

WB02X21499

No Longer Available
Item has been replaced by
NLA ITEM

157 — Diagram Number

HIGH LIMIT SWITCH OVEN BK

WB24T10164

No Longer Available
Item has been replaced by
WB24X46906

201 — Diagram Number

BODY OVN WELD ASM (BK)

WB63X20923

^$167.60

Add to Cart

202 — Diagram Number

FRAME FRONT 5.0 (BK)

WB63X20115

^$61.64

Add to Cart

203 — Diagram Number

BACK MAIN

WB63X20922

No Longer Available
Item has been replaced by
NLA ITEM

217 — Diagram Number

COVER WIRE MAIN

WB34X21502

No Longer Available
Item has been replaced by
NLA ITEM

218 — Diagram Number

RANGE TERMINAL COVER

WB02T10560

^$8.95

Add to Cart

219 — Diagram Number

BRACKET CNTL BRD

WB34X21503

No Longer Available
Item has been replaced by
NLA ITEM

221 — Diagram Number

PANEL SIDE (DG)

WB63T10166

No Longer Available
Item has been replaced by
WB56X28883

227 — Diagram Number

RETAINER INSULATION ASM

WB34X21504

^$43.40

Add to Cart

229 — Diagram Number

VENT TUBE INSULATION

WB35T10017

^$6.07

Add to Cart

230 — Diagram Number

RANGE INSULATION WIRE

WB02T10252

No Longer Available
Item has been replaced by
NLA ITEM

231 — Diagram Number

INSULATION OVEN

WB35T10242

No Longer Available
Item has been replaced by
NLA ITEM

232 — Diagram Number

INSULATION OVN BCK & BTM

WB35X23540

No Longer Available
Item has been replaced by
NLA ITEM

241 — Diagram Number

Range self clean oven rack

WB48T10082

^$53.90

Add to Cart

242 — Diagram Number

Range Oven Rack Slide Assembly

WB48X20881

^$427.70

Add to Cart

251 — Diagram Number

UNIT BAKE ASM

WB44T10104

No Longer Available
Item has been replaced by
WB44X45499

252 — Diagram Number

Range Broiler Shield

WB44X20882

^$107.07

Add to Cart

253 — Diagram Number

Range Sensor Assembly

WB21T10007

No Longer Available
Item has been replaced by
WB21X22134

255 — Diagram Number

TRIM LATCH

WB07X21426

No Longer Available
Item has been replaced by
WB07X21459

257 — Diagram Number

Range Halogen Bulb - 130V 35W - G9

WB08T10045

^$9.46

Add to Cart

258 — Diagram Number

Wall Oven Halogen Bulb Assembly - 130V, 35W

WB25T10097

No Longer Available
Item has been replaced by
NLA ITEM

259 — Diagram Number

Range Oven Light Lens

WB25T10013

^$5.48

Add to Cart

261 — Diagram Number

Range High Amp Switch

WB24T10147

^$14.76

Add to Cart

262 — Diagram Number

TRIM VERTICAL SDE

WB07T10712

No Longer Available
Item has been replaced by
NLA ITEM

263 — Diagram Number

Range Vertical Trim

WB07T10713

No Longer Available
Item has been replaced by
NLA ITEM

264 — Diagram Number

TRIM FRONT FRM (BLACK)

WB07T10516

^$28.65

Add to Cart

268 — Diagram Number

RANGE ANTI-TIP BRACKET

WB02T10578

^$26.34

Add to Cart

272 — Diagram Number

RANGE PANEL SIDE SUPORT

WB02T10034

^$6.07

Add to Cart

273 — Diagram Number

COVER PROBE-UPPER

WB34K5140

No Longer Available
Item has been replaced by
NLA ITEM

277 — Diagram Number

HINGE RECEIVER

WB10T10068

^$31.12

Add to Cart

280 — Diagram Number

Range Thermistor Probe

WB20T10024

^$53.22

Add to Cart

282 — Diagram Number

VENT TUBE ASM

WB34X24604

No Longer Available
Item has been replaced by
NLA ITEM

283 — Diagram Number

TUBE VNT SINGLE

WB38T10039

No Longer Available
Item has been replaced by
NLA ITEM

284 — Diagram Number

RANGE UPPER DUCT

WB02T10594

No Longer Available
Item has been replaced by
NLA ITEM

285 — Diagram Number

RANGE FOAM TAPE GASKET

WB02T10591

^$14.83

Add to Cart

286 — Diagram Number

DUCT SIDE ASSEMBLY

WB02T10484

No Longer Available
Item has been replaced by
NLA ITEM

407 — Diagram Number

RANGE RELAY BOARD FRAME

WB02T10512

No Longer Available
Item has been replaced by
NLA ITEM

408 — Diagram Number

BOARD PCB ASM

WB27X20891

^$277.91

Add to Cart

472 — Diagram Number

SIDE REFLECTOR

WB49T10007

^$21.50

Add to Cart

489 — Diagram Number

Range Heat Shield for Bake Element

WB02T10509

^$60.00

Add to Cart

578 — Diagram Number

Wall Oven Capacitor Motor

WB27T10662

^$6.07

Not Available for Online Consumer Purchase
Call 1.800.432.2737 to Schedule Service.

594 — Diagram Number

HARNESS WIRE PROBE

WB18T10394

^$85.48

Add to Cart

752 — Diagram Number

Screw

WB01K5200

No Longer Available
Item has been replaced by
WB1K5200

755 — Diagram Number

SCR 8-32 AB IHWS 3/8 S

WR01X10602

^$6.07

Add to Cart

760 — Diagram Number

SCREW ST8-18X.437HEXNI

WB01K5028

No Longer Available
Item has been replaced by
WB1X536

792 — Diagram Number

SCREW 10-16 AB IHW .625 NI

WB01T10072

^$5.67

Add to Cart

801 — Diagram Number

SCREW ST10-16X.437HXNI

WB01M0001

No Longer Available
Item has been replaced by
WB1M1

801 — Diagram Number

SCR 10-16 AB TRT20 1/2 B

WB01X21497

No Longer Available
Item has been replaced by
WB01X21735

875 — Diagram Number

Screw 12 Pack

WZ4X245D

^$21.11

Add to Cart

935 — Diagram Number

SPRING WASHER

WB01X1256

No Longer Available
Item has been replaced by
WB1X1256

942 — Diagram Number

WASHER

WB01X5573

No Longer Available
Item has been replaced by
WB1X5573

1005 — Diagram Number

Range Screw

WB01T10008

^$6.07

Add to Cart

BODY PARTS

(PHS920SF1SS)

58 Results
