COOKTOP

(PHS920SF1SS)

32 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

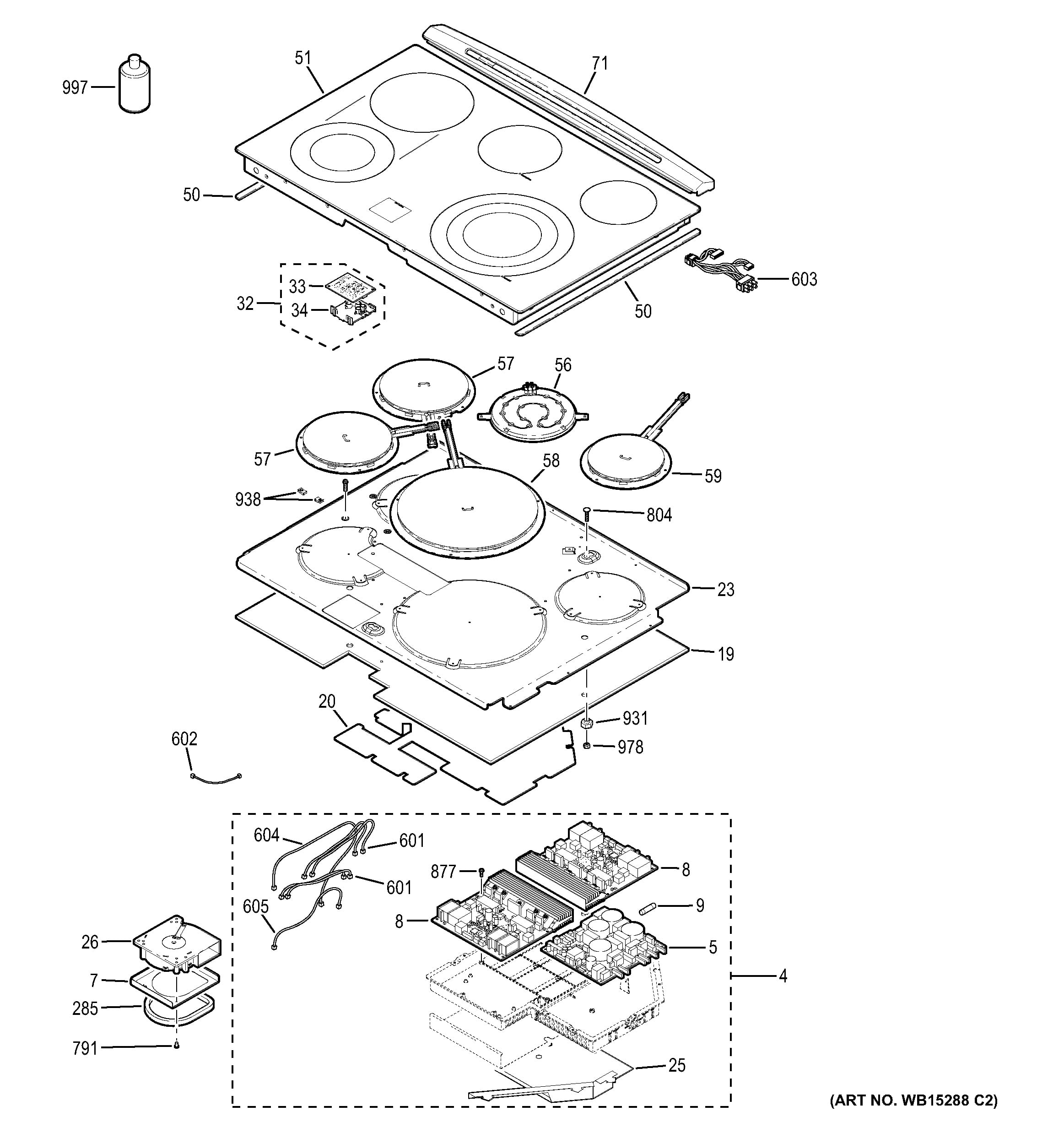

Use the diagram to find the number of the part you need.

4 — Diagram Number

GENERATOR MODULE

WB27X21418

No Longer Available
Item has been replaced by
WB27X27186

5 — Diagram Number

BOARD FILTER

WB27X21421

^$254.16

Add to Cart

7 — Diagram Number

BRACKET FAN

WB26X10271

No Longer Available
Item has been replaced by
WB34X27845

8 — Diagram Number

BOARD GENERATOR ASM

WB27X21420

No Longer Available
Item has been replaced by
WB27X27183

9 — Diagram Number

FUSE 250V 20A FB

WB27X27316

^$9.99

Temporarily Out of Stock.

19 — Diagram Number

INSULATION INDUCTION

WB35X21487

No Longer Available
Item has been replaced by
NLA ITEM

20 — Diagram Number

INSULATION MICA

WB35T10260

No Longer Available
Item has been replaced by
NLA ITEM

23 — Diagram Number

PLATE INDUCTION MTG

WB49X10245

^$85.00

Add to Cart

25 — Diagram Number

DUCT HOUSING

WB34X21486

No Longer Available
Item has been replaced by
NLA ITEM

26 — Diagram Number

BLOWER CENTRIFUGAL 12V

WB26X10272

^$130.90

Add to Cart

32 — Diagram Number

BRIDGE BOARD ASM

WB27X11206

^$108.47

Add to Cart

33 — Diagram Number

BRIDGE BOARD

WB27X11198

No Longer Available
Item has been replaced by
WB27X11206

34 — Diagram Number

HOUSING BOARD BRIDGE

WB02X20946

No Longer Available
Item has been replaced by
WB27X11206

50 — Diagram Number

COOKTOP MAINTOP GASKET

WB02T10543

^$21.00

Add to Cart

51 — Diagram Number

MAINTOP GLASS ASSEMBLY (BLACK)

WB62X20972

^$594.78

Temporarily Out of Stock.

56 — Diagram Number

ELEMENT WARMER LOW PRF

WB30X10035

^$45.98

Add to Cart

57 — Diagram Number

ELEMENT INDUCTION 2500W

WB30X21490

No Longer Available
Item has been replaced by
WB30X38226

58 — Diagram Number

ELEMENT INDUCTION 3700W

WB30X21488

No Longer Available
Item has been replaced by
WB30X38486

59 — Diagram Number

ELEMENT INDUCTION 1800W

WB30X21489

No Longer Available
Item has been replaced by
NLA ITEM

71 — Diagram Number

TRIM AND DEFLECTOR ASM

WB07T10710

No Longer Available
Item has been replaced by
NLA ITEM

285 — Diagram Number

RANGE FOAM TAPE GASKET

WB02T10591

^$14.83

Add to Cart

601 — Diagram Number

HARNESS FB GEN PWR

WB18X10520

^$27.72

Add to Cart

602 — Diagram Number

HARNESS WIRE WZ

WB18X21419

^$5.67

Add to Cart

603 — Diagram Number

HARNESS WIRE UI COM

WB18X21491

No Longer Available
Item has been replaced by
NLA ITEM

604 — Diagram Number

HARNESS WIRE BB GEN COM

WB18X10521

^$25.60

Add to Cart

605 — Diagram Number

HARNESS WIRE BB FB COM

WB18X10522

No Longer Available
Item has been replaced by
NLA ITEM

791 — Diagram Number

SCREW-BLACK

WB01K5162

No Longer Available
Item has been replaced by
WB1K5162

804 — Diagram Number

SCREW 10-16 X .812 HWH

WB01K5157

No Longer Available
Item has been replaced by
WB1K5157

877 — Diagram Number

SCREW 7-19 X 1/2 HXW

WR01X1850

No Longer Available
Item has been replaced by
WR1X1850

931 — Diagram Number

SPACER

WB02T10482

^$7.90

Add to Cart

938 — Diagram Number

CLIP C TYPE

WB01K5209

No Longer Available
Item has been replaced by
WB1K5209

978 — Diagram Number

NUT

WB02T10494

^$5.40

Add to Cart
