CONTROL PANEL

(PHS920SF1SS)

22 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

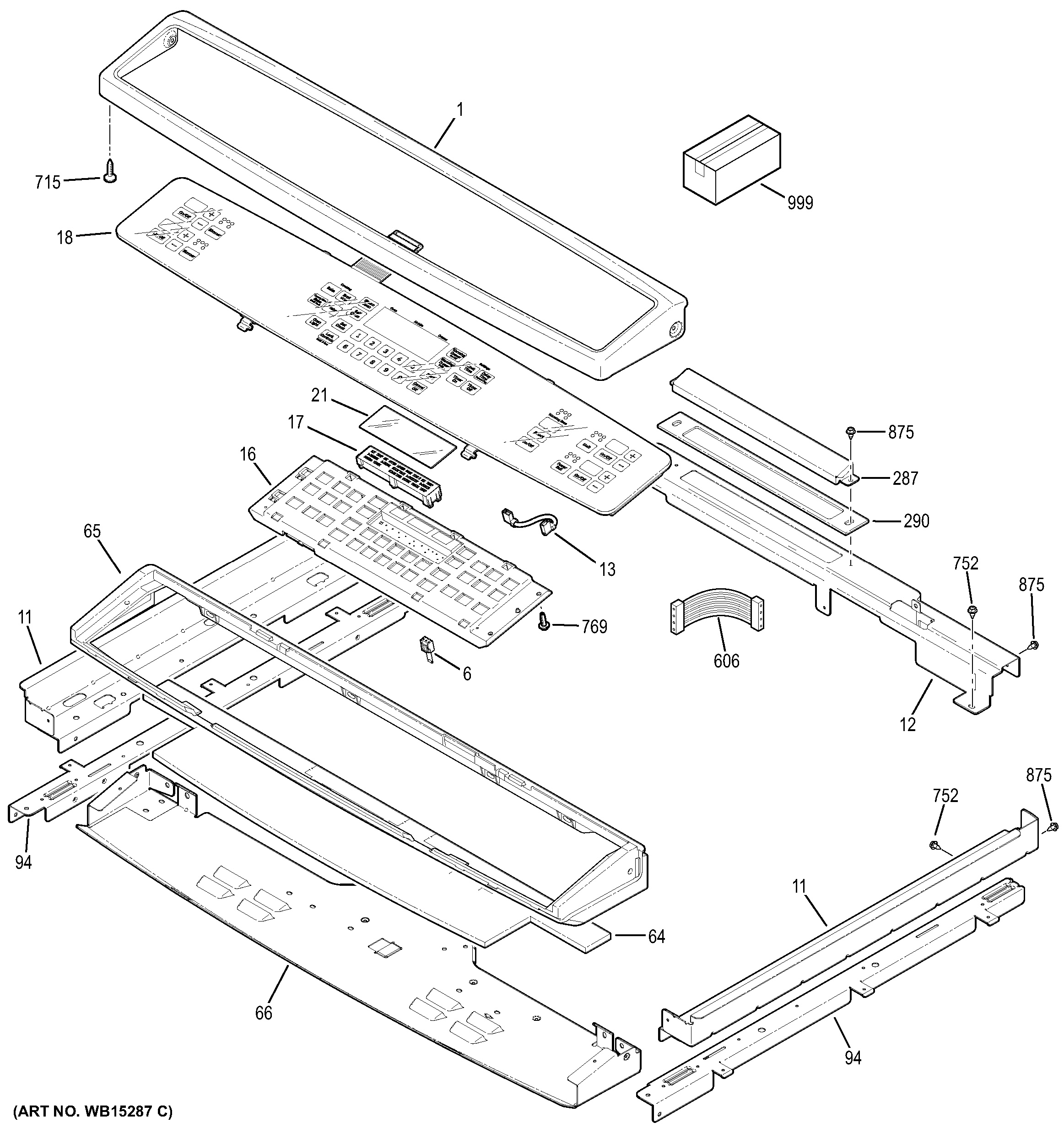

View Larger | Change Section/Diagram

1 — Diagram Number

RANGE CONTROL PANEL TRIM

WB36T11353

No Longer Available
Item has been replaced by
NLA ITEM

6 — Diagram Number

PLUG ASSEMBLY MODEL SELECTOR

WB02T10548

No Longer Available
Item has been replaced by
NLA ITEM

11 — Diagram Number

EXTENSION SIDE LEFT

WB07T10721

^$29.40

Add to Cart

11 — Diagram Number

EXTENSION SIDE - RIGHT

WB07X20967

^$27.60

Add to Cart

12 — Diagram Number

RANGE TRIM SUPPORT BRACKET

WB02T10552

^$21.70

Add to Cart

13 — Diagram Number

JUMPER

WB18T10506

No Longer Available
Item has been replaced by
WB18X30704

16 — Diagram Number

RANGE OVEN CONTROL BOARD

WB27X21393

^$470.83

Add to Cart

17 — Diagram Number

GUIDE & OVERLAY ASM

WB27T11121

No Longer Available
Item has been replaced by
NLA ITEM

18 — Diagram Number

GLASS CONTROL & BOARD ASSEMBLY

WB27X21439

^$931.25

Add to Cart

21 — Diagram Number

FILTER CLOCK DISPLAY

WB27T11116

^$12.48

Add to Cart

64 — Diagram Number

INSULATION ENCLOSURE

WB35T10241

No Longer Available
Item has been replaced by
NLA ITEM

65 — Diagram Number

PANEL CONTROL

WB56X21467

^$90.30

Add to Cart

66 — Diagram Number

ENCLOSURE CONTROL

WB34X21500

^$40.10

Add to Cart

94 — Diagram Number

OVEN BRACE CHASSIS SC RIGHT

WB02X21498

No Longer Available
Item has been replaced by
NLA ITEM

94 — Diagram Number

OVEN BRACE CHASSIS SC LEFT

WB02X21499

No Longer Available
Item has been replaced by
NLA ITEM

287 — Diagram Number

BARRIER VENT REAR

WB38T10038

No Longer Available
Item has been replaced by
NLA ITEM

290 — Diagram Number

RANGE VENT GASKET

WB04T10081

No Longer Available
Item has been replaced by
NLA ITEM

606 — Diagram Number

RIBBON CABLE WING BOARD

WB18T10437

^$57.96

Add to Cart

715 — Diagram Number

SCREW 8-18 AB HXW 3/4

WZ04X0416

^$350.00

Temporarily Out of Stock.

752 — Diagram Number

Screw

WB01K5200

No Longer Available
Item has been replaced by
WB1K5200

769 — Diagram Number

SCREW 8-18 AB HXW 3/8

WH02X0930

No Longer Available
Item has been replaced by
WH2X930

875 — Diagram Number

Screw 12 Pack

WZ4X245D

^$21.11

Add to Cart
