CONTROL PANEL & COOKTOP

(PHP9036SJ1SS)

26 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

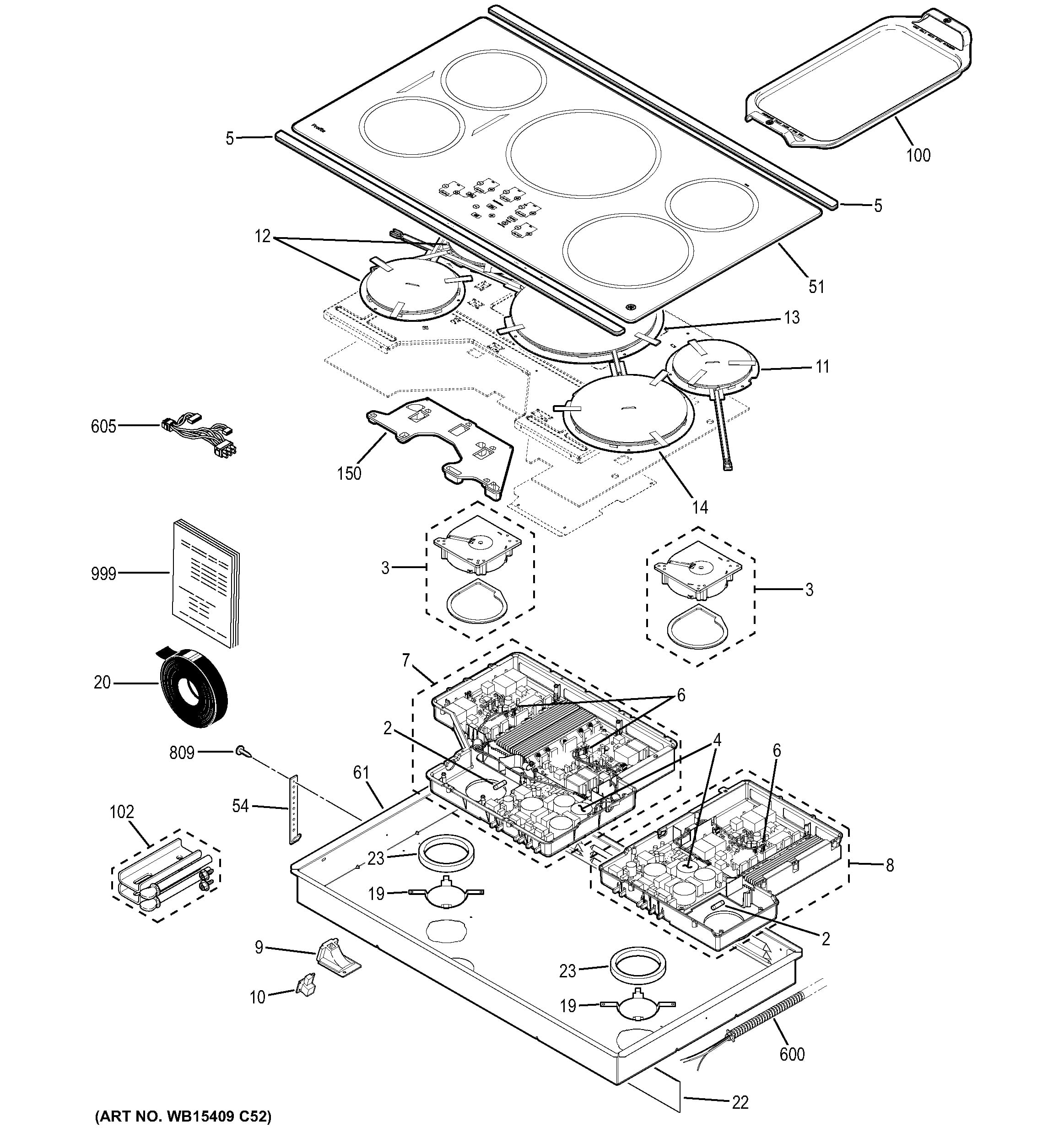

Use the diagram to find the number of the part you need.

2 — Diagram Number

FUSE 250V 20A FB

WB27X27316

^$9.99

Add to Cart

3 — Diagram Number

BLOWER & GASKET ASSEMBLY

WB26X24235

^$103.03

Add to Cart

4 — Diagram Number

FILTER BOARD

WB27X27315

^$247.59

Add to Cart

5 — Diagram Number

RANGE TRIM - STAINLESS STEEL

WB07X25366

No Longer Available
Item has been replaced by
WB07X43947

6 — Diagram Number

BOARD GENERATOR ASM

WB27X25596

No Longer Available
Item has been replaced by
WB27X27182

7 — Diagram Number

CONTROL ASM

WB27X24261

No Longer Available
Item has been replaced by
WB27X33085

8 — Diagram Number

CONTROL ASM

WB27X24265

No Longer Available
Item has been replaced by
WB27X33086

9 — Diagram Number

COOKTOP HOUSING RJ45

WB02X24122

No Longer Available
Item has been replaced by
WB27X20933

10 — Diagram Number

COOKTOP BOARD CONNECTOR RJ45

WB27X24119

^$20.47

Add to Cart

11 — Diagram Number

ELEMENT INDUCTION 1800W

WB30X24233

No Longer Available
Item has been replaced by
WB30X38225

12 — Diagram Number

ELEMENT INDUCTION 2500W

WB30X21490

No Longer Available
Item has been replaced by
WB30X38226

13 — Diagram Number

ELEMENT INDUCTION 3700W

WB30X24600

No Longer Available
Item has been replaced by
WB30X38227

14 — Diagram Number

ELEMENT INDUCTION 3200W

WB30X24239

No Longer Available
Item has been replaced by
WB30X38485

19 — Diagram Number

COOKTOP FAN ENCLOSURE

WB02X24262

^$60.44

Temporarily Out of Stock.

20 — Diagram Number

FOAM TAPE – MAINTOP

WB02X26088

^$37.07

Add to Cart

22 — Diagram Number

Cooktop Baffle

WB02X26802

^$65.29

Add to Cart

23 — Diagram Number

GASKET BOTTOM

WB35X24260

^$23.26

Add to Cart

51 — Diagram Number

Cooktop - Glass & Frame

WB62X24237

No Longer Available
Item has been replaced by
WB62X38605

54 — Diagram Number

HOLD DOWN BRACKET

WB02K5328

No Longer Available
Item has been replaced by
WB2K5328

61 — Diagram Number

BOTTOM BURN BOX

WB63X24264

^$77.10

Add to Cart

102 — Diagram Number

RANGE INSTALLATION KIT

WB01X24570

^$21.69

Add to Cart

150 — Diagram Number

GUIDE LIGHT SLEW USER INTERFACE ASSEMBLY

WB27X24230

^$43.88

Temporarily Out of Stock.

600 — Diagram Number

CONDUIT WIRE ASM

WB18X24535

^$126.00

Add to Cart

605 — Diagram Number

HARNESS WIRE GND ASM

WB18X24228

No Longer Available
Item has been replaced by
WB18X31454

605 — Diagram Number

HARNESS WIRE MAIN

WB18X24501

^$97.85

Add to Cart

809 — Diagram Number

SCREW ST10ABX.500TRNI

WB01X1137

No Longer Available
Item has been replaced by
WB1X1137
