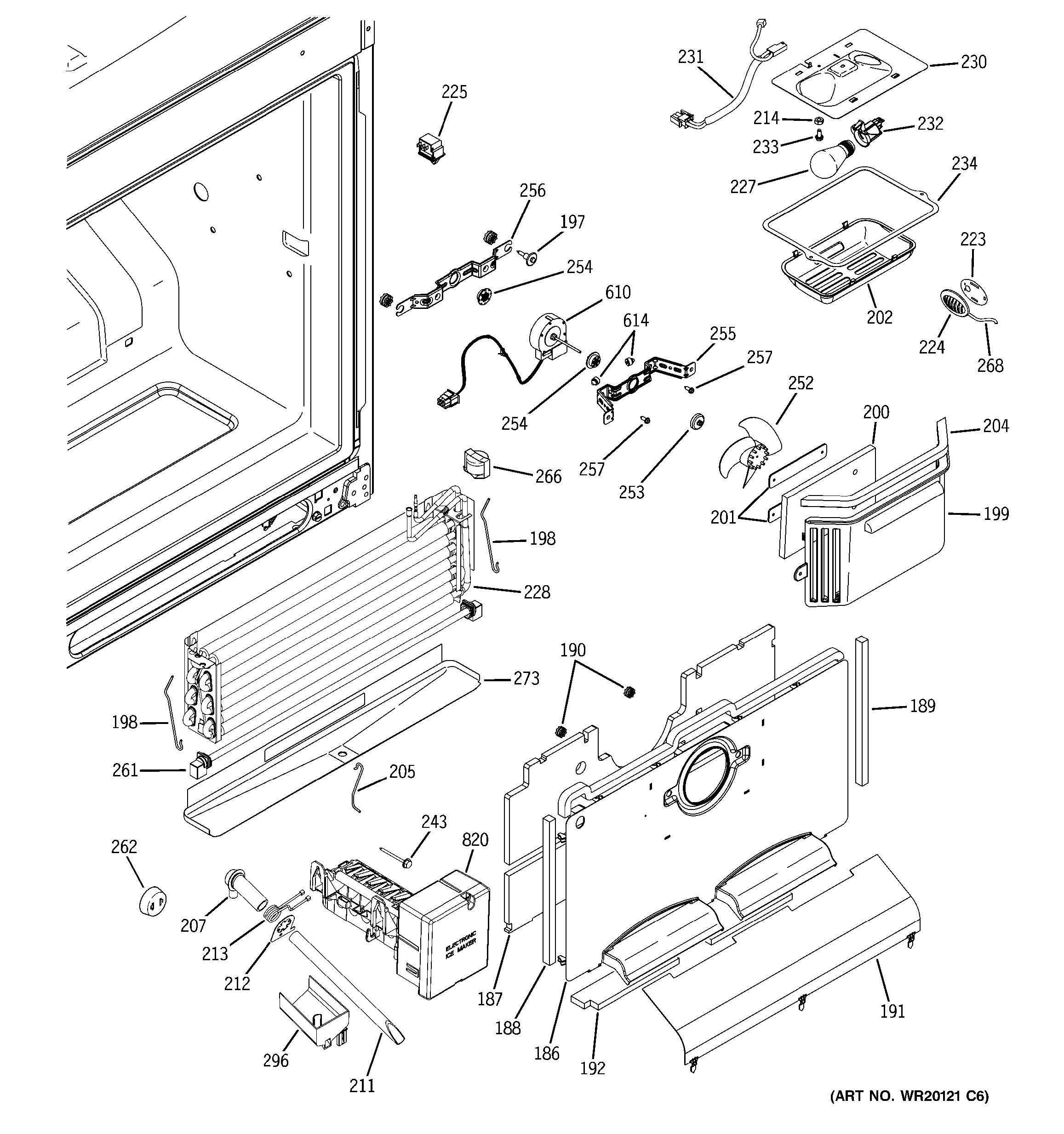

Assembly View for FREEZER SECTION

186 — Diagram Number

COVER EVAP

WR17X12251

No Longer Available
Item has been replaced by
NLA ITEM

187 — Diagram Number

FOAM PAD COVER EVAP

WR14X10220

No Longer Available

Temporarily Out of Stock.

188 — Diagram Number

FOAM STRIP SE ADH

WR14X10221

^$5.67

Add to Cart

189 — Diagram Number

FOAM STRIP SE ADH

WR14X10222

^$6.99

Add to Cart

190 — Diagram Number

GROMMET EVAP FAN

WR17X12252

No Longer Available
Item has been replaced by
WR02X11331

191 — Diagram Number

INSULATION COVER EVAP

WR17X12253

No Longer Available
Item has been replaced by
NLA ITEM

192 — Diagram Number

FOAMPAD COVER LOWER EVAP

WR14X10224

No Longer Available
Item has been replaced by
NLA ITEM

197 — Diagram Number

SCR 8-18 AB IHW

WR01X10685

^$5.40

Add to Cart

198 — Diagram Number

HEATER CONDUCTION

WR51X10052

^$5.67

Add to Cart

199 — Diagram Number

COVER EVAP FAN

WR17X12254

No Longer Available
Item has been replaced by
NLA ITEM

200 — Diagram Number

FOAM PAD COVER EVAP

WR14X10225

No Longer Available
Item has been replaced by
NLA ITEM

201 — Diagram Number

HOLDER FOAM PAD

WR14X10226

No Longer Available
Item has been replaced by
NLA ITEM

202 — Diagram Number

FZ LIGHT SHIELD

WR17X12255

No Longer Available
Item has been replaced by
NLA ITEM

204 — Diagram Number

FOAM STRIP SE ADH

WR14X10223

No Longer Available
Item has been replaced by
NLA ITEM

205 — Diagram Number

HEATER CONDUCTION

WR51X10092

No Longer Available
Item has been replaced by
NLA ITEM

207 — Diagram Number

GROMMET WATER FILL

WR02X9153

No Longer Available
Item has been replaced by
WR2X8474

211 — Diagram Number

REFRIGERATOR ICE MAKER FILL TUBE

WR17X12258

No Longer Available
Item has been replaced by
NLA ITEM

212 — Diagram Number

PLATE GROUNDING

WR17X12259

No Longer Available
Item has been replaced by
NLA ITEM

213 — Diagram Number

HEATER FILL TUBE ASM

WR51X10093

No Longer Available
Item has been replaced by
NLA ITEM

214 — Diagram Number

NUT 8-32

WR01X10212

^$6.07

Add to Cart

223 — Diagram Number

Refrigerator Thermistor Shunt Cover

WR02X10668

^$6.97

Add to Cart

224 — Diagram Number

Refrigerator grille sensor

WR02X10647

^$7.05

Add to Cart

225 — Diagram Number

Refrigerator Light Switch

WR23X10179

No Longer Available
Item has been replaced by
WR23X21444

227 — Diagram Number

Lamp

WR02X12289

No Longer Available
Item has been replaced by
40A15

228 — Diagram Number

LOW SIDE ASSEMBLY

WR85X10087

No Longer Available
Item has been replaced by
NLA ITEM

230 — Diagram Number

REFLECTOR LAMP FZ

WR02X12386

No Longer Available

Temporarily Out of Stock.

231 — Diagram Number

HARNESS FZ LT

WR23X10536

No Longer Available
Item has been replaced by
NLA ITEM

232 — Diagram Number

SOCKET, LIGHT

WR02X9391

No Longer Available
Item has been replaced by
WR2X9391

233 — Diagram Number

SCREW SERV PANEL

WD02X0323

No Longer Available
Item has been replaced by
WD2X323D

234 — Diagram Number

GASKET FZ LIGHT

WR14X10236

No Longer Available
Item has been replaced by
NLA ITEM

243 — Diagram Number

SCR 8-18 AB HXW 5/4 S

WR01X10626

^$6.95

Add to Cart

252 — Diagram Number

REFRIGERATOR EVAPORATOR FAN BLADE

WR60X10208

No Longer Available
Item has been replaced by
WR60X30922

253 — Diagram Number

Refrigerator dust cap

WR02X10322

^$14.82

Add to Cart

254 — Diagram Number

Refrigerator Evaporator Fan Grommet Red

WR02X12008

^$6.09

Add to Cart

255 — Diagram Number

BRACKET EVAP FAN FRT

WR17X12269

^$12.40

Add to Cart

256 — Diagram Number

BRACKET EVAP FAN REAR

WR17X12270

^$13.13

Add to Cart

257 — Diagram Number

SCREW 10-32 CA HXWS 9/16 S

WR01X10620

^$6.07

Add to Cart

261 — Diagram Number

HEATER DEF ASM

WR51X10094

^$87.54

Add to Cart

266 — Diagram Number

Refrigerator Defrost Thermostat

WR50X10065

^$58.18

Add to Cart

268 — Diagram Number

SENSOR TEMPERATURE

WR55X10711

No Longer Available
Item has been replaced by
WR55X10025

273 — Diagram Number

TUBE DRAIN TROUGH

WR17X12303

No Longer Available
Item has been replaced by
NLA ITEM

296 — Diagram Number

CUP FILL IM

WR29X10064

No Longer Available
Item has been replaced by
WR29X10092

610 — Diagram Number

Refrigerator Evaporator Fan Motor DC

WR60X10185

^$90.50

Temporarily Out of Stock.

614 — Diagram Number

Refrigerator Grommet Lid Bumper

WR02X10540

^$6.07

Add to Cart

820 — Diagram Number

Refrigerator Ice Maker Assembly

WR30X10087

No Longer Available
Item has been replaced by
WR30X35285

FREEZER SECTION

(PFSS5PJXASS)

45 Results
