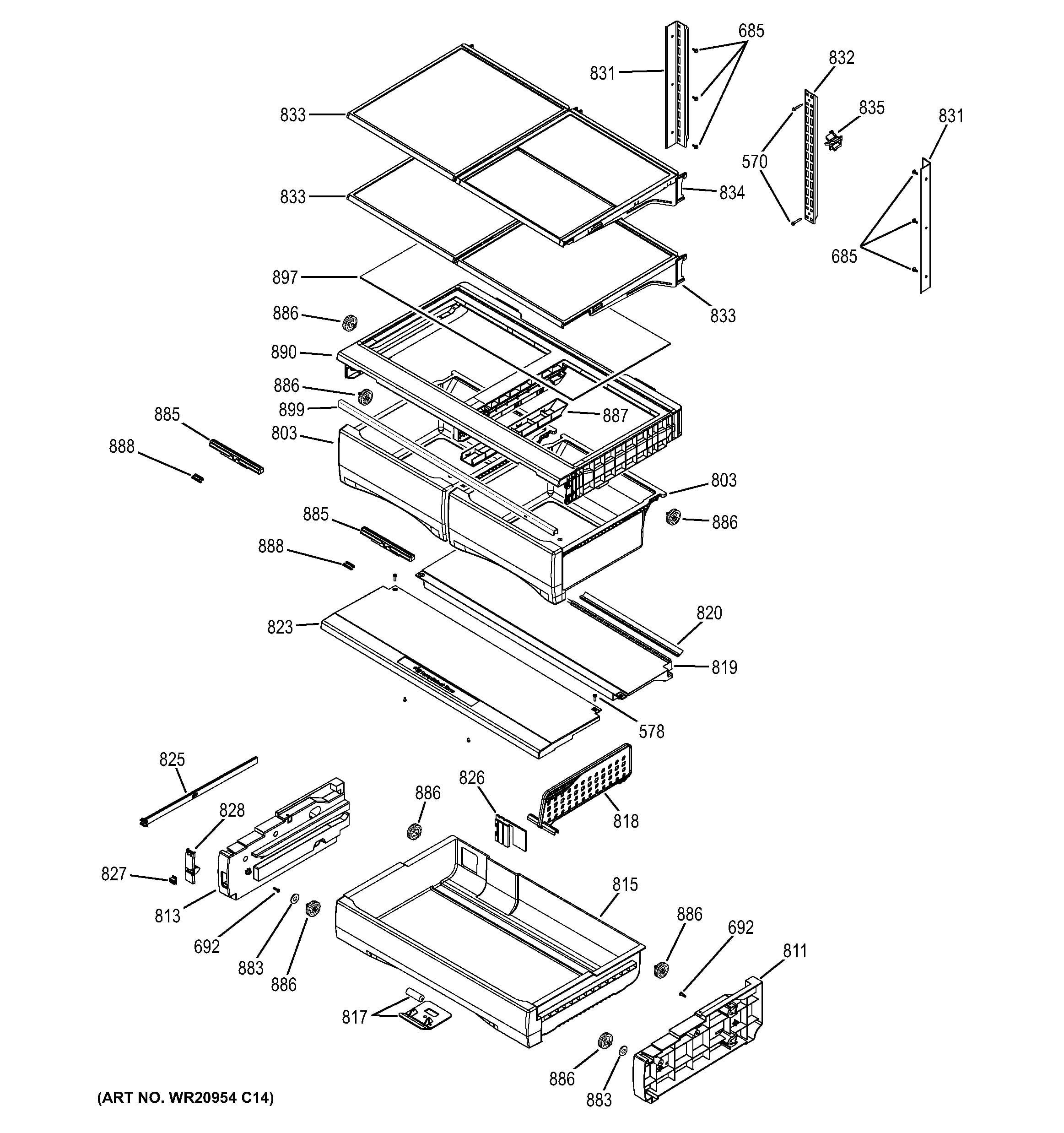

Assembly View for FRESH FOOD SHELVES

570 — Diagram Number

Screw

WR01X1757

No Longer Available
Item has been replaced by
WR01X10626

578 — Diagram Number

Refrigerator 1/4" hex head approx. 9/16" long mounting screw used in multiple locations

WR01X11012

^$6.07

Add to Cart

685 — Diagram Number

SCREW, ICE SHELF

WR01X1804

No Longer Available
Item has been replaced by
WR01X10606

692 — Diagram Number

SCREW 8-18 AB HXW 3/4

WZ04X0416

^$350.00

Temporarily Out of Stock.

803 — Diagram Number

Refrigerator fresh food vegetable pan

WR32X10891

No Longer Available
Item has been replaced by
NLA ITEM

811 — Diagram Number

Refrigerator MP support - right

WR72X10442

No Longer Available
Item has been replaced by
NLA ITEM

813 — Diagram Number

Refrigerator art support side LH assembly

WR72X10443

No Longer Available
Item has been replaced by
NLA ITEM

815 — Diagram Number

Refrigerator meat pan assembly

WR32X10890

^$199.52

Temporarily Out of Stock.

817 — Diagram Number

ROLLER SUMP ASM

WR02X13680

No Longer Available

Temporarily Out of Stock.

818 — Diagram Number

Refrigerator white sliding plastic divider located in the meat/deli pan

WR17X13074

^$25.62

Add to Cart

819 — Diagram Number

Refrigerator rear half of the fresh food meat fan cover

WR72X10438

No Longer Available
Item has been replaced by
NLA ITEM

820 — Diagram Number

Refrigerator meat pan gasket

WR14X10368

^$5.40

Temporarily Out of Stock.

823 — Diagram Number

Refrigerator front part of the cover for the meat/deli pan

WR32X10889

No Longer Available
Item has been replaced by
NLA ITEM

825 — Diagram Number

Refrigerator manual damper lever

WR02X13707

No Longer Available
Item has been replaced by
NLA ITEM

826 — Diagram Number

Refrigerator damper that mounts to fresh food evaporator cover for adjusting meat/deli pan temps

WR02X13695

No Longer Available
Item has been replaced by
NLA ITEM

827 — Diagram Number

Refrigerator manual damper switch

WR02X13692

No Longer Available
Item has been replaced by
NLA ITEM

828 — Diagram Number

Refrigerator adjusting know that slides up and down to adjust temp in meat/deli drawer

WR02X13691

No Longer Available
Item has been replaced by
NLA ITEM

831 — Diagram Number

Refrigerator right and left tracks mounted to the fresh food liner for adjustable shelves to mount on

WR72X10430

No Longer Available
Item has been replaced by
NLA ITEM

832 — Diagram Number

Refrigerator center track mounted to the fresh food liner for adjustable shelves to mount on

WR72X10429

^$24.16

Add to Cart

833 — Diagram Number

Refrigerator fresh food half width adjustable glass shelves

WR32X10898

No Longer Available
Item has been replaced by
NLA ITEM

834 — Diagram Number

Refrigerator tuck away shelf assembly

WR32X10896

No Longer Available
Item has been replaced by
NLA ITEM

835 — Diagram Number

Refrigerator fresh food center cant track support spacer. Located on the back of the fresh food

WR02X13679

^$6.09

Add to Cart

883 — Diagram Number

WASHER

WR01X11067

No Longer Available
Item has been replaced by
NLA ITEM

885 — Diagram Number

Refrigerator temp control slide that is mounted inside the veg bin cover

WR17X13073

^$6.07

Add to Cart

886 — Diagram Number

Refrigerator fresh food bin roller mounted to supports

WR02X13658

^$6.13

Add to Cart

887 — Diagram Number

Refrigerator vegetable pan roller guide

WR72X10444

^$6.07

Temporarily Out of Stock.

888 — Diagram Number

Refrigerator small slider knob for the veg bin cover

WR02X13677

No Longer Available
Item has been replaced by
WR17X24925

890 — Diagram Number

ART FRAME VP ASSEMBLY

WR32X10892

^$70.44

Add to Cart

897 — Diagram Number

Refrigerator glass insert for the veg bin cover frame

WR32X10893

^$30.55

Add to Cart

899 — Diagram Number

Refrigerator Reinforcement Bar

WR02X21803

^$22.58

Add to Cart

FRESH FOOD SHELVES

(PFE27KSDCSS)

30 Results
