FRESH FOOD SECTION

(PFE27KSDCSS)

20 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

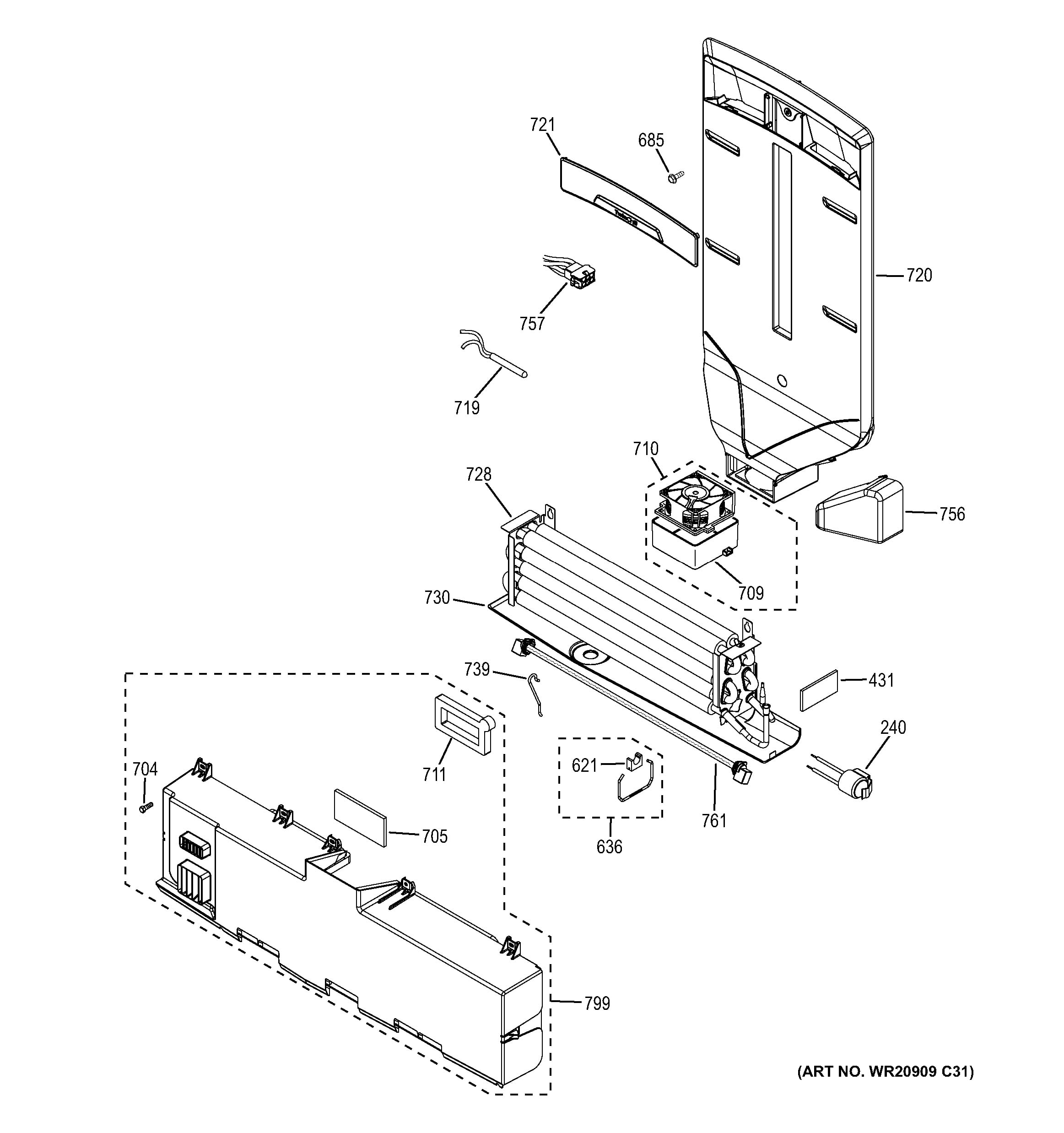

240 — Diagram Number

Refrigerator fresh food defrost 140 degree safety thermostat

WR50X10109

No Longer Available
Item has been replaced by
WR50X10108

431 — Diagram Number

Refrigerator block evaporation seal

WR02X13725

^$6.07

Add to Cart

621 — Diagram Number

HOLDER ELEMENT ASM

WR02X10518

^$6.27

Add to Cart

636 — Diagram Number

Refrigerator wire clip and ceramic insulator to support the middle of the defrost heater

WR02X13678

^$6.17

Add to Cart

685 — Diagram Number

SCREW, ICE SHELF

WR01X1804

No Longer Available
Item has been replaced by
WR01X10606

704 — Diagram Number

Refrigerator screw 8-18 HI/LO HWX 3/4

WR01X11061

^$6.07

Add to Cart

705 — Diagram Number

Refrigerator Fan Front Gasket (FF)

WR02X13731

^$28.76

Add to Cart

709 — Diagram Number

Refrigerator fresh food section, boot attaches to fresh food fan

WR24X10292

No Longer Available
Item has been replaced by
WR24X27948

710 — Diagram Number

Refrigerator fan assembly

WR60X10357

No Longer Available
Item has been replaced by
WR60X26866

711 — Diagram Number

Refrigerator gasket damper MP

WR24X10289

^$13.15

Add to Cart

719 — Diagram Number

SENSOR TEMPERATURE

WR55X11152

No Longer Available
Item has been replaced by
WR55X10025

720 — Diagram Number

FF AIR DUCT ASM

WR17X13081

No Longer Available
Item has been replaced by
WR17X35668

721 — Diagram Number

Refrigerator diverter and badge assembly

WR17X13243

No Longer Available
Item has been replaced by
NLA ITEM

728 — Diagram Number

Refrigerator evaporation and tube assembly

WR85X10154

No Longer Available
Item has been replaced by
WR87X36103

730 — Diagram Number

Refrigerator fresh food evaporator drain trough

WR17X13091

^$34.59

Add to Cart

739 — Diagram Number

Refrigerator heater

WR51X10133

^$5.67

Add to Cart

756 — Diagram Number

Refrigerator White od shaped cover mounted just above the fresh food evaporator cover to the right of the air tower

WR17X13048

^$6.07

Add to Cart

757 — Diagram Number

Refrigerator 120 VAC harness for the defrost heater wiring

WR23X10753

No Longer Available
Item has been replaced by
WR23X23626

761 — Diagram Number

Refrigerator fresh food defrost heater

WR51X10132

^$40.43

Temporarily Out of Stock.

799 — Diagram Number

Refrigerator evaporation cover assembly

WR17X13142

^$122.06

Add to Cart
