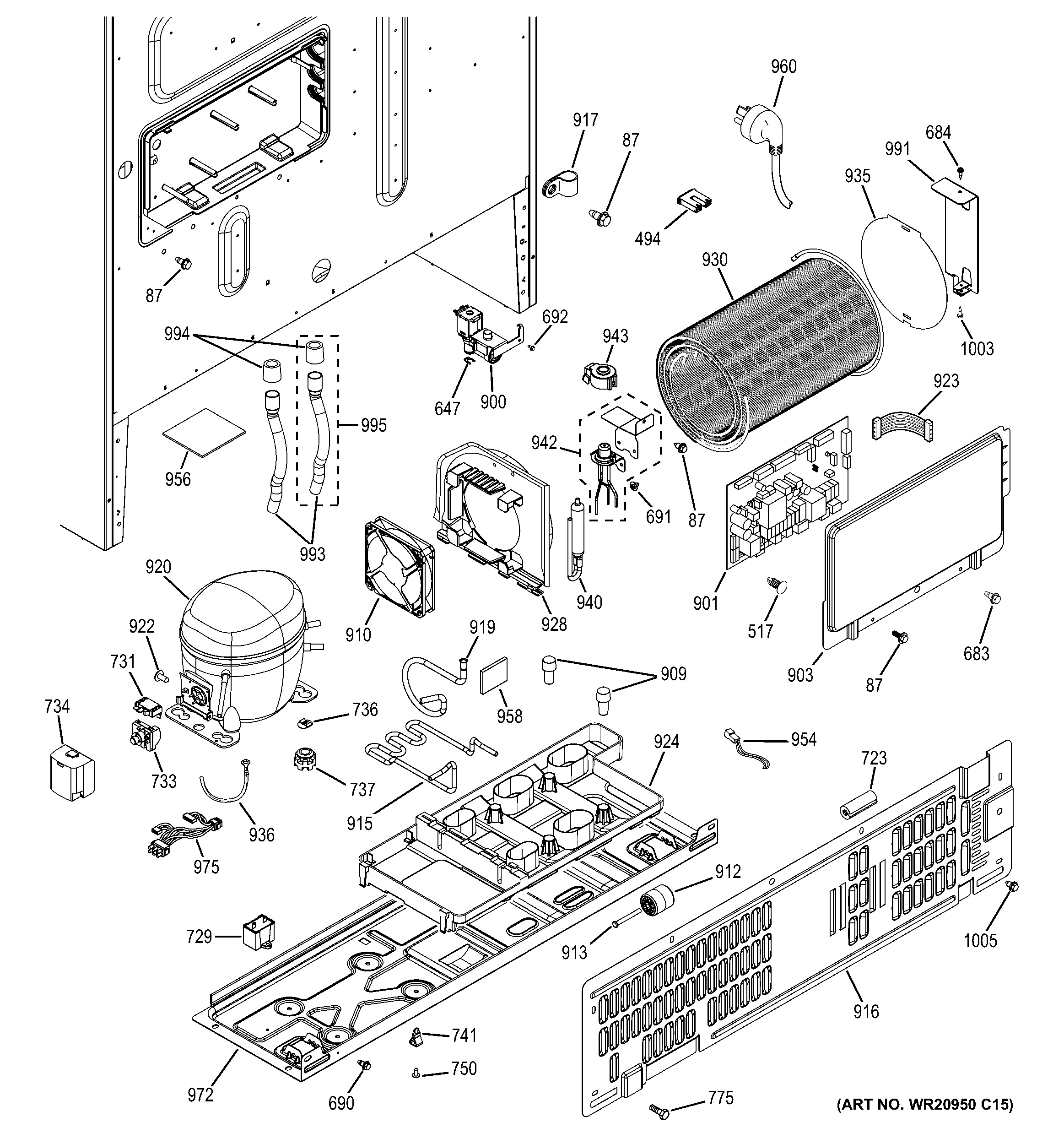

Assembly View for MACHINE COMPARTMENT

87 — Diagram Number

Refrigerator Screw

WR01X10588

^$6.07

Add to Cart

494 — Diagram Number

HOUSING SPECIAL

WD01X1459

No Longer Available
Item has been replaced by
WD1X1459

517 — Diagram Number

Refrigerator plastic push pin for mounting freezer divider support to the freezer divider

WR01X11050

No Longer Available
Item has been replaced by
NLA ITEM

647 — Diagram Number

Refrigerator Security clip for 1/4" water line quick connectors

WR01X11041

^$6.11

Add to Cart

683 — Diagram Number

SCR 8-32 AB IHWS 3/8 S

WR01X10602

^$6.07

Add to Cart

684 — Diagram Number

Screw 8-32 Ca Ihxw .625 S

WR01X10635

^$5.40

Add to Cart

690 — Diagram Number

SCREW, GROUND

WZ05X0158

No Longer Available
Item has been replaced by
WZ5X158D

692 — Diagram Number

SCREW 8-18 AB HXW 3/4

WZ04X0416

^$350.00

Temporarily Out of Stock.

723 — Diagram Number

GROMMET TUBING SLIT

WR14X10055

^$6.07

Add to Cart

729 — Diagram Number

CAPACITOR

WR62X0079

No Longer Available
Item has been replaced by
WR55X24064

731 — Diagram Number

Refrigerator overload

WR08X10135

No Longer Available
Item has been replaced by
NLA ITEM

733 — Diagram Number

Refrigerator Compressor start relay mounted to the compressor

WR07X10083

^$70.23

Add to Cart

736 — Diagram Number

CLIP COMPRESSOR MOUNT

WR02X8583

No Longer Available
Item has been replaced by
WR2X8583

737 — Diagram Number

Refrigerator grommet compressor

WR02X13728

No Longer Available
Item has been replaced by
NLA ITEM

741 — Diagram Number

STUD MTG COMPR

WR01X1779

No Longer Available
Item has been replaced by
WR1X1779

750 — Diagram Number

SCREW 10-32 TR 1/2

WR01X1786

No Longer Available
Item has been replaced by
WR1X1786

775 — Diagram Number

Hex head sheet metal screw size # 10-16, 3/8" long

WD02X10126

^$5.67

Add to Cart

900 — Diagram Number

Refrigerator ISO water valve assembly

WR55X11128

^$44.72

Add to Cart

901 — Diagram Number

BOARD ASM MAIN CONTROL

WR55X11212

No Longer Available
Item has been replaced by
WR55X46805

903 — Diagram Number

Refrigerator mainboard cover

WR02X13714

No Longer Available
Item has been replaced by
WR02X25126

909 — Diagram Number

Refrigerator support condenser

WR02X13668

^$6.19

Add to Cart

910 — Diagram Number

Refrigerator fan condenser DC

WR60X10358

^$106.83

Not Available for Online Consumer Purchase
Call 1.800.432.2737 to Schedule Service.

912 — Diagram Number

Refrigerator wheel

WR02X13685

^$6.12

Add to Cart

913 — Diagram Number

Refrigerator rear wheel axle pin. Use WR49X10268 kit

WR01X11008

^$6.07

Add to Cart

915 — Diagram Number

Refrigerator jumper comp discharge

WR84X10112

No Longer Available
Item has been replaced by
NLA ITEM

916 — Diagram Number

Refrigerator cover access

WR82X10127

No Longer Available
Item has been replaced by
WR82X37208

917 — Diagram Number

Refrigerator Clamp for mounting water tubing to case back

WR01X11026

No Longer Available
Item has been replaced by
NLA ITEM

919 — Diagram Number

TUBE SUCTION JUMPER

WR87X20008

No Longer Available
Item has been replaced by
NLA ITEM

920 — Diagram Number

Refrigerator compressor kit

WR87X10211

No Longer Available
Item has been replaced by
WR87X20798

922 — Diagram Number

SCR8-32 TT PNT 5/8S

WR01X11037

No Longer Available
Item has been replaced by
WR01X11038

923 — Diagram Number

Refrigerator machine compartment main board. Personality harness

WR23X10757

No Longer Available
Item has been replaced by
NLA ITEM

924 — Diagram Number

Refrigerator pan drain

WR32X10862

No Longer Available

Temporarily Out of Stock.

928 — Diagram Number

Refrigerator plenum condenser fan assembly

WR17X13046

No Longer Available
Item has been replaced by
NLA ITEM

930 — Diagram Number

Refrigerator condenser formed assembly

WR84X10115

^$223.69

Add to Cart

935 — Diagram Number

Refrigerator baffle air condenser

WR17X13045

^$17.76

Add to Cart

936 — Diagram Number

Refrigerator harness ground

WR23X10748

^$5.40

Add to Cart

940 — Diagram Number

DRYER FILTER

WR86X10089

No Longer Available
Item has been replaced by
WR86X25269

942 — Diagram Number

VALVE BODY ASM

WR86X10094

^$66.28

Add to Cart

943 — Diagram Number

COIL 3 WAY VALVE

WR86X10091

No Longer Available
Item has been replaced by
WR86X10094

954 — Diagram Number

Refrigerator machine compartment, harness to compressor inverter

WR23X10768

^$15.33

Add to Cart

956 — Diagram Number

Refrigerator mastic pad

WR02X13713

^$10.52

Add to Cart

958 — Diagram Number

Refrigerator sound deadening mastic that is used in the compressor compartment

WR02X13724

^$14.16

Add to Cart

960 — Diagram Number

Refrigerator power cord

WR23X10744

^$39.66

Add to Cart

972 — Diagram Number

Refrigerator base compressor

WR17X13128

No Longer Available

Temporarily Out of Stock.

975 — Diagram Number

Refrigerator harness jumper hi side

WR23X10764

No Longer Available
Item has been replaced by
NLA ITEM

991 — Diagram Number

Refrigerator bracket condenser

WR02X13622

^$7.26

Add to Cart

993 — Diagram Number

Refrigerator trap drain tube

WR02X13710

No Longer Available
Item has been replaced by
WR02X28554

994 — Diagram Number

Refrigerator defrost drain tube check valve

WR01X11006

No Longer Available
Item has been replaced by
WR02X28554

995 — Diagram Number

554 FGDRAIN TUBE AND VA

WR02X13772

No Longer Available
Item has been replaced by
WR02X28554

1003 — Diagram Number

Screw 8-18 TPT 1/4

WR01X10618

^$6.07

Add to Cart

1005 — Diagram Number

SCR 1/4-20 HXW 7/8 S

WR01X11072

No Longer Available
Item has been replaced by
WR01X11049

MACHINE COMPARTMENT

(PFE27KSDCSS)
