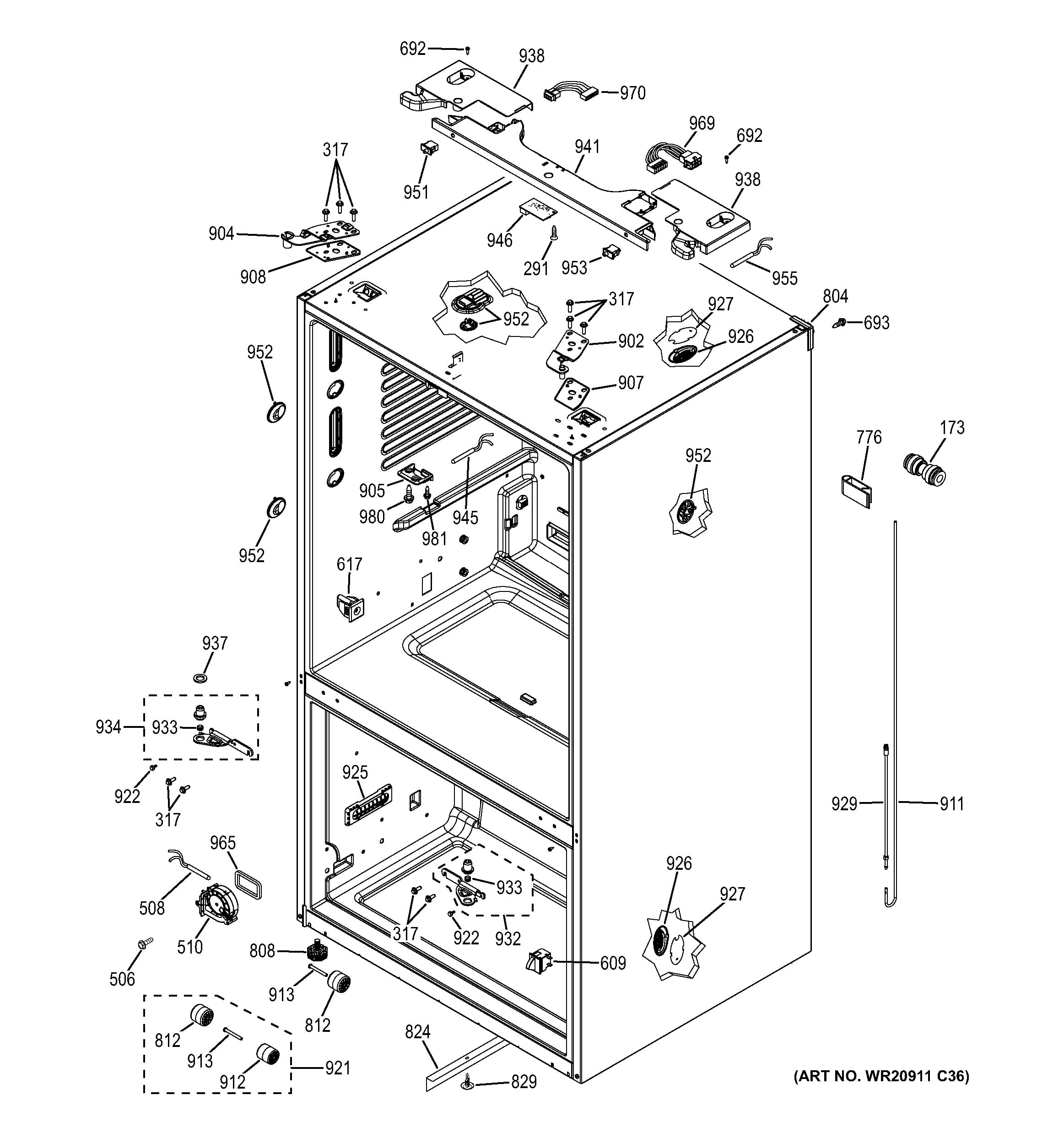

Assembly View for CASE PARTS

173 — Diagram Number

REFRIGERATOR UNION CONNECTOR - 1/4"

WR02X13738

^$9.32

Add to Cart

291 — Diagram Number

SCR 8-10 PL PNP 1/2 S

WR01X10649

^$5.46

Add to Cart

317 — Diagram Number

Refrigerator large mounting screws for bottom and top fresh food door hinges

WR01X11049

^$6.07

Add to Cart

506 — Diagram Number

Dishwasher HEX HEAD SCREW 8-16 1/2 STAINLESS STEEL

WD02X10067

^$6.07

Add to Cart

508 — Diagram Number

SENSOR TEMPERATURE

WR55X11151

No Longer Available
Item has been replaced by
WR55X10025

510 — Diagram Number

Refrigerator fan motor located in the freezer behind the evaporator cover for supplying air to the ice box on the left fresh food door

WR60X10342

No Longer Available
Item has been replaced by
WR60X36825

609 — Diagram Number

Refrigerator Light Switch

WR23X10143

No Longer Available
Item has been replaced by
WR23X37285

617 — Diagram Number

WASHING MACHINE GROMMET SCR CLOSED

WR02X8349

No Longer Available
Item has been replaced by
WR2X8349

692 — Diagram Number

SCREW 8-18 AB HXW 3/4

WZ04X0416

^$350.00

Temporarily Out of Stock.

693 — Diagram Number

Refrigerator rear top corner cap mounting screw

WR01X10593

^$5.67

Add to Cart

776 — Diagram Number

CLAMP TUBE

WR02X10522

^$6.07

Add to Cart

804 — Diagram Number

Refrigeration cap case corner assembly (DGY)

WR02X13759

^$6.07

Add to Cart

808 — Diagram Number

Refrigerator front leveling leg

WR01X11046

^$77.53

Add to Cart

812 — Diagram Number

FRONT/REAR WHEEL KIT

WR02X13694

No Longer Available
Item has been replaced by
WR02X13616

824 — Diagram Number

Refrigerator baffle air high side

WR17X13096

No Longer Available
Item has been replaced by
NLA ITEM

829 — Diagram Number

BEAUTY BUTTON-WHT

WR02X8693

No Longer Available
Item has been replaced by
WR01X21159

902 — Diagram Number

Refrigerator hinge top and pin assembly - right

WR13X10974

No Longer Available
Item has been replaced by
NLA ITEM

904 — Diagram Number

Refrigerator hinge top and pin assembly - left

WR13X10975

No Longer Available
Item has been replaced by
NLA ITEM

905 — Diagram Number

Refrigerator plastic piece in the top front center of the fresh food liner that the mullion on the left door engages

WR02X13716

No Longer Available
Item has been replaced by
WR01X31733

907 — Diagram Number

Refrigerator top hinge pad assembly- right

WR02X13717

^$6.07

Add to Cart

908 — Diagram Number

Refrigerator plastic piece under the top left fresh food door hinge

WR02X13718

^$6.07

Add to Cart

911 — Diagram Number

Refrigerator PEX tubing 55.3 IN

WR02X13673

No Longer Available
Item has been replaced by
WR02X48625

912 — Diagram Number

Refrigerator wheel

WR02X13685

^$6.12

Add to Cart

913 — Diagram Number

Refrigerator rear wheel axle pin. Use WR49X10268 kit

WR01X11008

^$6.07

Add to Cart

921 — Diagram Number

Refrigerator front/rear wheel and axle

WR49X10268

^$9.32

Add to Cart

922 — Diagram Number

SCR8-32 TT PNT 5/8S

WR01X11037

No Longer Available
Item has been replaced by
WR01X11038

925 — Diagram Number

Refrigerator freezer louver duct return

WR02X13623

^$6.23

Add to Cart

926 — Diagram Number

Refrigerator grill that the fresh food and freezer thermistors mount into which then mount into the liner

WR02X13729

^$6.07

Add to Cart

927 — Diagram Number

Refrigerator shunt sensor

WR01X11066

^$5.67

Add to Cart

929 — Diagram Number

TUBE LEAD

WR02X13774

^$20.80

Add to Cart

932 — Diagram Number

Refrigerator hinge center assembly -right

WR13X10976

^$42.70

Add to Cart

933 — Diagram Number

Refrigerator Screw Hinge Center Adj

WR01X11016

^$5.67

Add to Cart

934 — Diagram Number

Refrigerator hinge center assembly -left

WR13X10982

^$39.90

Add to Cart

937 — Diagram Number

WASHER

WR01X11047

^$6.07

Add to Cart

938 — Diagram Number

Refrigerator 2 pack hinge end cap assembly(gray)

WR17X20164

^$52.24

Add to Cart

941 — Diagram Number

Refrigerator middle top cover (dark grey)

WR17X13217

No Longer Available
Item has been replaced by
WR17X13226

945 — Diagram Number

SENSOR TEMPERATURE

WR55X11150

No Longer Available
Item has been replaced by
WR55X10025

946 — Diagram Number

PCB ASM SENSOR ME

WR55X20071

No Longer Available
Item has been replaced by
WR55X24585

951 — Diagram Number

Refrigerator case parts. Left fresh food door light switch black

WR23X10749

No Longer Available
Item has been replaced by
WR23X29170

952 — Diagram Number

Led Cover Assembly - Fresh Food

WR55X11132

^$27.12

Add to Cart

953 — Diagram Number

SWITCH LIGHT FF RH

WR23X10750

No Longer Available
Item has been replaced by
WR23X29170

955 — Diagram Number

SENSOR TEMPERATURE

WR55X11153

No Longer Available
Item has been replaced by
WR55X10025

965 — Diagram Number

GASKET DUCT FAN IM

WR14X10384

^$1.24

Add to Cart

969 — Diagram Number

Refrigerator harness door switch AC

WR23X10776

^$18.21

Add to Cart

970 — Diagram Number

Refrigerator case parts door case harness left side of case

WR23X10777

^$28.39

Add to Cart

980 — Diagram Number

Refrigerator screw 8-18 AB HXWP 9/16S

WR01X11060

^$5.67

Add to Cart

981 — Diagram Number

SCR 8-18 AB FLP 3/4 S ZN

WR01X11065

^$5.67

Add to Cart

CASE PARTS

(PFE27KSDCSS)

47 Results
