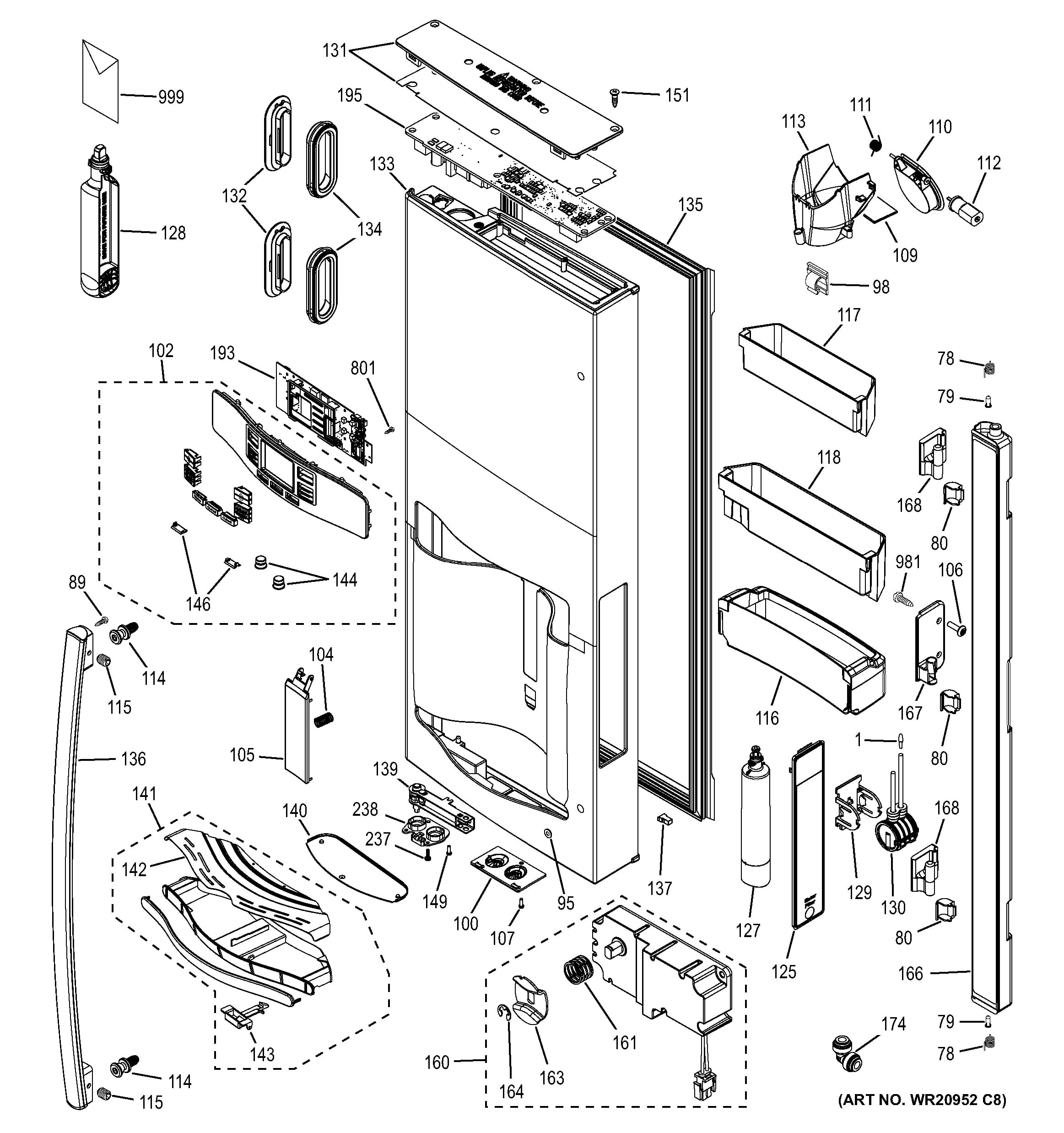

Assembly View for DISPENSER DOOR

1 — Diagram Number

Refrigerator Plug Tube

WR01X11068

^$5.40

Add to Cart

78 — Diagram Number

Refrigerator springs for articulating mullion on the left fresh food door

WR01X11052

^$6.07

Add to Cart

79 — Diagram Number

Refrigerator plastic tip for spring for articulating mullion on the left fresh food door

WR01X11053

^$6.07

Add to Cart

80 — Diagram Number

Refrigerator hinge cap

WR02X13739

^$6.07

Add to Cart

89 — Diagram Number

Refrigerator Screw for fresh food door handles assembly

WR01X11044

^$6.13

Add to Cart

95 — Diagram Number

Refrigerator washer

WR01X11051

^$5.25

Add to Cart

98 — Diagram Number

Refrigerator plastic clip to hold duct door motor in place (not always needed)

WR01X11064

^$6.07

Add to Cart

100 — Diagram Number

Refrigerator the freezer LED lighting in the bottom of the fresh food door which is the freezer lighting

WR55X11122

No Longer Available
Item has been replaced by
NLA ITEM

102 — Diagram Number

DISPLAY ASM

WR17X13135

No Longer Available
Item has been replaced by
NLA ITEM

104 — Diagram Number

Refrigerator spring

WR01X11027

^$6.07

Add to Cart

105 — Diagram Number

Refrigerator cover paddle assembly (stainless steel)

WR17X13060

^$32.79

Temporarily Out of Stock.

106 — Diagram Number

Refrigerator white 1/2" long T15 Torx head screw

WR01X11054

^$6.07

Add to Cart

107 — Diagram Number

Refrigerator screw 8-18 FLP 1/2 S

WR01X11029

^$5.67

Add to Cart

109 — Diagram Number

Refrigerator piece that mounts to the dispenser funnel, should come with the funnel assembly

WR17X13059

No Longer Available
Item has been replaced by
NLA ITEM

110 — Diagram Number

Refrigerator door duct assembly

WR17X13057

No Longer Available
Item has been replaced by
WR17X13241

111 — Diagram Number

Refrigerator Duct Spring

WR01X11017

^$6.07

Add to Cart

112 — Diagram Number

Refrigerator left fresh food door duct door motor to open and close the ice duct of the dispenser

WR60X10344

^$46.77

Add to Cart

113 — Diagram Number

Refrigerator clear plastic funnel that the ice cubes fall through. Mounted behind the dispenser display board.

WR17X13058

No Longer Available
Item has been replaced by
WR17X30495

114 — Diagram Number

Refrigerator door handle fastener

WR01X11007

^$6.07

Add to Cart

115 — Diagram Number

Refrigerator Set screw for mounting handles to door studs

WR01X11014

^$7.45

Add to Cart

116 — Diagram Number

Refrigerator left fresh food door bottom bin that mounts to the inside of the door

WR71X11041

No Longer Available
Item has been replaced by
NLA ITEM

117 — Diagram Number

Refrigerator left fresh food door top bin that mounts to the inside of the door

WR71X11045

^$32.24

Add to Cart

118 — Diagram Number

Refrigerator middle door ice bin (left)

WR71X11046

^$32.25

Add to Cart

125 — Diagram Number

Refrigerator filter door assembly for left fresh food door dark gray color

WR02X13742

No Longer Available
Item has been replaced by
NLA ITEM

127 — Diagram Number

GE® Refrigerator Water Filter

RPWF

No Longer Available
Item has been replaced by
RPWFE

128 — Diagram Number

Refrigerator filter bypass plug that is used in place of the water filter top allow water to dispense

WR17X13068

No Longer Available
Item has been replaced by
WR01X29059

129 — Diagram Number

Refrigerator left fresh food door inside water filter recess the bracket that holds the filter manifold in place

WR17X13069

^$6.19

Add to Cart

130 — Diagram Number

Refrigerator manifold and plug assembly

WR02X13675

^$51.56

Add to Cart

131 — Diagram Number

Refrigerator Left fresh food door top door board cover

WR17X13205

^$69.44

Add to Cart

132 — Diagram Number

Refrigerator collar gasket

WR14X10367

^$6.07

Add to Cart

133 — Diagram Number

Refrigerator door and dispenser foam assembly - left

WR78X12959

No Longer Available
Item has been replaced by
WR02X25031

134 — Diagram Number

Refrigerator soft white oval gaskets on the left fresh food door that seals to the openings in the liner

WR14X10364

^$21.32

Temporarily Out of Stock.

135 — Diagram Number

Refrigerator dark gray fresh food door gasket

WR14X10377

No Longer Available
Item has been replaced by
WR14X29300

136 — Diagram Number

Refrigerator stainless steel fresh food door handle

WR12X11016

No Longer Available
Item has been replaced by
WR12X23647

137 — Diagram Number

Refrigerator filter door latch located on the door at the bottom of the filter recess. Located on left fresh food door, Black

WR11X10032

No Longer Available
Item has been replaced by
NLA ITEM

139 — Diagram Number

Refrigerator closure door assembly (right)

WR11X20690

No Longer Available
Item has been replaced by
WR11X23034

140 — Diagram Number

Refrigerator stainless steel part that is just over the catch tray at the bottom of the dispenser recess

WR17X13093

No Longer Available
Item has been replaced by
NLA ITEM

141 — Diagram Number

Refrigerator recess tray assembly (grey)

WR17X13110

No Longer Available
Item has been replaced by
NLA ITEM

142 — Diagram Number

Refrigerator grill recess tray

WR17X13109

No Longer Available
Item has been replaced by
NLA ITEM

143 — Diagram Number

Refrigerator Lever Tray Lock

WR02X13638

No Longer Available
Item has been replaced by
NLA ITEM

144 — Diagram Number

Refrigerator upper auto fill plug

WR02X13768

No Longer Available
Item has been replaced by
NLA ITEM

146 — Diagram Number

Refrigerator small light lens on the bottom of the dispenser display housing

WR02X13655

^$28.76

Add to Cart

149 — Diagram Number

WASHING MACHINE SCREW 8-18 HI/LO 5/8

WR01X10196

^$6.07

Add to Cart

151 — Diagram Number

Refrigerator door board cover screw

WR01X11028

^$6.07

Add to Cart

160 — Diagram Number

AUGER MOTOR ASM

WR60X10345

No Longer Available
Item has been replaced by
WR49X10322

161 — Diagram Number

Refrigerator auger motor clutch drive spring

WR02X13645

^$33.28

Add to Cart

163 — Diagram Number

Refrigerator Clutch Coupling Assembly

WR02X13647

^$23.46

Add to Cart

164 — Diagram Number

Refrigerator E Clip

WR02X13648

^$6.07

Add to Cart

166 — Diagram Number

Refrigerator mullion articulation assembly

WR17X13240

^$82.01

Temporarily Out of Stock.

167 — Diagram Number

Refrigerator left fresh food door center hinge for articulating mullion, color white

WR13X10984

No Longer Available
Item has been replaced by
WR13X36887

168 — Diagram Number

Refrigerator left fresh food door top and bottom hinge for articulating mullion color white

WR13X10985

^$6.07

Add to Cart

174 — Diagram Number

Refrigerator connector 90 degree 5/16

WR02X13737

^$11.80

Add to Cart

193 — Diagram Number

Refrigerator pressure capacitor LCD assembly

WR55X11201

No Longer Available
Item has been replaced by
NLA ITEM

195 — Diagram Number

PCB ASM DOOR CONTROL

WR55X11186

No Longer Available
Item has been replaced by
WR55X44126

237 — Diagram Number

Refrigerator screw for mounting door stop to the bottom of both fresh food doors

WR01X11032

^$6.07

Add to Cart

801 — Diagram Number

Dishwasher 6-19 X 1/4 TORX PAN HEAD Screw

WD02X10129

^$6.07

Add to Cart

981 — Diagram Number

SCR 8-18 AB FLP 3/4 S ZN

WR01X11065

^$5.67

Add to Cart

DISPENSER DOOR

(PFE27KSDCSS)

57 Results
