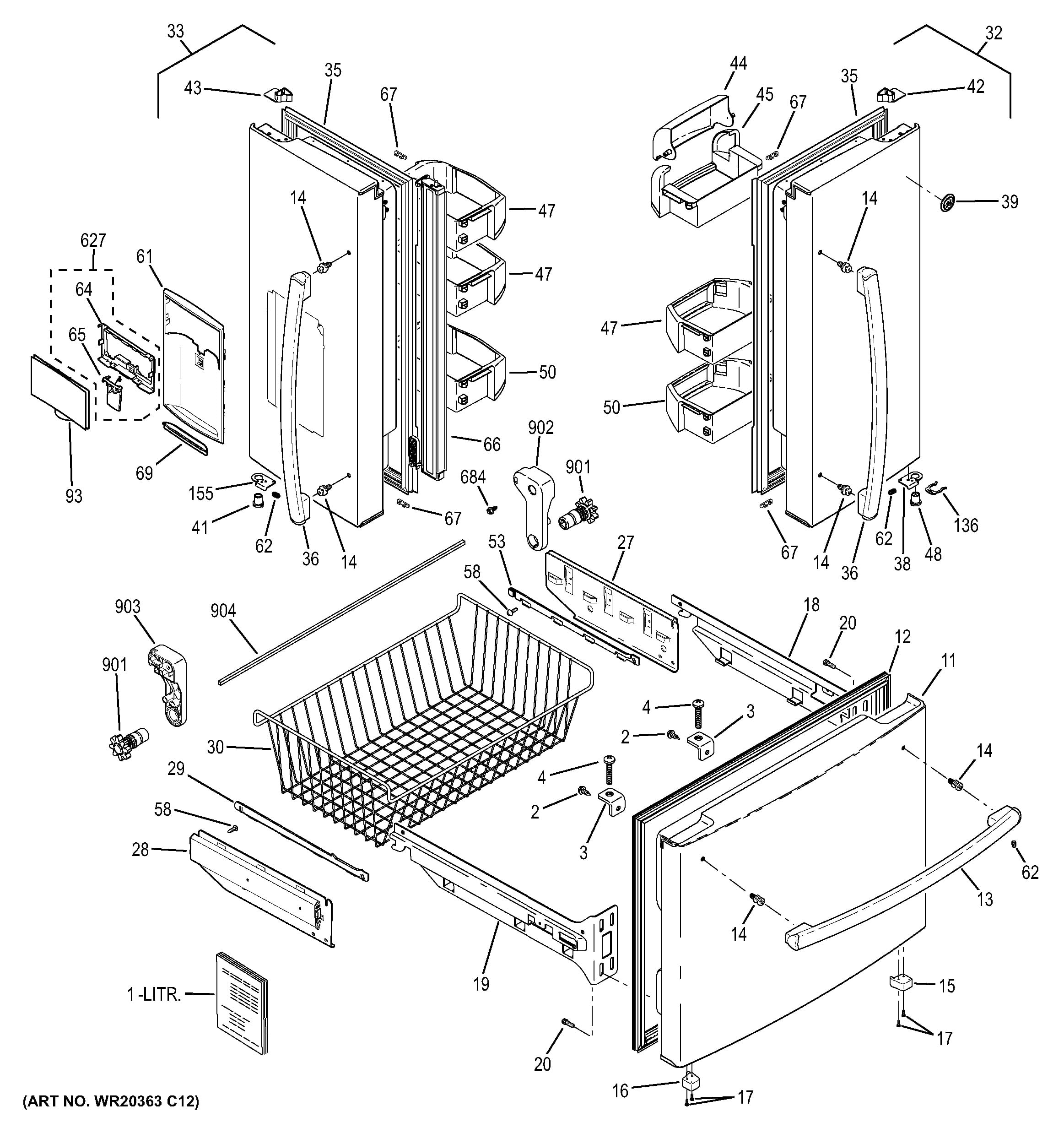

Assembly View for DOORS

2 — Diagram Number

SCR 8-32 AB IHWS 3/8 S

WR01X10844

^$6.95

Add to Cart

3 — Diagram Number

Refrigerator Support Bracket

WR02X12870

^$20.27

Add to Cart

4 — Diagram Number

Screw 1/4 - 20 UNC - 2A

WR01X10843

^$10.09

Add to Cart

11 — Diagram Number

DOOR FOAM FZ ASM

WR78X20526

No Longer Available
Item has been replaced by
NLA ITEM

12 — Diagram Number

GASKET

WR14X10349

No Longer Available
Item has been replaced by
WR14X20490

13 — Diagram Number

ARC HANDLE ASM FZ

WR12X20480

No Longer Available
Item has been replaced by
WR12X21085

14 — Diagram Number

Refrigerator door handle fastener

WR01X11007

^$6.07

Add to Cart

15 — Diagram Number

CAM CLOSURE FZ RH

WR02X12693

No Longer Available
Item has been replaced by
NLA ITEM

16 — Diagram Number

CAM CLOSURE FZ LH

WR02X12694

No Longer Available
Item has been replaced by
NLA ITEM

17 — Diagram Number

SCR 10-16

WR01X10582

No Longer Available
Item has been replaced by
WR01X10611

18 — Diagram Number

BRACKET LOWER

WR72X10299

No Longer Available
Item has been replaced by
NLA ITEM

19 — Diagram Number

BRACKET LOWER

WR72X10300

No Longer Available
Item has been replaced by
NLA ITEM

20 — Diagram Number

SCR 1/4-20 RT FLAT 3/4 S

WR01X10885

^$7.01

Add to Cart

27 — Diagram Number

SLIDE HOLDER ASM

WR72X10297

No Longer Available
Item has been replaced by
WR49X20767

28 — Diagram Number

SLIDE HOLDER ASM

WR72X10298

No Longer Available
Item has been replaced by
WR49X20767

29 — Diagram Number

HOLDER BASKET

WR02X12898

No Longer Available
Item has been replaced by
NLA ITEM

30 — Diagram Number

BASKET LOWER

WR21X10179

No Longer Available
Item has been replaced by
NLA ITEM

32 — Diagram Number

DOOR FOAM FF FRENCH ASM

WR78X20819

No Longer Available
Item has been replaced by
NLA ITEM

33 — Diagram Number

DOOR FOAM FF FRENCH ASM

WR78X20818

No Longer Available
Item has been replaced by
NLA ITEM

35 — Diagram Number

GASKET FRENCH

WR14X10279

No Longer Available
Item has been replaced by
WR14X20485

36 — Diagram Number

ARC HANDLE ASM FF

WR12X20476

No Longer Available
Item has been replaced by
WR12X21084

38 — Diagram Number

STOP DOOR

WR02X12899

No Longer Available
Item has been replaced by
NLA ITEM

39 — Diagram Number

GE BADGE

WR04X10223

^$31.88

Add to Cart

41 — Diagram Number

THIMBLE DOOR PLASTIC

WR02X12903

No Longer Available
Item has been replaced by
NLA ITEM

42 — Diagram Number

CAM FF CLOSURE LH

WR02X12360

No Longer Available
Item has been replaced by
NLA ITEM

43 — Diagram Number

Refrigerator Fresh Food Cam Closure - Right

WR02X12359

No Longer Available
Item has been replaced by
NLA ITEM

44 — Diagram Number

DOOR DAIRY

WR02X12883

No Longer Available
Item has been replaced by
NLA ITEM

45 — Diagram Number

COMPARTMENT DAIRY

WR71X10931

No Longer Available
Item has been replaced by
NLA ITEM

47 — Diagram Number

SHELF MODULE ASM

WR71X11049

^$69.67

Add to Cart

48 — Diagram Number

THIMBLE DOOR FF

WR02X12363

^$8.09

Add to Cart

50 — Diagram Number

SHELF MODULE ASSEMBLY

WR32X10833

No Longer Available
Item has been replaced by
NLA ITEM

53 — Diagram Number

Bin support

WR02X12897

No Longer Available
Item has been replaced by
NLA ITEM

58 — Diagram Number

Refrigerator Screw

WR01X10588

^$6.07

Add to Cart

61 — Diagram Number

TRIM DISP AND BS PCB ASM

WR38X10444

No Longer Available
Item has been replaced by
NLA ITEM

62 — Diagram Number

SET SCREW (9.5MM)

WR01X20424

^$6.13

Add to Cart

64 — Diagram Number

SHIELD DISPENSER

WR17X12280

^$42.41

Add to Cart

65 — Diagram Number

PADDLE DISPENSER

WR17X12838

No Longer Available
Item has been replaced by
NLA ITEM

66 — Diagram Number

MULLION ARTICULATION ASM

WR17X20619

No Longer Available
Item has been replaced by
NLA ITEM

67 — Diagram Number

BUMPER FRENCH DOOR

WR02X12469

^$10.29

Add to Cart

69 — Diagram Number

GRILL RECESS

WR17X12761

No Longer Available
Item has been replaced by
NLA ITEM

93 — Diagram Number

INTERFACE DISPENSER ASSEMBLY

WR55X20720

No Longer Available
Item has been replaced by
NLA ITEM

136 — Diagram Number

CLIP LOCKING

WR02X13059

No Longer Available
Item has been replaced by
NLA ITEM

155 — Diagram Number

STOP DOOR

WR02X12900

No Longer Available
Item has been replaced by
NLA ITEM

627 — Diagram Number

SHIELD AND PADDLE ASM

WR17X12795

No Longer Available
Item has been replaced by
NLA ITEM

684 — Diagram Number

SCREW 10-32 TT HXW 5/16

WR01X10252

No Longer Available
Item has been replaced by
WR01X10654

901 — Diagram Number

WHEEL SPROCKET

WR02X12904

No Longer Available
Item has been replaced by
NLA ITEM

902 — Diagram Number

ARM WHEEL SPROCKET

WR02X12905

No Longer Available
Item has been replaced by
NLA ITEM

903 — Diagram Number

ARM WHEEL SPROCKET

WR02X12906

No Longer Available
Item has been replaced by
NLA ITEM

904 — Diagram Number

AXLE WHEEL SPROCKET

WR02X12907

No Longer Available
Item has been replaced by
NLA ITEM

DOORS

(PFE22KSEAFSS)

49 Results
