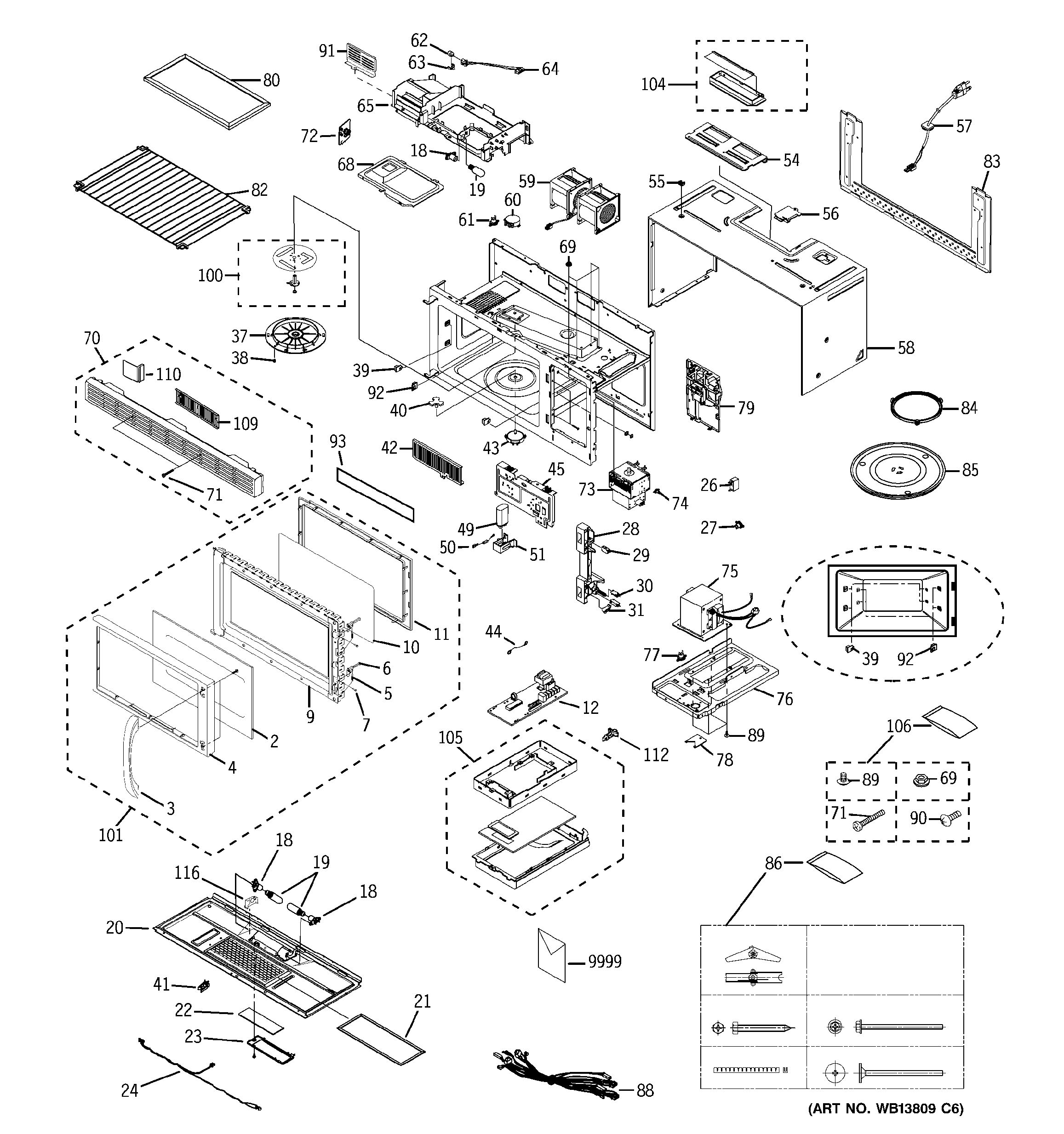

Assembly View for MICROWAVE

2 — Diagram Number

SCREEN-DOOR(B)

WB36X10285

No Longer Available
Item has been replaced by
NLA ITEM

3 — Diagram Number

Range Door Handle- White

WB15X10154

^$61.32

Add to Cart

4 — Diagram Number

Microwave oven door frame

WB55X10533

^$133.64

Add to Cart

5 — Diagram Number

MICROWAVE SPRING HOOK

WB05X10006

No Longer Available
Item has been replaced by
NLA ITEM

6 — Diagram Number

MICROWAVE DOOR LATCH

WB05X10005

No Longer Available
Item has been replaced by
NLA ITEM

7 — Diagram Number

HINGE PIN

WB06X10060

No Longer Available
Item has been replaced by
NLA ITEM

9 — Diagram Number

DOOR MAIN ASM

WB55X10534

No Longer Available
Item has been replaced by
NLA ITEM

10 — Diagram Number

DOOR FILM

WB36X10068

No Longer Available
Item has been replaced by
NLA ITEM

11 — Diagram Number

CHOKE COVER

WB55X10535

No Longer Available
Item has been replaced by
NLA ITEM

12 — Diagram Number

PCB ASS'Y

WB27X10508

No Longer Available

Temporarily Out of Stock.

18 — Diagram Number

Microwave Socket Light

WB08X10016

^$18.80

Add to Cart

19 — Diagram Number

Microwave Bulb - 40W

WB36X10003

^$10.09

Add to Cart

20 — Diagram Number

BASE-BOTTOM

WB56X10679

No Longer Available

Temporarily Out of Stock.

21 — Diagram Number

Microwave Air & Grease Filter

WB06X10596

^$61.21

Add to Cart

22 — Diagram Number

Microwave Light Lens

WB36X10071

^$14.18

Add to Cart

23 — Diagram Number

Range Cover (Glass Not Included)

WB36X10216

^$18.17

Add to Cart

24 — Diagram Number

WIRE HARNESS-D

WB18X10193

No Longer Available
Item has been replaced by
NLA ITEM

26 — Diagram Number

Microwave Capacitor

WB27X10170

^$20.00

Not Available for Online Consumer Purchase
Call 1.800.432.2737 to Schedule Service.

27 — Diagram Number

Microwave Hood Thermostat

WB27X10194

No Longer Available
Item has been replaced by
NLA ITEM

28 — Diagram Number

Microwave Switch Holder

WB06X10289

No Longer Available
Item has been replaced by
NLA ITEM

29 — Diagram Number

MICRO S/W

WB24X10038

No Longer Available
Item has been replaced by
WB24X829

30 — Diagram Number

SWITCH-MICRO

WB24X10075

No Longer Available
Item has been replaced by
WB24X830

31 — Diagram Number

LEVER-SWITCH LOWER

WB06X10128

^$8.17

Add to Cart

37 — Diagram Number

Range Stirrer Blade Cover

WB06X10130

No Longer Available
Item has been replaced by
NLA ITEM

38 — Diagram Number

Retainer button

WB06X10126

No Longer Available
Item has been replaced by
NLA ITEM

39 — Diagram Number

Microwave Rack Support

WB06X10223

No Longer Available
Item has been replaced by
NLA ITEM

40 — Diagram Number

Microwave Tray Drive Coupling

WB06X10420

^$9.35

Add to Cart

41 — Diagram Number

WIRE SADDLE

WB01X10135

No Longer Available
Item has been replaced by
NLA ITEM

42 — Diagram Number

MICROWAVE FRONT COVER

WB06X10132

No Longer Available
Item has been replaced by
NLA ITEM

43 — Diagram Number

Microwave Motor

WB26X10038

^$19.99

Add to Cart

44 — Diagram Number

WIRE HARNESS-H

WB18X10122

^$6.13

Add to Cart

45 — Diagram Number

MICROWAVE AIR GUIDE BRACKET

WB06X10147

No Longer Available
Item has been replaced by
NLA ITEM

49 — Diagram Number

Microwave Capacitor

WB27X10011

^$90.93

Not Available for Online Consumer Purchase
Call 1.800.432.2737 to Schedule Service.

50 — Diagram Number

Microwave Diode Cable

WB27X1160

^$84.63

Temporarily Out of Stock.

51 — Diagram Number

MICROWAVE HVC BRACKET

WB06X10118

No Longer Available
Item has been replaced by
NLA ITEM

54 — Diagram Number

BRACKET-V/T MOTOR

WB06X10165

No Longer Available
Item has been replaced by
NLA ITEM

55 — Diagram Number

Microwave Top Mounting Nut

WB01X10071

^$8.81

Temporarily Out of Stock.

56 — Diagram Number

MICROWAVE POWER CORD BRACKET

WB06X10122

No Longer Available
Item has been replaced by
NLA ITEM

57 — Diagram Number

ASSY-POWER CORD

WB18X10053

No Longer Available

Temporarily Out of Stock.

58 — Diagram Number

CASE OUTER

WB56X10269

No Longer Available

Temporarily Out of Stock.

59 — Diagram Number

Microwave Ventilation Motor

WB26X10042

No Longer Available
Item has been replaced by
NLA ITEM

60 — Diagram Number

Microwave Fan Drive Mother

WB26X10037

^$11.08

Add to Cart

61 — Diagram Number

MICROWAVE THERMOSTAT

WB27X10195

^$42.36

Add to Cart

62 — Diagram Number

RANGE HUMIDITY SENSOR

WB27X1170

^$104.75

Add to Cart

63 — Diagram Number

HOLDER-SENSOR

WB06X0549

No Longer Available
Item has been replaced by
WB6X549

64 — Diagram Number

WIRE-HARNESS-S

WB18X10057

No Longer Available
Item has been replaced by
NLA ITEM

65 — Diagram Number

MICROWAVE UPPER DUCT

WB27X10422

No Longer Available
Item has been replaced by
NLA ITEM

68 — Diagram Number

MICROWAVE AIR GUIDE BRACKET

WB06X10148

No Longer Available
Item has been replaced by
NLA ITEM

69 — Diagram Number

FLANGE NUT

WB01X10065

No Longer Available
Item has been replaced by
NLA ITEM

70 — Diagram Number

MICROWAVE GRILLE - WHITE

WB07X10533

^$34.44

Add to Cart

71 — Diagram Number

Microwave Grille Screw Black

WB01X10062

No Longer Available
Item has been replaced by
NLA ITEM

72 — Diagram Number

NOISE FILTER ASSEMBLY

WB02X11200

^$96.10

Add to Cart

73 — Diagram Number

ASSY-MAGNETRON

WB27X10475

No Longer Available
Item has been replaced by
WB27X10017

74 — Diagram Number

Microwave Thermostat

WB27X10166

No Longer Available
Item has been replaced by
NLA ITEM

75 — Diagram Number

Microwave Transformer

WB27X10868

^$288.00

Add to Cart

76 — Diagram Number

MICROWAVE BASE PLATE

WB56X10212

No Longer Available
Item has been replaced by
NLA ITEM

77 — Diagram Number

FLAME SENSOR

WB21X0535

No Longer Available
Item has been replaced by
WB27X1127

78 — Diagram Number

COVER TCO-BOTTOM

WB06X10281

No Longer Available

Temporarily Out of Stock.

79 — Diagram Number

Microwave Magnetron Fan Motor Assembly

WB26X10105

^$141.60

Not Available for Online Consumer Purchase
Call 1.800.432.2737 to Schedule Service.

80 — Diagram Number

CHARCOAL FILTER(OPTIONAL

WB02X9883

No Longer Available
Item has been replaced by
NLA ITEM

82 — Diagram Number

MICROWAVE WIRE RACK

WB48X10013

No Longer Available

Temporarily Out of Stock.

83 — Diagram Number

MOUNTING PLATE ASS'Y

WB56X10260

No Longer Available
Item has been replaced by
NLA ITEM

84 — Diagram Number

Microwave Turntable Assembly

WB06X10139

^$45.90

Add to Cart

85 — Diagram Number

COOKING-TRAY

WB49X10002

No Longer Available
Item has been replaced by
WB39X10003

86 — Diagram Number

Microwave Mounting Hardware Kit

WB01X10181

No Longer Available
Item has been replaced by
NLA ITEM

89 — Diagram Number

SCREW WITH WASHER HVT

WB01X10100

No Longer Available

Temporarily Out of Stock.

90 — Diagram Number

Range Screw

WB01X10063

No Longer Available
Item has been replaced by
NLA ITEM

91 — Diagram Number

MICROWAVE BARRIER BRACKET

WB06X10434

No Longer Available

Temporarily Out of Stock.

92 — Diagram Number

Range Rack Clip

WB06X10224

No Longer Available
Item has been replaced by
NLA ITEM

100 — Diagram Number

MICROWAVE STIRRER

WB06X10416

^$12.78

Add to Cart

101 — Diagram Number

DOOR ASM WHT

WB56X10514

No Longer Available

Temporarily Out of Stock.

104 — Diagram Number

Microwave Hood Damper Assembly

WB06X10436

^$31.50

Add to Cart

105 — Diagram Number

MICROWAVE CONTROL PANEL - WHITE

WB07X10804

No Longer Available

Temporarily Out of Stock.

106 — Diagram Number

MICROWAVE HARDWARE BAG

WB06X10435

No Longer Available

Temporarily Out of Stock.

109 — Diagram Number

MICROWAVE GRILLE BRACKET

WB06X10443

No Longer Available

Temporarily Out of Stock.

110 — Diagram Number

MICROWAVE BRACKET - LEFT

WB06X10439

No Longer Available

Temporarily Out of Stock.

112 — Diagram Number

PCB SUPPORT

WB04X0175

No Longer Available
Item has been replaced by
WB4X175

116 — Diagram Number

MICROWAVE LIGHT BRACKET

WB02X11265

No Longer Available
Item has been replaced by
NLA ITEM

MICROWAVE

(JVM1653WH04)

78 Results
