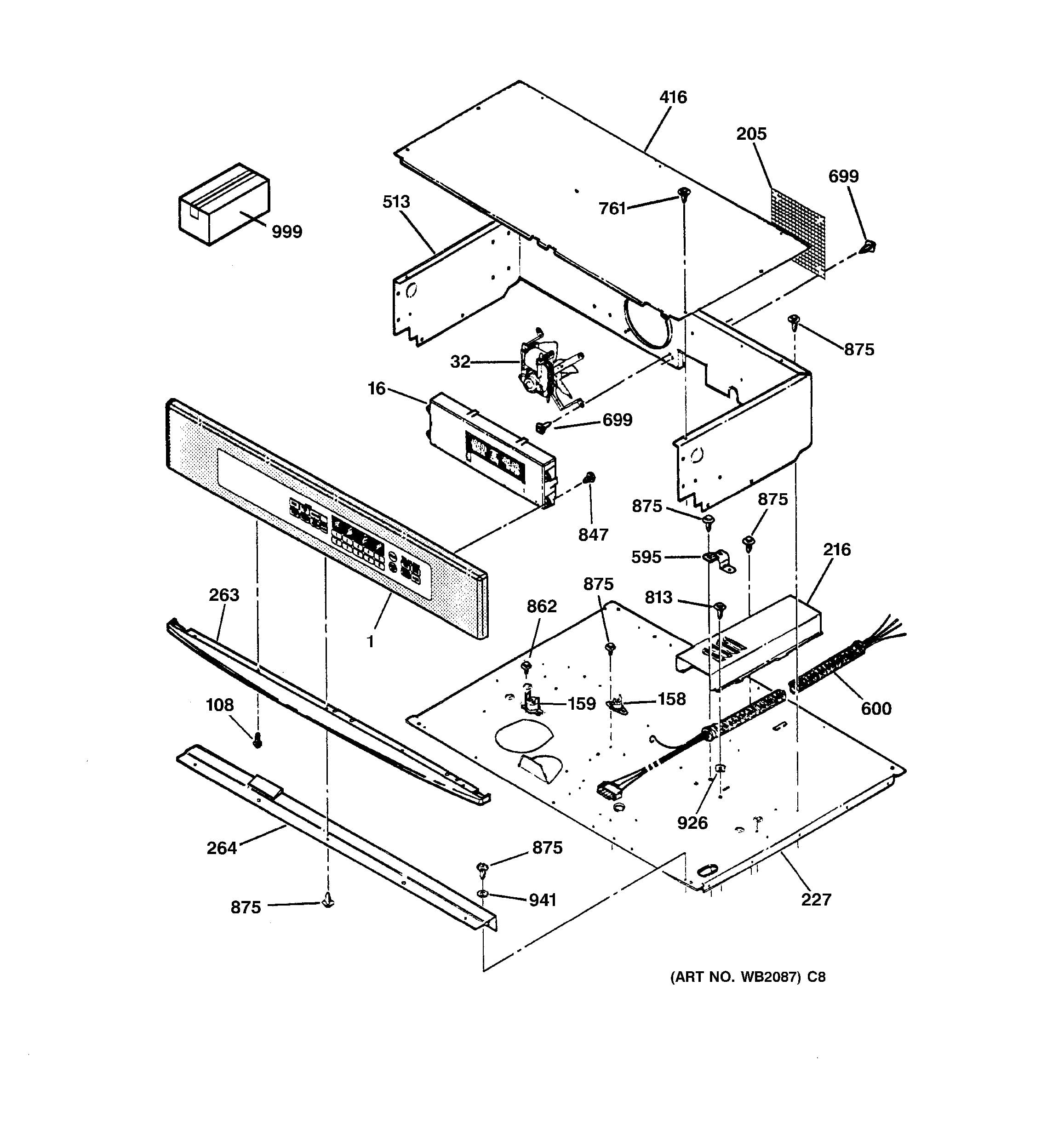

CONTROL PANEL

(JT910SA2SS)

22 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

1 — Diagram Number

Range Touchpad and control panel assembly

WB36T10215

No Longer Available
Item has been replaced by
NLA ITEM

16 — Diagram Number

CONTROL OVN (ERCIII-H)

WB27T10069

No Longer Available
Item has been replaced by
NLA ITEM

32 — Diagram Number

Range Fan & Motor Assembly

WB26K5061

^$152.70

Add to Cart

108 — Diagram Number

SCREW (CR)

WB01X5364

No Longer Available
Item has been replaced by
WB1X5364

158 — Diagram Number

LIMIT SWITCH

WB24T10033

No Longer Available
Item has been replaced by
NLA ITEM

159 — Diagram Number

LIMIT SWITCH

WB24T10045

No Longer Available
Item has been replaced by
NLA ITEM

216 — Diagram Number

TOP WIRE COVER

WB34K5216

No Longer Available

Temporarily Out of Stock.

264 — Diagram Number

TRIM VNT INR (BLK)

WB07T10165

No Longer Available

Temporarily Out of Stock.

416 — Diagram Number

COVER FAN HOUSING

WB34K5217

No Longer Available

Temporarily Out of Stock.

513 — Diagram Number

FAN HOUSING

WB26K5063

No Longer Available

Temporarily Out of Stock.

595 — Diagram Number

CONDUIT CLAMP

WB02K5126

No Longer Available
Item has been replaced by
WB2K5126

699 — Diagram Number

SCREW ST10-16X.437HEX ZN

WB01K5150

No Longer Available
Item has been replaced by
WB1M1

761 — Diagram Number

SCREW-BLACK

WB01K5029

No Longer Available
Item has been replaced by
WB1K5029

813 — Diagram Number

SCREW GROUND

WB01X1261

No Longer Available
Item has been replaced by
WB1X1261

847 — Diagram Number

SCREW-BLACK

WB01X1180

No Longer Available
Item has been replaced by
WB1X1118

847 — Diagram Number

SCREW-BLACK

WB01X1317

No Longer Available
Item has been replaced by
NLA ITEM

862 — Diagram Number

SCREW TC6-32X.250HEXNI

WB01X1178

No Longer Available
Item has been replaced by
NLA ITEM

875 — Diagram Number

SCREW 8-18 AB HXW 3/8

WH02X0930

No Longer Available
Item has been replaced by
WH2X930

926 — Diagram Number

GROUND WASHER

WB01X1260

No Longer Available
Item has been replaced by
WB1X1260

999 — Diagram Number

HARNESS WIRE MAIN

WB18T10108

No Longer Available

Temporarily Out of Stock.

999 — Diagram Number

DOOR SWITCH WIRE HARNESS

WB18K5490

No Longer Available
Item has been replaced by
WB18X32965

999 — Diagram Number

LOCK MOTOR WIRE HARNESS

WB18K5491

No Longer Available

Temporarily Out of Stock.
