BODY PARTS

(JT3000SF6SS)

30 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

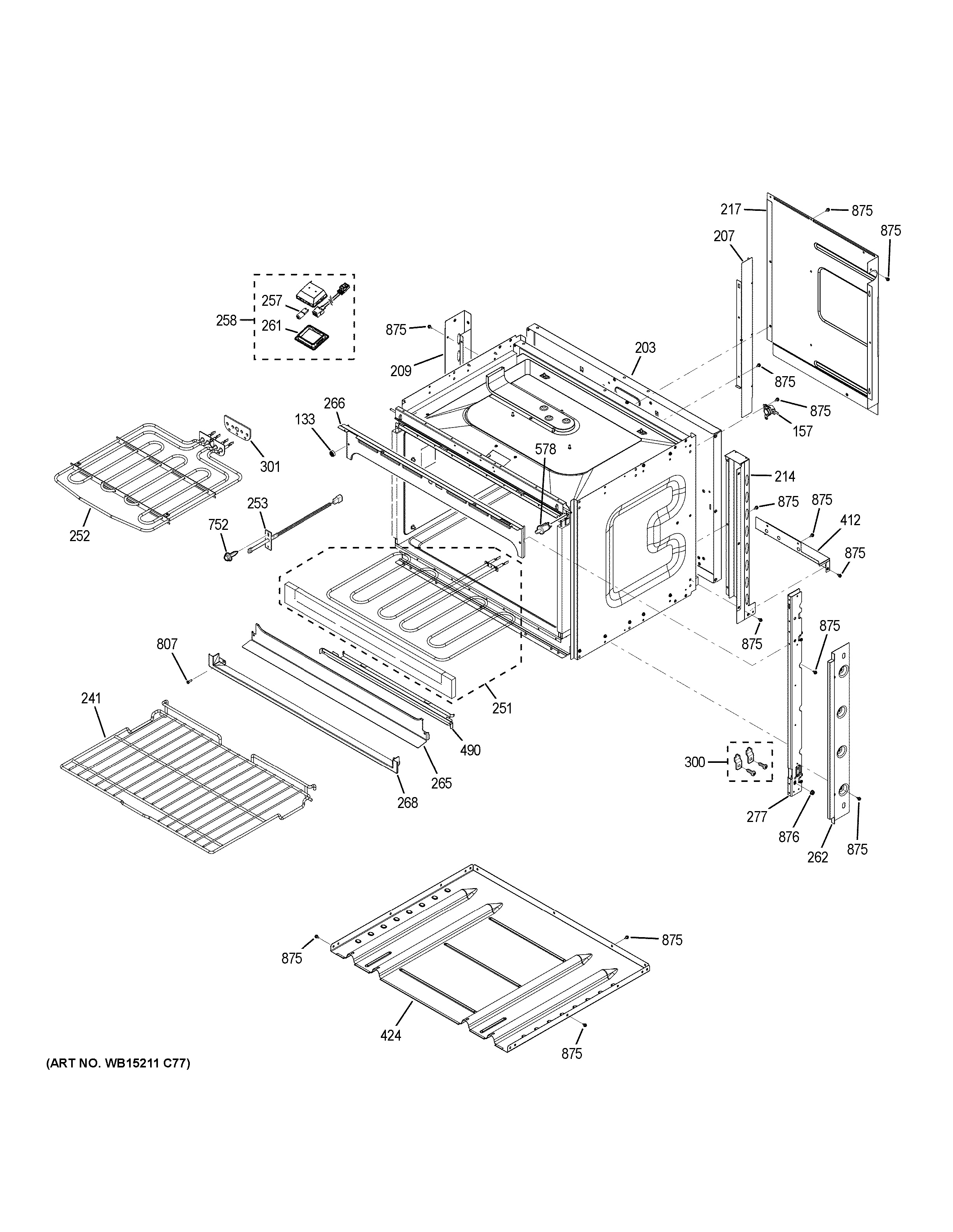

Use the diagram to find the number of the part you need.

133 — Diagram Number

Wall oven Grommet- screw mounted to frame

WB03T10341

^$6.09

Add to Cart

157 — Diagram Number

HIGH LIMIT SWITCH OVEN BK

WB24T10164

No Longer Available
Item has been replaced by
WB24X46906

203 — Diagram Number

Micro module oven Rear insulation retainer 30"

WB63T10169

No Longer Available
Item has been replaced by
NLA ITEM

207 — Diagram Number

Wall oven Rear air channel - center - single

WB34T10134

^$49.70

Add to Cart

209 — Diagram Number

CHANNEL REAR LT

WB34X21910

^$35.39

Add to Cart

214 — Diagram Number

Wall oven Air channel- left side looking from rear

WB55X10971

^$40.79

Add to Cart

217 — Diagram Number

Wall oven- rear wire cover/double oven upper

WB34T10136

^$53.49

Add to Cart

241 — Diagram Number

OVEN RACK

WB48X31582

^$61.84

Add to Cart

251 — Diagram Number

HIDDEN BAKE ELEMENT KIT

WB44X21667

^$61.45

Add to Cart

252 — Diagram Number

Wall oven Broil element

WB44T10128

No Longer Available
Item has been replaced by
WB44X48685

253 — Diagram Number

Wall oven- oven sensor

WB21X10165

^$17.83

Add to Cart

257 — Diagram Number

Wall Oven Halogen Top-Mounted Bulb - G9

WB25T10102

^$11.86

Temporarily Out of Stock.

258 — Diagram Number

HALOGEN LAMP ASSEMBLY

WB25X31221

^$28.53

Add to Cart

261 — Diagram Number

OVEN LIGHT LENS

WB34X31317

^$7.23

Add to Cart

262 — Diagram Number

Range vertical side trim (black)

WB07X11402

^$33.61

Add to Cart

265 — Diagram Number

Wall oven power trim vent 30" BLACK

WB07X21187

^$40.80

Add to Cart

266 — Diagram Number

Wall oven Upper trim BLACK

WB07T10805

^$35.28

Add to Cart

268 — Diagram Number

Wall oven- small bottom trim/stainless

WB07T10786

^$45.90

Add to Cart

277 — Diagram Number

Wall oven Vertical brace BLACK - RIGHT single 30" models

WB07T10754

^$58.55

Add to Cart

277 — Diagram Number

Wall oven Vertical brace BLACK - LEFT single 30" models

WB07T10755

No Longer Available
Item has been replaced by
WB07X35692

300 — Diagram Number

Wall oven- kit for door hinges/ all models

WB49X21652

^$20.79

Add to Cart

301 — Diagram Number

GASKET BROIL ELEMENT

WB35X21972

^$6.07

Add to Cart

412 — Diagram Number

Lower air duct cover - single and micro module oven

WB34T10151

^$47.60

Add to Cart

424 — Diagram Number

Wall oven- bottom/ all 30" models

WB34T10158

No Longer Available
Item has been replaced by
WB56X43352

490 — Diagram Number

Wall oven Cover BAKE 30"

WB55T10197

^$84.67

Add to Cart

578 — Diagram Number

Range High Amp Switch

WB24T10147

^$14.76

Add to Cart

752 — Diagram Number

Range screw

WB01X21742

^$6.07

Add to Cart

807 — Diagram Number

SCREW-NICKLE

WB01X1174

No Longer Available
Item has been replaced by
WB01X32746

875 — Diagram Number

SCREW 8-18 AB HXW 3/8

WH02X0930

No Longer Available
Item has been replaced by
WH2X930

876 — Diagram Number

Wall oven- nut for rack supports

WB01T10127

No Longer Available
Item has been replaced by
NLA ITEM
