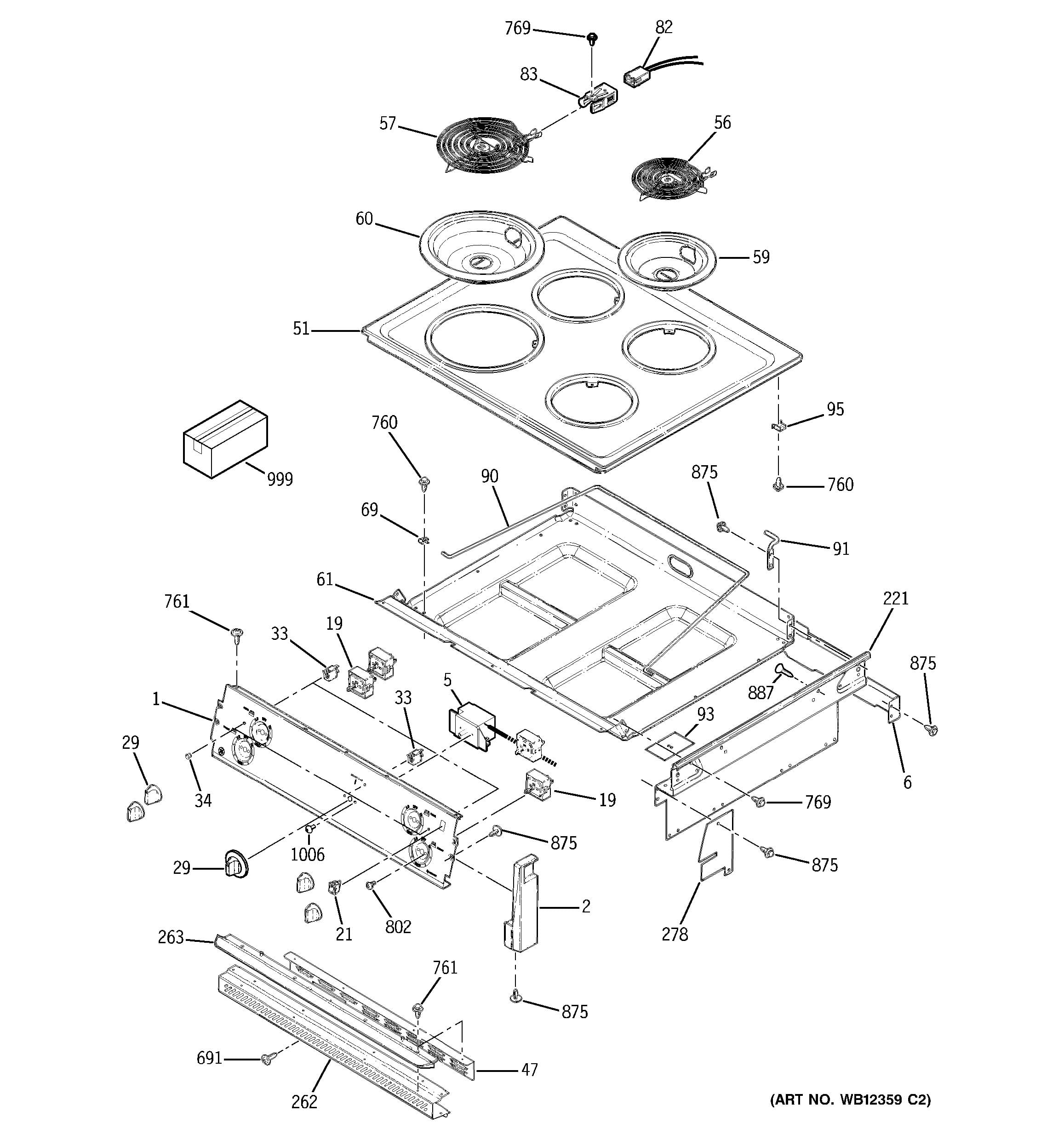

Assembly View for CONTROL PANEL & COOKTOP

1 — Diagram Number

PANEL CNTL (SCR)

WB36T10473

No Longer Available
Item has been replaced by
NLA ITEM

2 — Diagram Number

CAP END RT (BLK)

WB36K5224

No Longer Available
Item has been replaced by
WB07T10531

2 — Diagram Number

CAP END LT (BLK)

WB36K5225

No Longer Available
Item has been replaced by
NLA ITEM

5 — Diagram Number

THERMOSTAT

WB20T10004

No Longer Available
Item has been replaced by
NLA ITEM

6 — Diagram Number

PANEL BACK

WB37K5022

^$26.40

Add to Cart

19 — Diagram Number

INFINITE SWITCH

WB23K5055

No Longer Available
Item has been replaced by
NLA ITEM

19 — Diagram Number

INFINITE SWITCH

WB23K5056

No Longer Available
Item has been replaced by
NLA ITEM

21 — Diagram Number

SWITCH ROCKER (BLACK)

WB24K5035

^$11.23

Add to Cart

29 — Diagram Number

KNOB THMST (BLACK)

WB03T10177

No Longer Available
Item has been replaced by
NLA ITEM

29 — Diagram Number

INFINITE KNOB BLK

WB03K5109

No Longer Available
Item has been replaced by
WB3K5109

33 — Diagram Number

INDICATOR LIGHT-WM ELM

WB25X0092

No Longer Available
Item has been replaced by
WB25T10039

33 — Diagram Number

CONTROL PNL IND LIGHT

WB25X0093

No Longer Available
Item has been replaced by
WB25T10040

34 — Diagram Number

INDICATOR LIGHT LENS

WB25X0094

No Longer Available
Item has been replaced by
WB25T10042

47 — Diagram Number

BARRIER VENT

WB38K5029

^$26.50

Add to Cart

51 — Diagram Number

MAINTOP ELEC WHITE

WB62K5077

^$392.27

Add to Cart

56 — Diagram Number

6" SURFACE ELEMENT

WB30X5119

No Longer Available
Item has been replaced by
WB30M1

57 — Diagram Number

8" SURFACE ELEMENT

WB30X5120

No Longer Available
Item has been replaced by
WB30M2

59 — Diagram Number

6 Inch Electric Range Burner Bowl Chrome

WB31T10010

^$8.60

Add to Cart

60 — Diagram Number

Electric Range Drip Bowl - 8" Chrome

WB31T10011

^$11.30

Add to Cart

61 — Diagram Number

BOTTOM BURN BOX

WB64K5051

^$78.43

Temporarily Out of Stock.

69 — Diagram Number

CLAMP SUPPORT ROD

WB02M0087

No Longer Available
Item has been replaced by
WB2M87

82 — Diagram Number

TERMINAL BLOCK W/WIRES

WB17T10001

No Longer Available
Item has been replaced by
WB17T10006

83 — Diagram Number

ELEMENT CLIP

WB01T10014

No Longer Available
Item has been replaced by
NLA ITEM

90 — Diagram Number

ROD MAIN TOP SUPPORT

WB02K5226

No Longer Available
Item has been replaced by
WB2K5226

91 — Diagram Number

HINGE MAINTOP LT

WB14K5008

^$11.66

Add to Cart

91 — Diagram Number

HINGE MAINTOP RT

WB14K5009

^$11.66

Add to Cart

93 — Diagram Number

BARRIER BODYSIDE EXT

WB34K5137

^$5.00

Add to Cart

95 — Diagram Number

CLIP HINGE

WB01K5118

No Longer Available
Item has been replaced by
WB1K5118

102 — Diagram Number

OVEN DOOR INSULATION-TOP

WB35K5097

^$6.07

Add to Cart

262 — Diagram Number

TRIM SIDE (BLACK)

WB07T10079

^$44.90

Add to Cart

262 — Diagram Number

VENT TRIM-BLK

WB07K5101

No Longer Available
Item has been replaced by
WB7K5101

263 — Diagram Number

I-BROW TRIM-BLK-UPPER

WB07K5378

No Longer Available
Item has been replaced by
WB7K5378

691 — Diagram Number

SCREW-BLACK

WB01K5162

No Longer Available
Item has been replaced by
WB1K5162

760 — Diagram Number

SCREW ST8-18X.437HEXNI

WB01K5028

No Longer Available
Item has been replaced by
WB1X536

761 — Diagram Number

SCREW-BLACK

WB01K5029

No Longer Available
Item has been replaced by
WB1K5029

769 — Diagram Number

TERMINAL SCREW

WB01X0500

No Longer Available
Item has been replaced by
WB1X500D

875 — Diagram Number

SCREW 8-18 AB HXW 3/8

WH02X0930

No Longer Available
Item has been replaced by
WH2X930

887 — Diagram Number

SCREW-BLK

WB01K5173

No Longer Available
Item has been replaced by
WB1K5173

CONTROL PANEL & COOKTOP

(JMS08BD1WH)

38 Results
