DOOR

(JK3800SH3SS)

20 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

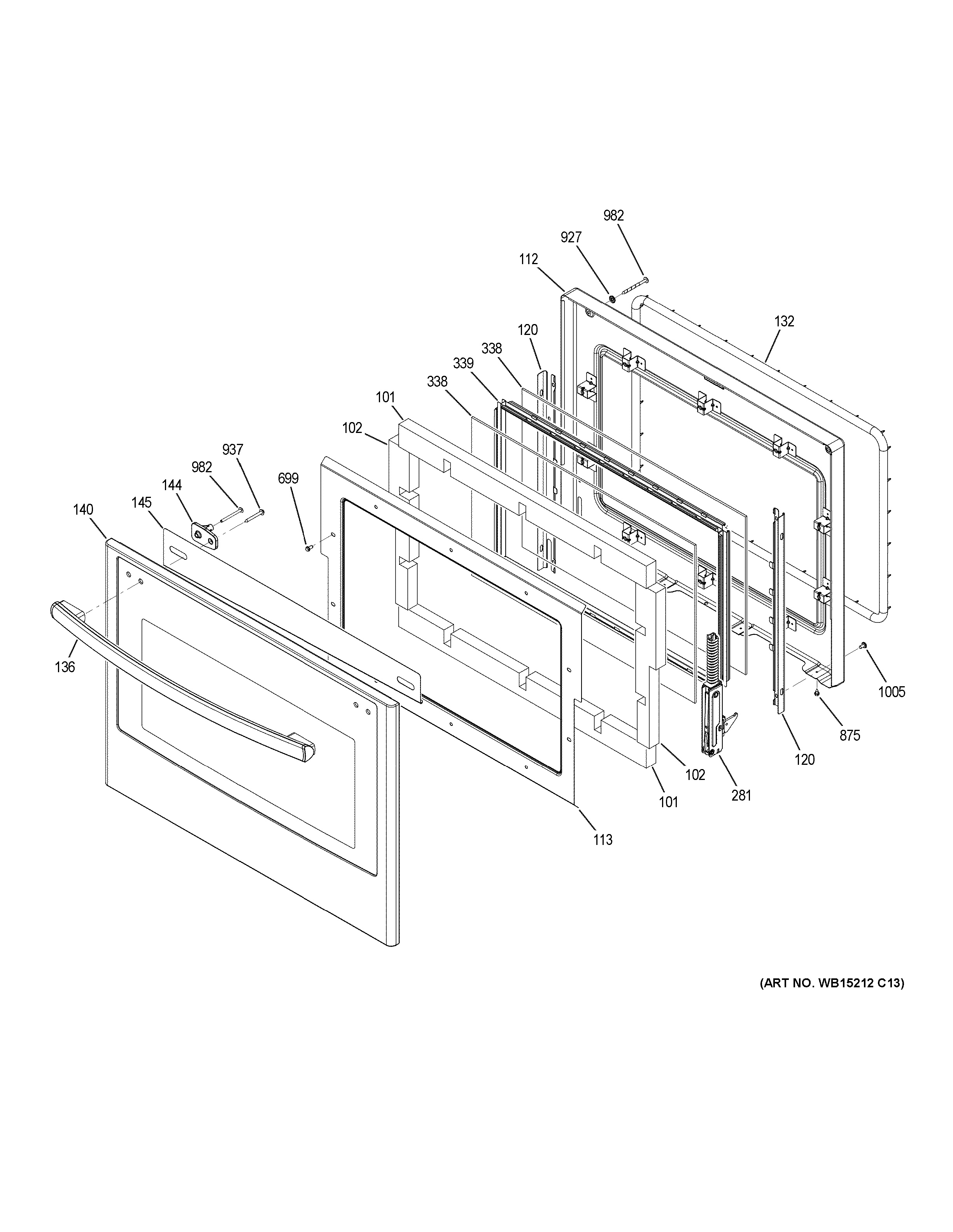

View Larger | Change Section/Diagram

101 — Diagram Number

Range insulation DR top

WB35X21674

No Longer Available
Item has been replaced by
WB35X33246

102 — Diagram Number

Range insulation DR side

WB35X21672

No Longer Available
Item has been replaced by
WB35X31513

112 — Diagram Number

Wall oven- inner door liner/27" models

WB55T10198

No Longer Available
Item has been replaced by
WB63X32817

113 — Diagram Number

Wall oven Inner door assembly 27" - insulation retainer

WB34T10152

^$38.19

Add to Cart

120 — Diagram Number

Range liner support

WB34X21384

No Longer Available
Item has been replaced by
WB34X46746

132 — Diagram Number

Wall oven door gasket 27" models

WB14X10052

No Longer Available
Item has been replaced by
WB35X26197

136 — Diagram Number

HANDLE AND END CAPS

WB15T10210

No Longer Available
Item has been replaced by
WB15X27174

140 — Diagram Number

Micro module oven Outer door assembly- STAINLESS 27" no badge

WB57T10373

No Longer Available
Item has been replaced by
WB56X33232

144 — Diagram Number

Wall oven Bracket for door handle

WB02T10603

^$9.33

Add to Cart

145 — Diagram Number

Wall oven Inner door assembly 27" - deflector under handle support

WB34T10143

^$58.32

Add to Cart

281 — Diagram Number

Range left door hinge

WB10X21677

No Longer Available
Item has been replaced by
WB10X35066

281 — Diagram Number

Range right door hinge

WB10X21678

No Longer Available
Item has been replaced by
WB10X35065

338 — Diagram Number

Wall oven- inner door glass/27" models

WB56T10350

^$57.69

Add to Cart

339 — Diagram Number

Wall oven- Door glass spacer/27" models

WB37T10033

^$16.41

Add to Cart

699 — Diagram Number

SCREW ST10-16X.437HEX ZN

WB01K5150

No Longer Available
Item has been replaced by
WB1M1

875 — Diagram Number

SCREW 8-18 AB HXW 3/8

WH02X0930

No Longer Available
Item has been replaced by
WH2X930

927 — Diagram Number

CONTOURED WASHER

WB01X0119

No Longer Available
Item has been replaced by
WB02X32440

937 — Diagram Number

Door handle mounting screw

WB01T10132

^$6.07

Add to Cart

982 — Diagram Number

Wall oven Door assembly screw

WB01T10131

^$6.07

Add to Cart

1005 — Diagram Number

Range Screw

WB01T10008

^$6.07

Add to Cart
