BODY PARTS

(JK3800SH3SS)

30 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

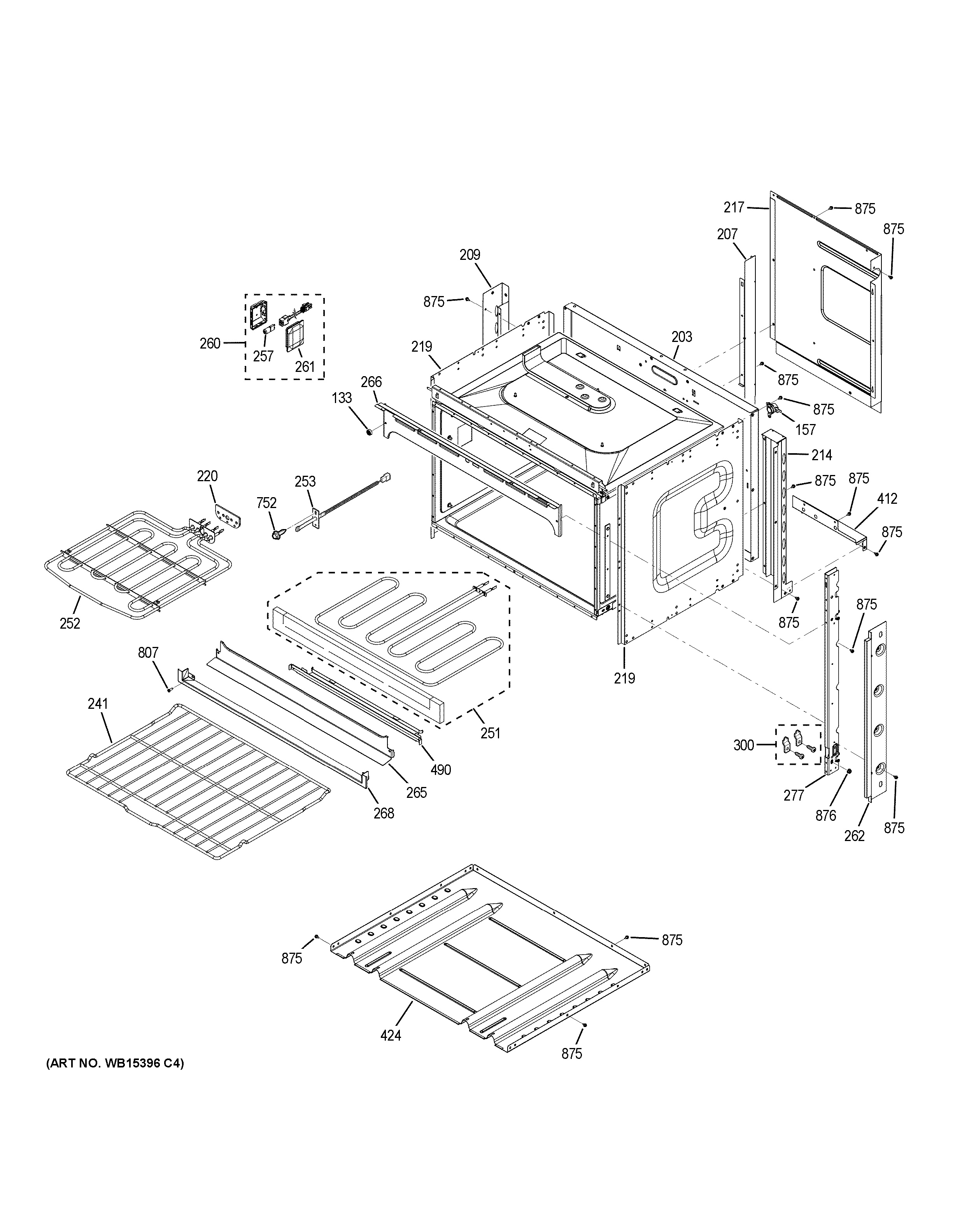

Use the diagram to find the number of the part you need.

133 — Diagram Number

Wall oven Grommet- screw mounted to frame

WB03T10341

^$6.09

Add to Cart

157 — Diagram Number

HIGH LIMIT SWITCH OVEN BK

WB24T10164

No Longer Available
Item has been replaced by
WB24X46906

203 — Diagram Number

Range retainer insulation back

WB63T10168

^$41.83

Add to Cart

207 — Diagram Number

Wall oven Rear air channel - center - single

WB34T10134

^$49.70

Add to Cart

209 — Diagram Number

CHANNEL REAR LT

WB34X21910

^$35.39

Add to Cart

214 — Diagram Number

Channel Rear Rt

WB34X21912

^$26.85

Add to Cart

217 — Diagram Number

Wall oven Rear wire cover 27"

WB34T10135

^$40.32

Add to Cart

219 — Diagram Number

RETAINER INSLN SDE

WB34X21913

^$39.22

Add to Cart

220 — Diagram Number

GASKET BROIL ELEMENT

WB35X21972

^$6.07

Temporarily Out of Stock.

241 — Diagram Number

Wall oven- 27" rack assembly

WB48X24280

No Longer Available
Item has been replaced by
WB48X32180

251 — Diagram Number

Range hidden bake element kit

WB44X21668

^$64.61

Add to Cart

252 — Diagram Number

Micro module oven Broil element

WB44T10124

No Longer Available
Item has been replaced by
WB44X48680

253 — Diagram Number

Wall oven- oven sensor

WB21X10165

^$17.83

Add to Cart

257 — Diagram Number

Wall Oven Halogen Top-Mounted Bulb - G9

WB25T10102

^$11.86

Add to Cart

260 — Diagram Number

Wall Oven Halogen Bulb Assembly, Top- Mounted - 2/250, 18AWG

WB25X23730

No Longer Available
Item has been replaced by
WB25X31221

261 — Diagram Number

Wall oven Top mounted - lens only

WB34T10145

^$23.82

Add to Cart

262 — Diagram Number

Single wall oven side trim left or right BLACK

WB07T10732

^$29.77

Add to Cart

265 — Diagram Number

Wall Oven Lower Trim Black

WB07T10807

^$33.71

Add to Cart

266 — Diagram Number

TRIM VENT UPPER

WB07X21911

^$63.53

Add to Cart

268 — Diagram Number

Wall oven Lower Trim 27" BLACK

WB07T10778

^$58.32

Add to Cart

277 — Diagram Number

BRACE VERT ASM (RT)

WB07X21905

^$87.41

Add to Cart

277 — Diagram Number

BRACE VERT SIDE (LT)

WB07X21906

^$55.82

Add to Cart

300 — Diagram Number

Wall oven- kit for door hinges/ all models

WB49X21652

^$20.79

Add to Cart

412 — Diagram Number

Lower air duct cover - single and micro module oven

WB34T10151

^$47.60

Add to Cart

424 — Diagram Number

Wall oven Bottom air duct- 27"

WB34T10155

^$61.46

Add to Cart

490 — Diagram Number

Wall oven Cover BAKE 27"

WB55T10195

^$13.60

Add to Cart

752 — Diagram Number

Range screw

WB01X21742

^$6.07

Add to Cart

807 — Diagram Number

SCREW-BLK

WB01K5173

No Longer Available
Item has been replaced by
WB1K5173

875 — Diagram Number

SCREW 8-18 AB HXW 3/8

WH02X0930

No Longer Available
Item has been replaced by
WH2X930

876 — Diagram Number

Wall oven- nut for rack supports

WB01T10127

No Longer Available
Item has been replaced by
NLA ITEM
