CONTROL PANEL & COOKTOP

(JGSS86SP1SS)

30 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

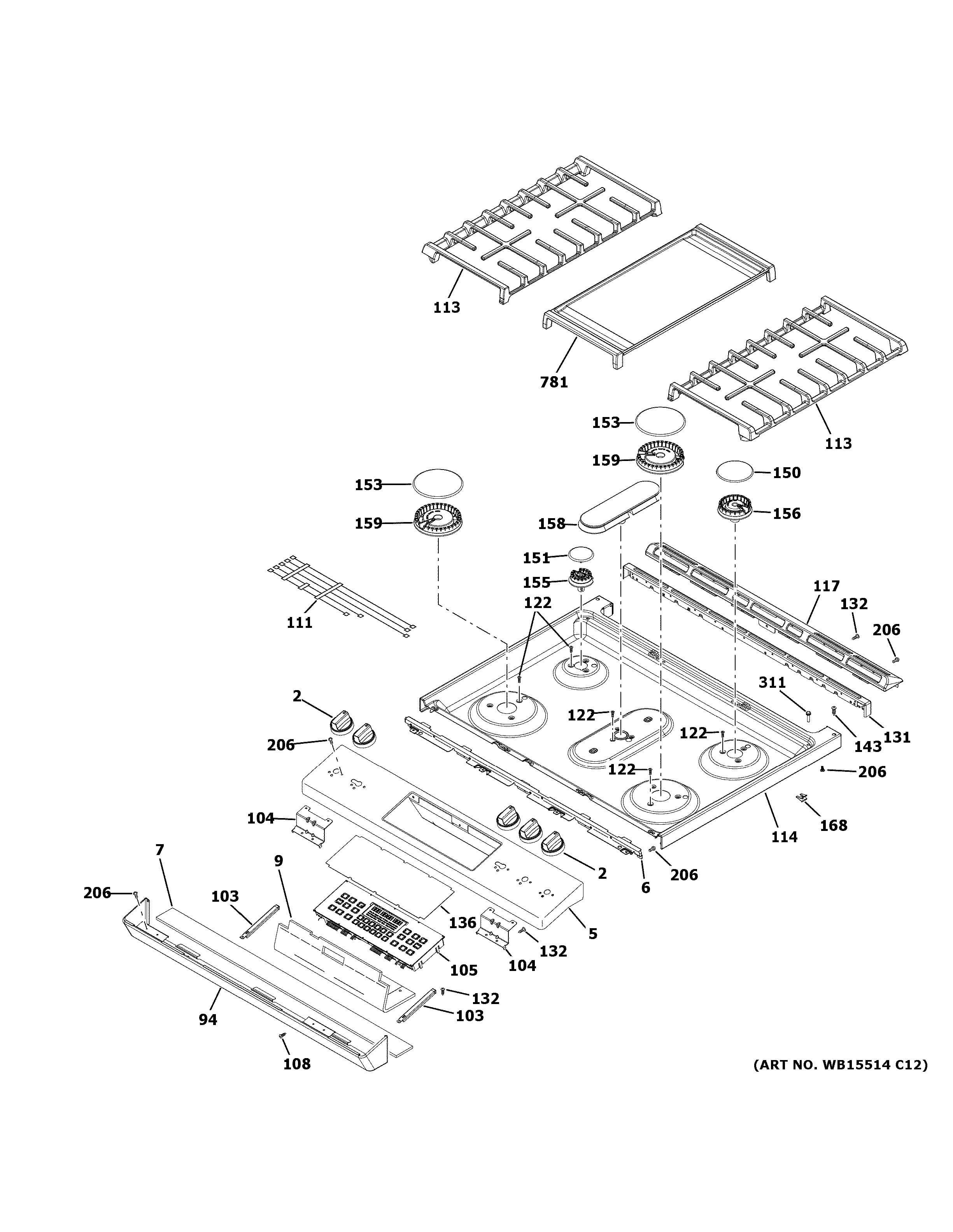

Use the diagram to find the number of the part you need.

2 — Diagram Number

KNOB ASSEMBLY

WB03X28129

No Longer Available
Item has been replaced by
WB03X42210

5 — Diagram Number

MANIFOLD PANEL UPPER

WB36X28213

^$138.01

Add to Cart

6 — Diagram Number

Range Panel Complement

WB36X28810

^$27.46

Add to Cart

7 — Diagram Number

INSULATION COOKTOP

WB35X36579

^$6.43

Add to Cart

9 — Diagram Number

CTRL INSULATION HOUSING

WB35X28981

^$24.77

Add to Cart

94 — Diagram Number

MANIFOLD PANEL LOWER

WB36X29269

^$72.27

Add to Cart

103 — Diagram Number

BRACKET

WB34X28235

^$6.19

Add to Cart

104 — Diagram Number

BRACKET

WB34X28238

^$6.29

Add to Cart

105 — Diagram Number

CONTROL OVEN ASSEMBLY

WB27X37851

^$294.35

Add to Cart

108 — Diagram Number

SCREW 8-18 AB X 5/16S

WB01X26995

^$7.59

Add to Cart

111 — Diagram Number

ELECTRODE TOP & HARNESS HV

WB18X33922

^$28.94

Add to Cart

113 — Diagram Number

GRATE ASM

WB31X28755

^$113.13

Add to Cart

114 — Diagram Number

Range Top

WB62X28228

^$351.45

Add to Cart

117 — Diagram Number

VENT TRIM

WB07X28819

^$36.14

Add to Cart

122 — Diagram Number

CKT SCREW

WB01X24735

^$7.59

Add to Cart

131 — Diagram Number

TRIM KIT

WB07X28824

^$87.89

Temporarily Out of Stock.

132 — Diagram Number

SCREW 8-18 AB TRPO 3/8 SS

WB01K10086

^$7.59

Add to Cart

136 — Diagram Number

RC15 OVERLAY

WB07X36583

^$20.21

Add to Cart

143 — Diagram Number

SCREW MTG END CAP

WB01X5754

No Longer Available
Item has been replaced by
NLA ITEM

150 — Diagram Number

Gas Range/Cooktop Medium Burner Cap (9500)

WB29K10023

^$18.97

Add to Cart

151 — Diagram Number

RANGE BURNER CAP - SMALL - V2

WB16X28654

^$9.10

Add to Cart

153 — Diagram Number

Gas Range XL Burner Cap

WB28K10222

^$28.84

Temporarily Out of Stock.

155 — Diagram Number

Gas Range Small Burner (5K)

WB16X24721

^$16.90

Add to Cart

156 — Diagram Number

Gas Range Medium Burner (9500)

WB16X24724

^$19.26

Add to Cart

158 — Diagram Number

Gas Range Oval Burner Assembly

WB16K10076

^$81.92

Add to Cart

159 — Diagram Number

Gas Range XL Burner

WB16X24722

^$37.98

Add to Cart

168 — Diagram Number

RANGE IGNITER CLIP V2

WB02X24976

^$7.61

Add to Cart

206 — Diagram Number

Screw

WB01K10091

^$7.61

Add to Cart

311 — Diagram Number

RANGE GRATE FOOT

WB02X24790

^$6.84

Temporarily Out of Stock.

781 — Diagram Number

Café Cast Iron Griddle

WB31X28254

^$162.79

Add to Cart
