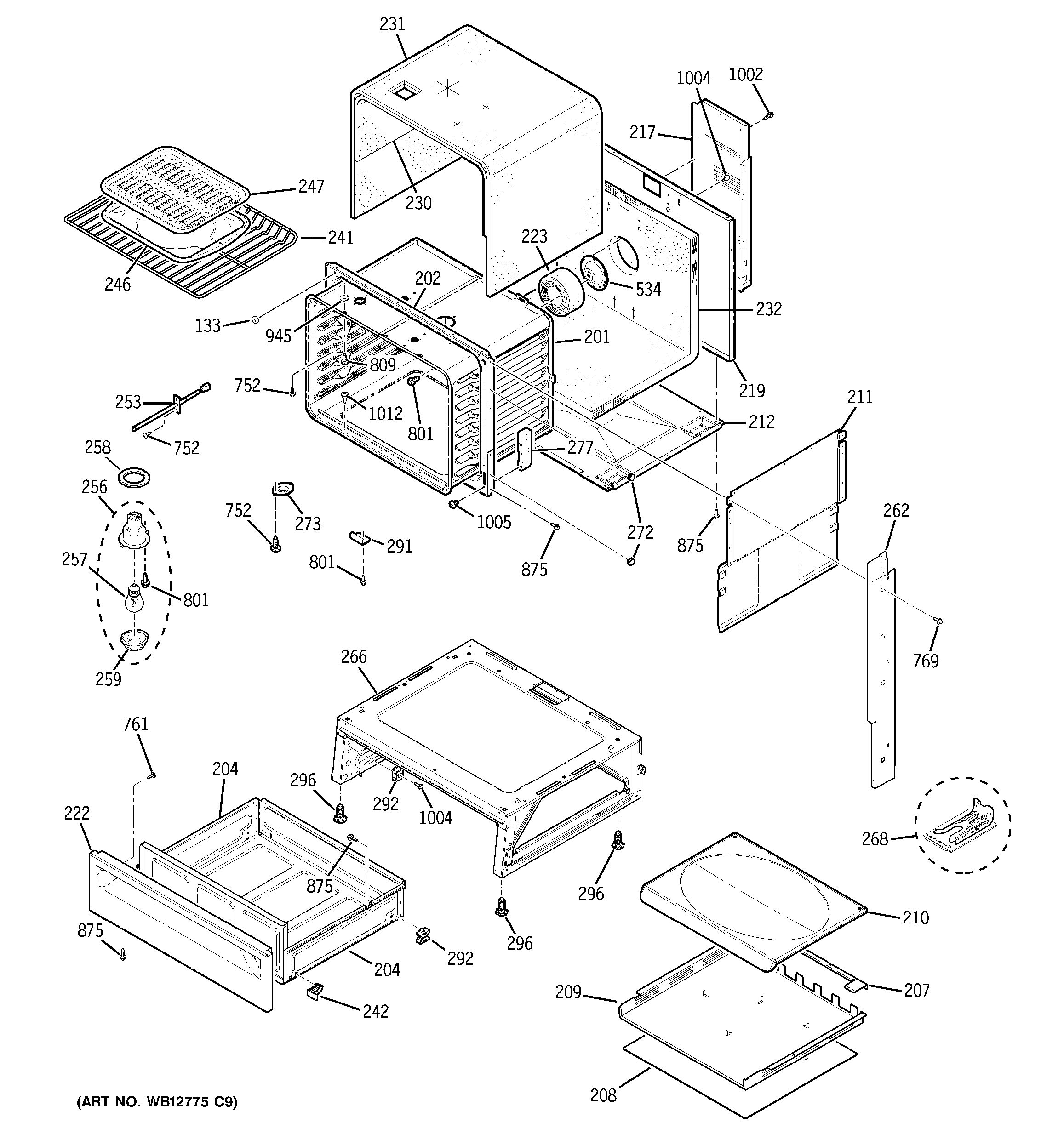

Assembly View for BODY PARTS

133 — Diagram Number

BUMPER DOOR

WB01T10022

^$6.07

Add to Cart

201 — Diagram Number

WRAPPER OVN CAV ASM

WB63T10102

No Longer Available
Item has been replaced by
NLA ITEM

202 — Diagram Number

FRAME FRT LWR

WB63T10083

^$99.10

Add to Cart

204 — Diagram Number

STORAGE DRAWER LINING

WB55T10046

No Longer Available
Item has been replaced by
WB55T10178

207 — Diagram Number

SUPPORT FALSE BTM

WB02T10192

No Longer Available
Item has been replaced by
NLA ITEM

208 — Diagram Number

INSULATION COMP SHLD

WB35T10091

No Longer Available
Item has been replaced by
NLA ITEM

209 — Diagram Number

SHIELD COMPRT

WB34T10080

No Longer Available
Item has been replaced by
NLA ITEM

210 — Diagram Number

Range Bottom Panel

WB63T10101

No Longer Available
Item has been replaced by
NLA ITEM

211 — Diagram Number

LOWER OVN INSLN RETAINER

WB02K5306

No Longer Available
Item has been replaced by
NLA ITEM

212 — Diagram Number

RETAINER INSLN BTM

WB02T10247

No Longer Available

Temporarily Out of Stock.

217 — Diagram Number

COVER WIRE REAR

WB34T10075

No Longer Available
Item has been replaced by
NLA ITEM

219 — Diagram Number

RETAINER INSLN BACK LWR

WB56T10136

No Longer Available
Item has been replaced by
NLA ITEM

222 — Diagram Number

DRAWER PANEL - BLACK

WB56T10022

No Longer Available
Item has been replaced by
NLA ITEM

223 — Diagram Number

OV INSULATION SUPPORT

WB35K5117

No Longer Available
Item has been replaced by
WB35T10090

230 — Diagram Number

INSULATION TOP & SDS INR

WB35T10088

No Longer Available

Temporarily Out of Stock.

231 — Diagram Number

INSULATION TOP & SDS OTR

WB35T10089

No Longer Available
Item has been replaced by
NLA ITEM

232 — Diagram Number

INSULATION BACK & BTM

WB35T10090

^$97.30

Add to Cart

241 — Diagram Number

Lower Oven Rack

WB48K5019

No Longer Available
Item has been replaced by
WB48T10095

242 — Diagram Number

Range Drawer Guide

WB48T10012

No Longer Available
Item has been replaced by
WB48T10068

246 — Diagram Number

BROILER PAN GRID

WB48T10005

No Longer Available
Item has been replaced by
WB48X10056

247 — Diagram Number

BROILER PAN

WB48T10006

No Longer Available
Item has been replaced by
WB48X10056

253 — Diagram Number

SENSOR ASM

WB21T10017

No Longer Available
Item has been replaced by
WB21X22134

256 — Diagram Number

Range Oven Lamp Assembly

WB08T10002

^$21.14

Add to Cart

257 — Diagram Number

LAMP APPLIANCE

WB08T10022

No Longer Available
Item has been replaced by
40A15

258 — Diagram Number

GASKET OVEN LIGHT

WB04T10021

^$5.36

Add to Cart

259 — Diagram Number

Range Oven Light Lens Cover

WB25T10002

^$6.19

Add to Cart

262 — Diagram Number

TRIM VERT SDE RT BLK

WB07T10391

No Longer Available
Item has been replaced by
NLA ITEM

262 — Diagram Number

TRIM VERT SDE LT

WB07T10392

No Longer Available

Temporarily Out of Stock.

266 — Diagram Number

BASE RIVET ASM

WB39T10006

No Longer Available

Temporarily Out of Stock.

268 — Diagram Number

BRACKET ASM ANTI TIP

WB02T10069

No Longer Available
Item has been replaced by
WB02T10415

272 — Diagram Number

RANGE PANEL SIDE SUPORT

WB02T10034

^$6.07

Add to Cart

273 — Diagram Number

COVER-LOWER

WB02K5365

No Longer Available
Item has been replaced by
WB2K5365

277 — Diagram Number

RECEIVER HINGE

WB10T10083

No Longer Available
Item has been replaced by
WB10X30495

292 — Diagram Number

Range Drawer Support - Front

WB48T10013

^$6.07

Add to Cart

292 — Diagram Number

Range Rear Drawer Support

WB48T10030

No Longer Available
Item has been replaced by
WB02X33180

296 — Diagram Number

Range Leveling Leg

WB02X10521

^$10.24

Add to Cart

296 — Diagram Number

LEVELING SCREW

WB01M0018

No Longer Available
Item has been replaced by
NLA ITEM

534 — Diagram Number

SUPPORT OVN CAV

WB02T10249

No Longer Available
Item has been replaced by
WB26T10015

752 — Diagram Number

Screw

WB01K5200

No Longer Available
Item has been replaced by
WB1K5200

761 — Diagram Number

SCREW (CR)

WB01X5364

No Longer Available
Item has been replaced by
WB1X5364

761 — Diagram Number

SCREW-BLACK

WB01K5029

No Longer Available
Item has been replaced by
WB1K5029

769 — Diagram Number

TERMINAL SCREW

WB01X0500

No Longer Available
Item has been replaced by
WB1X500D

801 — Diagram Number

SCREW ST10-16X.437HXNI

WB01M0001

No Longer Available
Item has been replaced by
WB1M1

809 — Diagram Number

SCREW ST10ABX.500TRNI

WB01X1137

No Longer Available
Item has been replaced by
WB1X1137

875 — Diagram Number

SCREW 8-18 AB HXW 3/8

WH02X0930

No Longer Available
Item has been replaced by
WH2X930

945 — Diagram Number

LOCKWASHER

WB01K5046

No Longer Available
Item has been replaced by
WB1K5046

1002 — Diagram Number

Screw 8-18 3/8

WB01T10017

^$6.07

Add to Cart

1004 — Diagram Number

SCREW COUPLE CLAMP

WH02X0941

No Longer Available
Item has been replaced by
WH2X941D

1005 — Diagram Number

Range Screw

WB01T10008

^$6.07

Add to Cart

1012 — Diagram Number

SCREW 10-16 SHLDR TYPE A

WB01T10048

^$5.67

Add to Cart

BODY PARTS

(JGSP28BEK2BB)

50 Results
