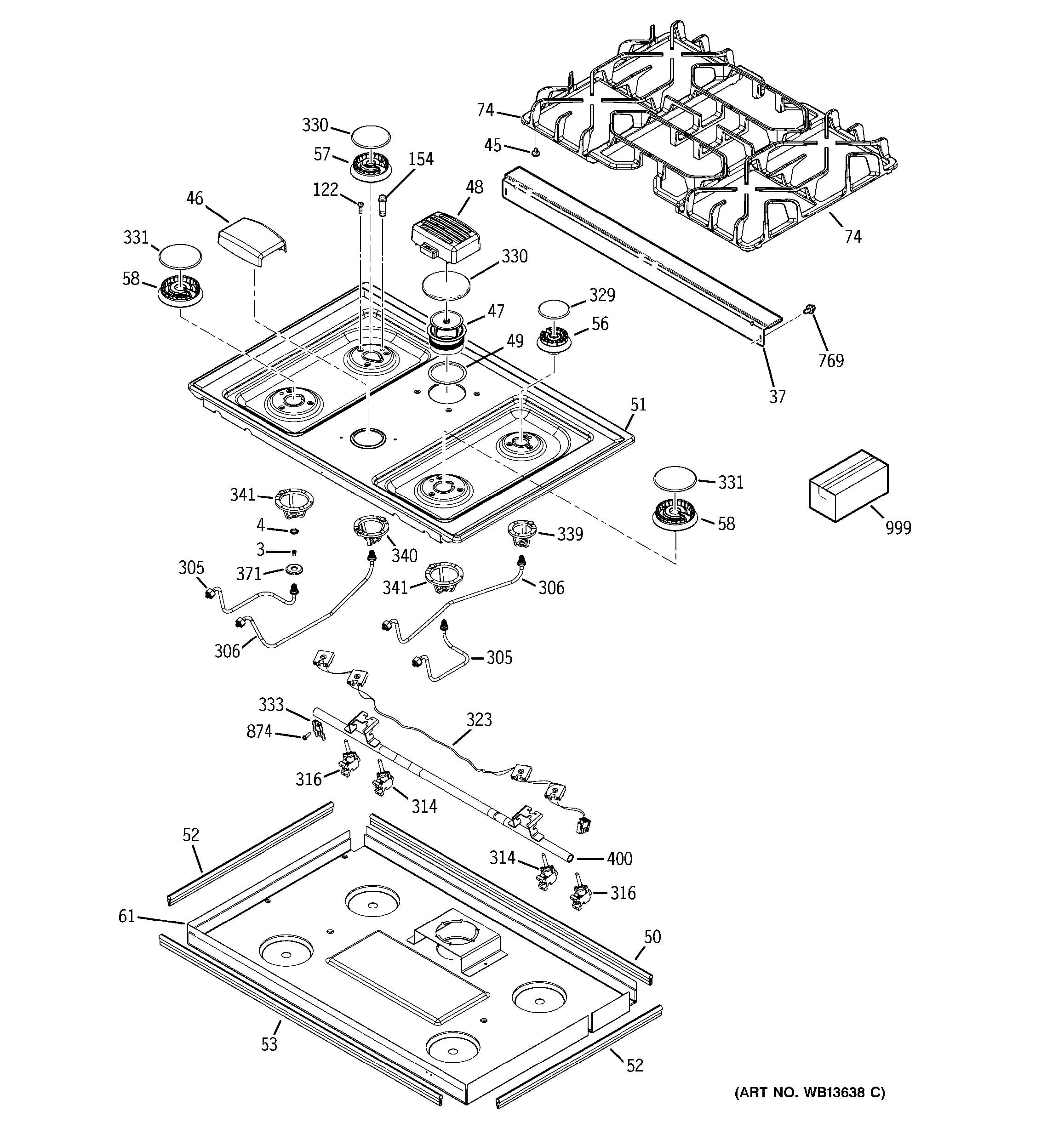

Assembly View for COOKTOP

3 — Diagram Number

PANEL CNTL BTM

WB36T10792

No Longer Available
Item has been replaced by
NLA ITEM

3 — Diagram Number

Gas range natural gas orifice

WB28K10030

^$18.17

Add to Cart

3 — Diagram Number

Range Orifice Spud Right Rear - NG to LP 63 mm

WB28K10031

^$18.17

Add to Cart

3 — Diagram Number

Range LP Orifice 99MM

WB28K10032

^$20.20

Add to Cart

3 — Diagram Number

Range Burner Orifice

WB28K10215

^$8.35

Add to Cart

4 — Diagram Number

Range Economic Nut

WB01K10037

^$6.09

Add to Cart

37 — Diagram Number

Range Backsplash Filler

WB36K10239

No Longer Available
Item has been replaced by
NLA ITEM

45 — Diagram Number

Grate Foot

WB02T10101

No Longer Available
Item has been replaced by
WB02T10461

46 — Diagram Number

COVER (BK)

WB31T10118

No Longer Available
Item has been replaced by
NLA ITEM

47 — Diagram Number

VENT CAP

WB38T10023

No Longer Available
Item has been replaced by
NLA ITEM

48 — Diagram Number

COVER VENT (BLACK)

WB31T10114

No Longer Available
Item has been replaced by
NLA ITEM

49 — Diagram Number

COOKTOP VENT GASKET

WB04T10055

No Longer Available
Item has been replaced by
NLA ITEM

50 — Diagram Number

GASKET MAINTOP RT

WB02T10148

No Longer Available
Item has been replaced by
WB02T10319

50 — Diagram Number

GASKET MAINTOP LT

WB02T10149

No Longer Available
Item has been replaced by
WB02T10320

51 — Diagram Number

MAINTOP ASM BK

WB62T10428

No Longer Available

Temporarily Out of Stock.

52 — Diagram Number

RANGE RURNER BOX GASKET

WB04T10052

No Longer Available
Item has been replaced by
NLA ITEM

53 — Diagram Number

RANGE RURNER BOX GASKET

WB04T10051

No Longer Available
Item has been replaced by
NLA ITEM

56 — Diagram Number

BURNER SMALL

WB16K10024

No Longer Available
Item has been replaced by
WB16K10070

57 — Diagram Number

BURNER-SURFACE

WB16K10023

No Longer Available
Item has been replaced by
WB16K10055

58 — Diagram Number

BURNER-LARGE

WB16K10025

No Longer Available
Item has been replaced by
WB16T10046

61 — Diagram Number

BOTTOM BURN BOX

WB64T10054

No Longer Available
Item has been replaced by
NLA ITEM

74 — Diagram Number

Gas range cast burner grate assembly

WB31T10111

^$264.21

Add to Cart

122 — Diagram Number

Range 6-32x12" Cooktop Screw

WB01K10008

No Longer Available
Item has been replaced by
NLA ITEM

154 — Diagram Number

RANGE SURFACE BURNER SPARK IGNITER

WB13K10014

No Longer Available
Item has been replaced by
NLA ITEM

305 — Diagram Number

TUBE ASM RT FRT

WB28T10140

No Longer Available

Temporarily Out of Stock.

305 — Diagram Number

TUBE ASM LT FRT

WB28T10143

No Longer Available
Item has been replaced by
NLA ITEM

306 — Diagram Number

TUBE ASM RT RR

WB28T10141

No Longer Available
Item has been replaced by
NLA ITEM

306 — Diagram Number

TUBE ASM LT RR

WB28T10142

No Longer Available
Item has been replaced by
NLA ITEM

314 — Diagram Number

VALVE GAS LF

WB19T10036

No Longer Available
Item has been replaced by
WB21X22075

316 — Diagram Number

Range Surface Burner Valve - Left Rear

WB19T10042

No Longer Available
Item has been replaced by
NLA ITEM

316 — Diagram Number

Range Oven Igniter

WB13T10045

^$133.59

Add to Cart

323 — Diagram Number

HARNESS SWITCH

WB18T10343

No Longer Available
Item has been replaced by
NLA ITEM

329 — Diagram Number

Gas range small burner cap (black)

WB29K10009

^$7.28

Add to Cart

330 — Diagram Number

Gas range surface burner cap (black)

WB29K10001

^$62.43

Temporarily Out of Stock.

330 — Diagram Number

Range Surface Burner Cap

WB13T10035

No Longer Available
Item has been replaced by
NLA ITEM

331 — Diagram Number

Range Burner Cap - Large Black

WB29K10006

^$85.71

Add to Cart

333 — Diagram Number

CLAMP

WB06X0093

No Longer Available
Item has been replaced by
WB6X93

339 — Diagram Number

CKT BRACKET SMALL

WB02K10079

No Longer Available
Item has been replaced by
WB02K10360

340 — Diagram Number

CKT BRACKET MID

WB02K10078

No Longer Available
Item has been replaced by
WB02K10361

341 — Diagram Number

CKT BRACKET LG

WB02K10080

No Longer Available
Item has been replaced by
NLA ITEM

371 — Diagram Number

RANGE BURNER BOX SEAL - ORANGE

WB04T10053

No Longer Available
Item has been replaced by
NLA ITEM

400 — Diagram Number

PIPE MANIFOLD

WB28T10139

No Longer Available
Item has been replaced by
NLA ITEM

769 — Diagram Number

TERMINAL SCREW

WB01X0500

No Longer Available
Item has been replaced by
WB1X500D

874 — Diagram Number

Screw

WB01M0014

No Longer Available
Item has been replaced by
WB1M14

999 — Diagram Number

HARNESS WIRE BURNER

WB18T10373

No Longer Available
Item has been replaced by
NLA ITEM

COOKTOP

(JGSP28BEK2BB)

45 Results
