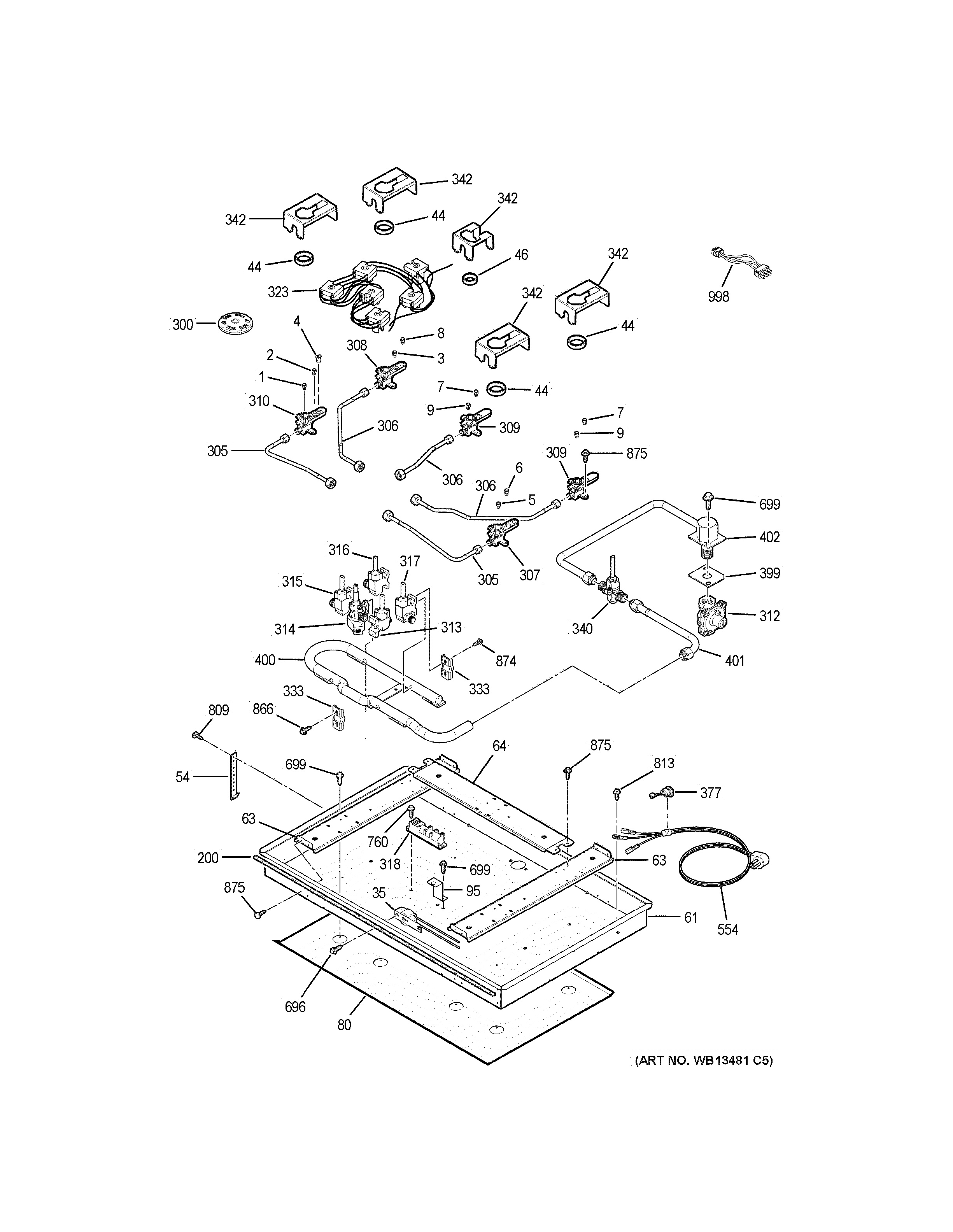

Assembly View for GAS & BURNER PARTS

1 — Diagram Number

Range Connector (NG Orifice)

WB28T10014

^$12.47

Add to Cart

2 — Diagram Number

Gas range burner orifice spud

WB28T10151

^$11.10

Add to Cart

3 — Diagram Number

Gas Range Burner Orifice-Propane

WB28T10017

^$13.49

Add to Cart

4 — Diagram Number

Range Economic Nut

WB01K10037

^$6.09

Add to Cart

5 — Diagram Number

Gas range LP orifice spud, right front

WB28T10033

No Longer Available
Item has been replaced by
NLA ITEM

6 — Diagram Number

gas orifice, natural gas, right front t burner

WB28T10027

^$6.93

Add to Cart

7 — Diagram Number

Gas Burner Orifice

WB28T10028

^$10.29

Add to Cart

8 — Diagram Number

Range Natural Gas Orifice Spud

WB28T10015

^$8.76

Add to Cart

9 — Diagram Number

Range Orifice Spud Propane

WB28K10085

No Longer Available
Item has been replaced by
WB28K10288

35 — Diagram Number

RANGE BUZZER

WB08T10039

^$66.57

Add to Cart

44 — Diagram Number

Range Large Burner Grommet

WB02T10095

^$10.01

Add to Cart

46 — Diagram Number

RANGE BURNER GROMMET - SMALL

WB02T10096

^$5.00

Add to Cart

54 — Diagram Number

HOLD DOWN BRACKET

WB02K5328

No Longer Available
Item has been replaced by
WB2K5328

61 — Diagram Number

BOTTOM BURN BOX

WB64T10047

^$78.80

Add to Cart

63 — Diagram Number

RANGE SUPPORT BRACKET

WB02T10099

^$5.00

Add to Cart

63 — Diagram Number

BRACKET BURNER SUPPORT

WB02T10262

^$13.80

Add to Cart

64 — Diagram Number

BURNER SUPPORT BRACKET

WB02T10100

^$15.63

Add to Cart

80 — Diagram Number

SHIELD BURN BOX BTM

WB34T10103

^$48.76

Add to Cart

95 — Diagram Number

RANGE BRACKET

WB02T10257

No Longer Available
Item has been replaced by
NLA ITEM

200 — Diagram Number

FOAM TAPE

WB06K5042

No Longer Available
Item has been replaced by
WB02X26088

300 — Diagram Number

COOKTOP SPLASH GUARD SWITCH

WB02X21824

^$17.80

Add to Cart

305 — Diagram Number

TUBE BURNER RT FRT

WB28T10058

^$18.80

Add to Cart

305 — Diagram Number

TUBE BURNER RF

WB28T10060

^$20.55

Add to Cart

306 — Diagram Number

TUBE BURNER RT RR

WB28T10059

^$19.10

Add to Cart

306 — Diagram Number

TUBE BURNER RR

WB28T10061

^$16.40

Add to Cart

306 — Diagram Number

TUBE BURNER CENTER

WB28T10119

^$26.88

Add to Cart

307 — Diagram Number

BURNER INJET RF

WB28T10210

No Longer Available

Temporarily Out of Stock.

308 — Diagram Number

BURNER INJET LR

WB28T10208

^$36.70

Add to Cart

310 — Diagram Number

BURNER INJET LR

WB28T10092

^$69.28

Add to Cart

312 — Diagram Number

Range Pressure Regulator

WB19T10078

^$46.12

Add to Cart

313 — Diagram Number

VALVE GAS RR

WB19T10045

No Longer Available
Item has been replaced by
NLA ITEM

314 — Diagram Number

VALVE GAS RR

WB19T10035

No Longer Available
Item has been replaced by
NLA ITEM

315 — Diagram Number

VALVE GAS LF

WB19T10060

No Longer Available
Item has been replaced by
WB21X22049

316 — Diagram Number

VALVE GAS LR

WB19T10044

No Longer Available
Item has been replaced by
NLA ITEM

317 — Diagram Number

VALVE GAS RF

WB19T10047

^$109.43

Add to Cart

318 — Diagram Number

Range Spark Igniter Generator Module

WB13T10047

No Longer Available
Item has been replaced by
NLA ITEM

323 — Diagram Number

RANGE SWITCH HARNESS

WB18T10454

^$66.14

Add to Cart

333 — Diagram Number

COOKTOP VALVE CLAMP

WB02X22720

No Longer Available
Item has been replaced by
NLA ITEM

340 — Diagram Number

RANGE VALVE LOCKOUT

WB19T10039

No Longer Available
Item has been replaced by
NLA ITEM

342 — Diagram Number

RANGE MAINTOP SUPPORT

WB02T10102

^$6.60

Add to Cart

342 — Diagram Number

RANGE MAINTOP SUPPORT - SMALL

WB02T10104

No Longer Available
Item has been replaced by
NLA ITEM

377 — Diagram Number

STRAIN RELIEF-RT ANGLE

WB02K5275

No Longer Available
Item has been replaced by
WB2K5275

399 — Diagram Number

GAS COOKTOP MANIFOLD SEAL

WB04T10043

^$5.67

Add to Cart

400 — Diagram Number

PIPE MANIFOLD

WB28T10122

No Longer Available
Item has been replaced by
NLA ITEM

401 — Diagram Number

TUBE (7/16)

WB28T10120

No Longer Available
Item has been replaced by
NLA ITEM

402 — Diagram Number

TUBE (7/16)

WB28T10121

^$99.02

Add to Cart

554 — Diagram Number

CORD RANGE

WB18X25912

^$63.47

Add to Cart

699 — Diagram Number

SCREW ST10-16X.437HEX ZN

WB01K5150

No Longer Available
Item has been replaced by
WB1M1

760 — Diagram Number

SCREW ST8-18X.437HEXNI

WB01K5028

No Longer Available
Item has been replaced by
WB1X536

809 — Diagram Number

SCREW ST10ABX.500TRNI

WB01X1137

No Longer Available
Item has been replaced by
WB1X1137

813 — Diagram Number

SCREW GROUND

WB01X1261

No Longer Available
Item has been replaced by
WB1X1261

874 — Diagram Number

Screw

WB01M0014

No Longer Available
Item has been replaced by
WB1M14

875 — Diagram Number

SCREW 8-18 AB HXW 3/8

WH02X0930

No Longer Available
Item has been replaced by
WH2X930

998 — Diagram Number

HARNESS WIRE BURNER

WB18X25911

No Longer Available
Item has been replaced by
NLA ITEM

GAS & BURNER PARTS

(JGP970SEK6SS)

54 Results
