CONTROL PANEL & COOKTOP

(JGB720DEJ1WW)

30 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

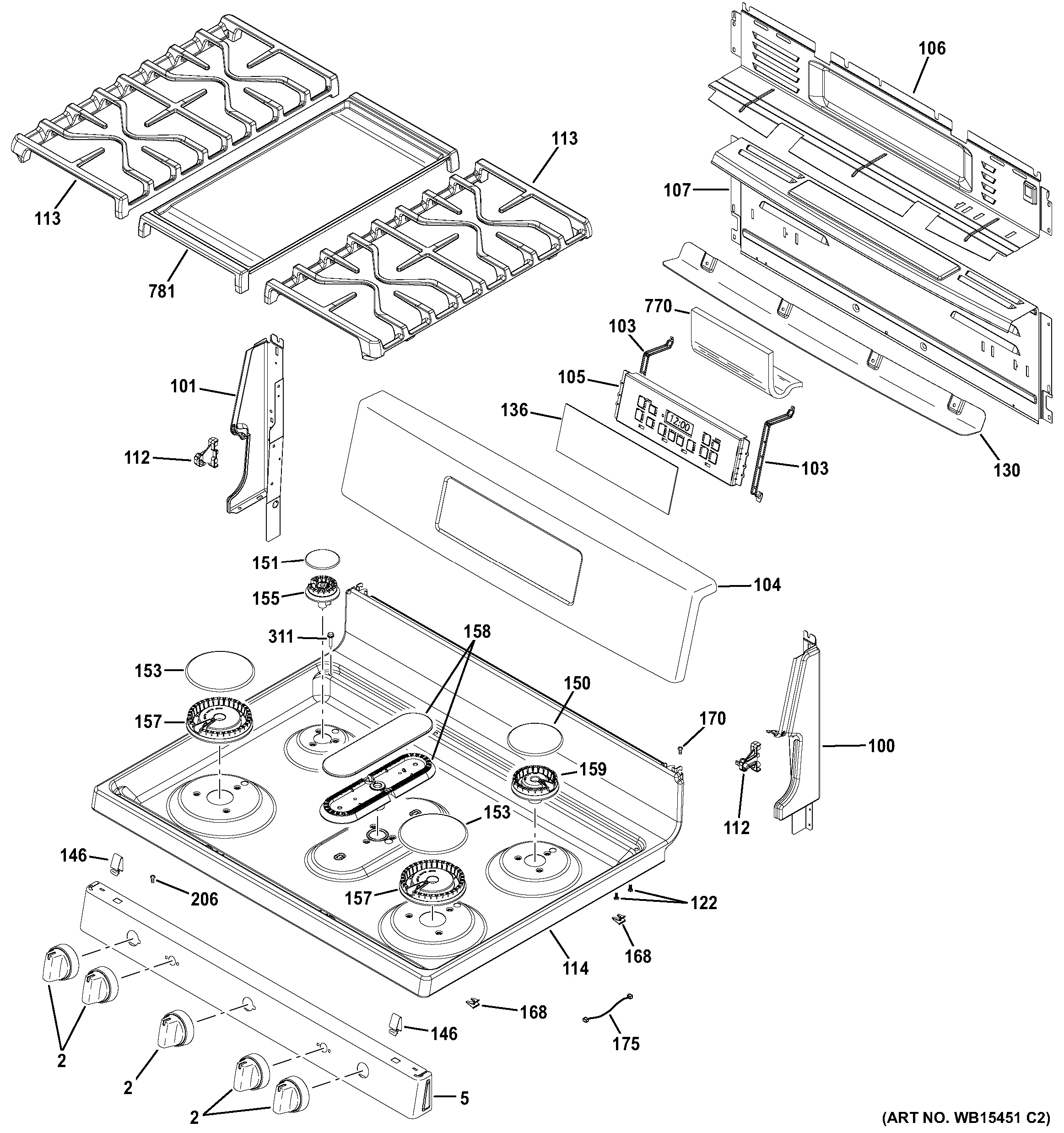

Use the diagram to find the number of the part you need.

2 — Diagram Number

Range Surface Burner Knob

WB03X24795

^$14.41

Add to Cart

5 — Diagram Number

MANIFOLD PANEL

WB36X25027

No Longer Available
Item has been replaced by
NLA ITEM

100 — Diagram Number

RANGE END SUPPORT - RIGHT - WHITE

WB07X24791

^$19.28

Add to Cart

101 — Diagram Number

RANGE END SUPPORT - LEFT - WHITE

WB07X24792

^$34.46

Add to Cart

103 — Diagram Number

RANGE CONTROL BRACKET

WB02X24845

^$7.95

Add to Cart

104 — Diagram Number

BACKGUARD RANGE

WB36X24875

^$57.99

Add to Cart

105 — Diagram Number

CONTROL OVEN TO9

WB27X24685

^$136.01

Add to Cart

106 — Diagram Number

COVER BACK UPPER

WB34X24851

^$56.19

Add to Cart

107 — Diagram Number

COVER BACK LOWER

WB34X24746

^$38.91

Add to Cart

112 — Diagram Number

HINGE RANGE TOP

WB14K10003

^$6.11

Add to Cart

113 — Diagram Number

Gas Range Side Cast Iron Grate

WB31X24736

^$114.88

Add to Cart

114 — Diagram Number

RANGETOP & BRKT ASM

WB62X24880

^$146.07

Add to Cart

122 — Diagram Number

CKT SCREW

WB01X24735

^$7.59

Add to Cart

130 — Diagram Number

BACKGUARD EYEBROW

WB34X25730

^$14.10

Add to Cart

136 — Diagram Number

RANGE CONTROL PANEL - WHITE

WB07X24879

^$37.18

Temporarily Out of Stock.

146 — Diagram Number

CLIP RANGETOP

WB02K0052

No Longer Available
Item has been replaced by
NLA ITEM

150 — Diagram Number

Gas Range/Cooktop Medium Burner Cap (9500)

WB29K10023

^$18.97

Temporarily Out of Stock.

151 — Diagram Number

Gas Range Small Burner Cap (5K)

WB29X24720

No Longer Available
Item has been replaced by
WB16X28654

153 — Diagram Number

Gas Range XL Burner Cap

WB28K10222

^$28.84

Add to Cart

155 — Diagram Number

Gas Range Small Burner (5K)

WB16X24721

^$16.90

Add to Cart

157 — Diagram Number

Gas Range XL Burner

WB16X24722

^$37.98

Add to Cart

158 — Diagram Number

Gas Range Oval Burner Assembly

WB16K10076

^$81.92

Add to Cart

159 — Diagram Number

Gas Range Medium Burner (9500)

WB16X24724

^$19.26

Add to Cart

168 — Diagram Number

RANGE IGNITER CLIP V2

WB02X24976

^$7.61

Add to Cart

170 — Diagram Number

END CAP SCREW - WHITE

WB01X5874

No Longer Available
Item has been replaced by
NLA ITEM

175 — Diagram Number

HARNESS GROUND

WB18X24748

^$6.19

Add to Cart

206 — Diagram Number

Screw

WB01K10091

^$7.61

Add to Cart

311 — Diagram Number

RANGE GRATE FOOT

WB02X24790

^$6.84

Temporarily Out of Stock.

770 — Diagram Number

INSULATION CONTROL

WB35X25588

^$13.87

Add to Cart

781 — Diagram Number

Non-Stick Aluminum Griddle

WB31X24738

No Longer Available
Item has been replaced by
WB31X49806
