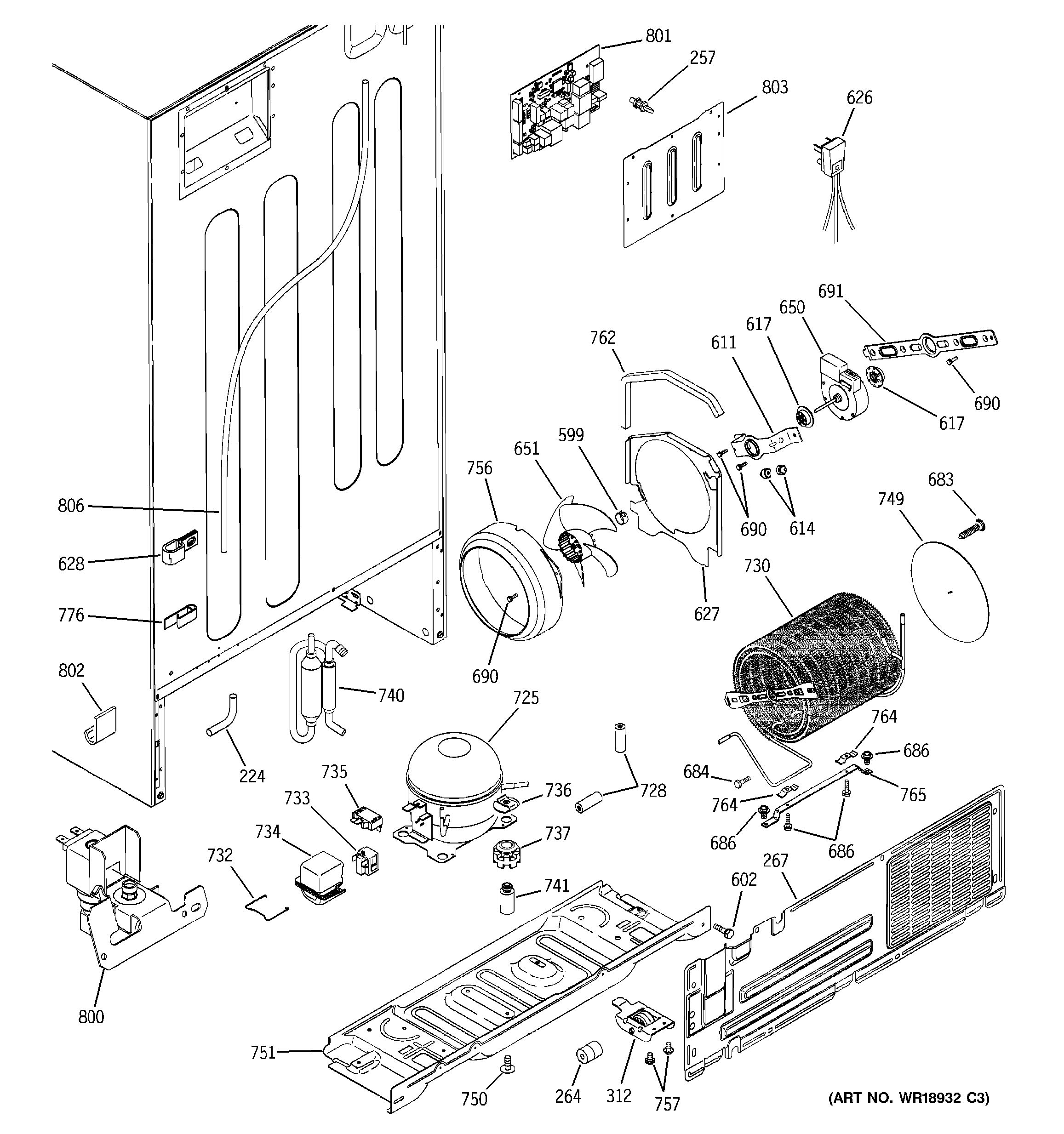

Assembly View for SEALED SYSTEM & MOTHER BOARD

224 — Diagram Number

TUBE DRAIN

WR02X10661

No Longer Available
Item has been replaced by
WR02X11426

257 — Diagram Number

STAND OFF

WR02X10663

^$6.99

Add to Cart

264 — Diagram Number

Refrigerator Wheel

WR02X10695

^$7.87

Add to Cart

267 — Diagram Number

ACCESS COVER

WR82X10077

No Longer Available
Item has been replaced by
WR82X10103

312 — Diagram Number

MOBILITY BACK ASM

WR02X10571

No Longer Available
Item has been replaced by
NLA ITEM

599 — Diagram Number

RING COMPRESSION FAN

WR02X10509

No Longer Available
Item has been replaced by
WR02X12149

602 — Diagram Number

Screw

WR01X1591

No Longer Available
Item has been replaced by
WR1X1591

611 — Diagram Number

BRKT COND FAN (MTG)

WR02X10521

No Longer Available
Item has been replaced by
WR02X11863

614 — Diagram Number

Refrigerator Grommet Lid Bumper

WR02X10540

^$6.07

Add to Cart

617 — Diagram Number

GROMMET FAN MOTOR

WR02X10520

^$7.41

Add to Cart

626 — Diagram Number

CORD POWER ASS'Y

WR23X0108

No Longer Available
Item has been replaced by
WR23X10300

627 — Diagram Number

BAFFLE CONDENSER

WR17X10691

No Longer Available
Item has been replaced by
WR17X35527

628 — Diagram Number

CLAMP CABLE

WR01X5278

No Longer Available
Item has been replaced by
WR1X5278

650 — Diagram Number

MOTOR DC COND FAN

WR60X10053

No Longer Available
Item has been replaced by
WR60X10209

651 — Diagram Number

BLADE COND FAN ASSY

WR60X10049

No Longer Available
Item has been replaced by
WR60X24484

683 — Diagram Number

PUSH FASTENER

WR02X10562

^$6.09

Add to Cart

684 — Diagram Number

SCREW 8-32 X 625 M HXW S

WB01T10047

No Longer Available
Item has been replaced by
NLA ITEM

686 — Diagram Number

SCREW 10-32 TT HXW 5/16

WR01X10252

No Longer Available
Item has been replaced by
WR01X10654

690 — Diagram Number

SCR 8-32 T HXW 3/8 S

WR01X1466

No Longer Available
Item has been replaced by
WZ5X158D

691 — Diagram Number

BRACKET COND FAN - REAR

WR02X10593

^$13.59

Add to Cart

725 — Diagram Number

COMP & TUBES ASM (SANYO)

WR87X10068

No Longer Available
Item has been replaced by
WR87X20798

728 — Diagram Number

GROMMET TUBING SLIT

WR14X10055

^$6.07

Add to Cart

730 — Diagram Number

CONDENSER REPL ASSEMBLY

WR84X10022

^$363.90

Not Available for Online Consumer Purchase
Call 1.800.432.2737 to Schedule Service.

732 — Diagram Number

COVER RELAY

WR02X8976

No Longer Available
Item has been replaced by
NLA ITEM

733 — Diagram Number

RELAY

WR07X0214

No Longer Available
Item has been replaced by
WR07X26748

734 — Diagram Number

COVER RELAY

WR02X9169

No Longer Available
Item has been replaced by
NLA ITEM

735 — Diagram Number

O'LOAD TI 4TM419RHBYY-53

WR08X10044

No Longer Available
Item has been replaced by
WR08X10015

736 — Diagram Number

CLIP COMPRESSOR MOUNT

WR02X8203

No Longer Available
Item has been replaced by
WR2X8203

737 — Diagram Number

GROMMET COMPRESSOR

WR02X10099

No Longer Available
Item has been replaced by
WR02X40305

740 — Diagram Number

DRYER FILTER ASS'Y

WR86X0096

No Longer Available
Item has been replaced by
WR86X25269

741 — Diagram Number

STUD MTG COMPR

WR01X1779

No Longer Available
Item has been replaced by
WR1X1779

749 — Diagram Number

BAFFLE COND AIR

WR17X10694

No Longer Available
Item has been replaced by
WR17X13159

750 — Diagram Number

SCREW 10-32 TR 1/2

WR01X1786

No Longer Available
Item has been replaced by
WR1X1786

751 — Diagram Number

BASEPLATE HIGH SIDE

WR17X10966

No Longer Available
Item has been replaced by
NLA ITEM

756 — Diagram Number

SHROUD CONDENSER

WR17X10726

No Longer Available
Item has been replaced by
WR17X35527

757 — Diagram Number

SCR 10-32 SPECIAL

WR01X10193

No Longer Available
Item has been replaced by
WR01X10194

762 — Diagram Number

FOAM STRIP SE ADH

WR14X10053

^$5.67

Add to Cart

764 — Diagram Number

CLIP, CONDENSER MOUNT

WR02X9000

No Longer Available
Item has been replaced by
WR2X9000

765 — Diagram Number

Bracket Condenser Bar

WR17X10763

^$8.35

Add to Cart

776 — Diagram Number

CLAMP TUBE

WR02X10522

^$6.07

Add to Cart

800 — Diagram Number

WATER VALVE WITH GUARD

WR57X10036

No Longer Available
Item has been replaced by
WR57X10086

801 — Diagram Number

BOARD MAIN ASM CONTROL

WR55X10151

No Longer Available
Item has been replaced by
WR55X10942

802 — Diagram Number

CLIP U

WR01X1360

No Longer Available
Item has been replaced by
NLA ITEM

803 — Diagram Number

COVER MAIN BOARD ASM

WR02X10871

No Longer Available

Temporarily Out of Stock.

806 — Diagram Number

TUBE PLASTIC

WR17X10920

No Longer Available
Item has been replaced by
WR17X11349

SEALED SYSTEM & MOTHER BOARD

(GTS22ICMBRWW)

45 Results
